Here you will find all available parts and drawings of the 'Hikoki G13SB3'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

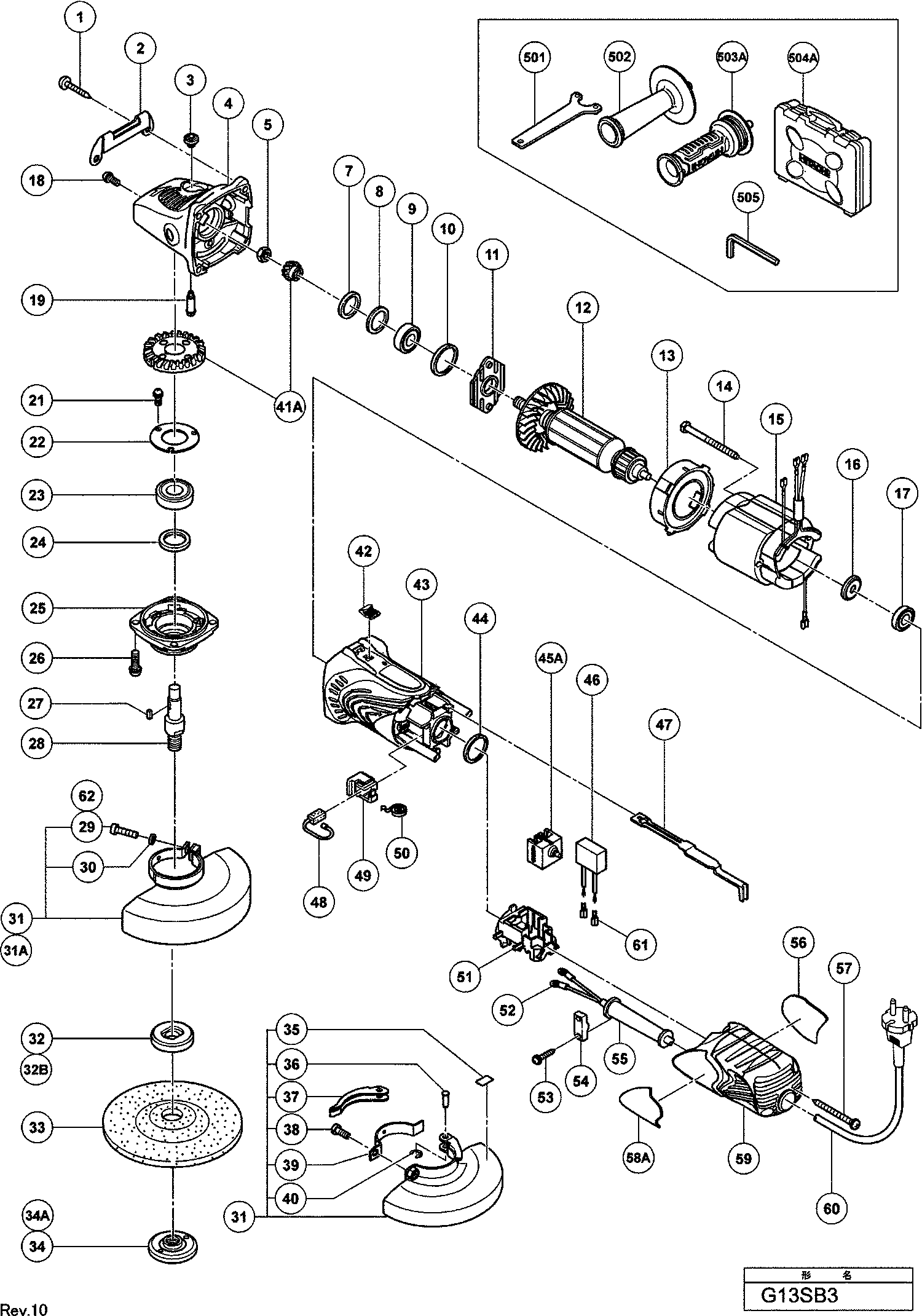

Technical drawing of model Hikoki G13SB3
Spare parts list of model Hikoki G13SB3
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| ARMATURE 230-240 VOLT | ||||
| *12 | 360734E | 41.39 | 50.08 | |
| Stator 230v | ||||
| *15 | 340645E | 28.19 | 34.11 | |
| Stator 230v | ||||
| *15 | 340932E | 26.40 | 31.94 | |
| Wheel Guard Ass'y Includ.62 For Aus | ||||
| *31A | 333537 | 14.40 | 17.42 | |
| Cord (cord Armor D8.8) For Pan | ||||
| *60 | 500447Z | 6.60 | 7.99 | |
| SNOER 10.7 (USE 714500=2X1 5M) | ||||
| *60 | 500247Z | 6.18 | 7.48 | |
| Tapping Screw D5x25 (black) | ||||
| 1 | 320523 | 1.35 | 1.63 | |
| Guard Plate | ||||
| 2 | 325053 | 1.05 | 1.27 | |
| Pushing Button | ||||
| 3 | 301944 | 1.04 | 1.26 | |
| Gear Cover | ||||
| 4 | 321737 | 36.44 | 44.09 | |
| Nut M8 (10 Pcs.) | ||||
| 5 | 949558 | 1.05 | 1.27 | |
| Seal Ring (a) | ||||
| 7 | 308543 | 1.04 | 1.26 | |
| Washer (c) | ||||
| 8 | 980866 | 1.04 | 1.26 | |
| Ball bearing 629t12ddc3ps2-l | ||||
| 9 | 629T12 | 9.83 | 11.89 | |
| Rubber Ring | ||||
| 10 | 957754 | 1.20 | 1.45 | |
| Bearing Cover | ||||
| 11 | 321734 | 1.35 | 1.63 | |
| ANKER 110 VOLT | ||||
| 12 | 360734C | 46.04 | 55.71 | |
| ARMATURE 230-240 VOLT | ||||
| 12 | 360734E | 41.39 | 50.08 | |
| Fan Guide | ||||
| 13 | 321732 | 1.35 | 1.63 | |
| Hex. Hd. Tapping Screw D4x70 | ||||
| 14 | 982021 | 1.04 | 1.26 | |
| Stator 230v | ||||
| 15 | 340645E | 28.19 | 34.11 | |
| Stator 230v | ||||
| 15 | 340932E | 26.40 | 31.94 | |
| VELD 110 VOLT | ||||
| 15 | 340645C | 24.64 | 29.81 | |
| Dust Seal | ||||
| 16 | 315877 | 1.05 | 1.27 | |
| Ball Bearing 608vvc2ps2l | ||||
| 17 | 608VVM | 5.70 | 6.90 | |
| SEAL LOCK SCREW M4X10 | ||||
| 18 | 303255 | 1.04 | 1.26 | |
| Lock Pin | ||||
| 19 | 301943 | 1.65 | 2.00 | |
| Seal Lock Screw (w/sp. Washer) M4x8 | ||||
| 21 | 991207 | 1.04 | 1.26 | |
| Bearing Cover (b) | ||||
| 22 | 936680 | 1.04 | 1.26 | |
| Ball Bearing 6201ddcmps2l | ||||
| 23 | 6201DD | 6.30 | 7.62 | |
| Felt Packing | ||||
| 24 | 308546 | 1.04 | 1.26 | |
| Inner Cover | ||||
| 25 | 308545 | 7.35 | 8.89 | |
| Seal Lock Screw (w/sp. Washer) M5x16 | ||||
| 26 | 307046 | 1.04 | 1.26 | |
| Feather Key 3x3x8 | ||||
| 27 | 944109 | 1.70 | 2.06 | |
| Spindle Ass'y | ||||
| 28 | 994301 | 14.25 | 17.24 | |
| Spindle (b) | ||||
| 28 | 994302 | 13.89 | 16.80 | |
| Machine Screw M5x20 (10 pieces) | ||||
| 29 | 949241 | 1.35 | 1.63 | |
| Hex. Socket Hd. Bolt (w/washers) M5x20 | ||||
| 29A | 316107 | 1.80 | 2.18 | |
| Spring Washer M5 (10 pieces) | ||||
| 30 | 949454 | 1.04 | 1.26 | |
| Wheel Guard Ass'y Includ.27,28 | ||||
| 31 | 320192 | 14.16 | 17.14 | |
| Wheel Guard Ass'y Includ.62 For Aus | ||||
| 31A | 333537 | 14.40 | 17.42 | |
| Guard | ||||
| 31A | 337231 | 10.35 | 12.52 | |
| No information available, not orderable | ||||
| 32 | 937817Z | |||
| Wheel Washer (c) For Pan (120v) | ||||
| 32B | 334456 | 2.10 | 2.54 | |
| No information available, not orderable | ||||
| 33 | 316822 | |||
| No information available, not orderable | ||||
| 34 | 994324 | |||
| No information available, not orderable | ||||
| 34A | 337329 | |||
| No information available, not orderable | ||||
| 34B | 339579 | |||
| Label | ||||
| 35 | 311492 | 1.20 | 1.45 | |
| Set Pin Till 11.2014 | ||||
| 36 | 311744 | 1.20 | 1.45 | |
| Lever | ||||
| 37 | 311743 | 5.75 | 6.96 | |
| Machine Screw (w/washers) M5x25 (black) | ||||
| 38 | 880734 | 1.04 | 1.26 | |
| Bracket for protective cover | ||||
| 39 | 311491 | 4.65 | 5.63 | |
| Retaining Ring (e-type) For D2.5 Shaft | ||||
| 40 | 874759 | 1.04 | 1.26 | |
| Gear And Pinion Set | ||||
| 41A | 329054 | 16.36 | 19.80 | |
| Slide Knob | ||||
| 42 | 314428 | 1.04 | 1.26 | |
| Housing | ||||
| 43 | 325050 | 16.50 | 19.96 | |
| Rubber Ring | ||||
| 44 | 321733 | 1.35 | 1.63 | |
| No longer available, no replacement | ||||
| 45A | 319319 | |||
| SCHAKELAAR | ||||
| 45B | 377478 | 6.84 | 8.28 | |
| PUSHING BUTTON SWITCH | ||||
| 45C | 376230 | 7.20 | 8.71 | |
| Noise Suppressor | ||||
| 46 | 994273 | 4.29 | 5.19 | |
| Noise Suppressor | ||||
| 46 | 930039 | 1.95 | 2.36 | |
| Slide Bar | ||||
| 47 | 370014 | 1.35 | 1.63 | |
| Slide Bar | ||||
| 47 | 325051 | 1.05 | 1.27 | |
| Carbon Brush (1 Pair) | ||||
| 48 | 999088 | 4.50 | 5.44 | |
| Brush Holder | ||||
| 49 | 317810 | 4.80 | 5.81 | |
| Spring | ||||
| 50 | 308536 | 1.65 | 2.00 | |
| Switch Holder | ||||
| 51 | 370012 | 1.35 | 1.63 | |
| Switch Holder | ||||
| 51 | 325054 | 1.05 | 1.27 | |
| connecting terminal | ||||
| 52 | 980063 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 53 | 984750 | |||
| Cord Clip | ||||
| 54 | 937631 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 55 | 953327 | |||
| Tapping Screw (w/flange) D4x45 (black) | ||||
| 57 | 301815 | 1.05 | 1.27 | |
| Brand Label | ||||
| 58A | 334347 | 1.05 | 1.27 | |
| Tail Cover | ||||
| 59 | 325052 | 10.35 | 12.52 | |
| Cord (cord Armor D8.8) For Uae (240v) | ||||
| 60 | 500461Z | 17.88 | 21.63 | |
| Cord (cord Armor D8.8) For Mex | ||||
| 60 | 500240Z | 13.18 | 15.94 | |
| Cord (cord Armor D8.8) For Pan | ||||
| 60 | 500447Z | 6.60 | 7.99 | |
| SNOER 10.7 (USE 714500=2X1 5M) | ||||
| 60 | 500247Z | 6.18 | 7.48 | |
| Faston Terminal For Noise Suppressor | ||||
| 61 | 319320 | 1.35 | 1.63 | |
| Hex. Socket Hd. Bolt M5x20 (10 Pcs.) For Europe | ||||
| 62 | 949757 | 3.00 | 3.63 | |
| Varistor (b) For Model (s) | ||||
| 63 | 370013 | 5.85 | 7.08 | |
| No information available, not orderable | ||||
| 501 | 938332Z | |||
| No information available, not orderable | ||||
| 502 | 994322 | |||
| No information available, not orderable | ||||
| 503A | 336865 | |||
| No information available, not orderable | ||||
| 503B | 381403 | |||
| No information available, not orderable | ||||
| 504A | 325515 | |||
| No information available, not orderable | ||||
| 505 | 944458 | |||
| No information available, not orderable | ||||
| 601 | 938317 | |||
| No information available, not orderable | ||||
| 602 | 938318 | |||
| No information available, not orderable | ||||
| 603 | 314062 | |||
| No information available, not orderable | ||||
| 604 | 314063 | |||
| No information available, not orderable | ||||
| 605 | 314064 | |||
| No information available, not orderable | ||||
| 606 | 314065 | |||
| No information available, not orderable | ||||
| 607 | 314066 | |||
| No information available, not orderable | ||||
| 608 | 314067 | |||
| No information available, not orderable | ||||
| 609 | 314068 | |||
| No information available, not orderable | ||||
| 610 | 314069 | |||
| No information available, not orderable | ||||
| 611 | 314070 | |||
| No information available, not orderable | ||||
| 612 | 314071 | |||
| No information available, not orderable | ||||
| 613 | 314072 | |||
| WHEEL WASHER | ||||
| 614 | 994312 | 3.84 | 4.65 | |
| No information available, not orderable | ||||
| 615 | 994313 | |||
| No information available, not orderable | ||||
| 616 | 310338 | |||
| No information available, not orderable | ||||
| 617 | 332787 | |||
| No information available, not orderable | ||||
| 618 | 332788 | |||
| Liquid Packing | ||||
| 619 | 324688 | 40.84 | 49.41 | |
