Here you will find all available parts and drawings of the 'Hikoki G13BA'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

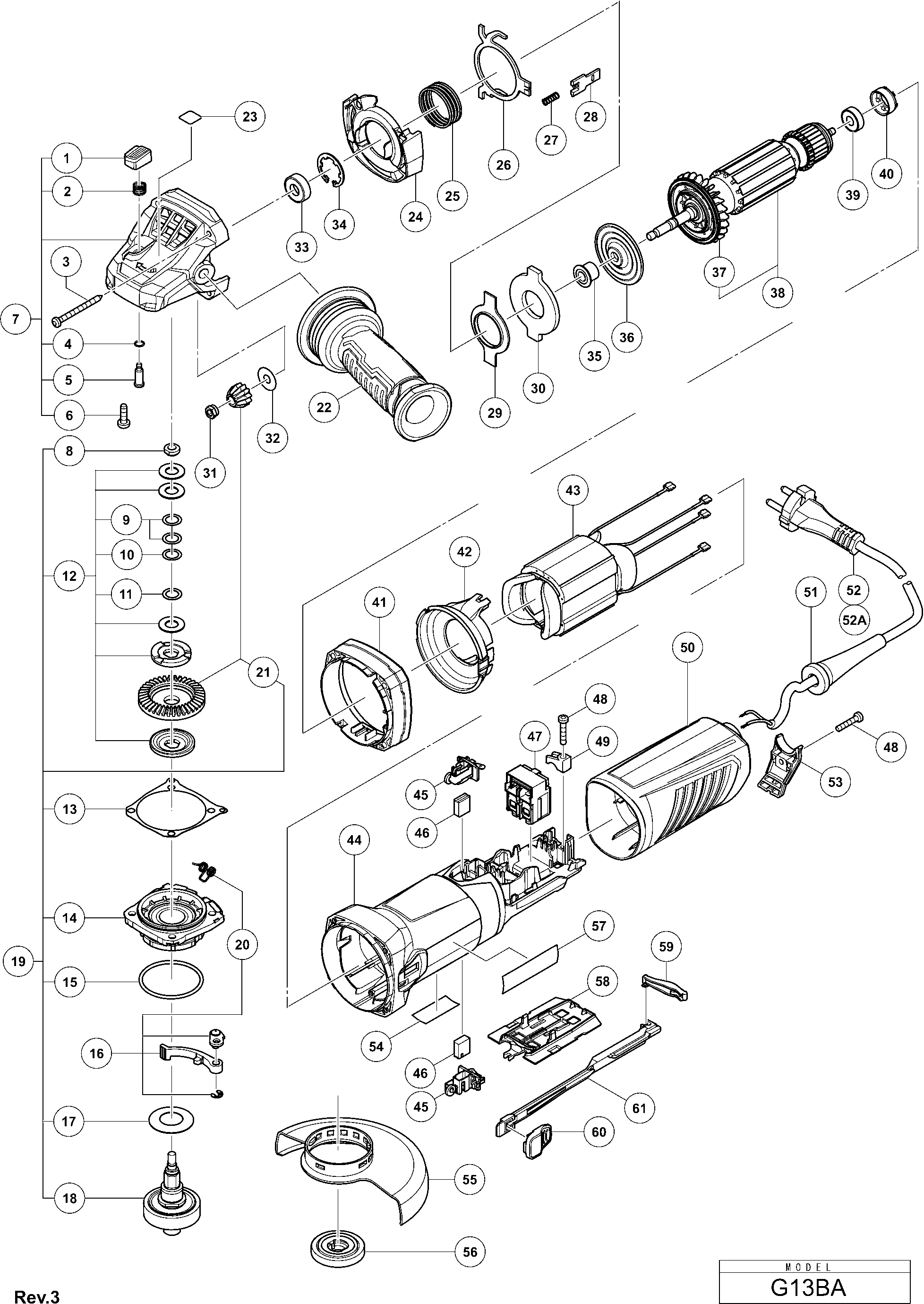

Technical drawing of model Hikoki G13BA
Spare parts list of model Hikoki G13BA
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Cord | ||||
| *52 | 372896 | 8.70 | 10.53 | |
| Pushing Button | ||||
| 1 | 372945 | 1.04 | 1.26 | |
| Spring (a) | ||||
| 2 | 372944 | 1.04 | 1.26 | |
| Torx Tapping Screw D4 | ||||
| 3 | 372920 | 1.04 | 1.26 | |
| O-ring (a) | ||||
| 4 | 372943 | 1.04 | 1.26 | |
| Lock Pin | ||||
| 5 | 372946 | 5.10 | 6.17 | |
| Torx Screw M5 | ||||
| 6 | 372919 | 1.04 | 1.26 | |
| Gear Cover Ass'y Includ.1,2,4-6 | ||||
| 7 | 372932 | 23.38 | 28.28 | |
| Nut M7 | ||||
| 8 | 372928 | 1.20 | 1.45 | |
| Washer 10.2x14.8x0.2 | ||||
| 9 | 372924 | 1.04 | 1.26 | |
| Washer 10.2x14.8x0.1 | ||||
| 10 | 372925 | 1.04 | 1.26 | |
| Washer 10.2x14.8x0.5 | ||||
| 11 | 372926 | 1.04 | 1.26 | |
| Friction Washer Assembly Including 9-11 | ||||
| 12 | 372931 | 7.95 | 9.62 | |
| Gasket | ||||
| 13 | 372918 | 1.04 | 1.26 | |
| Packing Gland | ||||
| 14 | 372927 | 5.55 | 6.72 | |
| O-ring (b) | ||||
| 15 | 372959 | 1.04 | 1.26 | |
| Lever Set Including 20 | ||||
| 16 | 372941 | 5.70 | 6.90 | |
| Ring | ||||
| 17 | 372949 | 1.04 | 1.26 | |
| Spindle | ||||
| 18 | 372922 | 35.75 | 43.26 | |
| Gear And Spindle Set Includ.8,12-15,17,18,21 | ||||
| 19 | 372935 | 72.46 | 87.68 | |
| Spring Clip | ||||
| 20 | 372916 | 1.04 | 1.26 | |
| Bevel Gear.pinion Set | ||||
| 21 | 372930 | 8.10 | 9.80 | |
| No information available, not orderable | ||||
| 22 | 336865 | |||
| Baffle | ||||
| 24 | 372901 | 1.04 | 1.26 | |
| Spring (c) | ||||
| 25 | 372956 | 1.04 | 1.26 | |
| Shift Lever | ||||
| 26 | 372953 | 1.20 | 1.45 | |
| Spring (b) | ||||
| 27 | 372955 | 1.04 | 1.26 | |
| Shift Element | ||||
| 28 | 372954 | 1.04 | 1.26 | |
| Support Plate | ||||
| 29 | 372952 | 1.04 | 1.26 | |
| Butting Plate | ||||
| 30 | 372950 | 3.75 | 4.54 | |
| Nut M6 | ||||
| 31 | 372909 | 1.04 | 1.26 | |
| Washer 7.05x19.5x0.2 | ||||
| 32 | 372908 | 1.04 | 1.26 | |
| Ball Bearing 8x22x7 | ||||
| 33 | 372907 | 1.65 | 2.00 | |
| Retaining Ring (1) | ||||
| 34 | 372942 | 1.04 | 1.26 | |
| Spacer Sleeve | ||||
| 35 | 372957 | 1.65 | 2.00 | |
| Brake Disc | ||||
| 36 | 372951 | 7.65 | 9.26 | |
| Fan | ||||
| 37 | 372938 | 2.10 | 2.54 | |
| Armature Ass'y 230v-240v Includ.37 | ||||
| 38 | 372889 | 49.36 | 59.73 | |
| Ball Bearing 6x19x6 | ||||
| 39 | 372904 | 1.65 | 2.00 | |
| Rubber Bushing | ||||
| 40 | 372905 | 1.04 | 1.26 | |
| Brake Flange | ||||
| 41 | 372958 | 2.55 | 3.09 | |
| Fan Guide | ||||
| 42 | 372899 | 1.04 | 1.26 | |
| Stator Ass'y 230v-240v | ||||
| 43 | 372891 | 23.38 | 28.28 | |
| Housing | ||||
| 44 | 372898 | 11.85 | 14.34 | |
| Brush Holder | ||||
| 45 | 372937 | 3.00 | 3.63 | |
| Carbon-brush Set | ||||
| 46 | 372940 | 5.25 | 6.35 | |
| Switch (1) | ||||
| 47 | 372893 | 14.85 | 17.97 | |
| Screw | ||||
| 48 | 371270 | 1.04 | 1.26 | |
| Cord Clip | ||||
| 49 | 371271 | 1.04 | 1.26 | |
| Tail Cover | ||||
| 50 | 372911 | 6.00 | 7.26 | |
| Cord Armor | ||||
| 51 | 371272 | 1.04 | 1.26 | |
| Cord | ||||
| 52 | 372896 | 8.70 | 10.53 | |
| No information available, not orderable | ||||
| 52A | 500503Z | |||
| End Cap | ||||
| 53 | 372913 | 1.04 | 1.26 | |
| Wheel Guard | ||||
| 55 | 372915 | 5.70 | 6.90 | |
| Wheel Nut | ||||
| 56 | 372702 | 4.05 | 4.90 | |
| Cover | ||||
| 58 | 372903 | 1.04 | 1.26 | |
| Pivoting Bar | ||||
| 59 | 372948 | 1.04 | 1.26 | |
| Slide Switch Knob | ||||
| 60 | 372914 | 1.04 | 1.26 | |
| Slide Bar | ||||
| 61 | 372910 | 3.75 | 4.54 | |
| Cutting Guard Clip | ||||
| 601 | 372701 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 602 | 372960 | |||
| Grease | ||||
| 603 | 371300 | 14.10 | 17.06 | |
