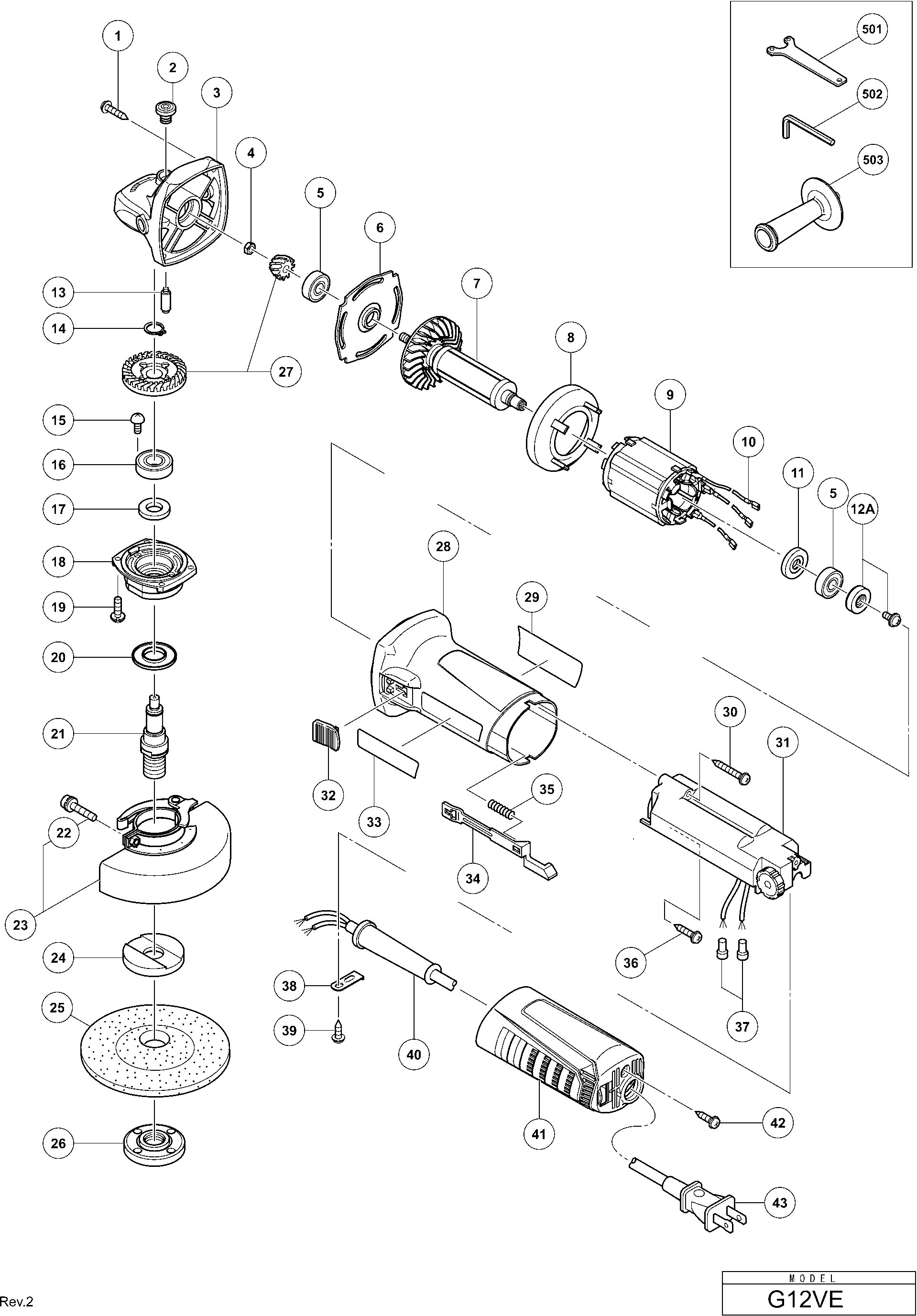

Technical drawing of model Hikoki G12VE
Spare parts list of model Hikoki G12VE
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Tapping Screw (w/flange) D4x23 (black) | ||||
| 1 | 328643 | 1.05 | 1.27 | |
| Pushing Button | ||||
| 2 | 301944 | 1.04 | 1.26 | |
| Gear Cover Ass'y Includ.2,10 | ||||
| 3 | 338332 | 7.50 | 9.08 | |
| GEAR COVER ASS'Y (OUD 338332) | ||||
| 3A | 370914 | 5.28 | 6.39 | |
| Special Nut M6 | ||||
| 4 | 309191 | 1.04 | 1.26 | |
| Ball Bearing 608ss | ||||
| 5 | 338337 | 2.25 | 2.72 | |
| Ball Bearing 608dd | ||||
| 5A | 608DDM | 5.55 | 6.72 | |
| Bearing Holder | ||||
| 6 | 334940 | 2.10 | 2.54 | |
| No information available, not orderable | ||||
| 7 | 361052 | |||
| Fan Guide | ||||
| 8 | 338346 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 9 | 340961D | |||
| FASTON NEW | ||||
| 10 | 370131 | 1.00 | 1.21 | |
| Dust Seal (1) | ||||
| 11 | 338336 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 12A | 371232 | |||
| SENSOR MAGNET (OLD 371232) | ||||
| 12B | 374287 | 12.15 | 14.70 | |
| Lock Pin | ||||
| 13 | 301943 | 1.65 | 2.00 | |
| Spring Washer D12 (10 pieces) | ||||
| 14 | 939542 | 1.50 | 1.82 | |
| Slotted Hd. Screw (seal Lock) M4 | ||||
| 15 | 334942 | 1.20 | 1.45 | |
| Slotted Head Screw (seal Lock) M4 | ||||
| 15A | 371814 | 1.04 | 1.26 | |
| Ball Bearing 6001vv | ||||
| 16 | 6001VV | 6.60 | 7.99 | |
| Felt Packing | ||||
| 17 | 301946 | 1.04 | 1.26 | |
| Packing Gland | ||||
| 18 | 334938 | 4.20 | 5.08 | |
| Seal Lock Screw (w/sp. Washer) M4x12 | ||||
| 19 | 307127 | 1.05 | 1.27 | |
| Fringer | ||||
| 20 | 301945 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 21 | 370723 | |||
| Hex. Socket Hd. Bolt (w/washers) M5x20 | ||||
| 22 | 316107 | 1.80 | 2.18 | |
| Guard | ||||
| 23 | 337229 | 8.70 | 10.53 | |
| No information available, not orderable | ||||
| 24 | 319373 | |||
| No information available, not orderable | ||||
| 25 | 316821 | |||
| Outer Flange | ||||
| 26 | 937923P | 5.40 | 6.53 | |
| Gear And Pinion Set | ||||
| 27 | 338338 | 7.95 | 9.62 | |
| Housing (1) | ||||
| 28 | 338329 | 4.80 | 5.81 | |
| Housing (1) | ||||
| 28A | 338329 | 4.80 | 5.81 | |
| Tapping Screw (w/flange) D4x40 (black) | ||||
| 30 | 306664 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 31 | 370722 | |||
| Slide Switch Knob | ||||
| 32 | 338854 | 1.04 | 1.26 | |
| Slide Bar | ||||
| 34 | 370130 | 1.04 | 1.26 | |
| TREKSTANG (OUD 370130) | ||||
| 34A | 377948 | 1.00 | 1.21 | |
| Spring | ||||
| 35 | 314429 | 1.04 | 1.26 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 36 | 301653 | 1.04 | 1.26 | |
| Connector 50091 (10 Pcs.) | ||||
| 37 | 959140 | 3.30 | 3.99 | |
| Cord Clip | ||||
| 38 | 338334 | 1.04 | 1.26 | |
| Tapping Screw (w/flange) D4x12 Till 1.2001 | ||||
| 39 | 305720 | 1.05 | 1.27 | |
| Cord Armor D8.8 | ||||
| 40 | 380090 | 1.04 | 1.26 | |
| Tail Cover | ||||
| 41 | 339142 | 3.75 | 4.54 | |
| No information available, not orderable | ||||
| 42 | 307811 | |||
| No information available, not orderable | ||||
| 43 | 500434Z | |||
| No information available, not orderable | ||||
| 501 | 938332Z | |||
| No information available, not orderable | ||||
| 502 | 944458 | |||
| No information available, not orderable | ||||
| 503 | 994322 | |||
| No information available, not orderable | ||||
| 601 | 376313 | |||
