Here you will find all available parts and drawings of the 'Hikoki G12SW2'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

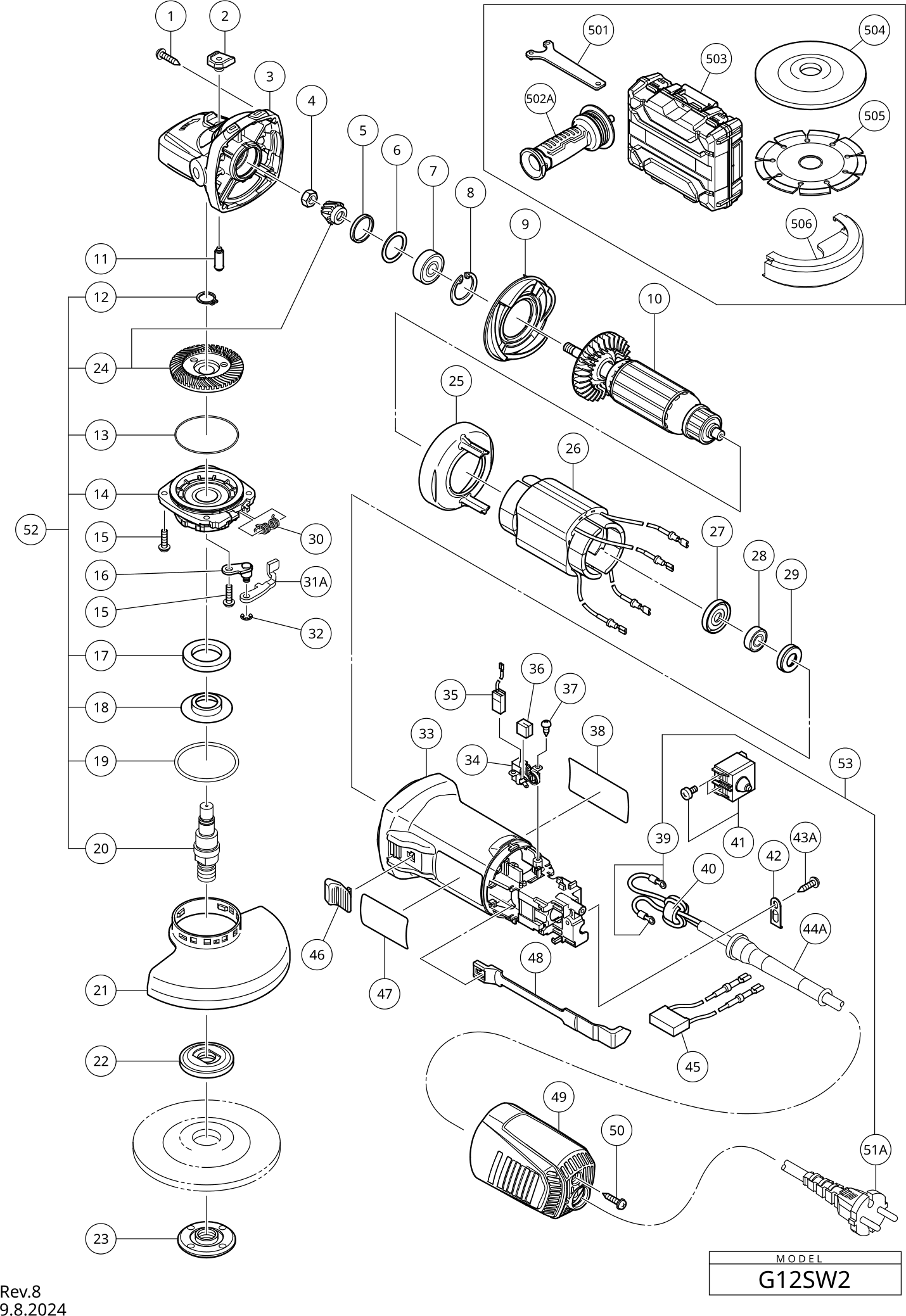

Technical drawing of model Hikoki G12SW2
Spare parts list of model Hikoki G12SW2
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Tapping Screw (w/flange) D4x25 (black) | ||||
| 1 | 307028 | 1.05 | 1.27 | |
| Pushing Button | ||||
| 2 | 336535 | 1.04 | 1.26 | |
| Gear Cover | ||||
| 3 | 375889 | 6.30 | 7.62 | |
| Special Nut M7 | ||||
| 4 | 301941 | 1.04 | 1.26 | |
| Seal Ring (a) | ||||
| 5 | 308543 | 1.04 | 1.26 | |
| Washer (c) | ||||
| 6 | 980866 | 1.04 | 1.26 | |
| Ball Bearing 629vv | ||||
| 7 | 629VVM | 5.85 | 7.08 | |
| Washer Spring | ||||
| 8 | 939554 | 3.75 | 4.54 | |
| Diffuser | ||||
| 9 | 336542 | 1.04 | 1.26 | |
| Armature 230v | ||||
| 10 | 360970E | 27.09 | 32.78 | |
| Lock Pin | ||||
| 11 | 301943 | 1.65 | 2.00 | |
| Spring Washer D12 (10 pieces) | ||||
| 12 | 939542 | 1.50 | 1.82 | |
| O-Ring | ||||
| 13 | 375899 | 1.04 | 1.26 | |
| PACKING GLAND | ||||
| 14 | 375887 | 3.00 | 3.63 | |
| Seal Lock Screw (with Washer) M4x14 | ||||
| 15 | 376226 | 1.04 | 1.26 | |
| Lever holder | ||||
| 16 | 375894 | 1.04 | 1.26 | |
| Felt Packing | ||||
| 17 | 376227 | 1.04 | 1.26 | |
| Fringer | ||||
| 18 | 376228 | 1.04 | 1.26 | |
| O-Ring | ||||
| 19 | 375900 | 1.04 | 1.26 | |
| SPINDLE NEW | ||||
| 20 | 378660 | 2.76 | 3.34 | |
| Wheel guard | ||||
| 21 | 375903 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 22 | 376067 | |||
| No information available, not orderable | ||||
| 23 | 339579 | |||
| Gear set | ||||
| 24 | 375888 | 6.00 | 7.26 | |
| Fan Guide | ||||
| 25 | 336530 | 1.04 | 1.26 | |
| Stator 230v | ||||
| 26 | 340936E | 21.59 | 26.12 | |
| Dust Seal | ||||
| 27 | 336536 | 1.04 | 1.26 | |
| Ball Bearing 698ss | ||||
| 28 | 336871 | 3.15 | 3.81 | |
| Rubber Ring | ||||
| 29 | 309929 | 1.04 | 1.26 | |
| SPRING | ||||
| 30 | 376229 | 1.04 | 1.26 | |
| LEVER NEW | ||||
| 31A | 379736 | 1.00 | 1.21 | |
| Retaining Ring D4 | ||||
| 32 | 6685336 | 1.05 | 1.27 | |
| HOUSING NEW | ||||
| 33 | 378268 | 2.52 | 3.05 | |
| Brush Holder (2) | ||||
| 34 | 336537 | 3.60 | 4.36 | |
| Carbon Brush (1 Pair) | ||||
| 35 | 999088 | 4.50 | 5.44 | |
| Cushion Sponge | ||||
| 36 | 336872 | 1.80 | 2.18 | |
| Tapping Screw D3x8 | ||||
| 37 | 328210 | 1.20 | 1.45 | |
| connecting terminal | ||||
| 39 | 980063 | 1.04 | 1.26 | |
| Ferrite Core Except For Sin,mal,uae | ||||
| 40 | 334379 | 4.65 | 5.63 | |
| PUSHING BUTTON SWITCH | ||||
| 41 | 376230 | 7.20 | 8.71 | |
| Cord Clip | ||||
| 42 | 937631 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 43A | 984750 | |||
| Cord Armor D8.8 | ||||
| 44A | 380090 | 1.04 | 1.26 | |
| Noise Suppressor W/noise Suppressor Band | ||||
| 45 | 375898 | 1.04 | 1.26 | |
| Slide Knob | ||||
| 46 | 314428 | 1.04 | 1.26 | |
| SLIDE BAR NEW | ||||
| 48 | 378269 | 1.00 | 1.21 | |
| Tail Cover | ||||
| 49 | 370047 | 2.55 | 3.09 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 50 | 301653 | 1.04 | 1.26 | |
| CORD (CORD ARMOR D10.7) | ||||
| 51A | 500492Z | 6.45 | 7.80 | |
| PACKING GLAND GEAR ASS'Y | ||||
| 52 | 381994 | 11.55 | 13.98 | |
| CORD ASS'Y | ||||
| 53 | 381998 | 4.56 | 5.52 | |
| No information available, not orderable | ||||
| 501 | 938332Z | |||
| No information available, not orderable | ||||
| 502A | 381403 | |||
| PLASTIC CARRYING CASE NEW | ||||
| 503 | 378265 | 16.83 | 20.36 | |
| No information available, not orderable | ||||
| 504 | 316821 | |||
| No information available, not orderable | ||||
| 506 | 376167 | |||
| No information available, not orderable | ||||
| 601 | 994314 | |||
| No information available, not orderable | ||||
| 602 | 376167 | |||
