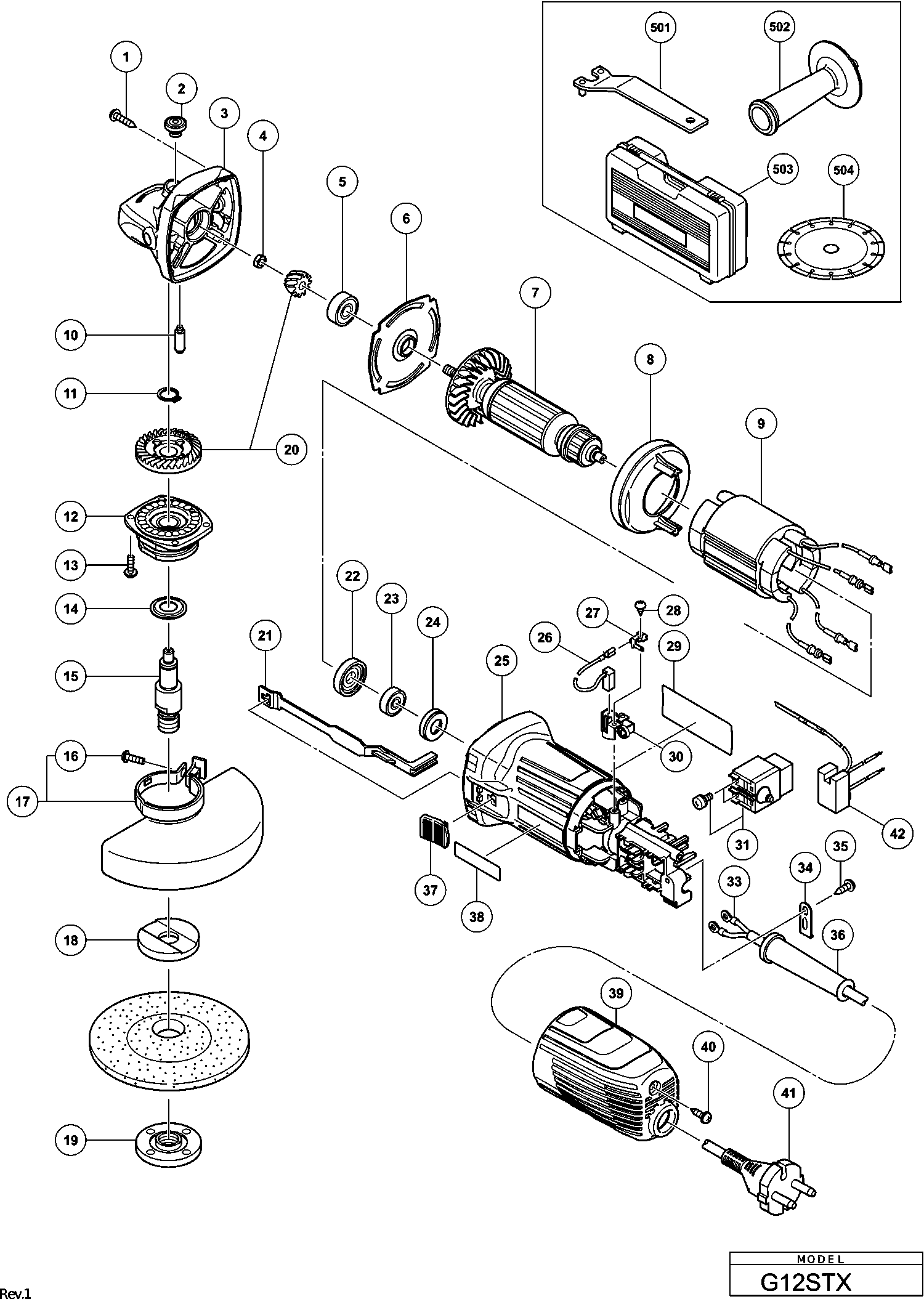

Technical drawing of model Hikoki G12STX
Spare parts list of model Hikoki G12STX
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| *41 | 500436Z | |||
| PUSHING BUTTON SWITCH SET 220-240 VOLT | ||||
| *44 | 376368 | 13.50 | 16.34 | |
| SWITCH 110 VOLT (OLD 374279) | ||||
| *44 | 376371 | 11.99 | 14.51 | |
| Armature 230v-240v | ||||
| *7 | 361007E | 17.60 | 21.30 | |
| ARMATURE 110 V | ||||
| *7 | 361007C | 16.44 | 19.89 | |
| Stator 220v-230v | ||||
| *9 | 340908E | 12.90 | 15.61 | |
| FIELD 110-120 VOLT | ||||
| *9 | 340908D | 11.00 | 13.31 | |
| Tapping Screw (w/flange) D4x23 (black) | ||||
| 1 | 328643 | 1.05 | 1.27 | |
| Pushing Button | ||||
| 2 | 301944 | 1.04 | 1.26 | |
| Gear Cover | ||||
| 3 | 339146 | 6.90 | 8.35 | |
| Special Nut M6 | ||||
| 4 | 309191 | 1.04 | 1.26 | |
| Ball Bearing 608ss | ||||
| 5 | 338337 | 2.25 | 2.72 | |
| Bearing Holder | ||||
| 6 | 338850 | 1.04 | 1.26 | |
| Armature 230v-240v | ||||
| 7 | 361007E | 17.60 | 21.30 | |
| ARMATURE 110 V | ||||
| 7 | 361007C | 16.44 | 19.89 | |
| Fan Guide | ||||
| 8 | 338853 | 1.04 | 1.26 | |
| Stator 220v-230v | ||||
| 9 | 340908E | 12.90 | 15.61 | |
| FIELD 110-120 VOLT | ||||
| 9 | 340908D | 11.00 | 13.31 | |
| Lock Pin | ||||
| 10 | 301943 | 1.65 | 2.00 | |
| Retaining Ring For D11 Shaft Till 9.2012 | ||||
| 11 | 316487 | 1.65 | 2.00 | |
| Inner Cover | ||||
| 12A | 338849 | 3.00 | 3.63 | |
| Seal Lock Screw (w/washer) M4x12 | ||||
| 13 | 328628 | 1.05 | 1.27 | |
| Washer (a) | ||||
| 14 | 328185 | 1.05 | 1.27 | |
| Spindle Ass'y | ||||
| 15 | 330700 | 6.15 | 7.44 | |
| Machine Screw (w/sp. Washer) M5x16(black | ||||
| 16 | 308386 | 1.05 | 1.27 | |
| Guard | ||||
| 17 | 338848 | 2.40 | 2.90 | |
| WHEEL GUARD (LABEL) ASS'Y | ||||
| 17A | 382259 | 2.70 | 3.27 | |
| No information available, not orderable | ||||
| 18 | 937817Z | |||
| No information available, not orderable | ||||
| 18A | 376067 | |||
| No information available, not orderable | ||||
| 19 | 339579 | |||
| GEAR AND SHAFT | ||||
| 20 | 328178 | 10.05 | 12.16 | |
| Slide Bar | ||||
| 21 | 370023 | 1.04 | 1.26 | |
| Slide Bar | ||||
| 21A | 338855 | 1.04 | 1.26 | |
| Dust Seal | ||||
| 22 | 321722 | 1.35 | 1.63 | |
| Ball Bearing 626zz | ||||
| 23 | 339145 | 1.50 | 1.82 | |
| Rubber Ring | ||||
| 24 | 309929 | 1.04 | 1.26 | |
| Housing (1) | ||||
| 25 | 370021 | 5.25 | 6.35 | |
| Housing (1) | ||||
| 25A | 370021 | 5.25 | 6.35 | |
| Housing | ||||
| 25B | 338851 | 3.90 | 4.72 | |
| Carbon Brush (1 Pair) | ||||
| 26 | 999067 | 2.85 | 3.45 | |
| Tab Terminal | ||||
| 27 | 339185 | 1.04 | 1.26 | |
| Tapping Screw D3x8 | ||||
| 28 | 328210 | 1.20 | 1.45 | |
| Carbon Brush Holder | ||||
| 30 | 333844 | 2.10 | 2.54 | |
| No information available, not orderable | ||||
| 31A | 373299 | |||
| PUSH-BUTTON SWITCH 110 VOLT | ||||
| 31C | 377010 | 8.40 | 10.16 | |
| PUSHING BUTTON SWITCH | ||||
| 31C | 376230 | 7.20 | 8.71 | |
| Terminal | ||||
| 33 | 311741 | 1.04 | 1.26 | |
| Cord Clip | ||||
| 34 | 338334 | 1.04 | 1.26 | |
| Tapping Screw (w/flange) D4x12 Till 1.2001 | ||||
| 35 | 305720 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 36 | 953327 | |||
| Cord Armor D8.8 | ||||
| 36A | 380090 | 1.04 | 1.26 | |
| Slide Switch Knob | ||||
| 37 | 338854 | 1.04 | 1.26 | |
| Tail Cover | ||||
| 39 | 370022 | 1.65 | 2.00 | |
| Tail Cover | ||||
| 39A | 338852 | 1.20 | 1.45 | |
| Tapping Screw (w/flange) D4x16 (black) | ||||
| 40 | 305812 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 41 | 500436Z | |||
| Noise Suppressor 220v-240v For Model (s) | ||||
| 43 | 339147 | 2.70 | 3.27 | |
| No information available, not orderable | ||||
| 501 | 938332Z | |||
| No information available, not orderable | ||||
| 502A | 994322 | |||
| No information available, not orderable | ||||
| 503 | 339264 | |||
| No information available, not orderable | ||||
| 503A | 381394 | |||
| CUTTING GUARD CLIP | ||||
| 505 | 381202 | 2.10 | 2.54 | |
| No information available, not orderable | ||||
| 601 | 994314 | |||
| No information available, not orderable | ||||
| 602 | 314095 | |||
| No information available, not orderable | ||||
| 603 | 314096 | |||
| No information available, not orderable | ||||
| 604 | 314097 | |||
| No information available, not orderable | ||||
| 605 | 314098 | |||
| No information available, not orderable | ||||
| 606 | 314099 | |||
| No information available, not orderable | ||||
| 607 | 314100 | |||
| No information available, not orderable | ||||
| 608 | 314101 | |||
| No information available, not orderable | ||||
| 609 | 314102 | |||
| No information available, not orderable | ||||
| 610 | 314103 | |||
| No information available, not orderable | ||||
| 611 | 314104 | |||
| No information available, not orderable | ||||
| 612 | 314105 | |||
| No information available, not orderable | ||||
| 613 | 937826Z | |||
| No information available, not orderable | ||||
| 614 | 332785 | |||
| Liquid Packing | ||||
| 615 | 324688 | 40.84 | 49.41 | |
