Here you will find all available parts and drawings of the 'Hikoki G12SS2'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

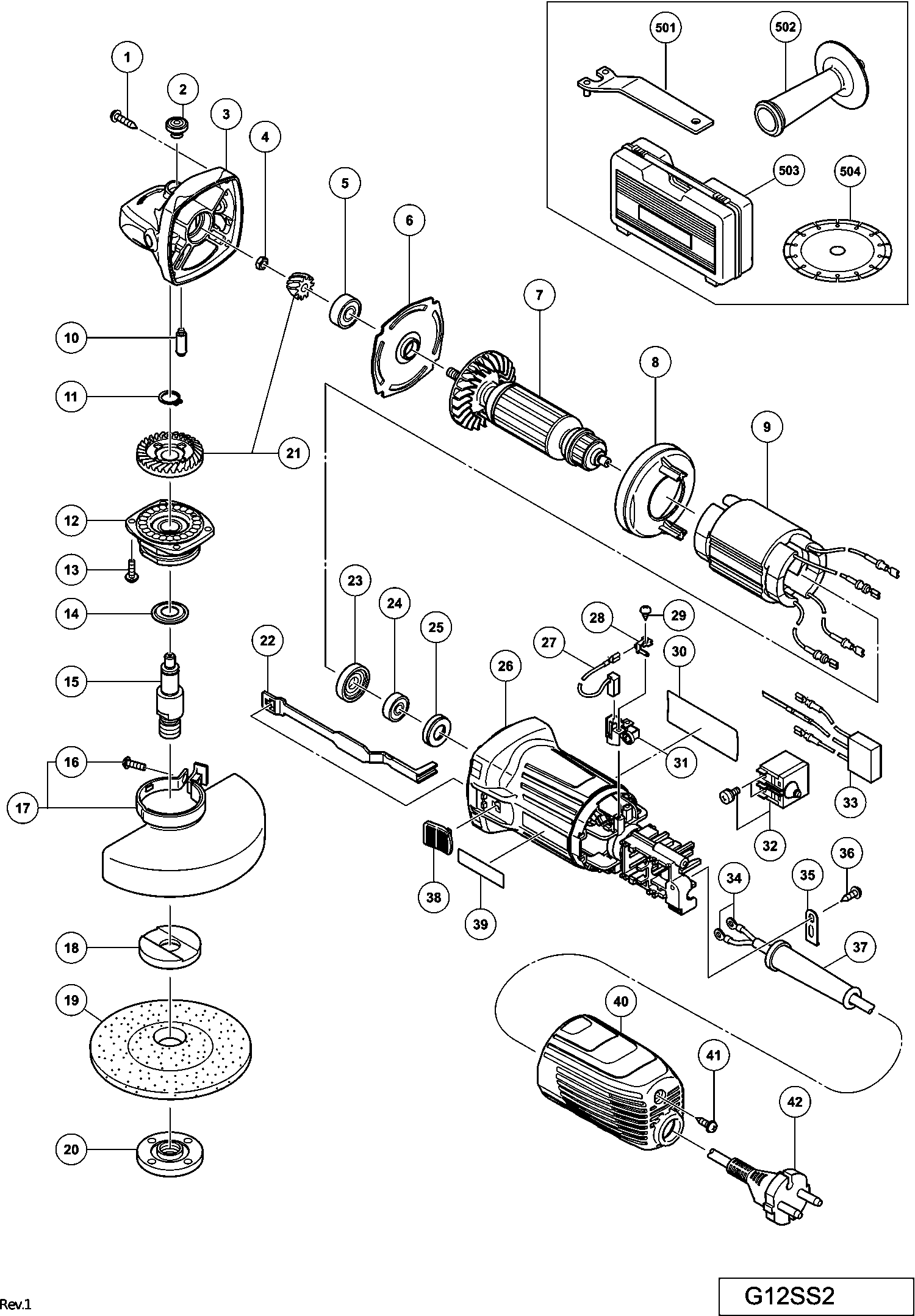

Technical drawing of model Hikoki G12SS2
Spare parts list of model Hikoki G12SS2
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| *42 | 500439Z | |||
| Armature 230v-240v | ||||
| *7 | 361007E | 17.60 | 21.30 | |
| Stator 220v-230v | ||||
| *9 | 340908E | 12.90 | 15.61 | |
| Tapping Screw (w/flange) D4x23 (black) | ||||
| 1 | 328643 | 1.05 | 1.27 | |
| Pushing Button | ||||
| 2 | 301944 | 1.04 | 1.26 | |
| Gear Cover | ||||
| 3 | 339146 | 6.90 | 8.35 | |
| Special Nut M6 | ||||
| 4 | 309191 | 1.04 | 1.26 | |
| Ball Bearing 608ss | ||||
| 5 | 338337 | 2.25 | 2.72 | |
| Bearing Holder | ||||
| 6 | 338850 | 1.04 | 1.26 | |
| Armature 230v-240v | ||||
| 7 | 361007E | 17.60 | 21.30 | |
| ANKER 110 VOLT | ||||
| 7 | 361007C | 16.44 | 19.89 | |
| Fan Guide | ||||
| 8 | 338853 | 1.04 | 1.26 | |
| Stator 220v-230v | ||||
| 9 | 340908E | 12.90 | 15.61 | |
| VELD 110-120 VOLT | ||||
| 9 | 340908D | 11.00 | 13.31 | |
| Lock Pin | ||||
| 10 | 301943 | 1.65 | 2.00 | |
| Retaining Ring For D11 Shaft Till 9.2012 | ||||
| 11 | 316487 | 1.65 | 2.00 | |
| Inner Cover | ||||
| 12A | 338849 | 3.00 | 3.63 | |
| Seal Lock Screw (w/washer) M4x12 | ||||
| 13 | 328628 | 1.05 | 1.27 | |
| Washer (a) | ||||
| 14 | 328185 | 1.05 | 1.27 | |
| Spindle Ass'y | ||||
| 15 | 330700 | 6.15 | 7.44 | |
| Machine Screw (w/sp. Washer) M5x16(black | ||||
| 16 | 308386 | 1.05 | 1.27 | |
| Guard | ||||
| 17 | 338848 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 18 | 937817Z | |||
| No information available, not orderable | ||||
| 18A | 376067 | |||
| No information available, not orderable | ||||
| 19 | 316821 | |||
| No information available, not orderable | ||||
| 20A | 339579 | |||
| GEAR AND SHAFT | ||||
| 21 | 328178 | 10.05 | 12.16 | |
| Slide Bar | ||||
| 22 | 338855 | 1.04 | 1.26 | |
| Dust Seal | ||||
| 23 | 321722 | 1.35 | 1.63 | |
| Ball Bearing 626zz | ||||
| 24 | 339145 | 1.50 | 1.82 | |
| Rubber Ring | ||||
| 25 | 309929 | 1.04 | 1.26 | |
| Housing | ||||
| 26 | 338851 | 3.90 | 4.72 | |
| Housing | ||||
| 26A | 338851 | 3.90 | 4.72 | |
| Carbon Brush (1 Pair) | ||||
| 27 | 999067 | 2.85 | 3.45 | |
| Tab Terminal | ||||
| 28 | 339185 | 1.04 | 1.26 | |
| Tapping Screw D3x8 | ||||
| 29 | 328210 | 1.20 | 1.45 | |
| Carbon Brush Holder | ||||
| 31 | 333844 | 2.10 | 2.54 | |
| Switch | ||||
| 32 | 339149 | 2.70 | 3.27 | |
| connecting terminal | ||||
| 34 | 980063 | 1.04 | 1.26 | |
| Cord Clip | ||||
| 35 | 338334 | 1.04 | 1.26 | |
| Tapping Screw (w/flange) D4x12 Till 1.2001 | ||||
| 36 | 305720 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 37 | 953327 | |||
| Cord Armor D8.8 | ||||
| 37A | 380090 | 1.04 | 1.26 | |
| Slide Switch Knob | ||||
| 38 | 338854 | 1.04 | 1.26 | |
| Tail Cover | ||||
| 40 | 338852 | 1.20 | 1.45 | |
| Tapping Screw (w/flange) D4x16 (black) | ||||
| 41 | 305812 | 1.04 | 1.26 | |
| Cord (cord Armor D8.8) For Mex | ||||
| 42 | 500240Z | 13.18 | 15.94 | |
| No information available, not orderable | ||||
| 501 | 938332Z | |||
| No information available, not orderable | ||||
| 502 | 994322 | |||
| No information available, not orderable | ||||
| 602 | 314095 | |||
| No information available, not orderable | ||||
| 603 | 314096 | |||
| No information available, not orderable | ||||
| 604 | 314097 | |||
| No information available, not orderable | ||||
| 605 | 314098 | |||
| No information available, not orderable | ||||
| 606 | 314099 | |||
| No information available, not orderable | ||||
| 607 | 314100 | |||
| No information available, not orderable | ||||
| 608 | 314101 | |||
| No information available, not orderable | ||||
| 609 | 314102 | |||
| No information available, not orderable | ||||
| 610 | 314103 | |||
| No information available, not orderable | ||||
| 612 | 314104 | |||
| No information available, not orderable | ||||
| 613 | 314105 | |||
| No information available, not orderable | ||||
| 614 | 937826Z | |||
| No information available, not orderable | ||||
| 615 | 332785 | |||
| Liquid Packing | ||||
| 616 | 324688 | 40.84 | 49.41 | |
