Here you will find all available parts and drawings of the 'Hikoki G12SS'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

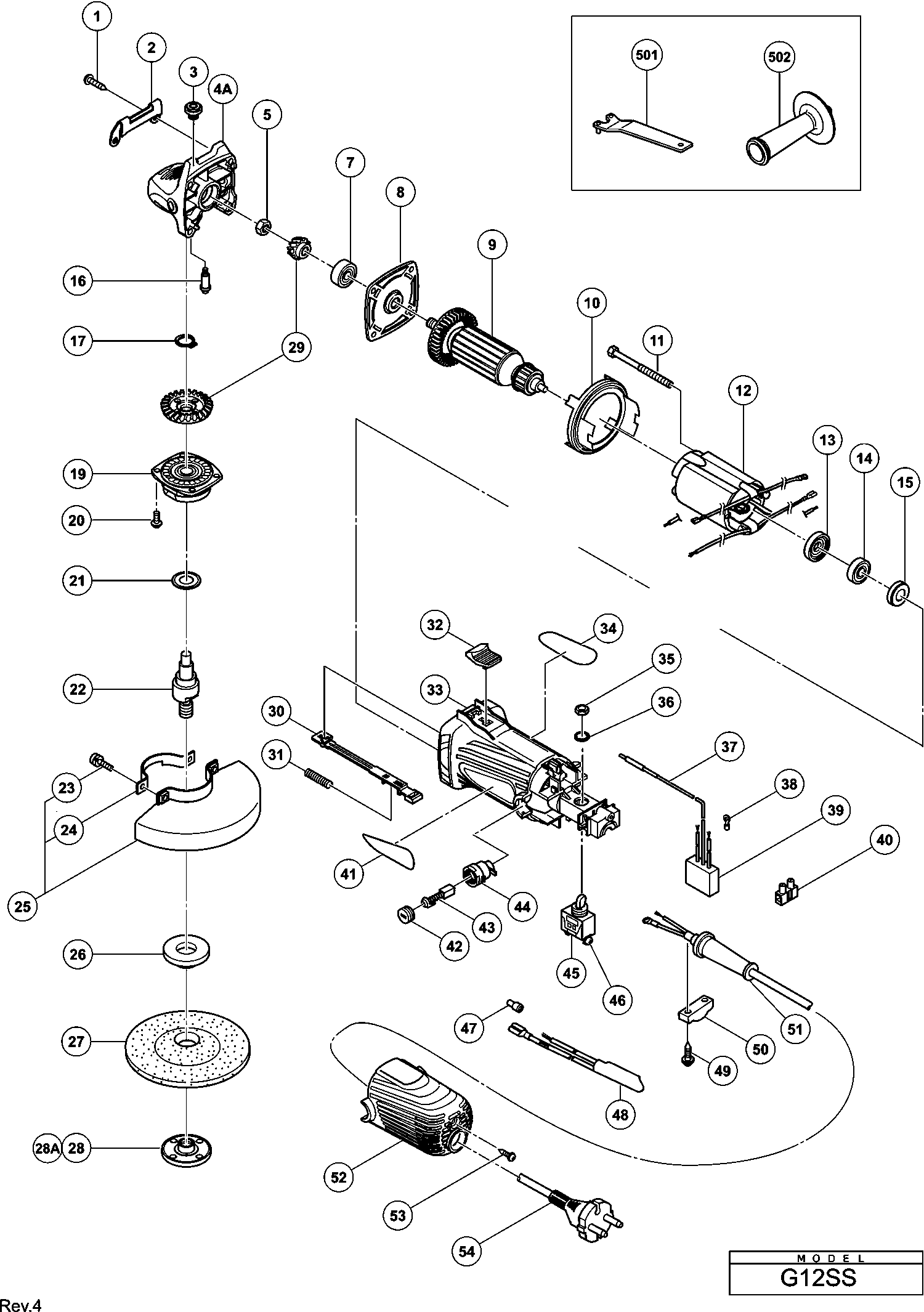

Technical drawing of model Hikoki G12SS
Spare parts list of model Hikoki G12SS
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Tapping Screw D5x25 (black) | ||||
| 1 | 320523 | 1.35 | 1.63 | |
| Guard Plate | ||||
| 2 | 317807 | 1.05 | 1.27 | |
| Pushing Button | ||||
| 3 | 301944 | 1.04 | 1.26 | |
| Gear Cover | ||||
| 4 | 328181 | 10.05 | 12.16 | |
| Gear Cover | ||||
| 4A | 339150 | 7.50 | 9.08 | |
| Special Nut M6 | ||||
| 5 | 309191 | 1.04 | 1.26 | |
| Ball Bearing 608vvc2ps2l | ||||
| 7 | 608VVM | 5.70 | 6.90 | |
| Bearing Holder | ||||
| 8 | 328184 | 1.05 | 1.27 | |
| Armature 230v-240v | ||||
| 9 | 360802E | 20.90 | 25.29 | |
| ANKER 110 VOLT | ||||
| 9 | 360802C | 19.47 | 23.56 | |
| Fan Guide | ||||
| 10 | 328177 | 1.05 | 1.27 | |
| Hex head cutting screw D4x65 | ||||
| 11 | 963712 | 1.04 | 1.26 | |
| Stator 220v-230v | ||||
| 12 | 340705E | 15.95 | 19.30 | |
| VELD 110 VOLT | ||||
| 12 | 340705C | 15.02 | 18.17 | |
| Dust Seal | ||||
| 13 | 321722 | 1.35 | 1.63 | |
| Ball Bearing 626vvc2ps2l | ||||
| 14 | 626VVM | 5.70 | 6.90 | |
| Rubber Ring | ||||
| 15 | 309929 | 1.04 | 1.26 | |
| Lock Pin | ||||
| 16 | 301943 | 1.65 | 2.00 | |
| Retaining Ring For D11 Shaft Till 9.2012 | ||||
| 17 | 316487 | 1.65 | 2.00 | |
| Inner Cover | ||||
| 19 | 328182 | 4.20 | 5.08 | |
| Seal Lock Screw (w/washer) M4x12 | ||||
| 20 | 328628 | 1.05 | 1.27 | |
| Washer (a) | ||||
| 21 | 328185 | 1.05 | 1.27 | |
| No longer available, no replacement | ||||
| 22 | 328186 | |||
| Machine Screw (w/sp. Washer) M5x16(black | ||||
| 23 | 308386 | 1.05 | 1.27 | |
| Clamp Ring for Guard | ||||
| 24 | 301949 | 1.04 | 1.26 | |
| Guard | ||||
| 25 | 315492 | 12.75 | 15.43 | |
| No information available, not orderable | ||||
| 26 | 937817Z | |||
| No information available, not orderable | ||||
| 27 | 316821 | |||
| No information available, not orderable | ||||
| 28 | 994324 | |||
| No information available, not orderable | ||||
| 28A | 339579 | |||
| GEAR AND SHAFT | ||||
| 29 | 328178 | 10.05 | 12.16 | |
| Slide Bar | ||||
| 30 | 314427 | 1.05 | 1.27 | |
| Spring | ||||
| 31 | 314429 | 1.04 | 1.26 | |
| Slide Knob | ||||
| 32 | 314428 | 1.04 | 1.26 | |
| Housing | ||||
| 33 | 328176 | 8.78 | 10.62 | |
| Earth Terminal For Tpe | ||||
| 37 | 314854 | 1.50 | 1.82 | |
| connecting terminal | ||||
| 38 | 980063 | 1.04 | 1.26 | |
| Interference Suppressor | ||||
| 39 | 317491 | 7.35 | 8.89 | |
| Pillar Terminal Till 10.1999 For Aus | ||||
| 40 | 938307 | 2.13 | 2.57 | |
| Brush Cap | ||||
| 42 | 936551 | 1.05 | 1.27 | |
| No longer available, no replacement | ||||
| 43 | 999021 | |||
| Brush Holder | ||||
| 44 | 313777 | 1.50 | 1.82 | |
| No longer available, no replacement | ||||
| 45 | 955509 | |||
| Machine Screw (w/washer) M3.5x6 | ||||
| 46 | 305499 | 1.05 | 1.27 | |
| Connector 50091 (10 Pcs.) | ||||
| 47 | 959140 | 3.30 | 3.99 | |
| Interf. suppr. | ||||
| 48 | 328629 | 2.10 | 2.54 | |
| No information available, not orderable | ||||
| 49 | 984750 | |||
| Cord Clip | ||||
| 50 | 937631 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 51 | 953327 | |||
| Tail Cover | ||||
| 52 | 328183 | 3.15 | 3.81 | |
| Tapping Screw (w/flange) D4x16 (black) | ||||
| 53 | 305812 | 1.04 | 1.26 | |
| Cord (cord Armor D8.8) For Mex | ||||
| 54 | 500240Z | 13.18 | 15.94 | |
| Cord (cord Armor D8.8) For Pan | ||||
| 54 | 500447Z | 6.60 | 7.99 | |
| No information available, not orderable | ||||
| 501 | 938332Z | |||
| Side Handle G13sr3 | ||||
| 502 | 318312 | 7.50 | 9.08 | |
| No information available, not orderable | ||||
| 502A | 994322 | |||
| No information available, not orderable | ||||
| 601 | 314095 | |||
| No information available, not orderable | ||||
| 602 | 314096 | |||
| No information available, not orderable | ||||
| 603 | 314097 | |||
| No information available, not orderable | ||||
| 604 | 314098 | |||
| No information available, not orderable | ||||
| 605 | 314099 | |||
| No information available, not orderable | ||||
| 606 | 314100 | |||
| No information available, not orderable | ||||
| 607 | 314101 | |||
| No information available, not orderable | ||||
| 608 | 314102 | |||
| No information available, not orderable | ||||
| 609 | 314103 | |||
| No information available, not orderable | ||||
| 610 | 314104 | |||
| No information available, not orderable | ||||
| 611 | 314105 | |||
| No information available, not orderable | ||||
| 612 | 938318 | |||
| No information available, not orderable | ||||
| 613 | 938317 | |||
| No information available, not orderable | ||||
| 614 | 332785 | |||
