Here you will find all available parts and drawings of the 'Hikoki G12SR3'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

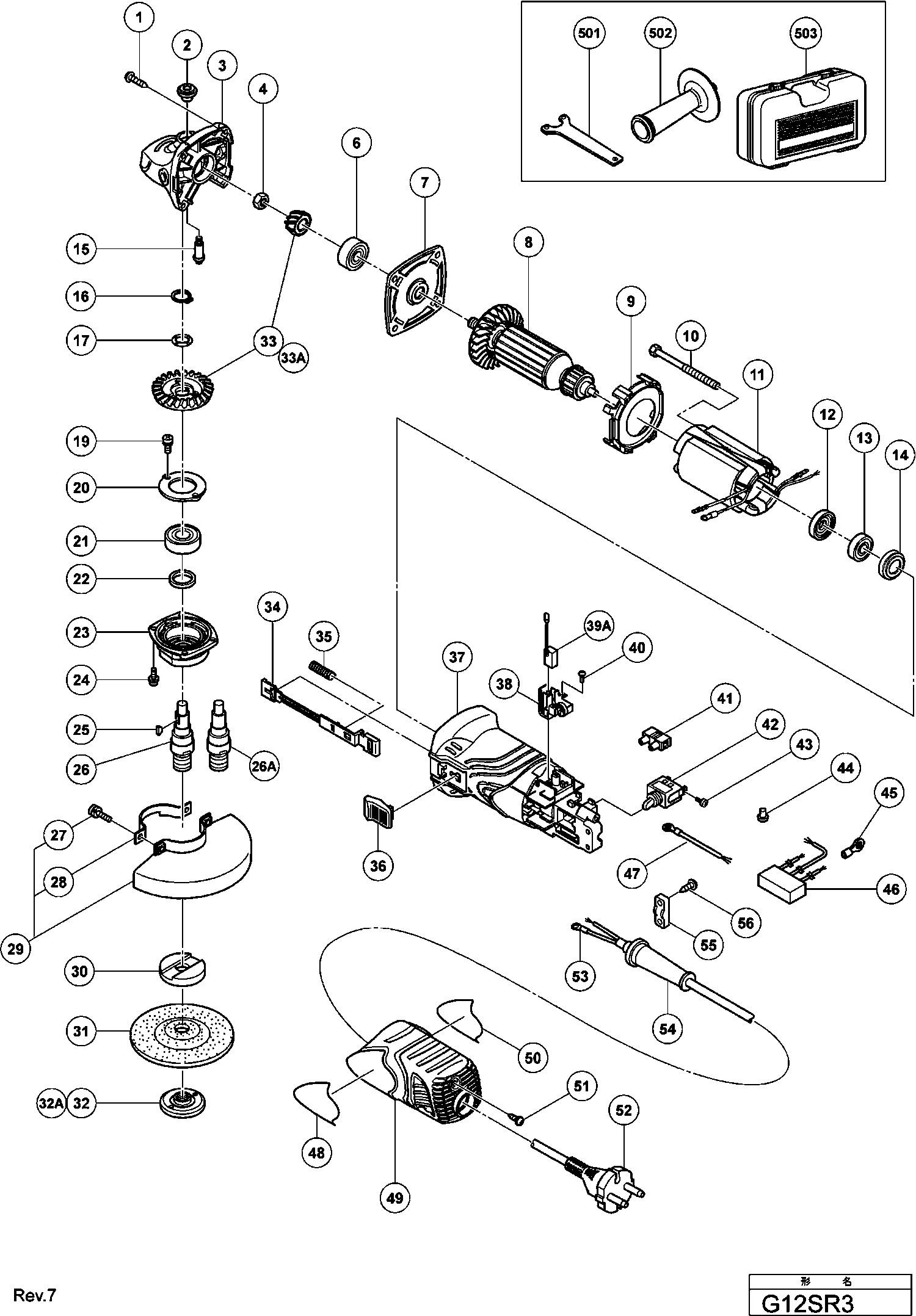

Technical drawing of model Hikoki G12SR3
Spare parts list of model Hikoki G12SR3
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Tapping Screw (w/flange) D4x25 (black) | ||||
| 1 | 307028 | 1.05 | 1.27 | |
| Pushing Button | ||||
| 2 | 301944 | 1.04 | 1.26 | |
| Inner Cover | ||||
| 3 | 327891 | 8.70 | 10.53 | |
| Special Nut M6 | ||||
| 4 | 309191 | 1.04 | 1.26 | |
| Ball Bearing 628vvc2ps2-l | ||||
| 6 | 628VVC | 11.85 | 14.34 | |
| Bearing Holder | ||||
| 7 | 327887 | 1.20 | 1.45 | |
| Armature 230v | ||||
| 8 | 360799E | 32.31 | 39.10 | |
| Armature 110 V | ||||
| 8 | 360799C | 30.20 | 36.54 | |
| Fan Guide | ||||
| 9 | 327886 | 1.20 | 1.45 | |
| Hex head cutting screw D4x65 | ||||
| 10 | 963712 | 1.04 | 1.26 | |
| Stator 220v-230v | ||||
| 11 | 340702E | 16.36 | 19.80 | |
| FIELD 110 VOLT | ||||
| 11 | 340702C | 15.29 | 18.50 | |
| Dust Seal | ||||
| 12 | 321722 | 1.35 | 1.63 | |
| Ball Bearing 626vvc2ps2l | ||||
| 13 | 626VVM | 5.70 | 6.90 | |
| Rubber Ring | ||||
| 14 | 309929 | 1.04 | 1.26 | |
| Lock Pin | ||||
| 15 | 301943 | 1.65 | 2.00 | |
| Retaining Ring For D11 Shaft Till 9.2012 | ||||
| 16 | 316487 | 1.65 | 2.00 | |
| Ring | ||||
| 17 | 316486 | 1.65 | 2.00 | |
| Seal Lock Screw (w/sp. Washer) M4x10 | ||||
| 19 | 987201 | 1.05 | 1.27 | |
| Bearing Cover | ||||
| 20 | 316490 | 1.65 | 2.00 | |
| Ball Bearing 6201ddcmps2l | ||||
| 21 | 6201DD | 6.30 | 7.62 | |
| Felt Packing | ||||
| 22 | 301946 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 23 | 316489 | |||
| Machine Screw (w/sp. Washer) M4x12 | ||||
| 24 | 951039 | 1.05 | 1.27 | |
| Woodruff Key | ||||
| 25 | 302047 | 1.05 | 1.27 | |
| Spindle Ass'y | ||||
| 26 | 327896 | 4.20 | 5.08 | |
| Spindle Ass'y | ||||
| 26A | 334919 | 4.20 | 5.08 | |
| Machine Screw (w/sp. Washer) M5x16(black | ||||
| 27 | 308386 | 1.05 | 1.27 | |
| Clamp Ring for Guard | ||||
| 28 | 301949 | 1.04 | 1.26 | |
| Guard | ||||
| 29 | 315492 | 12.75 | 15.43 | |
| No information available, not orderable | ||||
| 30 | 937817Z | |||
| No information available, not orderable | ||||
| 31 | 316821 | |||
| No information available, not orderable | ||||
| 32 | 994324 | |||
| No information available, not orderable | ||||
| 32A | 339579 | |||
| Bevel gear | ||||
| 33 | 327888 | 10.80 | 13.07 | |
| Gear Set Since 10.2010 | ||||
| 33A | 337382 | 6.45 | 7.80 | |
| Slide Bar | ||||
| 34 | 327893 | 1.20 | 1.45 | |
| Spring | ||||
| 35 | 314429 | 1.04 | 1.26 | |
| Slide Knob | ||||
| 36 | 314428 | 1.04 | 1.26 | |
| Housing | ||||
| 37 | 327885 | 6.30 | 7.62 | |
| Brush Holder | ||||
| 38 | 327895 | 2.10 | 2.54 | |
| Carbon Brush (1 Pair) | ||||
| 39 | 999005 | 7.80 | 9.44 | |
| Tapping Screw D3x8 | ||||
| 40 | 328210 | 1.20 | 1.45 | |
| Pillar Terminal Till 10.1999 For Aus | ||||
| 41 | 938307 | 2.13 | 2.57 | |
| Switch | ||||
| 42 | 314603 | 11.88 | 14.37 | |
| Machine Screw (w/washer) M3.5x6 | ||||
| 43 | 305499 | 1.05 | 1.27 | |
| Connector 50091 (10 Pcs.) | ||||
| 44 | 959140 | 3.30 | 3.99 | |
| connecting terminal | ||||
| 45 | 980063 | 1.04 | 1.26 | |
| Interference Suppressor | ||||
| 46 | 317491 | 7.35 | 8.89 | |
| No information available, not orderable | ||||
| 47 | 328509 | |||
| Tail Cover | ||||
| 49 | 327894 | 6.45 | 7.80 | |
| No information available, not orderable | ||||
| 51 | 307811 | |||
| Cord (cord Armor D8.8) For Uae (240v) | ||||
| 52 | 500461Z | 17.88 | 21.63 | |
| Cord (cord Armor D8.8) For Mex | ||||
| 52 | 500240Z | 13.18 | 15.94 | |
| Cord (cord Armor D8.8) For Pan | ||||
| 52 | 500447Z | 6.60 | 7.99 | |
| connecting terminal | ||||
| 53 | 980063 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 54 | 953327 | |||
| Cord Clip | ||||
| 55 | 937631 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 56 | 984750 | |||
| No information available, not orderable | ||||
| 501 | 938332Z | |||
| Side Handle G13sr3 | ||||
| 502 | 318312 | 7.50 | 9.08 | |
| No information available, not orderable | ||||
| 503 | 319375 | |||
| No information available, not orderable | ||||
| 601 | 314095 | |||
| No information available, not orderable | ||||
| 602 | 314096 | |||
| No information available, not orderable | ||||
| 603 | 314097 | |||
| No information available, not orderable | ||||
| 604 | 314098 | |||
| No information available, not orderable | ||||
| 605 | 314099 | |||
| No information available, not orderable | ||||
| 606 | 314100 | |||
| No information available, not orderable | ||||
| 607 | 314101 | |||
| No information available, not orderable | ||||
| 608 | 314102 | |||
| No information available, not orderable | ||||
| 609 | 314103 | |||
| No information available, not orderable | ||||
| 610 | 314104 | |||
| No information available, not orderable | ||||
| 611 | 314105 | |||
| No information available, not orderable | ||||
| 612 | 938318 | |||
| No information available, not orderable | ||||
| 613 | 938317 | |||
| No information available, not orderable | ||||
| 614 | 332785 | |||
