Here you will find all available parts and drawings of the 'Hikoki G12SQ2'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

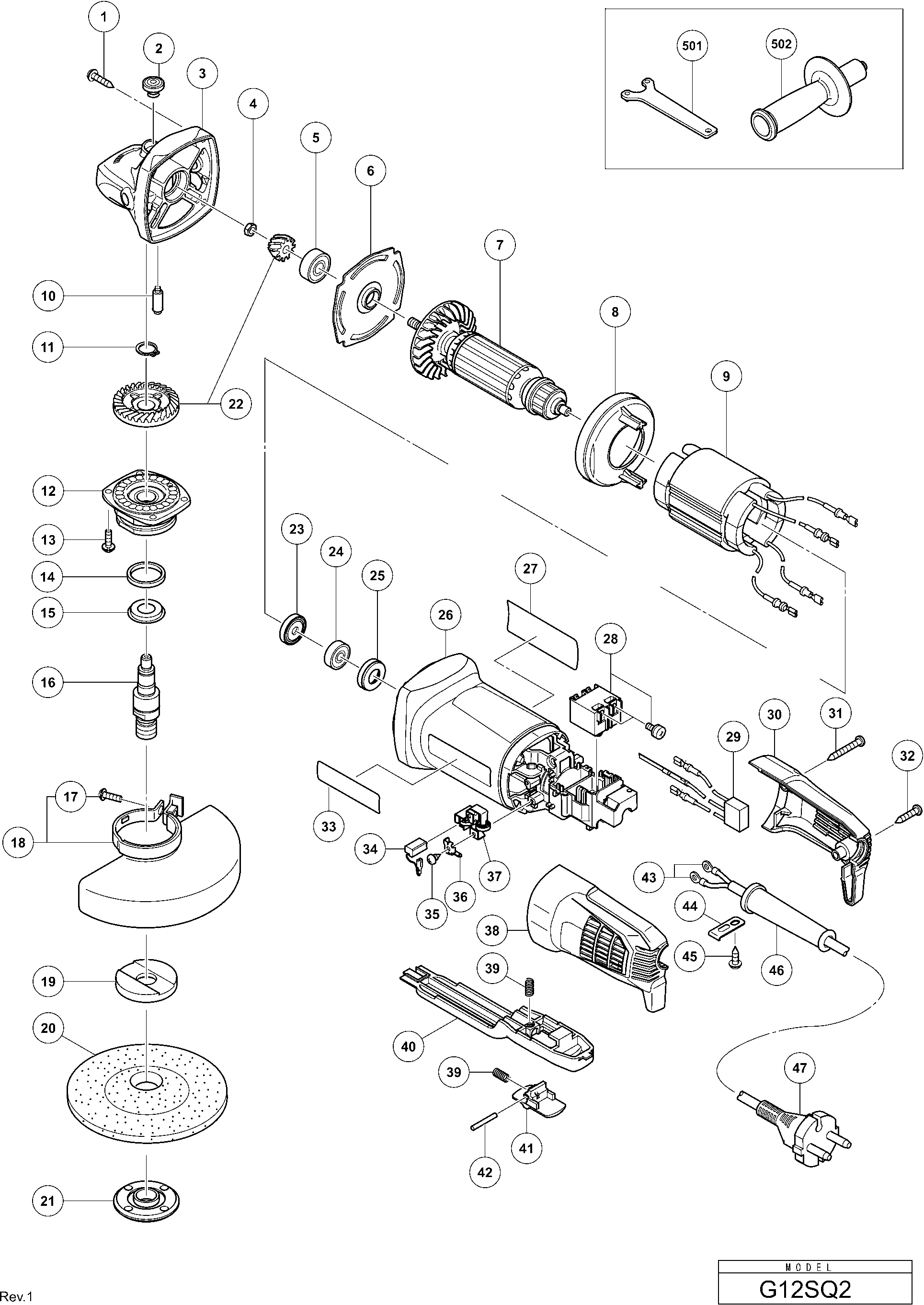

Technical drawing of model Hikoki G12SQ2
Spare parts list of model Hikoki G12SQ2
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| SPINDLE | ||||
| *16 | 373292 | 3.90 | 4.72 | |
| No information available, not orderable | ||||
| *21 | 339579 | |||
| Cord Clip | ||||
| *44 | 338334 | 1.04 | 1.26 | |
| SNOER 10.7 (USE 714500=2X1 5M) | ||||
| *47 | 500247Z | 6.18 | 7.48 | |
| No information available, not orderable | ||||
| *613 | 937825Z | |||
| ARMATURE ASS'Y 120 VOLT | ||||
| *7 | 361082U | 33.55 | 40.60 | |
| ARMATURE 230 VOLT | ||||
| *7 | 361082F | 19.66 | 23.79 | |
| ANKER 110 VOLT | ||||
| *7 | 361082B | 18.37 | 22.23 | |
| Field | ||||
| *9 | 340997E | 16.23 | 19.63 | |
| Stator 220v-230v | ||||
| *9 | 340997D | 15.81 | 19.13 | |
| VELD 110-120 VOLT | ||||
| *9 | 340997B | 15.12 | 18.30 | |
| Tapping Screw (w/flange) D4x23 (black) | ||||
| 1 | 328643 | 1.05 | 1.27 | |
| Pushing Button | ||||
| 2 | 301944 | 1.04 | 1.26 | |
| Gear Cover Ass'y Includ.2,10 | ||||
| 3 | 338332 | 7.50 | 9.08 | |
| Special Nut M6 | ||||
| 4 | 309191 | 1.04 | 1.26 | |
| Ball Bearing 608ss | ||||
| 5 | 338337 | 2.25 | 2.72 | |
| Bearing Holder | ||||
| 6 | 338850 | 1.04 | 1.26 | |
| ARMATURE ASS'Y 120 VOLT | ||||
| 7 | 361082U | 33.55 | 40.60 | |
| ARMATURE 230 VOLT | ||||
| 7 | 361082F | 19.66 | 23.79 | |
| ANKER 110 VOLT | ||||
| 7 | 361082B | 18.37 | 22.23 | |
| Fan Guide | ||||
| 8 | 338853 | 1.04 | 1.26 | |
| Field | ||||
| 9 | 340997E | 16.23 | 19.63 | |
| Stator 220v-230v | ||||
| 9 | 340997D | 15.81 | 19.13 | |
| VELD 110-120 VOLT | ||||
| 9 | 340997B | 15.12 | 18.30 | |
| Lock Pin | ||||
| 10 | 301943 | 1.65 | 2.00 | |
| Retaining Ring For D11 Shaft Till 9.2012 | ||||
| 11 | 316487 | 1.65 | 2.00 | |
| Inner Cover | ||||
| 12 | 338849 | 3.00 | 3.63 | |
| Seal Lock Screw (w/washer) M4x12 | ||||
| 13 | 328628 | 1.05 | 1.27 | |
| VILTPAKKIING | ||||
| 14 | 373384 | 1.04 | 1.26 | |
| Fringer | ||||
| 15 | 373383 | 1.04 | 1.26 | |
| SPINDLE | ||||
| 16 | 373292 | 3.90 | 4.72 | |
| Machine Screw (w/sp. Washer) M5x16(black | ||||
| 17 | 308386 | 1.05 | 1.27 | |
| Guard | ||||
| 18 | 338848 | 2.40 | 2.90 | |
| WHEEL GUARD (LABEL) ASS'Y | ||||
| 18A | 382259 | 2.70 | 3.27 | |
| No information available, not orderable | ||||
| 19 | 937817Z | |||
| No information available, not orderable | ||||
| 19A | 376067 | |||
| No information available, not orderable | ||||
| 20 | 316821 | |||
| No information available, not orderable | ||||
| 21 | 339579 | |||
| Gear And Pinion Set | ||||
| 22 | 339265 | 7.26 | 8.79 | |
| Dust Seal | ||||
| 23 | 321722 | 1.35 | 1.63 | |
| Ball Bearing 626zz | ||||
| 24 | 339145 | 1.50 | 1.82 | |
| Rubber Ring | ||||
| 25 | 309929 | 1.04 | 1.26 | |
| HOUSING | ||||
| 26 | 373167 | 4.80 | 5.81 | |
| Switch | ||||
| 28 | 339149 | 2.70 | 3.27 | |
| Noise Suppressor W/noise Suppressor Band | ||||
| 29 | 373291 | 3.60 | 4.36 | |
| TAIL COVER (B) | ||||
| 30 | 373169 | 1.20 | 1.45 | |
| Tapping Screw (w/flange) D4x30 (black) | ||||
| 31 | 305490 | 1.04 | 1.26 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 32 | 301653 | 1.04 | 1.26 | |
| Carbon Brush (1 Pair) | ||||
| 34 | 999067 | 2.85 | 3.45 | |
| Tapping Screw D3x8 | ||||
| 35 | 328210 | 1.20 | 1.45 | |
| Tab Terminal | ||||
| 36 | 339185 | 1.04 | 1.26 | |
| Carbon Brush Holder | ||||
| 37 | 333844 | 2.10 | 2.54 | |
| TAIL COVER (A) | ||||
| 38 | 373168 | 1.20 | 1.45 | |
| SPRING | ||||
| 39 | 373175 | 1.04 | 1.26 | |
| Switch Lever | ||||
| 40 | 373170 | 1.05 | 1.27 | |
| OFF LOCK LEVER | ||||
| 41 | 373171 | 1.04 | 1.26 | |
| NEEDLE PIN | ||||
| 42 | 373173 | 1.04 | 1.26 | |
| connecting terminal | ||||
| 43 | 980063 | 1.04 | 1.26 | |
| Cord Clip | ||||
| 44 | 338334 | 1.04 | 1.26 | |
| Tapping Screw (w/flange) D4x12 Till 1.2001 | ||||
| 45 | 305720 | 1.05 | 1.27 | |
| Cord Armor D8.8 | ||||
| 46 | 380090 | 1.04 | 1.26 | |
| Cord Armor D10.1 | ||||
| 46 | 938051 | 1.04 | 1.26 | |
| Cord Armor D8.8 | ||||
| 46A | 380090 | 1.04 | 1.26 | |
| SNOER 10.7 (USE 714500=2X1 5M) | ||||
| 47 | 500247Z | 6.18 | 7.48 | |
| Seal Lock Screw (w/sp. Washer) M4x10 | ||||
| 48 | 987201 | 1.05 | 1.27 | |
| Bearing Cover | ||||
| 49 | 316490 | 1.65 | 2.00 | |
| Ball Bearing 6201vv | ||||
| 50 | 6201VV | 6.45 | 7.80 | |
| Felt Packing | ||||
| 51 | 301946 | 1.04 | 1.26 | |
| PACKING GLAND NEW | ||||
| 52 | 380072 | 3.48 | 4.21 | |
| AS | ||||
| 53 | 379927 | 2.46 | 2.98 | |
| No information available, not orderable | ||||
| 501 | 938332Z | |||
| Side Handle G13sr3 | ||||
| 502 | 318312 | 7.50 | 9.08 | |
| CUTTING GUARD CLIP | ||||
| 503 | 381202 | 2.10 | 2.54 | |
| No information available, not orderable | ||||
| 601 | 314095 | |||
| No information available, not orderable | ||||
| 602 | 314096 | |||
| No information available, not orderable | ||||
| 603 | 314097 | |||
| No information available, not orderable | ||||
| 604 | 314098 | |||
| No information available, not orderable | ||||
| 605 | 314099 | |||
| No information available, not orderable | ||||
| 606 | 314100 | |||
| No information available, not orderable | ||||
| 607 | 314101 | |||
| No information available, not orderable | ||||
| 608 | 314102 | |||
| No information available, not orderable | ||||
| 609 | 314103 | |||
| No information available, not orderable | ||||
| 610 | 314104 | |||
| No information available, not orderable | ||||
| 611 | 314105 | |||
| No information available, not orderable | ||||
| 612 | 937826Z | |||
| No information available, not orderable | ||||
| 613 | 937825Z | |||
| No information available, not orderable | ||||
| 614 | 332785 | |||
