Here you will find all available parts and drawings of the 'Hikoki G12SG'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

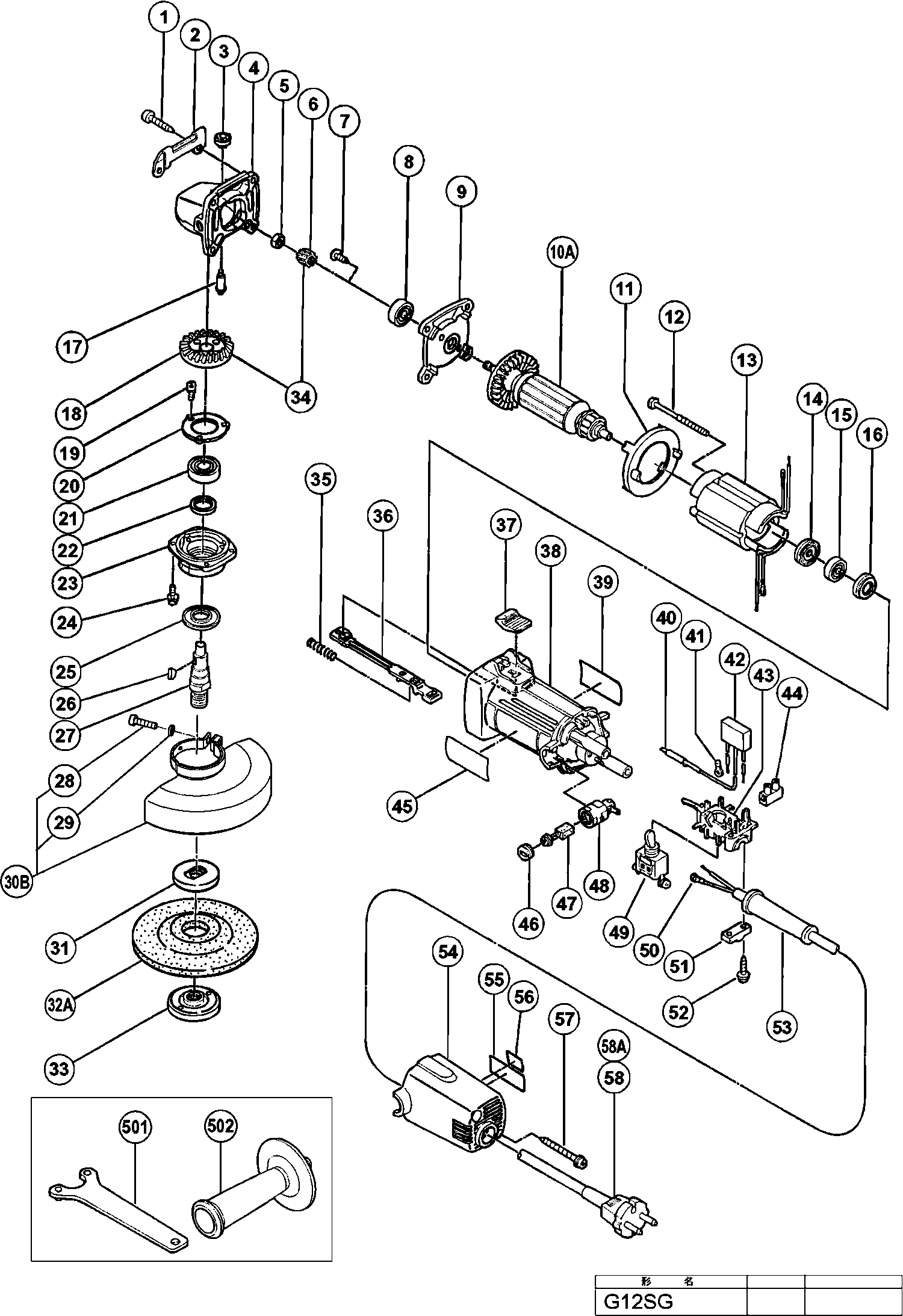

Technical drawing of model Hikoki G12SG
Spare parts list of model Hikoki G12SG
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 1 | 937807 | |||
| No information available, not orderable | ||||
| 2 | 302149 | |||
| Pushing Button | ||||
| 3 | 301944 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 4 | 314125 | |||
| Special Nut M6 | ||||
| 5 | 309191 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 6 | 309189 | |||
| Slotted Hd. Screw (Seal Lock) M4x10 | ||||
| 7 | 314430 | 1.05 | 1.27 | |
| Ball Bearing 608vvc2ps2l | ||||
| 8 | 608VVM | 5.70 | 6.90 | |
| Inner Cover | ||||
| 9 | 301935 | 3.00 | 3.63 | |
| No information available, not orderable | ||||
| 10A | 360437U | |||
| Fan Guide | ||||
| 11 | 306840 | 1.80 | 2.18 | |
| Hex. Hd. Tapping Screw D4x70 | ||||
| 12 | 982021 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 13 | 340385E | |||
| Dust Seal | ||||
| 14 | 313775 | 1.05 | 1.27 | |
| Ball Bearing 626vvc2ps2l | ||||
| 15 | 626VVM | 5.70 | 6.90 | |
| Rubber Ring | ||||
| 16 | 309929 | 1.04 | 1.26 | |
| Lock Pin | ||||
| 17 | 301943 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 18 | 309190 | |||
| Seal Lock Screw (w/sp. Washer) M4x10 Till 09.2009 | ||||
| 19 | 997263 | 1.05 | 1.27 | |
| Bearing Cover | ||||
| 20 | 938058 | 1.04 | 1.26 | |
| Ball Bearing 6001vv | ||||
| 21 | 6001VV | 6.60 | 7.99 | |
| Felt Packing | ||||
| 22 | 301946 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 23 | 302286 | |||
| Seal Lock Screw (w/sp. Washer) M4x12 | ||||
| 24 | 307127 | 1.05 | 1.27 | |
| Fringer | ||||
| 25 | 301945 | 1.05 | 1.27 | |
| INSERT PIN 2,5X8 | ||||
| 26 | 940220 | 1.35 | 1.63 | |
| Spindle Ass'y | ||||
| 27 | 302059 | 6.75 | 8.17 | |
| Machine Screw M5x20 (10 pieces) | ||||
| 28 | 949241 | 1.35 | 1.63 | |
| Spring Washer M5 (10 pieces) | ||||
| 29 | 949454 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 30B | 319656 | |||
| No longer available, no replacement | ||||
| 31 | 937922P | |||
| No information available, not orderable | ||||
| 32A | 316821 | |||
| No information available, not orderable | ||||
| 33 | 937923P | |||
| No information available, not orderable | ||||
| 33A | 339579 | |||
| Gear Set (large + small) | ||||
| 34 | 309188 | 55.41 | 67.05 | |
| Spring | ||||
| 35 | 314429 | 1.04 | 1.26 | |
| Slide Bar | ||||
| 36 | 314427 | 1.05 | 1.27 | |
| Slide Knob | ||||
| 37 | 314428 | 1.04 | 1.26 | |
| Housing | ||||
| 38 | 314438 | 6.21 | 7.52 | |
| Earth Terminal For Tpe | ||||
| 40 | 314854 | 1.50 | 1.82 | |
| Terminal | ||||
| 41 | 311741 | 1.04 | 1.26 | |
| Noise Suppressor | ||||
| 42 | 994273 | 4.29 | 5.19 | |
| Switch Holder | ||||
| 43 | 314432 | 2.10 | 2.54 | |
| Pillar Terminal Till 10.1999 For Aus | ||||
| 44 | 938307 | 2.13 | 2.57 | |
| Brush Cap | ||||
| 46 | 936551 | 1.05 | 1.27 | |
| No longer available, no replacement | ||||
| 47 | 999021 | |||
| Brush Holder | ||||
| 48 | 313777 | 1.50 | 1.82 | |
| SCHAKELAAR | ||||
| 49 | 314603 | 11.88 | 14.37 | |
| connecting terminal | ||||
| 50 | 980063 | 1.04 | 1.26 | |
| Cord Clip | ||||
| 51 | 937631 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 52 | 984750 | |||
| No information available, not orderable | ||||
| 53 | 953327 | |||
| Tail Cover | ||||
| 54 | 314433 | 5.18 | 6.26 | |
| Tapping Screw (w/flange) D4x45 (black) | ||||
| 57 | 301815 | 1.05 | 1.27 | |
| Cord (cord Armor D8.8) For Saf | ||||
| 58 | 500237Z | 11.40 | 13.79 | |
| Cord (cord Armor D8.8) For Pan | ||||
| 58 | 500447Z | 6.60 | 7.99 | |
| Cord (cord Armor D8.8) For Uae (240v) | ||||
| 58A | 500461Z | 17.88 | 21.63 | |
| No information available, not orderable | ||||
| 501 | 938332Z | |||
| No information available, not orderable | ||||
| 502 | 302739 | |||
| No information available, not orderable | ||||
| 601 | 937825Z | |||
| No information available, not orderable | ||||
| 602 | 937826Z | |||
| No information available, not orderable | ||||
| 603 | 314095 | |||
| No information available, not orderable | ||||
| 604 | 314096 | |||
| No information available, not orderable | ||||
| 605 | 314097 | |||
| No information available, not orderable | ||||
| 606 | 314098 | |||
| No information available, not orderable | ||||
| 607 | 314099 | |||
| No information available, not orderable | ||||
| 608 | 314100 | |||
| No information available, not orderable | ||||
| 609 | 314101 | |||
| No information available, not orderable | ||||
| 610 | 314102 | |||
| No information available, not orderable | ||||
| 611 | 314103 | |||
| No information available, not orderable | ||||
| 612 | 314104 | |||
| No information available, not orderable | ||||
| 613 | 314105 | |||
| No information available, not orderable | ||||
| 614 | 332786 | |||
