Here you will find all available parts and drawings of the 'Hikoki G10VE2'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

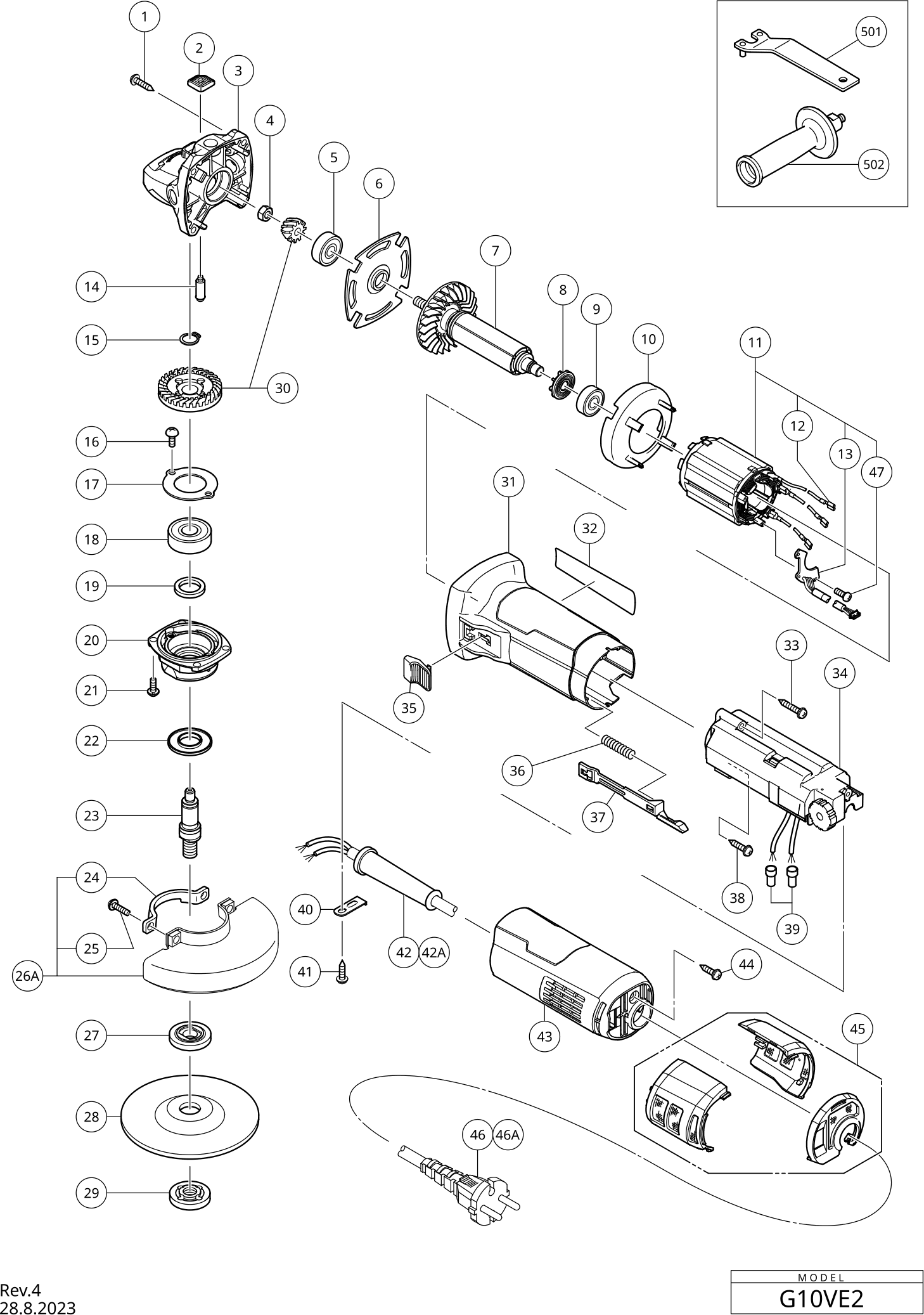

Technical drawing of model Hikoki G10VE2
Spare parts list of model Hikoki G10VE2
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| *40 | 338333 | |||
| No information available, not orderable | ||||
| *42A | 380091 | |||
| No information available, not orderable | ||||
| *46 | 500455Z | |||
| Tapping Screw (w/flange) D4x23 (black) | ||||
| 1 | 328643 | 1.05 | 1.27 | |
| PUSHING BUTTON ASS'Y NEW | ||||
| 2 | 378809 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 3 | 378810 | |||
| Special Nut M6 | ||||
| 4 | 309191 | 1.04 | 1.26 | |
| BALL BEARING 628DD NEW | ||||
| 5 | 378615 | 1.92 | 2.32 | |
| BEARING HOLDER NEW | ||||
| 6 | 378812 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 7 | 361177 | |||
| DUST SEAL NEW | ||||
| 8 | 379725 | 1.00 | 1.21 | |
| Ball Bearing 608dd | ||||
| 9 | 608DDM | 5.55 | 6.72 | |
| FAN GUIDE NEW | ||||
| 10 | 378808 | 1.00 | 1.21 | |
| STATOR ASS'Y (A) 220V-240V NEW | ||||
| 11 | 341130E | 12.21 | 14.77 | |
| FASTON NEW | ||||
| 12 | 370131 | 1.00 | 1.21 | |
| SENSOR PCB NEW | ||||
| 13 | 378813 | 9.06 | 10.96 | |
| Lock Pin | ||||
| 14 | 301943 | 1.65 | 2.00 | |
| Spring Washer D12 (10 pieces) | ||||
| 15 | 939542 | 1.50 | 1.82 | |
| Seal Lock Screw M4x10 | ||||
| 16 | 324082 | 1.65 | 2.00 | |
| Bearing Cover | ||||
| 17 | 316490 | 1.65 | 2.00 | |
| Ball Bearing 6201ddcmps2l | ||||
| 18 | 6201DD | 6.30 | 7.62 | |
| Felt Packing | ||||
| 19 | 301946 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 20 | 316489 | |||
| Seal Lock Screw (w/sp. Washer) M4x12 | ||||
| 21 | 307127 | 1.05 | 1.27 | |
| Fringer | ||||
| 22 | 301945 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 23 | 339982 | |||
| Clamp Ring for Guard | ||||
| 24 | 301949 | 1.04 | 1.26 | |
| Machine Screw (w/sp. Washer) M5x16(black | ||||
| 25 | 308386 | 1.05 | 1.27 | |
| BESCHERMKAP 100MM (OUD 301948/331076/331085) | ||||
| 26A | 379562 | 2.10 | 2.54 | |
| No longer available, no replacement | ||||
| 27 | 372737 | |||
| No information available, not orderable | ||||
| 28 | 316820 | |||
| No information available, not orderable | ||||
| 29 | 339578 | |||
| Gear And Pinion Set | ||||
| 30 | 338338 | 7.95 | 9.62 | |
| HOUSING NEW | ||||
| 31 | 378801 | 2.52 | 3.05 | |
| Tapping Screw (w/flange) D4x35 (black) | ||||
| 33 | 303694 | 1.04 | 1.26 | |
| CONTROLLER (B) 220-240 VOLT NEW | ||||
| 34 | 379728 | 87.12 | 105.42 | |
| SCHAKELAARSCHUIF | ||||
| 35 | 377766 | 1.00 | 1.21 | |
| Spring | ||||
| 36 | 314429 | 1.04 | 1.26 | |
| SLIDE BAR NEW | ||||
| 37 | 378807 | 1.00 | 1.21 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 38 | 301653 | 1.04 | 1.26 | |
| Connector 50091 (10 Pcs.) | ||||
| 39 | 959140 | 3.30 | 3.99 | |
| Cord Clip | ||||
| 40 | 338334 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 41 | 984750 | |||
| Cord Armor D8.8 | ||||
| 42 | 380090 | 1.04 | 1.26 | |
| Cord Armor D8.8 | ||||
| 42A | 380090 | 1.04 | 1.26 | |
| TAIL COVER NEW | ||||
| 43 | 378798 | 1.50 | 1.82 | |
| No information available, not orderable | ||||
| 44 | 307811 | |||
| FILTER SET | ||||
| 45 | 379204 | 2.64 | 3.19 | |
| SNOER 2.5M 2 X 1.0 H05VV-F W/PLUG 13A/250V (OLD 50 | ||||
| 46 | 500423Z | 12.87 | 15.57 | |
| CORD (CORD ARMOR D10.7) | ||||
| 46A | 500492Z | 6.45 | 7.80 | |
| Tapping Screw D2x8 (black) | ||||
| 47 | 329623 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 501 | 313933 | |||
| SIDE HANDLE NEW | ||||
| 502 | 378279 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 603 | 314053 | |||
| No information available, not orderable | ||||
| 604 | 314054 | |||
| No information available, not orderable | ||||
| 605 | 314055 | |||
| No information available, not orderable | ||||
| 606 | 314056 | |||
| No information available, not orderable | ||||
| 607 | 314057 | |||
| No information available, not orderable | ||||
| 608 | 314058 | |||
| No information available, not orderable | ||||
| 609 | 314059 | |||
| No information available, not orderable | ||||
| 610 | 314060 | |||
| No information available, not orderable | ||||
| 611 | 314061 | |||
| Washer Nut M10xp1.5 | ||||
| 612 | 935513 | 4.20 | 5.08 | |
| RING | ||||
| 613 | 936548 | 2.58 | 3.12 | |
| No information available, not orderable | ||||
| 614 | 936558Z | |||
| No information available, not orderable | ||||
| 615 | 302098 | |||
