Here you will find all available parts and drawings of the 'Hikoki G10VE'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

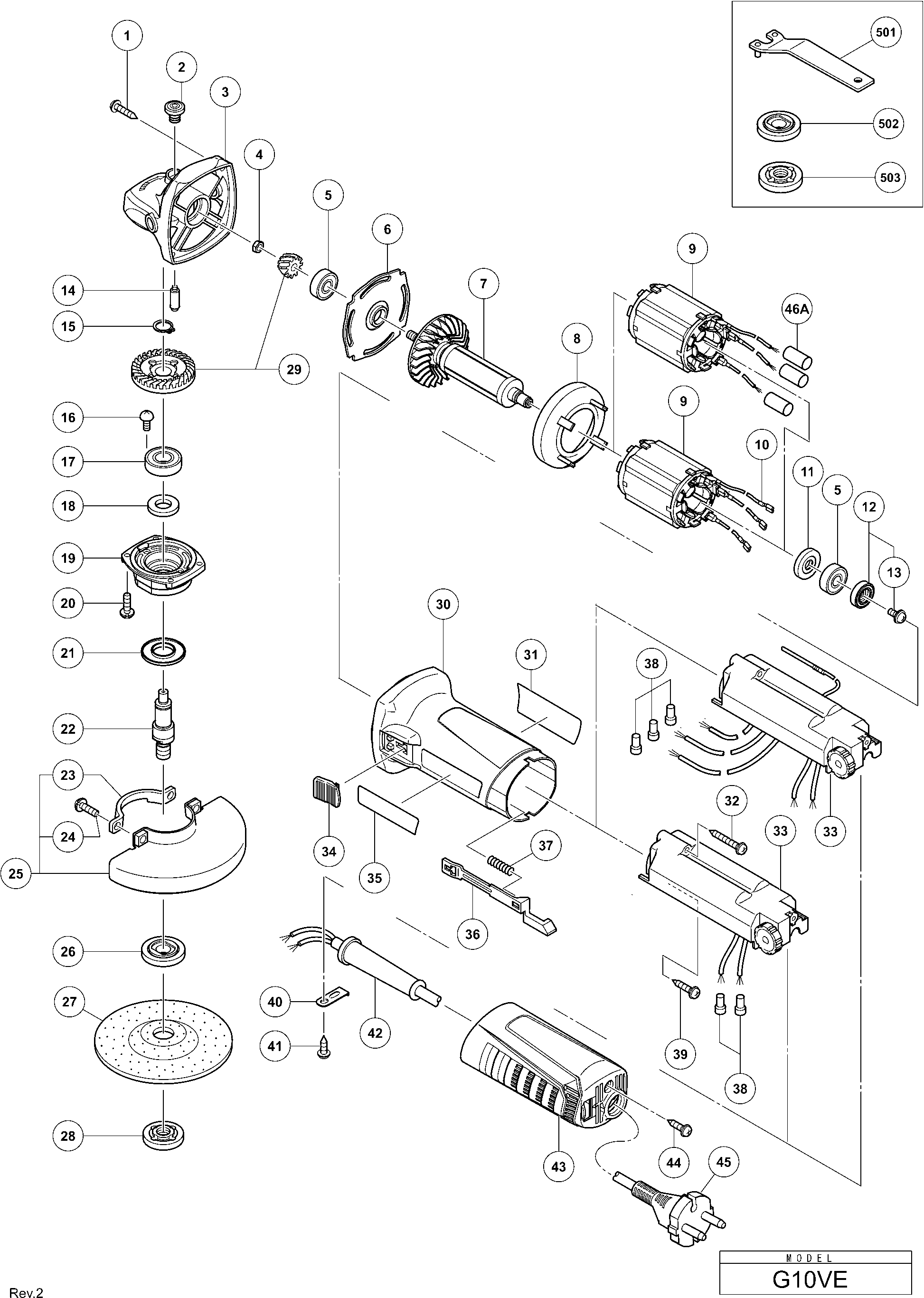

Technical drawing of model Hikoki G10VE
Spare parts list of model Hikoki G10VE
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| *26 | 372736 | |||
| No longer available, no replacement | ||||
| *33 | 339143 | |||
| Connector 50091 (10 Pcs.) | ||||
| *38 | 959140 | 3.30 | 3.99 | |
| SNOER 2.5M 2 X 1.0 H05VV-F W/PLUG 13A/250V (OLD 50 | ||||
| *45 | 500423Z | 12.87 | 15.57 | |
| Stator Ass'y 220v-240v Including.63 | ||||
| *9 | 340917E | 24.48 | 29.61 | |
| Stator 230v | ||||
| *9 | 340917C | 21.04 | 25.46 | |
| Tapping Screw (w/flange) D4x23 (black) | ||||
| 1 | 328643 | 1.05 | 1.27 | |
| Pushing Button | ||||
| 2 | 301944 | 1.04 | 1.26 | |
| Gear Cover Ass'y Includ.2,10 | ||||
| 3 | 338332 | 7.50 | 9.08 | |
| GEAR COVER ASS'Y (OUD 338332) | ||||
| 3A | 370914 | 5.28 | 6.39 | |
| Special Nut M6 | ||||
| 4 | 309191 | 1.04 | 1.26 | |
| Ball Bearing 608ss | ||||
| 5 | 338337 | 2.25 | 2.72 | |
| Ball Bearing 608dd | ||||
| 5A | 608DDM | 5.55 | 6.72 | |
| Bearing Holder | ||||
| 6 | 334940 | 2.10 | 2.54 | |
| Rotor | ||||
| 7 | 361032 | 70.68 | 85.52 | |
| ROTOR (OLD 361032) | ||||
| 7A | 361154 | 64.21 | 77.70 | |
| Fan Guide | ||||
| 8 | 338346 | 1.04 | 1.26 | |
| Stator Ass'y 220v-240v Including.63 | ||||
| 9 | 340917E | 24.48 | 29.61 | |
| FASTON NEW | ||||
| 10 | 370131 | 1.00 | 1.21 | |
| Dust Seal (1) | ||||
| 11 | 338336 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 12 | 371232 | |||
| SENSOR MAGNET (OLD 371232) | ||||
| 12A | 374287 | 12.15 | 14.70 | |
| Seal Lock Screw (w/sp. Washer) M4x12 | ||||
| 13 | 338341 | 1.04 | 1.26 | |
| Lock Pin | ||||
| 14 | 301943 | 1.65 | 2.00 | |
| Spring Washer D12 (10 pieces) | ||||
| 15 | 939542 | 1.50 | 1.82 | |
| Slotted Hd. Screw (seal Lock) M4 | ||||
| 16 | 334942 | 1.20 | 1.45 | |
| Slotted Head Screw (seal Lock) M4 | ||||
| 16A | 371814 | 1.04 | 1.26 | |
| Ball Bearing 6001vv | ||||
| 17 | 6001VV | 6.60 | 7.99 | |
| Felt Packing | ||||
| 18 | 301946 | 1.04 | 1.26 | |
| Packing Gland | ||||
| 19 | 334938 | 4.20 | 5.08 | |
| Seal Lock Screw (w/sp. Washer) M4x12 | ||||
| 20 | 307127 | 1.05 | 1.27 | |
| Fringer | ||||
| 21 | 301945 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 22 | 338344 | |||
| Clamp Ring for Guard | ||||
| 23 | 301949 | 1.04 | 1.26 | |
| Machine Screw (w/sp. Washer) M5x16(black | ||||
| 24 | 308386 | 1.05 | 1.27 | |
| Guard | ||||
| 25 | 301948 | 5.71 | 6.91 | |
| BESCHERMKAP 100MM (OUD 301948/331076/331085) | ||||
| 25A | 379562 | 2.10 | 2.54 | |
| No longer available, no replacement | ||||
| 26 | 372737 | |||
| No information available, not orderable | ||||
| 27 | 316820 | |||
| No information available, not orderable | ||||
| 28 | 372735 | |||
| Gear And Pinion Set | ||||
| 29 | 338338 | 7.95 | 9.62 | |
| Housing (1) | ||||
| 30 | 338329 | 4.80 | 5.81 | |
| Housing (1) | ||||
| 30A | 338329 | 4.80 | 5.81 | |
| Tapping Screw (w/flange) D4x40 (black) | ||||
| 32 | 306664 | 1.05 | 1.27 | |
| CONTROLLER 220-240 VOLT (OLD 339143) | ||||
| 33 | 373789 | 121.00 | 146.41 | |
| Slide Switch Knob | ||||
| 34 | 338854 | 1.04 | 1.26 | |
| Slide Bar | ||||
| 36 | 370130 | 1.04 | 1.26 | |
| TREKSTANG (OUD 370130) | ||||
| 36A | 377948 | 1.00 | 1.21 | |
| Spring | ||||
| 37 | 314429 | 1.04 | 1.26 | |
| Connector 50091 (10 Pcs.) | ||||
| 38 | 959140 | 3.30 | 3.99 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 39 | 301653 | 1.04 | 1.26 | |
| Cord Clip | ||||
| 40 | 338334 | 1.04 | 1.26 | |
| Tapping Screw (w/flange) D4x12 Till 1.2001 | ||||
| 41 | 305720 | 1.05 | 1.27 | |
| Cord Armor D8.8 | ||||
| 42 | 380090 | 1.04 | 1.26 | |
| Tail Cover | ||||
| 43 | 339142 | 3.75 | 4.54 | |
| No information available, not orderable | ||||
| 44 | 307811 | |||
| SNOER 2.5M 2 X 1.0 H05VV-F W/PLUG 13A/250V (OLD 50 | ||||
| 45 | 500423Z | 12.87 | 15.57 | |
| SNOER 10.7 (USE 714500=2X1 5M) | ||||
| 45 | 500247Z | 6.18 | 7.48 | |
| CORD (CORD ARMOR D10.7) | ||||
| 45A | 500492Z | 6.45 | 7.80 | |
| Tube | ||||
| 46A | 372980 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 501 | 313933 | |||
| No information available, not orderable | ||||
| 502 | 371935 | |||
| No information available, not orderable | ||||
| 503 | 333919 | |||
| No information available, not orderable | ||||
| 601 | 314051 | |||
| No information available, not orderable | ||||
| 602 | 314052 | |||
| No information available, not orderable | ||||
| 603 | 314053 | |||
| No information available, not orderable | ||||
| 604 | 314054 | |||
| No information available, not orderable | ||||
| 605 | 314055 | |||
| No information available, not orderable | ||||
| 606 | 314056 | |||
| No information available, not orderable | ||||
| 607 | 314057 | |||
| No information available, not orderable | ||||
| 608 | 314058 | |||
| No information available, not orderable | ||||
| 609 | 314059 | |||
| No information available, not orderable | ||||
| 610 | 314060 | |||
| No information available, not orderable | ||||
| 611 | 314061 | |||
| Washer Nut M10xp1.5 | ||||
| 612 | 935513 | 4.20 | 5.08 | |
| RING | ||||
| 613 | 936548 | 2.58 | 3.12 | |
| No information available, not orderable | ||||
| 614 | 936558Z | |||
| No information available, not orderable | ||||
| 615 | 302098 | |||
| No information available, not orderable | ||||
| 616 | 323918 | |||
| No information available, not orderable | ||||
| 617 | 376313 | |||
