Here you will find all available parts and drawings of the 'Hikoki G10SR4'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

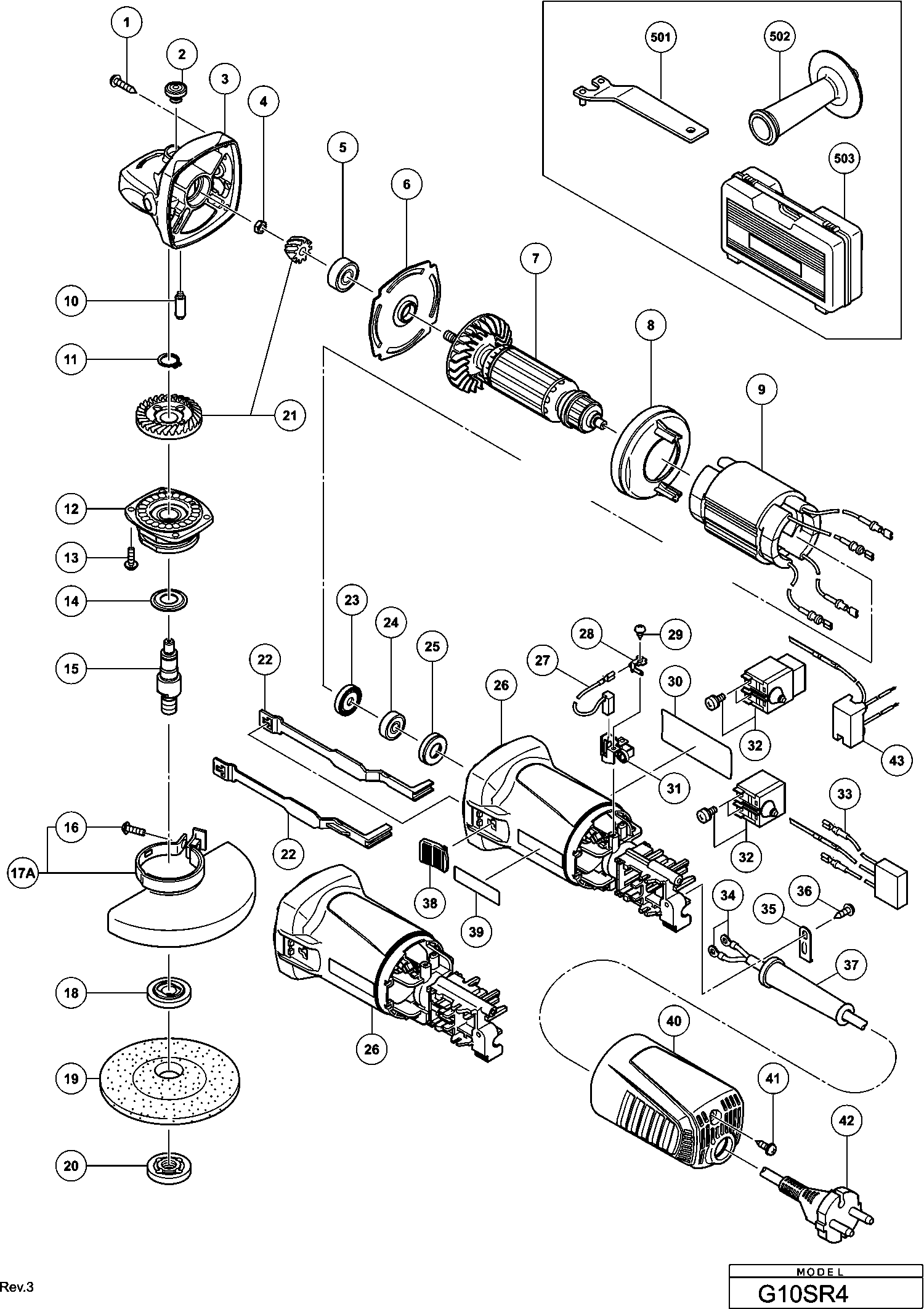

Technical drawing of model Hikoki G10SR4
Spare parts list of model Hikoki G10SR4
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| *19 | 316820 | |||
| Slide Bar | ||||
| *22 | 338855 | 1.04 | 1.26 | |
| Slide Bar | ||||
| *22 | 370023 | 1.04 | 1.26 | |
| Housing (1) | ||||
| *26 | 370018 | 3.90 | 4.72 | |
| Housing (1) | ||||
| *26 | 339140 | 3.90 | 4.72 | |
| PUSHING BUTTON SWITCH 110 VOLT | ||||
| *32C | 377010 | 8.40 | 10.16 | |
| PUSHING BUTTON SWITCH | ||||
| *32C | 376230 | 7.20 | 8.71 | |
| Terminal | ||||
| *34 | 311741 | 1.04 | 1.26 | |
| Cord Clip | ||||
| *35 | 338334 | 1.04 | 1.26 | |
| Tail Cover | ||||
| *40 | 370019 | 1.50 | 1.82 | |
| Tail Cover | ||||
| *40 | 339141 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| *42 | 500470Z | |||
| SWITCH SET 220-240 VOLT | ||||
| *43 | 376370 | 14.25 | 17.24 | |
| SCHAKELAAR 110 VOLT (OUD 374279) | ||||
| *43 | 376371 | 11.99 | 14.51 | |
| Armature 220v-240v | ||||
| *7 | 361016E | 29.01 | 35.11 | |
| ANKER 110 VOLT | ||||
| *7 | 361016C | 27.06 | 32.74 | |
| Stator 220v-230v | ||||
| *9 | 340016E | 30.53 | 36.94 | |
| VELD 110 VOLT | ||||
| *9 | 340016C | 21.40 | 25.89 | |
| Tapping Screw (w/flange) D4x23 (black) | ||||
| 1 | 328643 | 1.05 | 1.27 | |
| Pushing Button | ||||
| 2 | 301944 | 1.04 | 1.26 | |
| Gear Cover | ||||
| 3 | 339146 | 6.90 | 8.35 | |
| Special Nut M6 | ||||
| 4 | 309191 | 1.04 | 1.26 | |
| Ball Bearing 608ss | ||||
| 5 | 338337 | 2.25 | 2.72 | |
| Bearing Holder | ||||
| 6 | 338850 | 1.04 | 1.26 | |
| Armature 220v-240v | ||||
| 7 | 361016E | 29.01 | 35.11 | |
| ANKER 110 VOLT | ||||
| 7 | 361016C | 27.06 | 32.74 | |
| Fan Guide | ||||
| 8 | 338853 | 1.04 | 1.26 | |
| Stator 220v-230v | ||||
| 9 | 340016E | 30.53 | 36.94 | |
| VELD 110 VOLT | ||||
| 9 | 340016C | 21.40 | 25.89 | |
| Lock Pin | ||||
| 10 | 301943 | 1.65 | 2.00 | |
| Retaining Ring For D11 Shaft Till 9.2012 | ||||
| 11 | 316487 | 1.65 | 2.00 | |
| Inner Cover | ||||
| 12A | 338849 | 3.00 | 3.63 | |
| Seal Lock Screw (w/washer) M4x12 | ||||
| 13 | 328628 | 1.05 | 1.27 | |
| Washer (a) | ||||
| 14 | 328185 | 1.05 | 1.27 | |
| Spindle Ass'y | ||||
| 15 | 328174 | 4.20 | 5.08 | |
| Machine Screw (w/sp. Washer) M5x16(black | ||||
| 16 | 308386 | 1.05 | 1.27 | |
| Wheel Guard Ass'y Includ.16 | ||||
| 17A | 370066 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 17B | 379773 | |||
| No information available, not orderable | ||||
| 18 | 372737 | |||
| No information available, not orderable | ||||
| 18A | 372737 | |||
| No information available, not orderable | ||||
| 19 | 316820 | |||
| No information available, not orderable | ||||
| 20A | 339578 | |||
| Gear And Pinion Set | ||||
| 21 | 339265 | 7.26 | 8.79 | |
| Slide Bar | ||||
| 22 | 370023 | 1.04 | 1.26 | |
| Slide Bar | ||||
| 22 | 338855 | 1.04 | 1.26 | |
| Dust Seal | ||||
| 23 | 321722 | 1.35 | 1.63 | |
| Ball Bearing 626zz | ||||
| 24 | 339145 | 1.50 | 1.82 | |
| Rubber Ring | ||||
| 25 | 309929 | 1.04 | 1.26 | |
| Housing (1) | ||||
| 26 | 339140 | 3.90 | 4.72 | |
| Housing (1) | ||||
| 26 | 370018 | 3.90 | 4.72 | |
| Carbon Brush (1 Pair) | ||||
| 27 | 999067 | 2.85 | 3.45 | |
| Tab Terminal | ||||
| 28 | 339185 | 1.04 | 1.26 | |
| Tapping Screw D3x8 | ||||
| 29 | 328210 | 1.20 | 1.45 | |
| Carbon Brush Holder | ||||
| 31 | 333844 | 2.10 | 2.54 | |
| Switch | ||||
| 32 | 339149 | 2.70 | 3.27 | |
| No information available, not orderable | ||||
| 32A | 373299 | |||
| Terminal | ||||
| 34 | 311741 | 1.04 | 1.26 | |
| connecting terminal | ||||
| 34 | 980063 | 1.04 | 1.26 | |
| Cord Clip | ||||
| 35 | 338334 | 1.04 | 1.26 | |
| Tapping Screw (w/flange) D4x12 Till 1.2001 | ||||
| 36 | 305720 | 1.05 | 1.27 | |
| Cord Armor D10.1 | ||||
| 37 | 938051 | 1.04 | 1.26 | |
| Cord Armor D8.8 | ||||
| 37A | 380090 | 1.04 | 1.26 | |
| Slide Switch Knob | ||||
| 38 | 338854 | 1.04 | 1.26 | |
| Tail Cover | ||||
| 40 | 370019 | 1.50 | 1.82 | |
| Tail Cover | ||||
| 40 | 339141 | 1.20 | 1.45 | |
| Tapping Screw (w/flange) D4x16 (black) | ||||
| 41 | 305812 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 42 | 500470Z | |||
| No information available, not orderable | ||||
| 501 | 313933 | |||
| No information available, not orderable | ||||
| 502A | 994322 | |||
| No information available, not orderable | ||||
| 503 | 339264 | |||
| No information available, not orderable | ||||
| 503A | 381394 | |||
| No information available, not orderable | ||||
| 504 | 302099 | |||
| No information available, not orderable | ||||
| 601 | 314051 | |||
| No information available, not orderable | ||||
| 602 | 314052 | |||
| No information available, not orderable | ||||
| 603 | 314053 | |||
| No information available, not orderable | ||||
| 604 | 314054 | |||
| No information available, not orderable | ||||
| 605 | 314055 | |||
| No information available, not orderable | ||||
| 606 | 314056 | |||
| No information available, not orderable | ||||
| 607 | 314057 | |||
| No information available, not orderable | ||||
| 608 | 314058 | |||
| No information available, not orderable | ||||
| 609 | 314059 | |||
| No information available, not orderable | ||||
| 610 | 314060 | |||
| No information available, not orderable | ||||
| 611 | 314061 | |||
| Washer Nut M10xp1.5 | ||||
| 612 | 935513 | 4.20 | 5.08 | |
| RING | ||||
| 613 | 936548 | 2.58 | 3.12 | |
| No information available, not orderable | ||||
| 614 | 936558Z | |||
| No information available, not orderable | ||||
| 615 | 302098 | |||
| No information available, not orderable | ||||
| 616 | 323918 | |||
| Liquid Packing | ||||
| 617 | 324688 | 40.84 | 49.41 | |
