Here you will find all available parts and drawings of the 'Hikoki G10SQ2'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

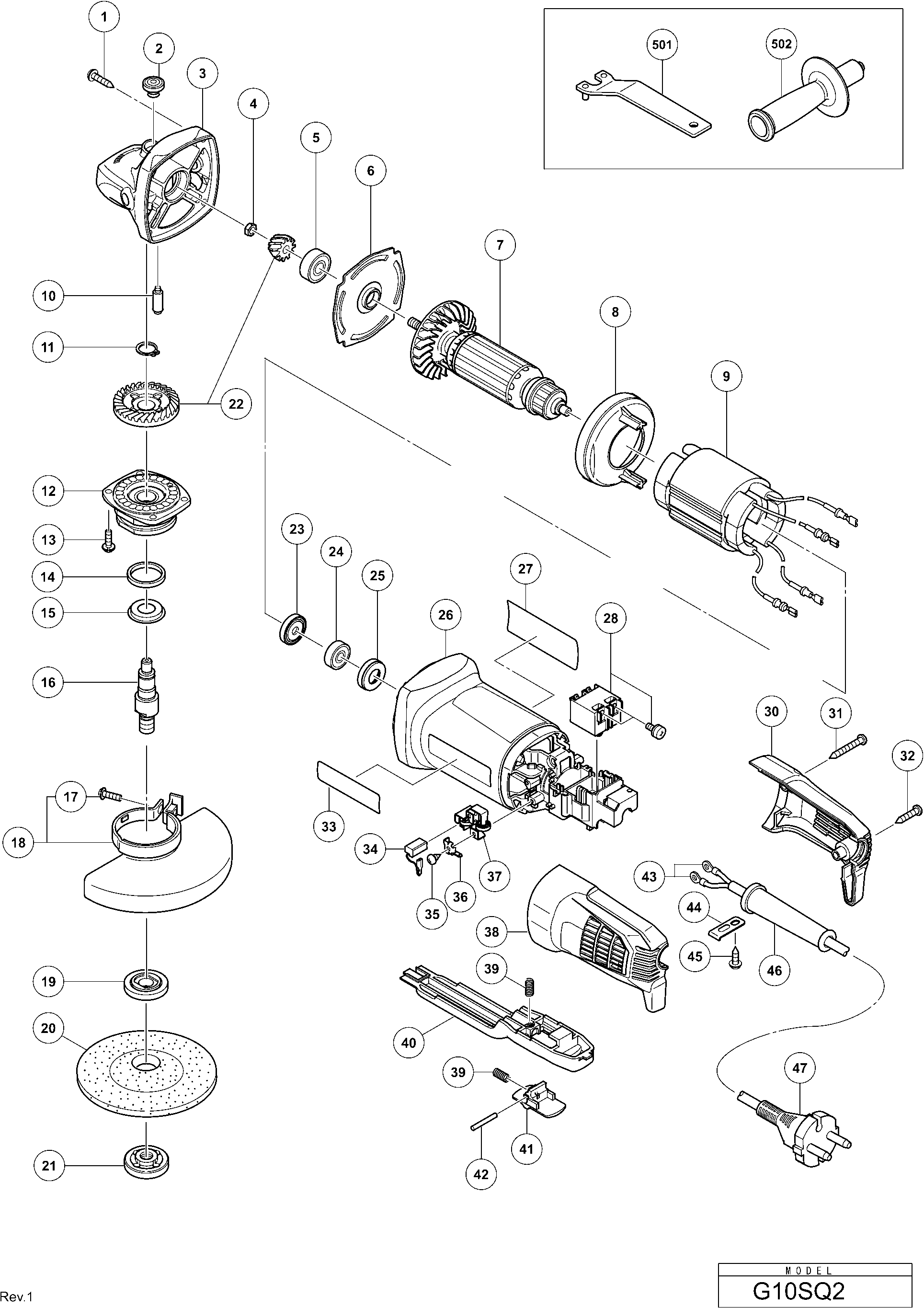

Technical drawing of model Hikoki G10SQ2
Spare parts list of model Hikoki G10SQ2
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Cord Clip | ||||
| *44 | 338334 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| *47 | 500468Z | |||
| ARMATURE 230 VOLT | ||||
| *7 | 361082F | 19.66 | 23.79 | |
| Armature Ass'y 240v | ||||
| *7 | 361082G | 19.39 | 23.46 | |
| ARMATURE 110 VOLT | ||||
| *7 | 361082B | 18.37 | 22.23 | |
| Field | ||||
| *9 | 340997E | 16.23 | 19.63 | |
| Stator 220v-230v | ||||
| *9 | 340997D | 15.81 | 19.13 | |
| FIELD 110-120 VOLT | ||||
| *9 | 340997B | 15.12 | 18.30 | |
| Tapping Screw (w/flange) D4x23 (black) | ||||
| 1 | 328643 | 1.05 | 1.27 | |
| Pushing Button | ||||
| 2 | 301944 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 3 | 338332 | |||
| Special Nut M6 | ||||
| 4 | 309191 | 1.04 | 1.26 | |
| Ball Bearing 608ss | ||||
| 5 | 338337 | 2.25 | 2.72 | |
| Bearing Holder | ||||
| 6 | 338850 | 1.04 | 1.26 | |
| ARMATURE 230 VOLT | ||||
| 7 | 361082F | 19.66 | 23.79 | |
| Armature Ass'y 240v | ||||
| 7 | 361082G | 19.39 | 23.46 | |
| ARMATURE 110 VOLT | ||||
| 7 | 361082B | 18.37 | 22.23 | |
| Fan Guide | ||||
| 8 | 338853 | 1.04 | 1.26 | |
| Field | ||||
| 9 | 340997E | 16.23 | 19.63 | |
| Stator 220v-230v | ||||
| 9 | 340997D | 15.81 | 19.13 | |
| FIELD 110-120 VOLT | ||||
| 9 | 340997B | 15.12 | 18.30 | |
| Lock Pin | ||||
| 10 | 301943 | 1.65 | 2.00 | |
| Retaining Ring For D11 Shaft Till 9.2012 | ||||
| 11 | 316487 | 1.65 | 2.00 | |
| Inner Cover | ||||
| 12 | 338849 | 3.00 | 3.63 | |
| Seal Lock Screw (w/washer) M4x12 | ||||
| 13 | 328628 | 1.05 | 1.27 | |
| VILTPAKKIING | ||||
| 14 | 373384 | 1.04 | 1.26 | |
| Fringer | ||||
| 15 | 373383 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 16 | 373295 | |||
| Machine Screw (w/sp. Washer) M5x16(black | ||||
| 17 | 308386 | 1.05 | 1.27 | |
| Wheel Guard Ass'y Includ.16 | ||||
| 18 | 370066 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 19 | 372737 | |||
| No information available, not orderable | ||||
| 20 | 316820 | |||
| No information available, not orderable | ||||
| 21 | 339578 | |||
| Gear And Pinion Set | ||||
| 22 | 339265 | 7.26 | 8.79 | |
| Dust Seal | ||||
| 23 | 321722 | 1.35 | 1.63 | |
| Ball Bearing 626zz | ||||
| 24 | 339145 | 1.50 | 1.82 | |
| Rubber Ring | ||||
| 25 | 309929 | 1.04 | 1.26 | |
| HOUSING | ||||
| 26 | 373167 | 4.80 | 5.81 | |
| Switch | ||||
| 28 | 339149 | 2.70 | 3.27 | |
| TAIL COVER (B) | ||||
| 30 | 373169 | 1.20 | 1.45 | |
| Tapping Screw (w/flange) D4x30 (black) | ||||
| 31 | 305490 | 1.04 | 1.26 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 32 | 301653 | 1.04 | 1.26 | |
| Carbon Brush (1 Pair) | ||||
| 34 | 999067 | 2.85 | 3.45 | |
| Tapping Screw D3x8 | ||||
| 35 | 328210 | 1.20 | 1.45 | |
| Tab Terminal | ||||
| 36 | 339185 | 1.04 | 1.26 | |
| Carbon Brush Holder | ||||
| 37 | 333844 | 2.10 | 2.54 | |
| TAIL COVER (A) | ||||
| 38 | 373168 | 1.20 | 1.45 | |
| SPRING | ||||
| 39 | 373175 | 1.04 | 1.26 | |
| Switch Lever | ||||
| 40 | 373170 | 1.05 | 1.27 | |
| OFF LOCK LEVER | ||||
| 41 | 373171 | 1.04 | 1.26 | |
| NEEDLE PIN | ||||
| 42 | 373173 | 1.04 | 1.26 | |
| connecting terminal | ||||
| 43 | 980063 | 1.04 | 1.26 | |
| Cord Clip | ||||
| 44 | 338334 | 1.04 | 1.26 | |
| Tapping Screw (w/flange) D4x12 Till 1.2001 | ||||
| 45 | 305720 | 1.05 | 1.27 | |
| Cord Armor D10.1 | ||||
| 46 | 938051 | 1.04 | 1.26 | |
| Cord Armor D8.8 | ||||
| 46A | 380090 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 47 | 500468Z | |||
| Seal Lock Screw (w/sp. Washer) M4x10 | ||||
| 48 | 987201 | 1.05 | 1.27 | |
| Bearing Cover | ||||
| 49 | 316490 | 1.65 | 2.00 | |
| Ball Bearing 6201vv | ||||
| 50 | 6201VV | 6.45 | 7.80 | |
| Felt Packing | ||||
| 51 | 301946 | 1.04 | 1.26 | |
| PACKING GLAND NEW | ||||
| 52 | 380072 | 3.48 | 4.21 | |
| SHAFT | ||||
| 53 | 379926 | 3.48 | 4.21 | |
| No information available, not orderable | ||||
| 501 | 313933 | |||
| Side Handle G13sr3 | ||||
| 502 | 318312 | 7.50 | 9.08 | |
| No information available, not orderable | ||||
| 601 | 314051 | |||
| No information available, not orderable | ||||
| 602 | 314052 | |||
| No information available, not orderable | ||||
| 603 | 314053 | |||
| No information available, not orderable | ||||
| 604 | 314054 | |||
| No information available, not orderable | ||||
| 605 | 314055 | |||
| No information available, not orderable | ||||
| 606 | 314056 | |||
| No information available, not orderable | ||||
| 607 | 314057 | |||
| No information available, not orderable | ||||
| 608 | 314058 | |||
| No information available, not orderable | ||||
| 609 | 314059 | |||
| No information available, not orderable | ||||
| 610 | 314060 | |||
| No information available, not orderable | ||||
| 611 | 314061 | |||
| Washer Nut M10xp1.5 | ||||
| 612 | 935513 | 4.20 | 5.08 | |
| RING | ||||
| 613 | 936548 | 2.58 | 3.12 | |
| No information available, not orderable | ||||
| 614 | 936558Z | |||
| No information available, not orderable | ||||
| 615 | 302098 | |||
| No information available, not orderable | ||||
| 616 | 323918 | |||
