Here you will find all available parts and drawings of the 'Hikoki G10SN'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

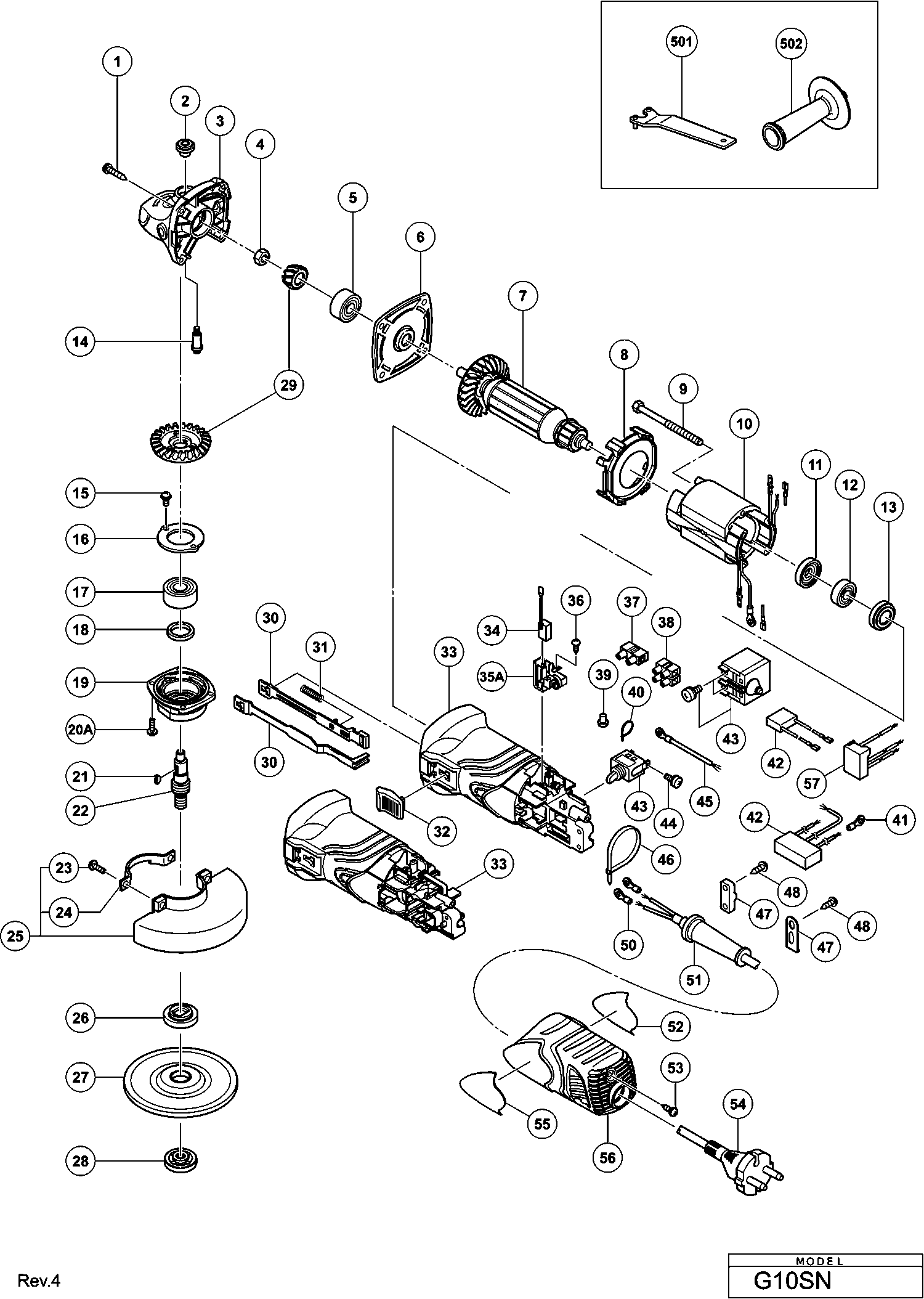

Technical drawing of model Hikoki G10SN
Spare parts list of model Hikoki G10SN
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Tapping Screw (w/flange) D4x25 (black) | ||||
| 1 | 307028 | 1.05 | 1.27 | |
| Pushing Button | ||||
| 2 | 301944 | 1.04 | 1.26 | |
| Inner Cover | ||||
| 3 | 332529 | 11.85 | 14.34 | |
| Special Nut M6 | ||||
| 4 | 309191 | 1.04 | 1.26 | |
| Ball Bearing 628vvc2ps2-l | ||||
| 5 | 628VVC | 11.85 | 14.34 | |
| Bearing Holder | ||||
| 6 | 327887 | 1.20 | 1.45 | |
| Armature 230v | ||||
| 7 | 360891F | 36.10 | 43.68 | |
| ANKER 110 VOLT | ||||
| 7 | 360891C | 33.66 | 40.73 | |
| Fan Guide | ||||
| 8 | 327886 | 1.20 | 1.45 | |
| Hex. Hd. Tapping Screw D4x70 | ||||
| 9 | 982021 | 1.04 | 1.26 | |
| Stator 230v | ||||
| 10 | 340791M | 49.50 | 59.90 | |
| VELD 110 VOLT | ||||
| 10 | 340791L | 46.20 | 55.90 | |
| Stator 230v-240v | ||||
| 10 | 340791J | 38.09 | 46.09 | |
| VELD 110 VOLT | ||||
| 10 | 340791B | 35.53 | 42.99 | |
| Stator 220v | ||||
| 10 | 340791D | 26.68 | 32.28 | |
| Dust Seal | ||||
| 11 | 321722 | 1.35 | 1.63 | |
| Ball Bearing 626vvc2ps2l | ||||
| 12 | 626VVM | 5.70 | 6.90 | |
| Rubber Ring | ||||
| 13 | 309929 | 1.04 | 1.26 | |
| Lock Pin | ||||
| 14 | 301943 | 1.65 | 2.00 | |
| Seal Lock Screw (w/sp. Washer) M4x10 | ||||
| 15 | 987201 | 1.05 | 1.27 | |
| Bearing Cover | ||||
| 16 | 316490 | 1.65 | 2.00 | |
| Ball Bearing 6201vv | ||||
| 17 | 6201VV | 6.45 | 7.80 | |
| Felt Packing | ||||
| 18 | 301946 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 19 | 316489 | |||
| Seal Lock Screw (w/sp. Washer) M4x12 | ||||
| 20A | 307127 | 1.05 | 1.27 | |
| Woodruff Key | ||||
| 21 | 302047 | 1.05 | 1.27 | |
| Spindle Ass'y | ||||
| 22 | 332526 | 4.20 | 5.08 | |
| Machine Screw (w/sp. Washer) M5x16(black | ||||
| 23 | 308386 | 1.05 | 1.27 | |
| Clamp Ring for Guard | ||||
| 24 | 301949 | 1.04 | 1.26 | |
| Guard | ||||
| 25A | 301948 | 5.71 | 6.91 | |
| No information available, not orderable | ||||
| 26 | 372737 | |||
| No information available, not orderable | ||||
| 27 | 316820 | |||
| No information available, not orderable | ||||
| 28A | 339578 | |||
| Bevel gear | ||||
| 29 | 327888 | 10.80 | 13.07 | |
| Slide Bar | ||||
| 30 | 333366 | 1.20 | 1.45 | |
| Slide Bar | ||||
| 30 | 370042 | 1.04 | 1.26 | |
| Spring | ||||
| 31 | 314429 | 1.04 | 1.26 | |
| Slide Knob | ||||
| 32 | 314428 | 1.04 | 1.26 | |
| Housing | ||||
| 33 | 370040 | 6.90 | 8.35 | |
| Housing | ||||
| 33 | 333365 | 6.30 | 7.62 | |
| Carbon Brush (1 Pair) | ||||
| 34 | 999005 | 7.80 | 9.44 | |
| Carbon Brush Holder | ||||
| 35A | 333844 | 2.10 | 2.54 | |
| Tapping Screw D3x8 | ||||
| 36 | 328210 | 1.20 | 1.45 | |
| Pillar Terminal Till 10.1999 For Aus | ||||
| 37 | 938307 | 2.13 | 2.57 | |
| CORD CLAMP | ||||
| 40 | 975144 | 1.04 | 1.26 | |
| Noise Suppressor For Model (s) | ||||
| 42 | 370051 | 1.65 | 2.00 | |
| SCHAKELAAR | ||||
| 43 | 314603 | 11.88 | 14.37 | |
| Machine Screw (w/washer) M3.5x6 | ||||
| 44 | 305499 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 45 | 370045 | |||
| Cable Tie | ||||
| 46 | 988054 | 1.04 | 1.26 | |
| Cord Clip | ||||
| 47 | 937631 | 1.04 | 1.26 | |
| Cord Clip | ||||
| 47 | 338334 | 1.04 | 1.26 | |
| Tapping Screw (w/flange) D4x12 Till 1.2001 | ||||
| 48 | 305720 | 1.05 | 1.27 | |
| Terminal | ||||
| 50 | 311741 | 1.04 | 1.26 | |
| connecting terminal | ||||
| 50 | 980063 | 1.04 | 1.26 | |
| Cord Armor D10.1 | ||||
| 51 | 938051 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 53 | 307811 | |||
| No information available, not orderable | ||||
| 54 | 500439Z | |||
| Tail Cover | ||||
| 56 | 327894 | 6.45 | 7.80 | |
| Tail Cover | ||||
| 56 | 370041 | 3.30 | 3.99 | |
| Varistor (a) For Model (s) | ||||
| 57 | 370043 | 5.70 | 6.90 | |
| No information available, not orderable | ||||
| 501 | 313933 | |||
| No information available, not orderable | ||||
| 502A | 994322 | |||
| No information available, not orderable | ||||
| 601 | 314051 | |||
| No information available, not orderable | ||||
| 602 | 314052 | |||
| No information available, not orderable | ||||
| 603 | 314053 | |||
| No information available, not orderable | ||||
| 604 | 314054 | |||
| No information available, not orderable | ||||
| 605 | 314055 | |||
| No information available, not orderable | ||||
| 606 | 314056 | |||
| No information available, not orderable | ||||
| 607 | 314057 | |||
| No information available, not orderable | ||||
| 608 | 314058 | |||
| No information available, not orderable | ||||
| 609 | 314059 | |||
| No information available, not orderable | ||||
| 610 | 314060 | |||
| No information available, not orderable | ||||
| 611 | 314061 | |||
| Washer Nut M10xp1.5 | ||||
| 612 | 935513 | 4.20 | 5.08 | |
| RING | ||||
| 613 | 936548 | 2.58 | 3.12 | |
| No information available, not orderable | ||||
| 614 | 936558Z | |||
| No information available, not orderable | ||||
| 615 | 302098 | |||
| No information available, not orderable | ||||
| 616 | 323918 | |||
| Liquid Packing | ||||
| 618 | 324688 | 40.84 | 49.41 | |
