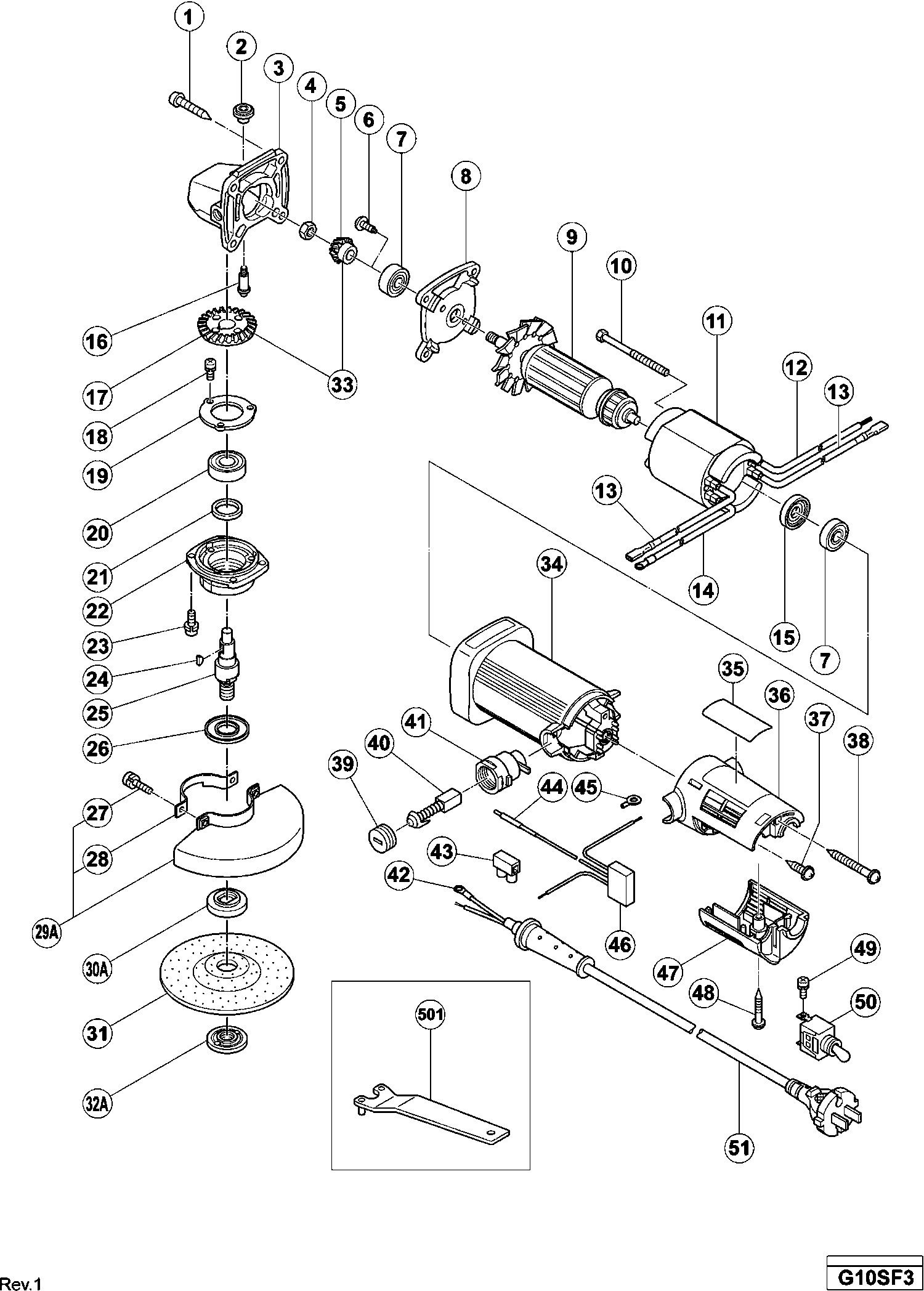

Technical drawing of model Hikoki G10SF3
Spare parts list of model Hikoki G10SF3
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Cord (cord Armor D8.8) For Saf | ||||
| *51 | 500237Z | 11.40 | 13.79 | |
| No information available, not orderable | ||||
| 1 | 937807 | |||
| Pushing Button | ||||
| 2 | 301944 | 1.04 | 1.26 | |
| Gear Cover Assembly Includ.2,7 | ||||
| 3 | 303078 | 9.00 | 10.89 | |
| Special Nut M7 | ||||
| 4 | 301941 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 5 | 301939 | |||
| No information available, not orderable | ||||
| 6 | 301936 | |||
| Slotted Hd. Screw (Seal Lock) M4x10 | ||||
| 6A | 314430 | 1.05 | 1.27 | |
| Ball Bearing 608vvc2ps2l | ||||
| 7 | 608VVM | 5.70 | 6.90 | |
| Inner Cover | ||||
| 8 | 301935 | 3.00 | 3.63 | |
| No information available, not orderable | ||||
| 9 | 360464E | |||
| Hex head cutting screw D4x65 | ||||
| 10 | 963712 | 1.04 | 1.26 | |
| Stator 220v | ||||
| 11 | 340428E | 20.63 | 24.96 | |
| No information available, not orderable | ||||
| 12 | 320273 | |||
| No information available, not orderable | ||||
| 13 | 320274 | |||
| No information available, not orderable | ||||
| 13A | 377759 | |||
| No information available, not orderable | ||||
| 14 | 320275 | |||
| Dust Seal | ||||
| 15 | 315877 | 1.05 | 1.27 | |
| Lock Pin | ||||
| 16 | 301943 | 1.65 | 2.00 | |
| Gear | ||||
| 17 | 301940 | 20.49 | 24.79 | |
| Seal Lock Screw (w/sp. Washer) M4x10 Till 09.2009 | ||||
| 18 | 997263 | 1.05 | 1.27 | |
| Bearing Cover | ||||
| 19 | 938058 | 1.04 | 1.26 | |
| Ball Bearing 6001vv | ||||
| 20 | 6001VV | 6.60 | 7.99 | |
| Felt Packing | ||||
| 21 | 301946 | 1.04 | 1.26 | |
| Gear-box cover | ||||
| 22 | 301947 | 2.85 | 3.45 | |
| Seal Lock Screw (w/sp. Washer) M4x12 | ||||
| 23 | 307127 | 1.05 | 1.27 | |
| INSERT PIN 2,5X8 | ||||
| 24 | 940220 | 1.35 | 1.63 | |
| Spindle (1) | ||||
| 25 | 302046 | 6.00 | 7.26 | |
| Fringer | ||||
| 26 | 301945 | 1.05 | 1.27 | |
| Machine Screw (w/sp. Washer) M5x16(black | ||||
| 27 | 308386 | 1.05 | 1.27 | |
| Clamp Ring for Guard | ||||
| 28 | 301949 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 29A | 331076 | |||
| PROTECTIVE GUARD 100MM (OLD 301948/331076/331085) | ||||
| 29B | 379562 | 2.10 | 2.54 | |
| No information available, not orderable | ||||
| 30A | 372737 | |||
| No information available, not orderable | ||||
| 30B | 372737 | |||
| No information available, not orderable | ||||
| 31 | 316820 | |||
| No information available, not orderable | ||||
| 32B | 339578 | |||
| Gear And Pinion Ass'y Includ.5,17 | ||||
| 33 | 301938 | 35.06 | 42.43 | |
| No information available, not orderable | ||||
| 34 | 320271 | |||
| No information available, not orderable | ||||
| 34C | 377760 | |||
| No information available, not orderable | ||||
| 36 | 320276 | |||
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 37 | 302086 | 1.05 | 1.27 | |
| Tapping Screw (w/flange) D4x40 (black) | ||||
| 38 | 306664 | 1.05 | 1.27 | |
| Brush Cap | ||||
| 39 | 936551 | 1.05 | 1.27 | |
| No longer available, no replacement | ||||
| 40 | 999021 | |||
| Brush Holder | ||||
| 41 | 313777 | 1.50 | 1.82 | |
| connecting terminal | ||||
| 42 | 980063 | 1.04 | 1.26 | |
| Pillar Terminal Till 10.1999 For Aus | ||||
| 43 | 938307 | 2.13 | 2.57 | |
| Earth Terminal For Tpe | ||||
| 44 | 314854 | 1.50 | 1.82 | |
| connecting terminal | ||||
| 45 | 980063 | 1.04 | 1.26 | |
| Noise Suppressor | ||||
| 46 | 994273 | 4.29 | 5.19 | |
| No information available, not orderable | ||||
| 47 | 320272 | |||
| Tapping Screw (w/flange) D4x25 (black) | ||||
| 48 | 304035 | 1.04 | 1.26 | |
| Machine Screw (w/washer) M3.5x6 | ||||
| 49 | 305499 | 1.05 | 1.27 | |
| No longer available, no replacement | ||||
| 50 | 955509 | |||
| SWITCH (1P SCREW TYPE) 110 VOLT (OLD 331986) | ||||
| 50A | 379238 | 3.78 | 4.57 | |
| No information available, not orderable | ||||
| 51 | 315879 | |||
| No information available, not orderable | ||||
| 501 | 313933 | |||
