Here you will find all available parts and drawings of the 'Hikoki G10SD2'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

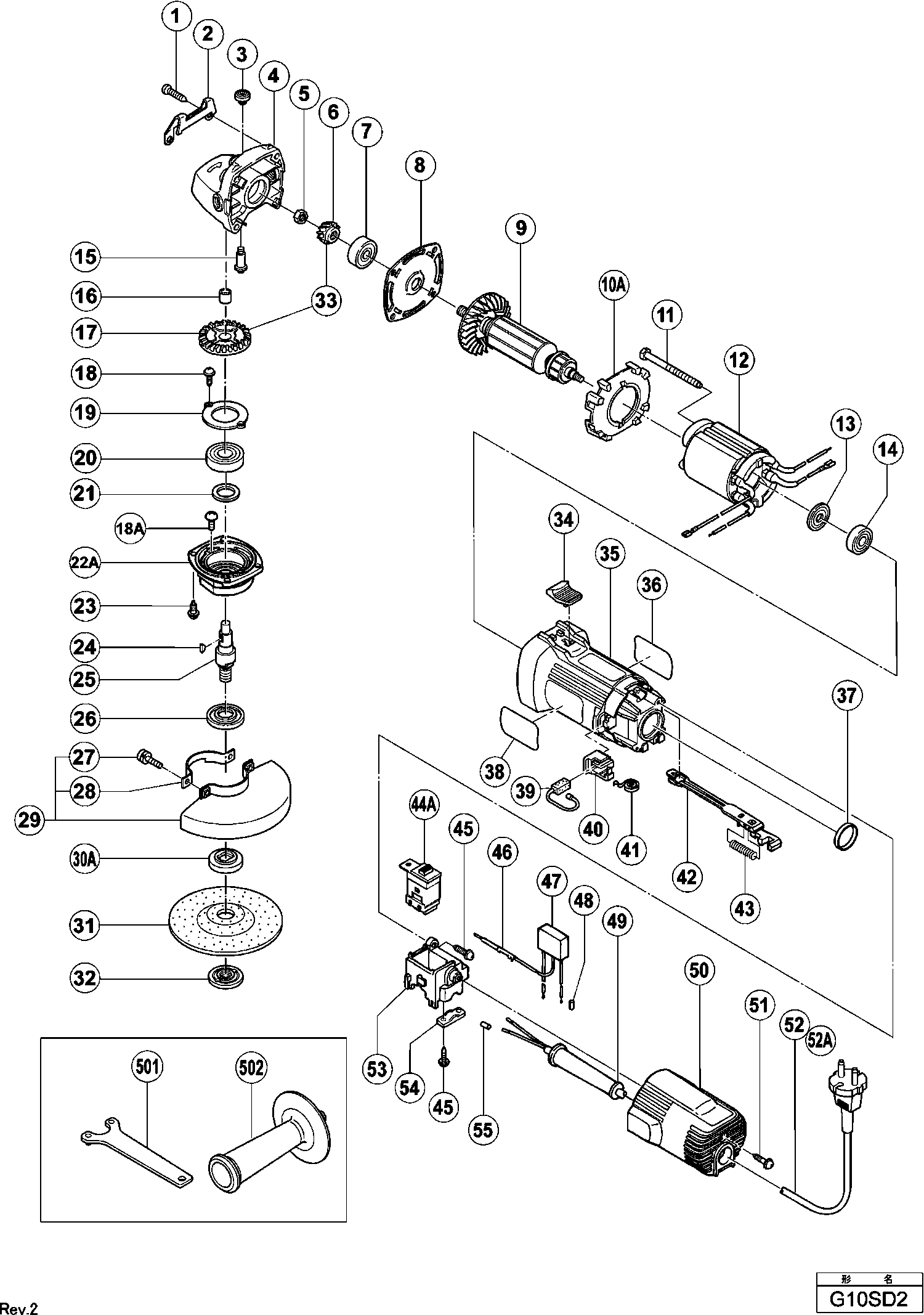

Technical drawing of model Hikoki G10SD2
Spare parts list of model Hikoki G10SD2
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 1 | 937807 | |||
| Guard Plate | ||||
| 2 | 317807 | 1.05 | 1.27 | |
| Pushing Button | ||||
| 3 | 301944 | 1.04 | 1.26 | |
| Gear Cover | ||||
| 4 | 316484 | 18.98 | 22.96 | |
| Special Nut M7 | ||||
| 5 | 301941 | 1.04 | 1.26 | |
| Pinion | ||||
| 6 | 317820 | 14.70 | 17.79 | |
| Ball Bearing 628vvc2ps2-l | ||||
| 7 | 628VVC | 11.85 | 14.34 | |
| Bearing Holder | ||||
| 8 | 316480 | 3.30 | 3.99 | |
| Armature 230v | ||||
| 9 | 360497E | 56.24 | 68.05 | |
| Armature 230v-240v | ||||
| 9 | 360497F | 56.24 | 68.05 | |
| Fan Guide | ||||
| 10A | 319898 | 1.05 | 1.27 | |
| Hex. Hd. Tapping Screw D4x70 | ||||
| 11 | 982021 | 1.04 | 1.26 | |
| Stator (a) 240v | ||||
| 12 | 340441F | 14.25 | 17.24 | |
| Stator 220v-230v | ||||
| 12 | 340441E | 14.03 | 16.97 | |
| Dust Seal | ||||
| 13 | 315877 | 1.05 | 1.27 | |
| Ball Bearing 608vvc2ps2l | ||||
| 14 | 608VVM | 5.70 | 6.90 | |
| Lock Pin | ||||
| 15 | 301943 | 1.65 | 2.00 | |
| Needle Bearing Hk0709 | ||||
| 16 | 673422 | 6.15 | 7.44 | |
| Gear | ||||
| 17 | 317821 | 20.49 | 24.79 | |
| Seal Lock Screw (w/sp. Washer) M4x10 Till 09.2009 | ||||
| 18 | 997263 | 1.05 | 1.27 | |
| Slotted Hd. Screw (seal Lock) M4x8 | ||||
| 18A | 323556 | 1.05 | 1.27 | |
| Bearing Cover | ||||
| 19 | 316490 | 1.65 | 2.00 | |
| Ball Bearing 6201ddcmps2l | ||||
| 20 | 6201DD | 6.30 | 7.62 | |
| Felt Packing | ||||
| 21 | 301946 | 1.04 | 1.26 | |
| Packing Gland | ||||
| 22A | 333838 | 3.00 | 3.63 | |
| Seal Lock Screw (w/sp. Washer) M4x12 | ||||
| 23 | 307127 | 1.05 | 1.27 | |
| Woodruff Key | ||||
| 24 | 302047 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 25 | 317822 | |||
| Fringer | ||||
| 26 | 301945 | 1.05 | 1.27 | |
| Machine Screw (w/sp. Washer) M5x16(black | ||||
| 27 | 308386 | 1.05 | 1.27 | |
| Clamp Ring for Guard | ||||
| 28 | 301949 | 1.04 | 1.26 | |
| Guard | ||||
| 29 | 301948 | 5.71 | 6.91 | |
| No information available, not orderable | ||||
| 30A | 372737 | |||
| No information available, not orderable | ||||
| 31 | 316820 | |||
| No information available, not orderable | ||||
| 32A | 339578 | |||
| Gear Ass'y Includ.6,17 | ||||
| 33 | 317819 | 34.24 | 41.43 | |
| Slide Knob | ||||
| 34 | 314428 | 1.04 | 1.26 | |
| Housing | ||||
| 35 | 317802 | 12.00 | 14.52 | |
| Rubber Ring | ||||
| 37 | 995662 | 1.04 | 1.26 | |
| Carbon Brush (1 Pair) | ||||
| 39 | 999088 | 4.50 | 5.44 | |
| Brush Holder | ||||
| 40 | 317810 | 4.80 | 5.81 | |
| Spring | ||||
| 41 | 308536 | 1.65 | 2.00 | |
| Slide Bar | ||||
| 42 | 317806 | 1.05 | 1.27 | |
| Spring | ||||
| 43 | 314429 | 1.04 | 1.26 | |
| SLIDE SWITCH (2P PILLAR TYPE) (OLD 980778) | ||||
| 44A | 321208 | 12.87 | 15.57 | |
| No information available, not orderable | ||||
| 45 | 984750 | |||
| Earth Terminal For Tpe | ||||
| 46 | 314854 | 1.50 | 1.82 | |
| Threaded cable sleeve | ||||
| 48 | 981373 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 49 | 953327 | |||
| Tail Cover | ||||
| 50 | 317808 | 5.85 | 7.08 | |
| No information available, not orderable | ||||
| 51 | 307811 | |||
| No longer available, no replacement | ||||
| 52 | 500423Z | |||
| No information available, not orderable | ||||
| 53 | 317811 | |||
| Cord Clip | ||||
| 54 | 937631 | 1.04 | 1.26 | |
| Threaded cable sleeve | ||||
| 55 | 981373 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 501 | 313933 | |||
| No information available, not orderable | ||||
| 502A | 994322 | |||
| No information available, not orderable | ||||
| 601 | 936558Z | |||
| Washer Nut M10xp1.5 | ||||
| 602 | 935513 | 4.20 | 5.08 | |
| RING | ||||
| 603 | 936548 | 2.58 | 3.12 | |
| No information available, not orderable | ||||
| 604 | 314051 | |||
| No information available, not orderable | ||||
| 605 | 314052 | |||
| No information available, not orderable | ||||
| 606 | 314053 | |||
| No information available, not orderable | ||||
| 607 | 314054 | |||
| No information available, not orderable | ||||
| 608 | 314055 | |||
| No information available, not orderable | ||||
| 609 | 314056 | |||
| No information available, not orderable | ||||
| 610 | 314057 | |||
| No information available, not orderable | ||||
| 611 | 314058 | |||
| No information available, not orderable | ||||
| 612 | 314059 | |||
| No information available, not orderable | ||||
| 613 | 314060 | |||
| No information available, not orderable | ||||
| 614 | 314061 | |||
| No information available, not orderable | ||||
| 615 | 302098 | |||
| No information available, not orderable | ||||
| 616A | 323918 | |||
| No information available, not orderable | ||||
| 617A | 325515 | |||
