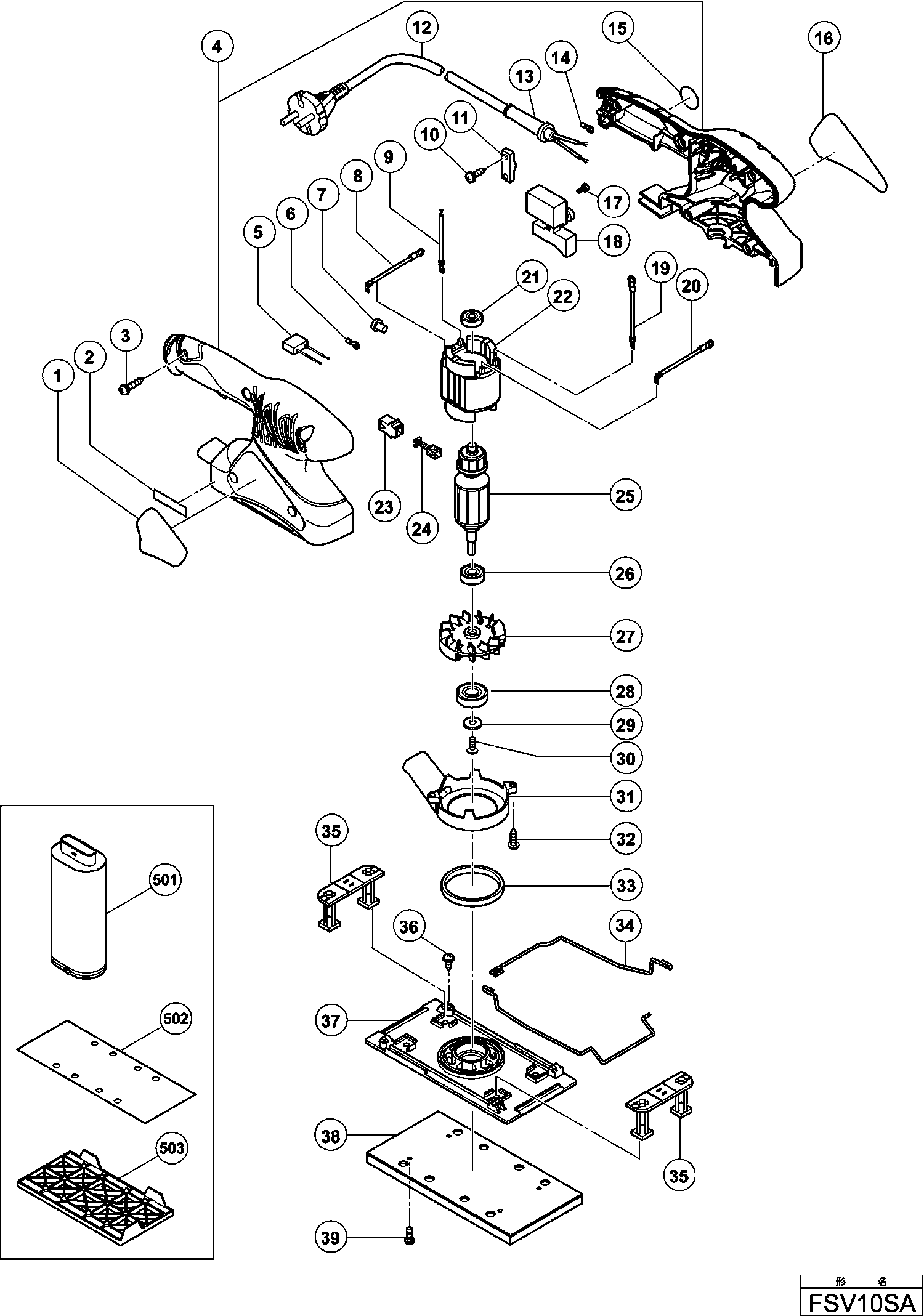

Technical drawing of model Hikoki FSV10SA
Spare parts list of model Hikoki FSV10SA
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| *12 | 500423Z | |||
| Cord Armor D10.2 Till 11.1982 For Aus | ||||
| *13 | 930026 | 3.00 | 3.63 | |
| Cord Armor D8.2 | ||||
| *13 | 930487 | 2.25 | 2.72 | |
| Terminal (a) M3.5 (10 Pcs.) | ||||
| *14 | 960356 | 3.00 | 3.63 | |
| connecting terminal | ||||
| *14 | 980063 | 1.04 | 1.26 | |
| Machine Screw (w/washer) M3.5x6 | ||||
| *17 | 307887 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| *22 | 987044F | |||
| Armature 230v | ||||
| *25 | 360681E | 26.68 | 32.28 | |
| No information available, not orderable | ||||
| *38 | 323369 | |||
| No information available, not orderable | ||||
| *4 | 324516 | |||
| No information available, not orderable | ||||
| *502 | 323367 | |||
| Internal Wire (gray) | ||||
| *9 | 318203 | 1.80 | 2.18 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 3 | 301653 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 4 | 324559 | |||
| Noise Suppressor | ||||
| 5 | 930039 | 1.95 | 2.36 | |
| connecting terminal | ||||
| 6 | 980063 | 1.04 | 1.26 | |
| Connector 50091 (10 Pcs.) | ||||
| 7 | 959140 | 3.30 | 3.99 | |
| Internal Wire (black) | ||||
| 8 | 323321 | 1.05 | 1.27 | |
| Internal Wire (gray) | ||||
| 9 | 318203 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 10 | 984750 | |||
| Cord Clip | ||||
| 11 | 960266 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 12 | 500423Z | |||
| Cord Armor D10.2 Till 11.1982 For Aus | ||||
| 13 | 930026 | 3.00 | 3.63 | |
| Cord Armor D8.2 | ||||
| 13 | 930487 | 2.25 | 2.72 | |
| Terminal (a) M3.5 (10 Pcs.) | ||||
| 14 | 960356 | 3.00 | 3.63 | |
| connecting terminal | ||||
| 14 | 980063 | 1.04 | 1.26 | |
| Machine Screw (w/washer) M3.5x6 | ||||
| 17 | 307887 | 1.04 | 1.26 | |
| Switch | ||||
| 18 | 323324 | 8.10 | 9.80 | |
| Internal Wire (black) | ||||
| 19 | 323322 | 1.05 | 1.27 | |
| Internal Wire (gray) | ||||
| 20 | 323323 | 1.05 | 1.27 | |
| Ball Bearing 626vvc2ps2l | ||||
| 21 | 626VVM | 5.70 | 6.90 | |
| No information available, not orderable | ||||
| 22 | 987044F | |||
| Carbon Brush Holder | ||||
| 23 | 930483 | 1.65 | 2.00 | |
| Carbon Brush (1 Pair) | ||||
| 24 | 999041 | 4.50 | 5.44 | |
| Armature 230v | ||||
| 25 | 360681E | 26.68 | 32.28 | |
| Ball Bearing 608vvc2ps2l | ||||
| 26 | 608VVM | 5.70 | 6.90 | |
| Balance Fan | ||||
| 27 | 323316 | 2.10 | 2.54 | |
| Ball Bearing 6001vv | ||||
| 28 | 6001VV | 6.60 | 7.99 | |
| Washer | ||||
| 29 | 987169 | 1.04 | 1.26 | |
| SEAL LOCK PLATE SCREW M4X12 | ||||
| 30 | 993244 | 1.05 | 1.27 | |
| Fan Guide | ||||
| 31 | 323317 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 32 | 984750 | |||
| Felt Washer | ||||
| 33 | 311946 | 1.35 | 1.63 | |
| Paper Holder | ||||
| 34 | 323319 | 1.05 | 1.27 | |
| Leg | ||||
| 35 | 322756 | 4.80 | 5.81 | |
| Tapping Screw (w/flange) D4x10 (black) | ||||
| 36 | 311945 | 1.05 | 1.27 | |
| Base | ||||
| 37 | 323318 | 3.15 | 3.81 | |
| No information available, not orderable | ||||
| 38 | 323369 | |||
| Seal Lock Screw M4x10 | ||||
| 39 | 324082 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 501 | 310339 | |||
| No information available, not orderable | ||||
| 502 | 323367 | |||
| PERFORATION PLATE | ||||
| 503 | 323326 | 3.15 | 3.81 | |
| No information available, not orderable | ||||
| 601 | 323366 | |||
| No information available, not orderable | ||||
| 602 | 323368 | |||
| No longer available, no replacement | ||||
| 603 | 339236 | |||
