Here you will find all available parts and drawings of the 'Hikoki FS10SB'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

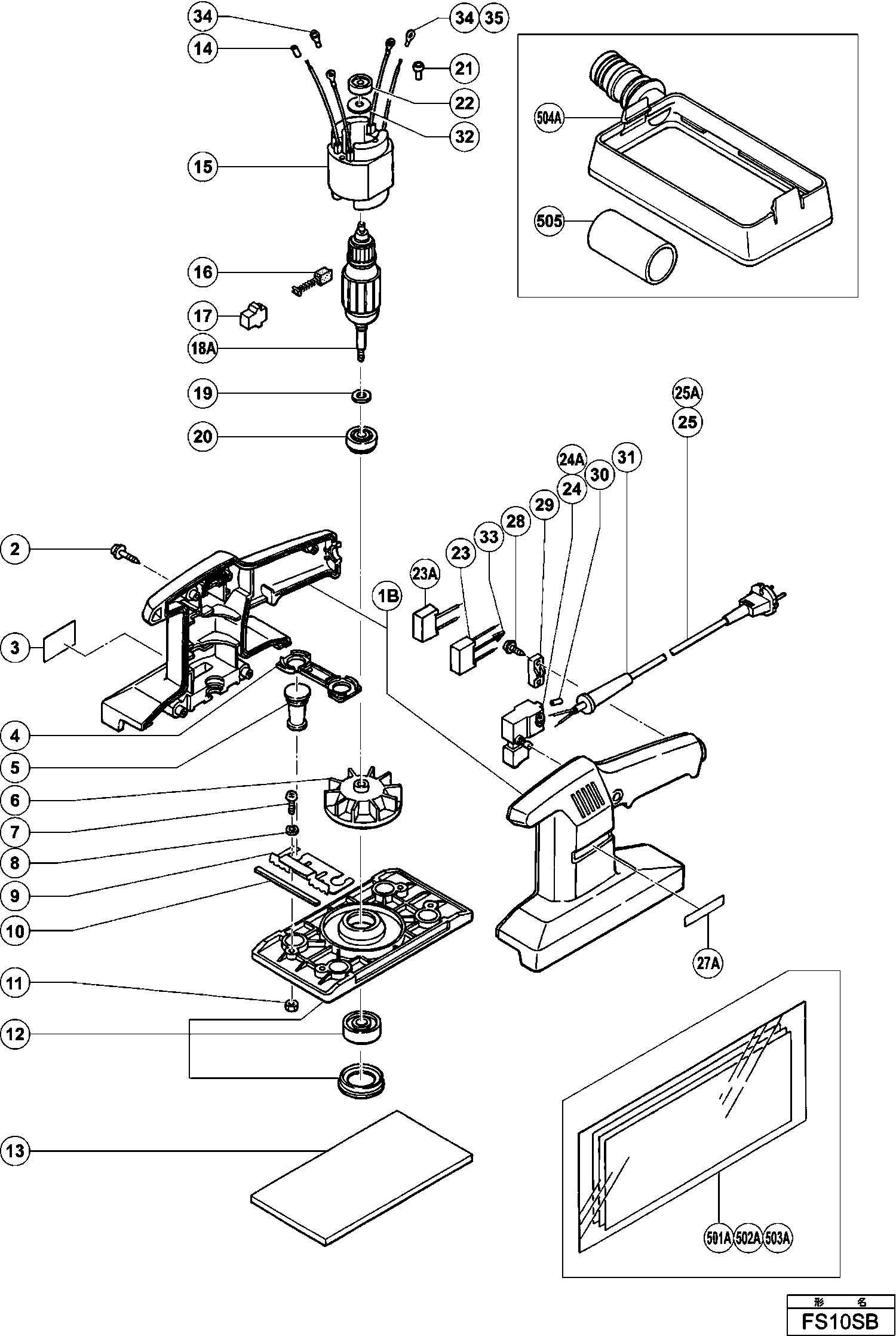

Technical drawing of model Hikoki FS10SB
Spare parts list of model Hikoki FS10SB
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 1B | 987064 | |||
| Tapping Screw (w/washer) D4x20 | ||||
| 2 | 982095 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 4 | 954538 | |||
| Pedal | ||||
| 5 | 954537 | 1.05 | 1.27 | |
| Fan | ||||
| 6 | 954543 | 6.15 | 7.44 | |
| Machine screw M4x10 (10 pieces) (OLD 949216Z) | ||||
| 7 | 949216 | 1.05 | 1.27 | |
| Spring Washer M4 (10 pieces) | ||||
| 8 | 949453 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 9 | 987040 | |||
| Support | ||||
| 10 | 987059 | 1.05 | 1.27 | |
| Nut M4 (10 Pieces) | ||||
| 11 | 949554 | 1.05 | 1.27 | |
| Base | ||||
| 12 | 954534 | 14.99 | 18.13 | |
| No information available, not orderable | ||||
| 13 | 954535 | |||
| Threaded cable sleeve | ||||
| 14 | 981373 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 15 | 987044H | |||
| Carbon Brush (1 Pair) | ||||
| 16 | 999041 | 4.50 | 5.44 | |
| Carbon Brush Holder | ||||
| 17 | 930483 | 1.65 | 2.00 | |
| No longer available, no replacement | ||||
| 18A | 987046E | |||
| RING (D) | ||||
| 19 | 954184 | 1.00 | 1.21 | |
| Ball Bearing 608vvc2ps2l | ||||
| 20 | 608VVM | 5.70 | 6.90 | |
| Connector 50091 (10 Pcs.) | ||||
| 21 | 959140 | 3.30 | 3.99 | |
| Ball Bearing 608vvc2ps2l | ||||
| 22 | 608VVM | 5.70 | 6.90 | |
| Bronze Bush (new 626vvm) | ||||
| 22 | 954612 | 3.00 | 3.63 | |
| Noise Suppressor | ||||
| 23 | 994273 | 4.29 | 5.19 | |
| No information available, not orderable | ||||
| 25 | 500439Z | |||
| Cord | ||||
| 25A | 930051 | 14.30 | 17.30 | |
| Cord (cord Armor D8.8) For Pan | ||||
| 25A | 500447Z | 6.60 | 7.99 | |
| No information available, not orderable | ||||
| 28 | 984750 | |||
| Cord Clip | ||||
| 29 | 960266 | 1.04 | 1.26 | |
| Threaded cable sleeve | ||||
| 30 | 981373 | 1.05 | 1.27 | |
| Cord Armor D10.2 Till 11.1982 For Aus | ||||
| 31 | 930026 | 3.00 | 3.63 | |
| Cord Armor D8.2 | ||||
| 31 | 930487 | 2.25 | 2.72 | |
| No information available, not orderable | ||||
| 32 | 945175 | |||
| Earth Terminal | ||||
| 33 | 302488 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 501A | 879371 | |||
| No information available, not orderable | ||||
| 502A | 879373 | |||
| No information available, not orderable | ||||
| 503A | 879375 | |||
| No information available, not orderable | ||||
| 504A | 879390 | |||
| No information available, not orderable | ||||
| 505 | 963558 | |||
| No information available, not orderable | ||||
| 606 | 879378 | |||
