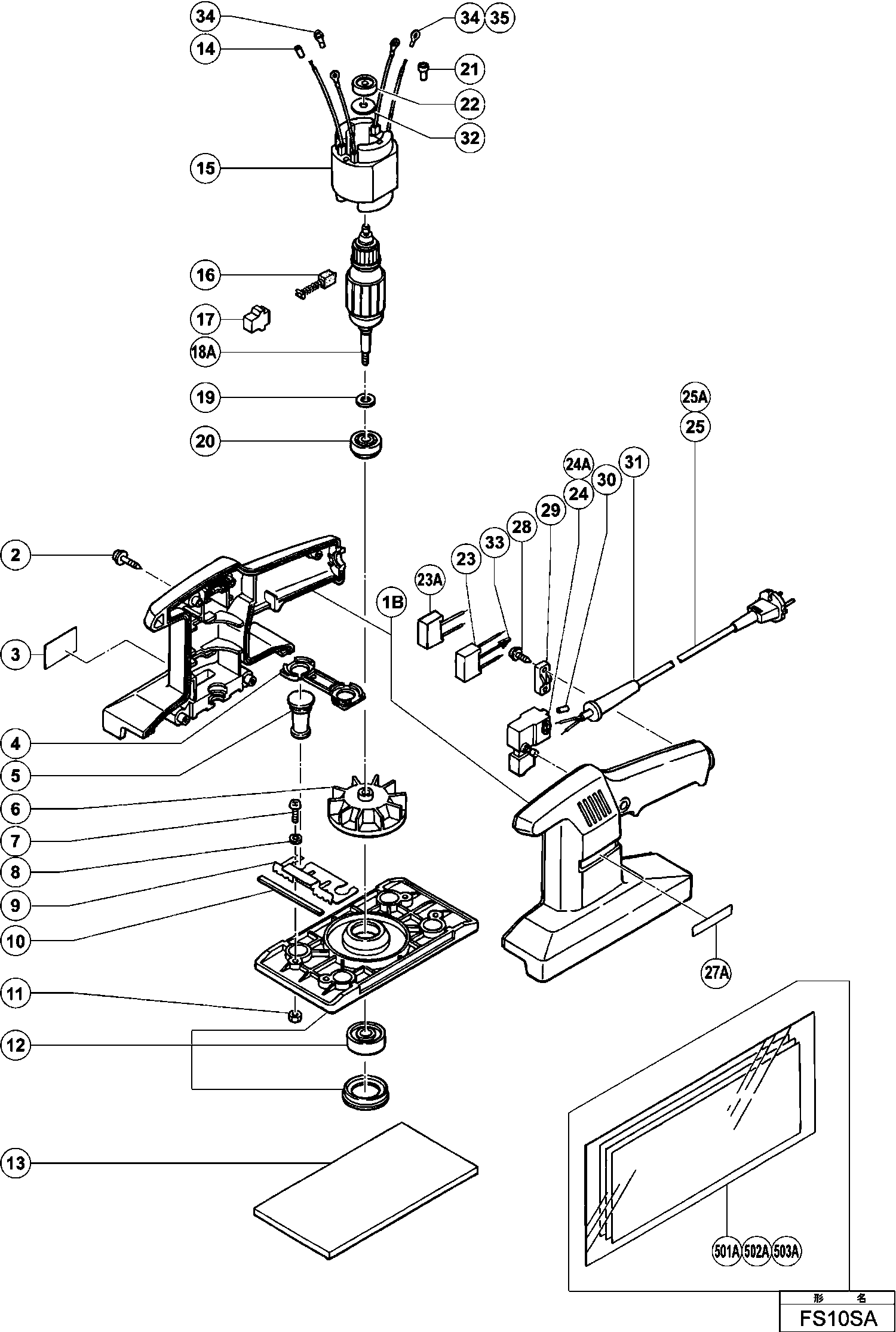

Technical drawing of model Hikoki FS10SA
Spare parts list of model Hikoki FS10SA
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Fs10sa/sb Z-Series (Black-Green) | ||||
| 1B | 311133 | 23.75 | 28.74 | |
| Tapping Screw (w/washer) D4x20 | ||||
| 2 | 982095 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 4 | 954538 | |||
| Pedal | ||||
| 5 | 954537 | 1.05 | 1.27 | |
| Fan | ||||
| 6 | 954543 | 6.15 | 7.44 | |
| Machine screw M4x10 (10 pieces) (OLD 949216Z) | ||||
| 7 | 949216 | 1.05 | 1.27 | |
| Spring Washer M4 (10 pieces) | ||||
| 8 | 949453 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 9 | 987040 | |||
| Support | ||||
| 10 | 987059 | 1.05 | 1.27 | |
| Nut M4 (10 Pieces) | ||||
| 11 | 949554 | 1.05 | 1.27 | |
| Base | ||||
| 12 | 954534 | 14.99 | 18.13 | |
| No information available, not orderable | ||||
| 13 | 954535 | |||
| Threaded cable sleeve | ||||
| 14 | 981373 | 1.05 | 1.27 | |
| Stator 230v-240v For Kuw,aus | ||||
| 15 | 987044F | 24.75 | 29.95 | |
| Stator 220v-230v | ||||
| 15 | 987044E | 15.68 | 18.97 | |
| Carbon Brush (1 Pair) | ||||
| 16 | 999041 | 4.50 | 5.44 | |
| Carbon Brush Holder | ||||
| 17 | 930483 | 1.65 | 2.00 | |
| No longer available, no replacement | ||||
| 18A | 987046E | |||
| No information available, not orderable | ||||
| 19 | 954184 | |||
| Ball Bearing 608vvc2ps2l | ||||
| 20 | 608VVM | 5.70 | 6.90 | |
| Connector 50091 (10 Pcs.) | ||||
| 21 | 959140 | 3.30 | 3.99 | |
| Ball Bearing 626ddc2ps2s | ||||
| 22 | 626DDM | 5.55 | 6.72 | |
| Bronze Bush (new 626vvm) | ||||
| 22 | 954612 | 3.00 | 3.63 | |
| Noise Suppressor | ||||
| 23 | 994273 | 4.29 | 5.19 | |
| Noise Suppressor | ||||
| 23A | 930039 | 1.95 | 2.36 | |
| Switch | ||||
| 24 | 994734 | 10.65 | 12.89 | |
| Switch | ||||
| 24 | 987058 | 9.60 | 11.62 | |
| Switch | ||||
| 24A | 957747 | 14.03 | 16.97 | |
| Cord (cord Armor D8.8) For Mex | ||||
| 25 | 500240Z | 13.18 | 15.94 | |
| Cord | ||||
| 25A | 930051 | 14.30 | 17.30 | |
| Cord (cord Armor D8.8) For Pan | ||||
| 25A | 500447Z | 6.60 | 7.99 | |
| No information available, not orderable | ||||
| 28 | 984750 | |||
| Cord Clip | ||||
| 29 | 960266 | 1.04 | 1.26 | |
| Threaded cable sleeve | ||||
| 30 | 981373 | 1.05 | 1.27 | |
| Cord Armor D10.2 Till 11.1982 For Aus | ||||
| 31 | 930026 | 3.00 | 3.63 | |
| Cord Armor D8.2 | ||||
| 31 | 930487 | 2.25 | 2.72 | |
| No information available, not orderable | ||||
| 32 | 945175 | |||
| Earth Terminal | ||||
| 33 | 302488 | 1.04 | 1.26 | |
| Terminal (a) M3.5 (10 Pcs.) | ||||
| 34 | 960356 | 3.00 | 3.63 | |
| Terminal (a) M3.5 (10 Pcs.) | ||||
| 35 | 960356 | 3.00 | 3.63 | |
| No information available, not orderable | ||||
| 501A | 879371 | |||
| No information available, not orderable | ||||
| 502A | 879373 | |||
| No information available, not orderable | ||||
| 503A | 879375 | |||
| No information available, not orderable | ||||
| 606A | 879390 | |||
| No information available, not orderable | ||||
| 607 | 963558 | |||
| No information available, not orderable | ||||
| 608 | 879378 | |||
