Here you will find all available parts and drawings of the 'Hikoki FDV20VB'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

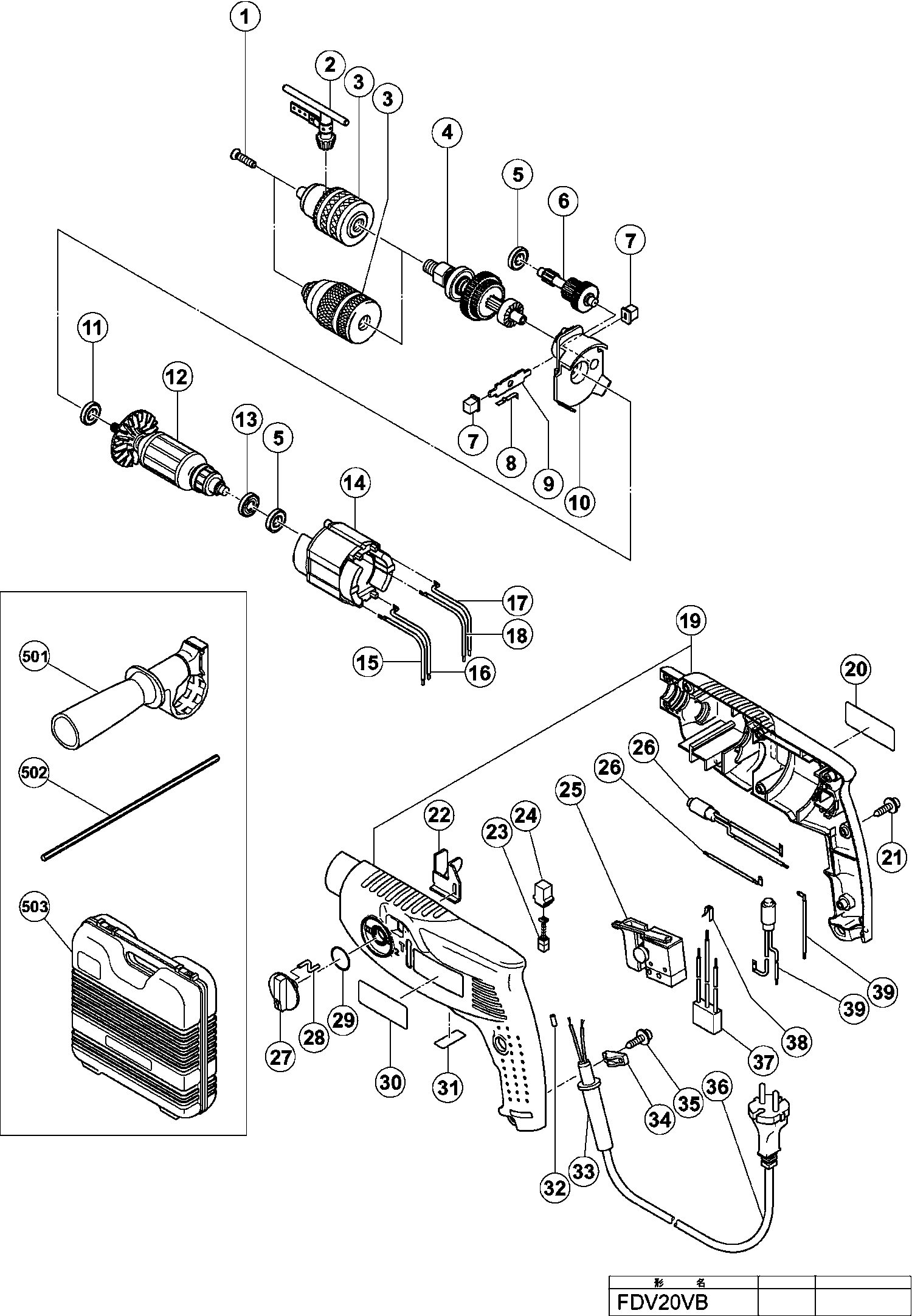

Technical drawing of model Hikoki FDV20VB
Spare parts list of model Hikoki FDV20VB
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 1 | 995344 | |||
| No information available, not orderable | ||||
| 2 | 987576 | |||
| No information available, not orderable | ||||
| 3 | 319546 | |||
| Spindle And Gear Set | ||||
| 4 | 319601 | 45.65 | 55.24 | |
| Ball Bearing 608vvc2ps2l | ||||
| 5 | 608VVM | 5.70 | 6.90 | |
| Second Gear | ||||
| 6 | 319605 | 24.06 | 29.12 | |
| Change Knob | ||||
| 7 | 319604 | 1.65 | 2.00 | |
| Spring | ||||
| 8 | 963226 | 1.35 | 1.63 | |
| Cam | ||||
| 9 | 319603 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 10 | 319602 | |||
| Ball Bearing 608dd | ||||
| 11 | 608DDM | 5.55 | 6.72 | |
| No information available, not orderable | ||||
| 12 | 360548U | |||
| No information available, not orderable | ||||
| 13 | 319609 | |||
| Stator 220v-230v | ||||
| 14 | 340496E | 27.23 | 32.94 | |
| STATOR 110-115 VOLT | ||||
| 14 | 340496C | 22.88 | 27.68 | |
| No information available, not orderable | ||||
| 15 | 303655 | |||
| No information available, not orderable | ||||
| 16 | 319612 | |||
| No information available, not orderable | ||||
| 17 | 319611 | |||
| No information available, not orderable | ||||
| 18 | 303656 | |||
| Housing (a).(b) Set (moss Green) | ||||
| 19 | 319644 | 19.11 | 23.13 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 21 | 302086 | 1.05 | 1.27 | |
| Slide Bar | ||||
| 22 | 319607 | 2.55 | 3.09 | |
| Carbon Brush (1 Pair) | ||||
| 23 | 999041 | 4.50 | 5.44 | |
| Brush Holder | ||||
| 24 | 955203 | 2.40 | 2.90 | |
| SCHAKELAAR 110-115 VOLT | ||||
| 25 | 314916 | 35.42 | 42.86 | |
| Speed Control Switch (2p) 220v-240v | ||||
| 25 | 314921 | 29.98 | 36.27 | |
| No longer available, no replacement | ||||
| 26 | 319614 | |||
| Change Lever | ||||
| 27 | 319606 | 3.30 | 3.99 | |
| Shift Pin Fdv20vb | ||||
| 28 | 319608 | 1.65 | 2.00 | |
| O-ring (s-12) | ||||
| 29 | 875638 | 1.65 | 2.00 | |
| Threaded cable sleeve | ||||
| 32 | 981373 | 1.05 | 1.27 | |
| Cord Armor D7.2 | ||||
| 33 | 307217 | 1.05 | 1.27 | |
| CABLE BUSHING D8.8 | ||||
| 33 | 303662 | 1.04 | 1.26 | |
| Cord Clip | ||||
| 34 | 960266 | 1.04 | 1.26 | |
| Tapping Screw (w/flange) D4x16 (black) | ||||
| 35 | 305812 | 1.04 | 1.26 | |
| SNOER 2.5M 2 X 1.0 H05VV-F W/PLUG 13A/250V (OLD 50 | ||||
| 36 | 500423Z | 12.87 | 15.57 | |
| Cord | ||||
| 36 | 303667 | 8.40 | 10.16 | |
| Cord (cord Armor D8.8) For Pan | ||||
| 36 | 500447Z | 6.60 | 7.99 | |
| Earth Terminal | ||||
| 38 | 302488 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 39 | 319613 | |||
| No information available, not orderable | ||||
| 501 | 303659 | |||
| No information available, not orderable | ||||
| 502 | 303709 | |||
| No information available, not orderable | ||||
| 503 | 319616 | |||
| No information available, not orderable | ||||
| 608 | 971670 | |||
| No information available, not orderable | ||||
| 610 | 306927 | |||
