Here you will find all available parts and drawings of the 'Hikoki FDV16VB2'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

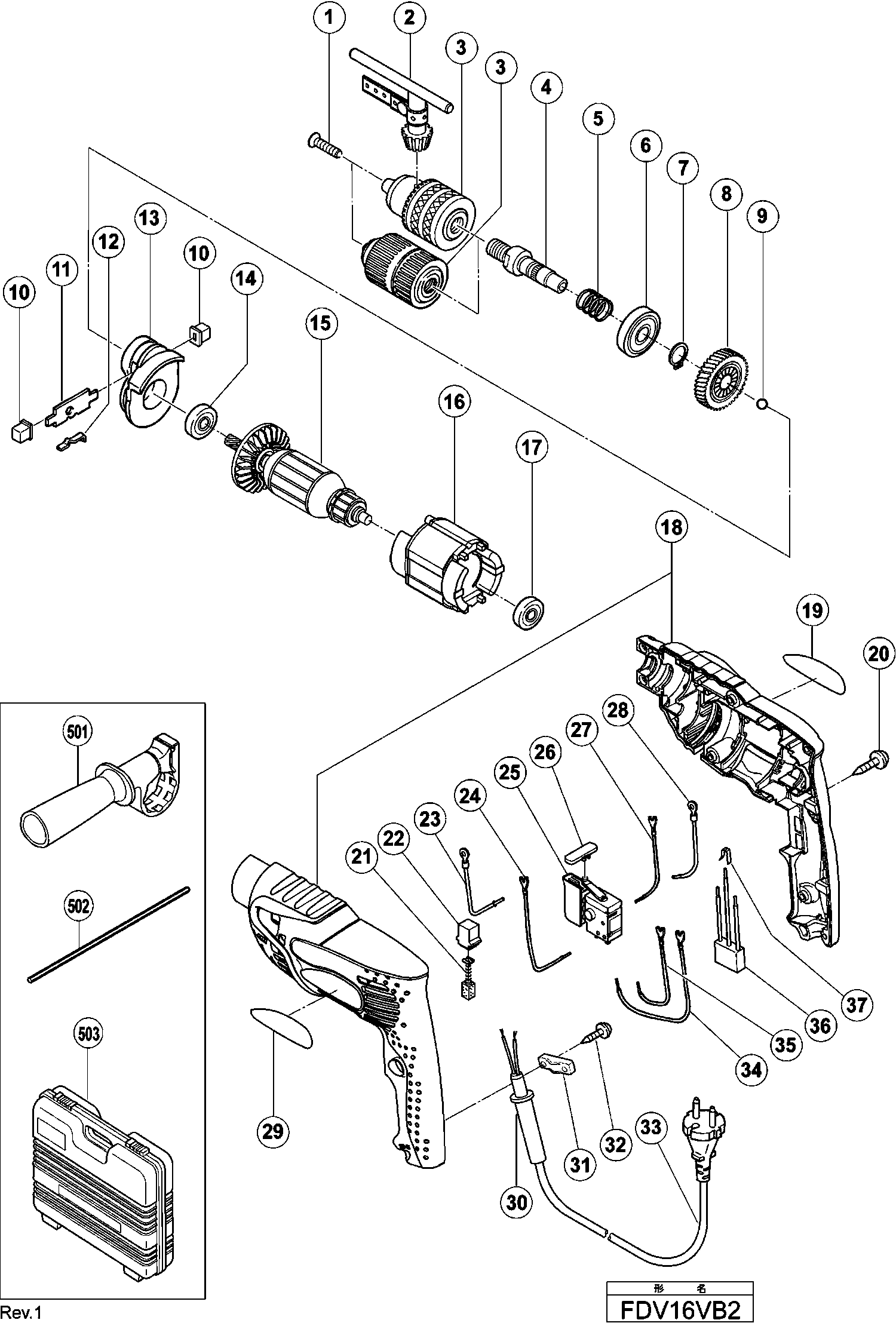

Technical drawing of model Hikoki FDV16VB2
Spare parts list of model Hikoki FDV16VB2
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| ANKER 110-115V | ||||
| *15 | 360327U | 39.88 | 48.25 | |
| Armature 230v | ||||
| *15 | 360207E | 28.96 | 35.04 | |
| Stator 100v-127v | ||||
| *16 | 340221 | 17.19 | 20.80 | |
| Stator 220v-230v | ||||
| *16 | 340222E | 14.55 | 17.61 | |
| Stator 230v-240v | ||||
| *16 | 340222F | 14.55 | 17.61 | |
| Housing (a)+(b) Set (moss Green) | ||||
| *18 | 322626 | 42.76 | 51.74 | |
| Housing (a).(b) Set (green) | ||||
| *18 | 322421 | 39.74 | 48.08 | |
| Carbon Brush Holder | ||||
| *22 | 930483 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| *23 | 322427 | |||
| No information available, not orderable | ||||
| *28 | 322425 | |||
| No information available, not orderable | ||||
| *3 | 322625 | |||
| Cord Armor D7.2 | ||||
| *30 | 307217 | 1.05 | 1.27 | |
| CABLE BUSHING D8.8 | ||||
| *30 | 303662 | 1.04 | 1.26 | |
| Cord (cord Armor D8.8) For Pan | ||||
| *33 | 500447Z | 6.60 | 7.99 | |
| No information available, not orderable | ||||
| 1 | 995344 | |||
| No information available, not orderable | ||||
| 2 | 987576 | |||
| No information available, not orderable | ||||
| 2A | 303334 | |||
| No information available, not orderable | ||||
| 3 | 322625 | |||
| Spindle Ass'y | ||||
| 4 | 316093 | 14.03 | 16.97 | |
| Spring | ||||
| 5 | 303651 | 1.04 | 1.26 | |
| Ball Bearing 6201vv | ||||
| 6 | 6201VV | 6.45 | 7.80 | |
| Spring Washer D12 (10 pieces) | ||||
| 7 | 939542 | 1.50 | 1.82 | |
| No information available, not orderable | ||||
| 8 | 317482 | |||
| Gear | ||||
| 8A | 370872 | 6.90 | 8.35 | |
| Steel Ball D4.76 (10 pieces) | ||||
| 9 | 959149 | 1.04 | 1.26 | |
| Change Knob | ||||
| 10 | 319604 | 1.65 | 2.00 | |
| Cam | ||||
| 11 | 963224 | 1.95 | 2.36 | |
| Spring | ||||
| 12 | 963226 | 1.35 | 1.63 | |
| No information available, not orderable | ||||
| 13 | 316094 | |||
| Ball Bearing 608vvc2ps2l | ||||
| 14 | 608VVM | 5.70 | 6.90 | |
| ANKER 110-115V | ||||
| 15 | 360327U | 39.88 | 48.25 | |
| Armature 230v | ||||
| 15 | 360207E | 28.96 | 35.04 | |
| Stator 100v-127v | ||||
| 16 | 340221 | 17.19 | 20.80 | |
| Stator 220v-230v | ||||
| 16 | 340222E | 14.55 | 17.61 | |
| Stator 230v-240v | ||||
| 16 | 340222F | 14.55 | 17.61 | |
| Ball Bearing 626vvc2ps2l | ||||
| 17 | 626VVM | 5.70 | 6.90 | |
| Housing (a)+(b) Set (moss Green) | ||||
| 18 | 322626 | 42.76 | 51.74 | |
| Housing (a).(b) Set (green) | ||||
| 18 | 322421 | 39.74 | 48.08 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 20 | 302086 | 1.05 | 1.27 | |
| Carbon Brush (1 Pair) | ||||
| 21 | 999041 | 4.50 | 5.44 | |
| Brush Holder | ||||
| 22 | 955203 | 2.40 | 2.90 | |
| Carbon Brush Holder | ||||
| 22 | 930483 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 23 | 322429 | |||
| Internal Wire (white) | ||||
| 24 | 322418 | 2.10 | 2.54 | |
| Switch (10 Pillar Type) | ||||
| 25 | 321632 | 29.29 | 35.44 | |
| Pushing Button | ||||
| 26 | 321628 | 1.65 | 2.00 | |
| Internal Wire (black) | ||||
| 27 | 322417 | 2.10 | 2.54 | |
| No information available, not orderable | ||||
| 28 | 322428 | |||
| Cord Armor D7.2 | ||||
| 30 | 307217 | 1.05 | 1.27 | |
| CABLE BUSHING D8.8 | ||||
| 30 | 303662 | 1.04 | 1.26 | |
| Cord Clip | ||||
| 31 | 960266 | 1.04 | 1.26 | |
| Tapping Screw (w/flange) D4x16 (black) | ||||
| 32 | 305812 | 1.04 | 1.26 | |
| Cord (cord Armor D8.8) For Uae (240v) | ||||
| 33 | 500461Z | 17.88 | 21.63 | |
| Cord (cord Armor D8.8) For Mex | ||||
| 33 | 500240Z | 13.18 | 15.94 | |
| Cord (cord Armor D8.8) For Pan | ||||
| 33 | 500447Z | 6.60 | 7.99 | |
| Internal Wire (gray) | ||||
| 34 | 322416 | 2.10 | 2.54 | |
| Internal Wire (a) (red) | ||||
| 35 | 303654 | 1.04 | 1.26 | |
| Noise Suppressor | ||||
| 36 | 994273 | 4.29 | 5.19 | |
| Earth Terminal | ||||
| 37 | 302488 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 501 | 303659 | |||
| No information available, not orderable | ||||
| 502 | 303709 | |||
| No information available, not orderable | ||||
| 503A | 370910 | |||
| No information available, not orderable | ||||
| 601 | 321814 | |||
| No information available, not orderable | ||||
| 602 | 930515 | |||
| No information available, not orderable | ||||
| 603 | 315999 | |||
| No information available, not orderable | ||||
| 603A | 370910 | |||
