Here you will find all available parts and drawings of the 'Hikoki FDV16'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

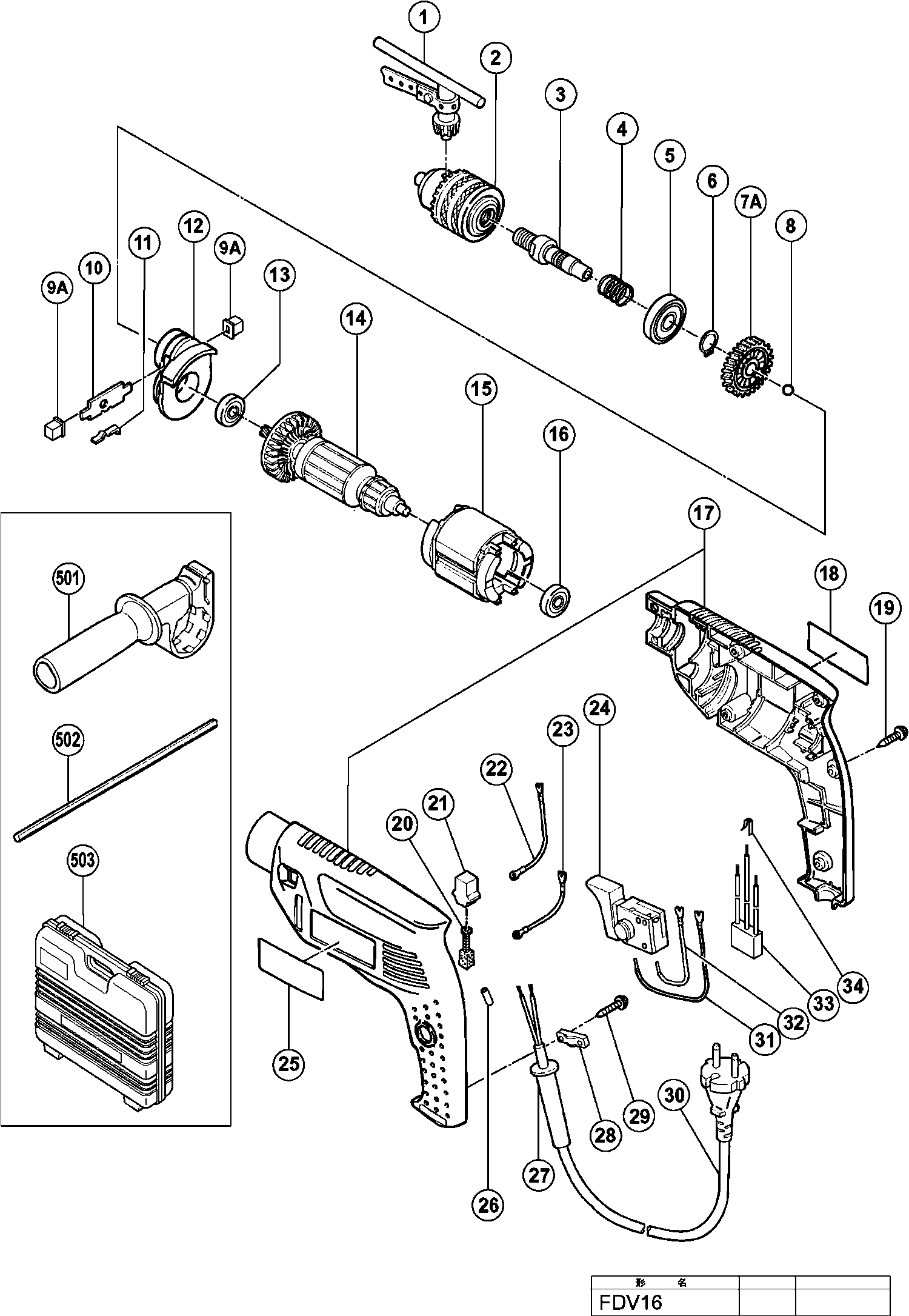

Technical drawing of model Hikoki FDV16
Spare parts list of model Hikoki FDV16
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 1 | 987576 | |||
| Spindle Ass'y | ||||
| 3 | 316093 | 14.03 | 16.97 | |
| Spring | ||||
| 4 | 303651 | 1.04 | 1.26 | |
| Ball Bearing 6201vv | ||||
| 5 | 6201VV | 6.45 | 7.80 | |
| Spring Washer D12 (10 pieces) | ||||
| 6 | 939542 | 1.50 | 1.82 | |
| No information available, not orderable | ||||
| 7A | 317482 | |||
| Steel Ball D4.76 (10 pieces) | ||||
| 8 | 959149 | 1.04 | 1.26 | |
| Change Knob | ||||
| 9A | 319604 | 1.65 | 2.00 | |
| Cam | ||||
| 10 | 963224 | 1.95 | 2.36 | |
| Spring | ||||
| 11 | 963226 | 1.35 | 1.63 | |
| No information available, not orderable | ||||
| 12 | 316094 | |||
| Ball Bearing 608vvc2ps2l | ||||
| 13 | 608VVM | 5.70 | 6.90 | |
| No information available, not orderable | ||||
| 14 | 360208E | |||
| Stator 220v-230v | ||||
| 15 | 340222E | 14.55 | 17.61 | |
| Stator 230v-240v | ||||
| 15 | 340222F | 14.55 | 17.61 | |
| Ball Bearing 626vvc2ps2l | ||||
| 16 | 626VVM | 5.70 | 6.90 | |
| No information available, not orderable | ||||
| 17 | 316097 | |||
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 19 | 302086 | 1.05 | 1.27 | |
| Carbon Brush (1 Pair) | ||||
| 20 | 999041 | 4.50 | 5.44 | |
| Carbon Brush Holder | ||||
| 21 | 930483 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 22 | 303672 | |||
| No information available, not orderable | ||||
| 23 | 303671 | |||
| No information available, not orderable | ||||
| 24 | 316049 | |||
| Threaded cable sleeve | ||||
| 26 | 981373 | 1.05 | 1.27 | |
| CABLE BUSHING D8.8 | ||||
| 27 | 303662 | 1.04 | 1.26 | |
| Cord Clip | ||||
| 28 | 960266 | 1.04 | 1.26 | |
| Tapping Screw (w/flange) D4x16 (black) | ||||
| 29 | 305812 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 30 | 500436Z | |||
| No information available, not orderable | ||||
| 31 | 303655 | |||
| Internal Wire (a) (red) | ||||
| 32 | 303654 | 1.04 | 1.26 | |
| Noise Suppressor | ||||
| 33 | 994273 | 4.29 | 5.19 | |
| Earth Terminal | ||||
| 34 | 302488 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 501 | 303659 | |||
| No information available, not orderable | ||||
| 502 | 303709 | |||
| No information available, not orderable | ||||
| 503 | 315999 | |||
| KRUISKOPBITSET 70L (3 STUKS) | ||||
| 601 | 879347 | 6.06 | 7.33 | |
| No information available, not orderable | ||||
| 602 | 983004 | |||
| No information available, not orderable | ||||
| 603 | 983006 | |||
| No information available, not orderable | ||||
| 604 | 983011 | |||
| No information available, not orderable | ||||
| 605 | 879350 | |||
| No information available, not orderable | ||||
| 606 | 992675 | |||
| No information available, not orderable | ||||
| 607 | 992676 | |||
| No information available, not orderable | ||||
| 608 | 992677 | |||
