Here you will find all available parts and drawings of the 'Hikoki FDS9DVA'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

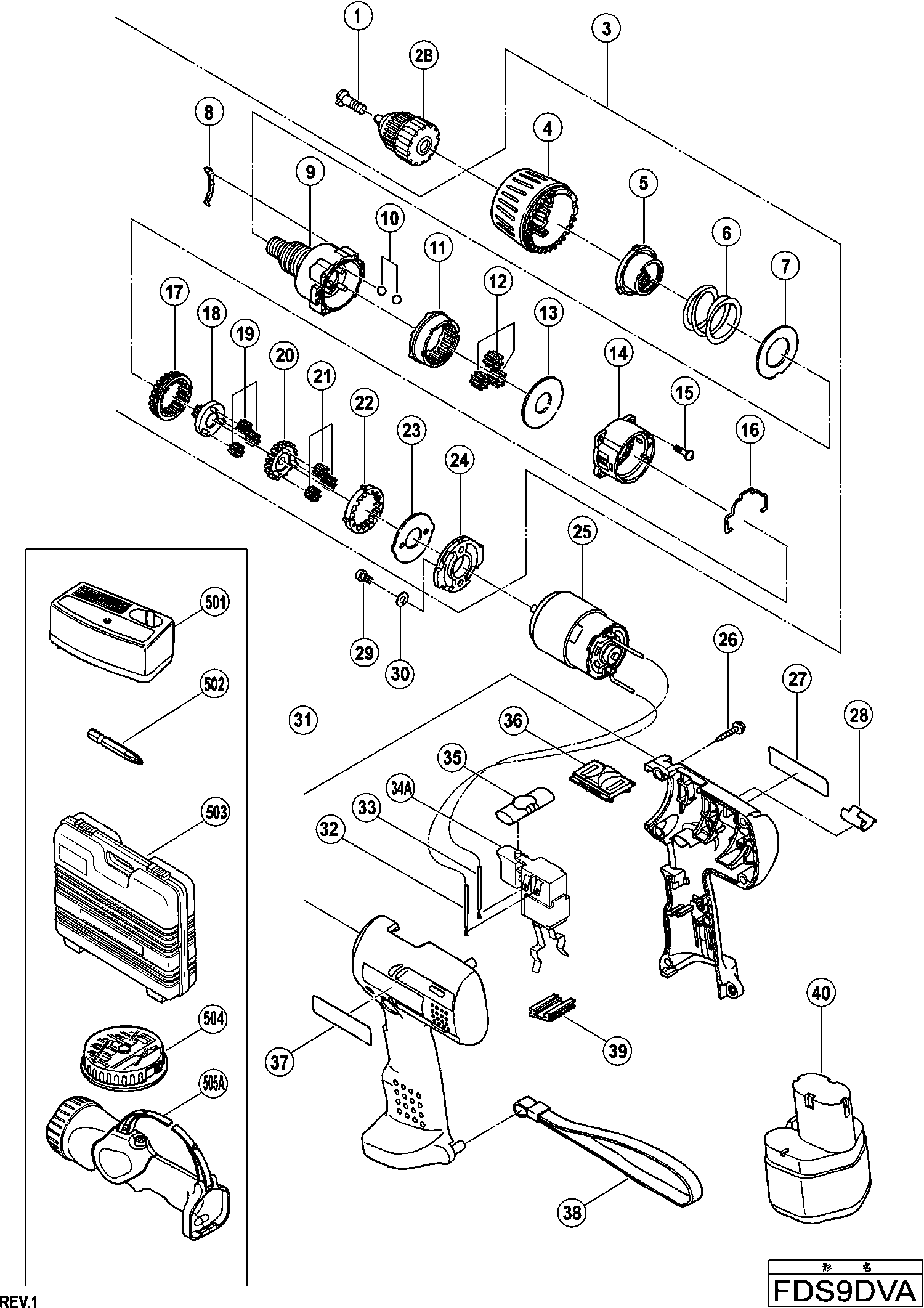

Technical drawing of model Hikoki FDS9DVA
Spare parts list of model Hikoki FDS9DVA
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Special Screw M5x35 (left-hand Thread) | ||||
| 1 | 318228 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 2B | 323250 | |||
| No information available, not orderable | ||||
| 3 | 318229 | |||
| No information available, not orderable | ||||
| 4 | 318233 | |||
| No information available, not orderable | ||||
| 5 | 318232 | |||
| No information available, not orderable | ||||
| 6 | 312709 | |||
| Washer (d) | ||||
| 7 | 312714 | 1.95 | 2.36 | |
| Spring Plate | ||||
| 8 | 312713 | 2.70 | 3.27 | |
| No information available, not orderable | ||||
| 9 | 318230 | |||
| Steel Ball D5 | ||||
| 10 | 306936 | 1.05 | 1.27 | |
| Ring Gear | ||||
| 11 | 312715 | 3.60 | 4.36 | |
| Planet Gear (c) Set (3 Pcs.) | ||||
| 12 | 312705 | 2.40 | 2.90 | |
| Washer (a) | ||||
| 13 | 312704 | 1.95 | 2.36 | |
| Gear Cover | ||||
| 14 | 312697 | 3.90 | 4.72 | |
| Screw Set D3x12 (6 Pcs.) | ||||
| 15 | 315817 | 6.45 | 7.80 | |
| Switch bow | ||||
| 16 | 311962 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 17 | 315137 | |||
| No information available, not orderable | ||||
| 18 | 315805 | |||
| Planet Gear (b) Set (3 Pcs.) | ||||
| 19 | 315816 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 20 | 315804 | |||
| Planet Gear (a) Set (3 Pcs.) | ||||
| 21 | 315815 | 4.80 | 5.81 | |
| First Gear Ring (old 312700) | ||||
| 22 | 315136 | 6.45 | 7.80 | |
| Washer (b) | ||||
| 23 | 312716 | 1.95 | 2.36 | |
| No information available, not orderable | ||||
| 24 | 318231 | |||
| Motor | ||||
| 25 | 318244 | 19.39 | 23.46 | |
| Screw D3x16 | ||||
| 26 | 991672 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 28 | 318237 | |||
| Machine Screw M3x8 (10 Pcs.) Since 9.2012 For Eur | ||||
| 29 | 949203 | 1.05 | 1.27 | |
| Spring Washer M3 (10 pieces) | ||||
| 30 | 949451 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 31 | 318243 | |||
| Internal Wire (b) (black) Except For Europe(till | ||||
| 32 | 306041 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 33 | 306040 | |||
| No information available, not orderable | ||||
| 34A | 322632 | |||
| Switch Knob (l+r) | ||||
| 35 | 318235 | 1.65 | 2.00 | |
| Shift Knob | ||||
| 36 | 318234 | 1.05 | 1.27 | |
| Strap (black) | ||||
| 38 | 306952 | 4.05 | 4.90 | |
| Holder | ||||
| 39 | 315141 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 40 | 324079 | |||
| No information available, not orderable | ||||
| 502 | 318236 | |||
| No information available, not orderable | ||||
| 503 | 319369 | |||
