Here you will find all available parts and drawings of the 'Hikoki FCJ65S3'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

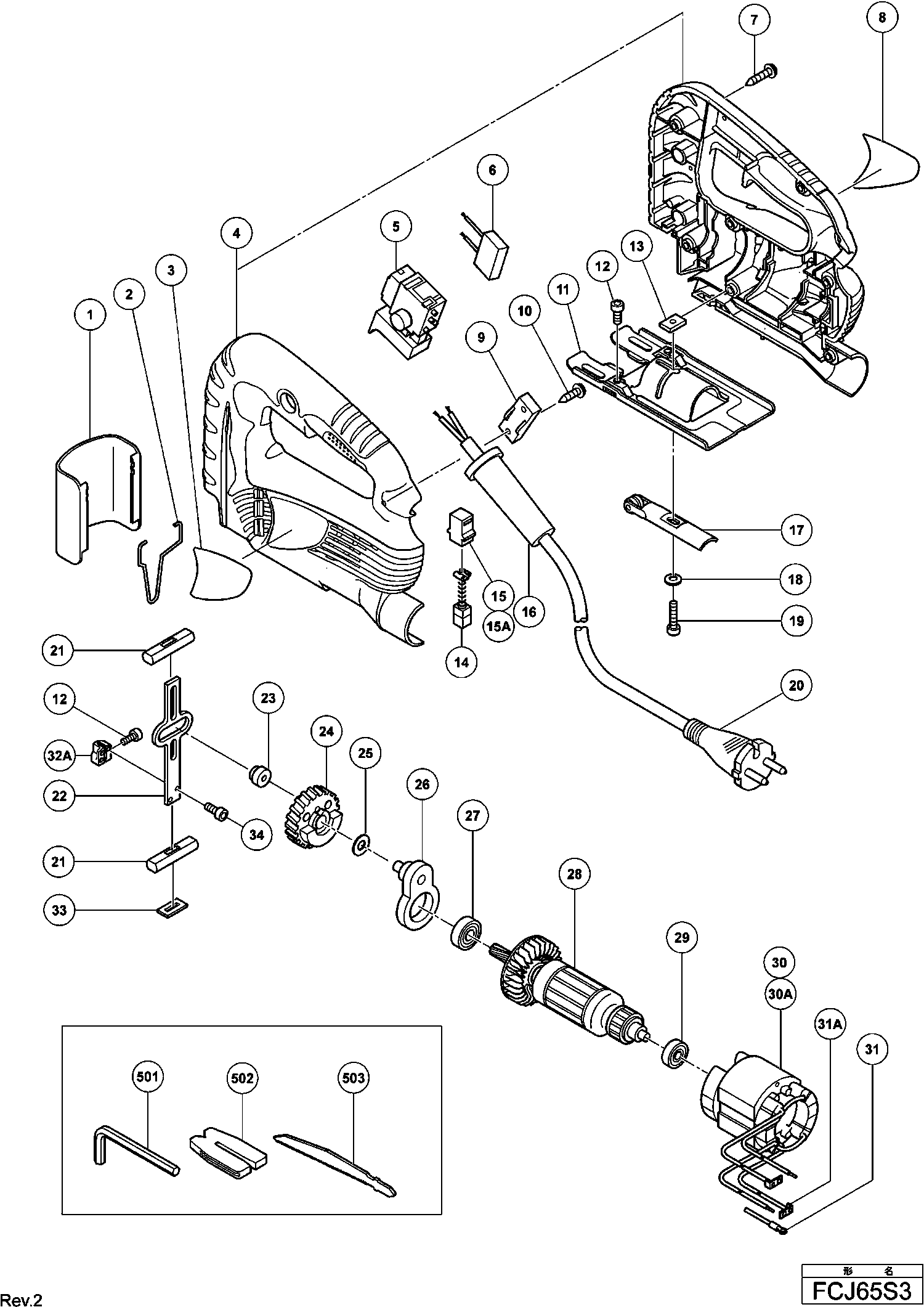

Technical drawing of model Hikoki FCJ65S3
Spare parts list of model Hikoki FCJ65S3
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Chip Cover | ||||
| 1 | 325163 | 2.10 | 2.54 | |
| Guard Bar | ||||
| 2 | 325164 | 1.05 | 1.27 | |
| Housing compl. | ||||
| 4 | 325167 | 34.24 | 41.43 | |
| Switch | ||||
| 5 | 323575 | 27.50 | 33.28 | |
| Noise Suppressor | ||||
| 6 | 930039 | 1.95 | 2.36 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 7 | 301653 | 1.04 | 1.26 | |
| Cord Clip | ||||
| 9 | 960266 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 10 | 984750 | |||
| Base | ||||
| 11 | 325161 | 7.35 | 8.89 | |
| Hex. Socket Hd. Bolt M4x8 (10 Pcs.) | ||||
| 12 | 949811 | 1.50 | 1.82 | |
| Plate Nut | ||||
| 13 | 962991 | 1.05 | 1.27 | |
| Carbon Brush (1 Pair) | ||||
| 14 | 999041 | 4.50 | 5.44 | |
| Carbon Brush Holder | ||||
| 15 | 930483 | 1.65 | 2.00 | |
| Brush Holder | ||||
| 15A | 955203 | 2.40 | 2.90 | |
| Cord Armor D10.2 Till 11.1982 For Aus | ||||
| 16 | 930026 | 3.00 | 3.63 | |
| Cord Armor D8.2 | ||||
| 16 | 930487 | 2.25 | 2.72 | |
| Roller Holder | ||||
| 17 | 325162 | 3.15 | 3.81 | |
| Bolt Washer M4 (10 Pcs.) | ||||
| 18 | 949429 | 1.05 | 1.27 | |
| Hex. Socket Hd. Bolt M4x16 (10 Pcs.) | ||||
| 19 | 949754 | 2.40 | 2.90 | |
| Cord (cord Armor D8.8) For Pan | ||||
| 20 | 500447Z | 6.60 | 7.99 | |
| Plunger Holder | ||||
| 21 | 325159 | 3.75 | 4.54 | |
| Plunger | ||||
| 22 | 325246 | 4.20 | 5.08 | |
| Connector | ||||
| 23 | 325158 | 1.05 | 1.27 | |
| Gear | ||||
| 24 | 325157 | 13.50 | 16.34 | |
| Ring | ||||
| 25 | 991733 | 1.05 | 1.27 | |
| Holder | ||||
| 26 | 325155 | 4.50 | 5.44 | |
| Ball Bearing 608vvc2ps2l | ||||
| 27 | 608VVM | 5.70 | 6.90 | |
| Armature 230v | ||||
| 28 | 360724E | 36.16 | 43.76 | |
| Ball Bearing 626vvc2ps2l | ||||
| 29 | 626VVM | 5.70 | 6.90 | |
| Stator 220v-230v | ||||
| 30 | 340631E | 18.70 | 22.63 | |
| Stator 220v-230v | ||||
| 30A | 340669E | 18.70 | 22.63 | |
| Terminal (a) M3.5 (10 Pcs.) | ||||
| 31 | 960356 | 3.00 | 3.63 | |
| Blade Holder | ||||
| 32A | 325247 | 5.55 | 6.72 | |
| Felt Washer | ||||
| 33 | 325248 | 1.05 | 1.27 | |
| Seal Lock Hex. Socket Hd. Bolt M3x8 | ||||
| 34 | 325241 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 501 | 943277 | |||
| No information available, not orderable | ||||
| 502 | 305810 | |||
| No information available, not orderable | ||||
| 503 | 879356 | |||
| No information available, not orderable | ||||
| 601 | 879330 | |||
| No information available, not orderable | ||||
| 602 | 879331 | |||
| No information available, not orderable | ||||
| 603 | 879332 | |||
| No information available, not orderable | ||||
| 604 | 879333 | |||
| No information available, not orderable | ||||
| 605 | 879334 | |||
| No information available, not orderable | ||||
| 606 | 879335 | |||
| No information available, not orderable | ||||
| 607 | 879357 | |||
| No information available, not orderable | ||||
| 608 | 879391 | |||
