Here you will find all available parts and drawings of the 'Hikoki F-30A'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

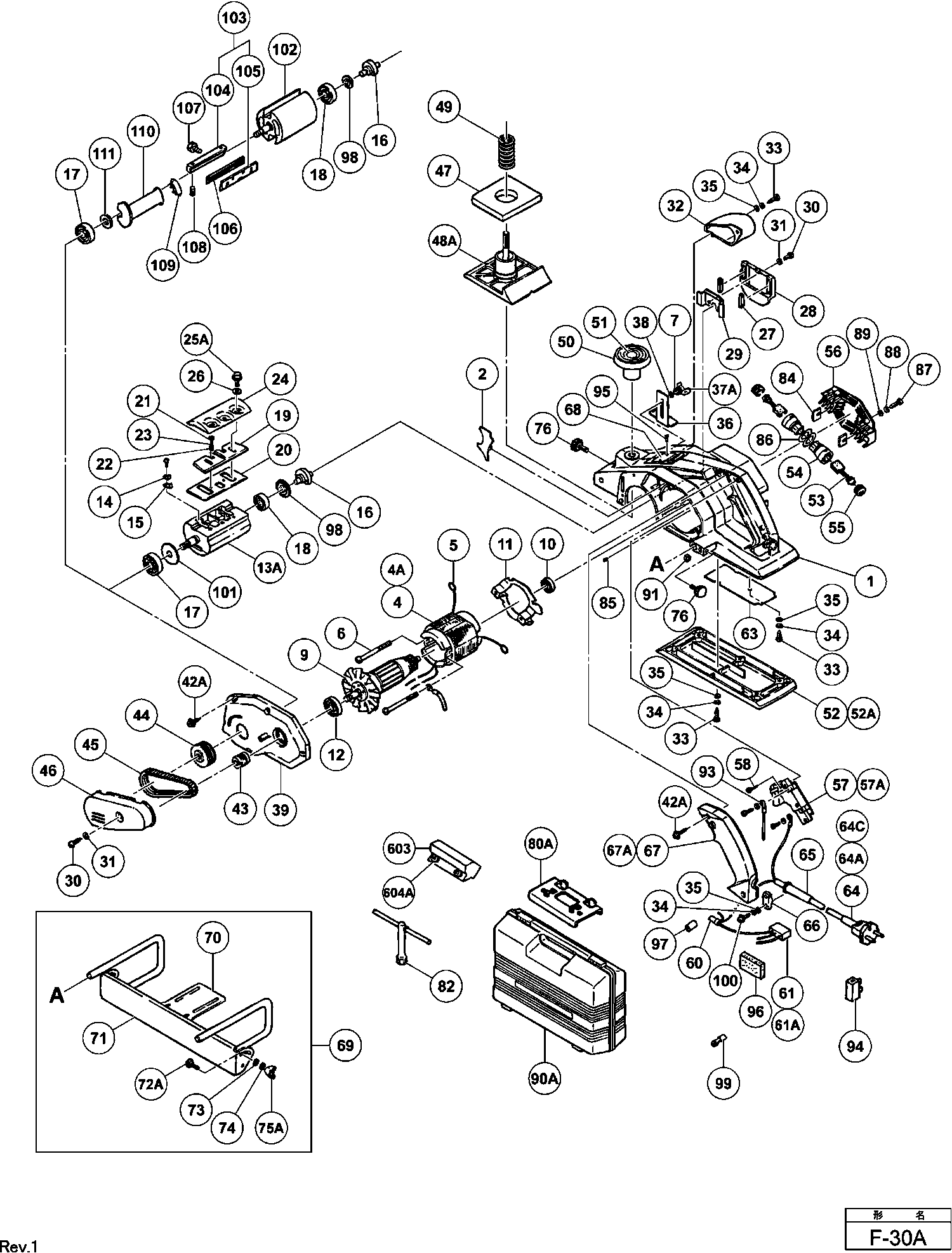

Technical drawing of model Hikoki F-30A
Spare parts list of model Hikoki F-30A
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 1 | 958860 | |||
| LUCHTGELEIDER | ||||
| 2 | 958891 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 4 | 958905G | |||
| No information available, not orderable | ||||
| 4A | 958905E | |||
| Brush Terminal | ||||
| 5 | 930703 | 2.40 | 2.90 | |
| Hex. Hd. Tapping Screw D5x65 | ||||
| 6 | 960251 | 1.05 | 1.27 | |
| Spring Washer M5 (10 pieces) | ||||
| 7 | 949454 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 9 | 958864U | |||
| Ball Bearing 608vvc2ps2l | ||||
| 10 | 608VVM | 5.70 | 6.90 | |
| LUCHTGELEIDER | ||||
| 11 | 958865 | 1.00 | 1.21 | |
| Ball Bearing 6200vvcmps2l | ||||
| 12 | 6200VV | 6.15 | 7.44 | |
| Cutter Block Ass'y Includ.14-18,98,101 | ||||
| 13A | 991256 | 64.21 | 77.70 | |
| Spring | ||||
| 14 | 958699 | 1.05 | 1.27 | |
| Protective Shield | ||||
| 15 | 958700 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 16 | 958824Z | |||
| Ball Bearing 6201vv | ||||
| 17 | 6201VV | 6.45 | 7.80 | |
| Ball bearing 629ddmc3ps2l (old 939465) | ||||
| 18 | 629DDM | 5.85 | 7.08 | |
| No information available, not orderable | ||||
| 19 | 958893Z | |||
| No information available, not orderable | ||||
| 20 | 958868 | |||
| Machine Screw M4x8 (10 Pcs.) | ||||
| 21 | 949215 | 1.05 | 1.27 | |
| Washer M4 (10 Pcs.) | ||||
| 22 | 949423 | 1.05 | 1.27 | |
| Spring Washer M4 (10 pieces) | ||||
| 23 | 949453 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 24 | 958869 | |||
| Bolt (1) | ||||
| 25A | 958917 | 1.05 | 1.27 | |
| Washer | ||||
| 26 | 940391 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 27 | 958839Z | |||
| Blade Cover | ||||
| 28 | 958902 | 2.55 | 3.09 | |
| Cover | ||||
| 29 | 958899 | 1.05 | 1.27 | |
| Machine Screw M4x14 (10 Pcs.) | ||||
| 30 | 949218 | 1.05 | 1.27 | |
| Spring Washer M4 (10 pieces) | ||||
| 31 | 949453 | 1.05 | 1.27 | |
| Chip Cover | ||||
| 32 | 958870 | 2.55 | 3.09 | |
| Tapping Screw D4X16 | ||||
| 33 | 954004 | 1.04 | 1.26 | |
| Spring Washer M4 (10 pieces) | ||||
| 34 | 949453 | 1.05 | 1.27 | |
| Washer M4 (10 Pcs.) | ||||
| 35 | 949423 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 36 | 958840Z | |||
| Wing Bolt M5x6 (10 Pcs.) | ||||
| 37A | 949395 | 3.90 | 4.72 | |
| Washer M5 (10 Pcs.) | ||||
| 38 | 949424 | 1.05 | 1.27 | |
| End Shield | ||||
| 39 | 958871 | 23.93 | 28.95 | |
| Tapping Screw (w/flange) D4x25 | ||||
| 42A | 306999 | 1.04 | 1.26 | |
| Pulley (a) | ||||
| 43 | 958872 | 7.05 | 8.53 | |
| Pulley (b) | ||||
| 44 | 958873 | 11.25 | 13.61 | |
| Belt | ||||
| 45 | 958874 | 9.30 | 11.25 | |
| Belt Cover | ||||
| 46 | 958875 | 3.90 | 4.72 | |
| Rubber Packing | ||||
| 47 | 958876 | 1.04 | 1.26 | |
| Front Base | ||||
| 48A | 958918 | 13.75 | 16.64 | |
| Spring | ||||
| 49 | 958709 | 1.95 | 2.36 | |
| Knob | ||||
| 50 | 942328 | 5.25 | 6.35 | |
| No information available, not orderable | ||||
| 51 | 958832Z | |||
| No information available, not orderable | ||||
| 52 | 958878 | |||
| No information available, not orderable | ||||
| 52A | 958908Z | |||
| Carbon Brush (1 Pair) | ||||
| 53 | 999043 | 4.50 | 5.44 | |
| Brush Holder | ||||
| 54 | 958900 | 6.45 | 7.80 | |
| Brush Cap | ||||
| 55 | 945161 | 1.20 | 1.45 | |
| Tail Cover | ||||
| 56 | 958879 | 7.65 | 9.26 | |
| Switch (2p Pillar Type) W/lock Till 4.1996 For Au | ||||
| 57 | 931573 | 40.43 | 48.91 | |
| Switch | ||||
| 57 | 953178 | 37.95 | 45.92 | |
| Switch (old 956632H) | ||||
| 57 | 956632 | 16.64 | 20.13 | |
| Switch (a) (1p Screw Type) W/lock | ||||
| 57 | 986201 | 16.64 | 20.13 | |
| No information available, not orderable | ||||
| 57A | 960280Z | |||
| Screw | ||||
| 58 | 954017 | 1.04 | 1.26 | |
| Connector 50091 (10 Pcs.) | ||||
| 60 | 959140 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 61 | 960283Z | |||
| Noise Suppressor | ||||
| 61A | 994273 | 4.29 | 5.19 | |
| PLAAT | ||||
| 63 | 958882 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 64 | 500408Z | |||
| No information available, not orderable | ||||
| 64A | 500424Z | |||
| No information available, not orderable | ||||
| 64C | 500235Z | |||
| Cord Armor D10.2 Till 11.1982 For Aus | ||||
| 65 | 930026 | 3.00 | 3.63 | |
| Cord Armor D8.2 | ||||
| 65 | 930487 | 2.25 | 2.72 | |
| Cord Clip | ||||
| 66 | 937631 | 1.04 | 1.26 | |
| Handle Cover | ||||
| 67 | 958883 | 8.70 | 10.53 | |
| No information available, not orderable | ||||
| 67A | 958907Z | |||
| No information available, not orderable | ||||
| 69 | 958886 | |||
| No information available, not orderable | ||||
| 70 | 958887 | |||
| Plate | ||||
| 71 | 958888 | 5.25 | 6.35 | |
| Bolt M5 X 22 | ||||
| 72A | 963492 | 1.50 | 1.82 | |
| Washer M5 (10 Pcs.) | ||||
| 73 | 949424 | 1.05 | 1.27 | |
| Spring Washer M5 (10 pieces) | ||||
| 74 | 949454 | 1.04 | 1.26 | |
| Wing Nut M5 | ||||
| 75A | 963493 | 1.04 | 1.26 | |
| SCREW | ||||
| 76 | 940650 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 80A | 958916 | |||
| No information available, not orderable | ||||
| 82 | 940543 | |||
| RUBBEREN STUK | ||||
| 84 | 958898 | 1.00 | 1.21 | |
| RUBBER PIN (OLD 976441) | ||||
| 85 | 946362 | 1.05 | 1.27 | |
| FIBER WASHER (A) | ||||
| 86 | 958901 | 1.00 | 1.21 | |
| Tapping Screw D4x20 | ||||
| 87 | 956384 | 1.05 | 1.27 | |
| Spring Washer M4 (10 pieces) | ||||
| 88 | 949453 | 1.05 | 1.27 | |
| Washer M4 (10 Pcs.) | ||||
| 89 | 949423 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 90A | 314837 | |||
| Nut M5 (10 Pieces) (OLD 949555Z) | ||||
| 91 | 949555 | 1.05 | 1.27 | |
| BEDRADING | ||||
| 93 | 971825 | 1.00 | 1.21 | |
| Pillar Terminal Till 10.1999 For Aus | ||||
| 94 | 938307 | 2.13 | 2.57 | |
| NAGEL D2.5X3.2 (10 STKS.) | ||||
| 95 | 949509 | 1.00 | 1.21 | |
| Holder | ||||
| 96 | 963243 | 1.05 | 1.27 | |
| Threaded cable sleeve | ||||
| 97 | 981373 | 1.05 | 1.27 | |
| Bearing Ring | ||||
| 98 | 958915 | 1.04 | 1.26 | |
| Terminal For Noise Suppressor | ||||
| 99 | 938108 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 100 | 984750 | |||
| Bearing Washer | ||||
| 101 | 944954 | 1.05 | 1.27 | |
| Includ.16-18,98,109-111 | ||||
| 102 | 308061 | 163.35 | 197.65 | |
| Includ.107,108 | ||||
| 103 | 308060 | 75.90 | 91.84 | |
| No information available, not orderable | ||||
| 104 | 308107 | |||
| BLADE HOLDER (B) F-30A(T) (1 PAIR) | ||||
| 105 | 308108 | 10.20 | 12.34 | |
| No information available, not orderable | ||||
| 107 | 963472Z | |||
| Hex Adjustment Screw M5x8 | ||||
| 108 | 938477 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 109 | 308062 | |||
| Holder | ||||
| 110 | 990665 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 111 | 308063 | |||
| No information available, not orderable | ||||
| 601 | 958893Z | |||
| No information available, not orderable | ||||
| 602 | 958909Z | |||
| No information available, not orderable | ||||
| 603 | 958889 | |||
| No information available, not orderable | ||||
| 604A | 940654 | |||
