Here you will find all available parts and drawings of the 'Hikoki EXT-300SQ'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

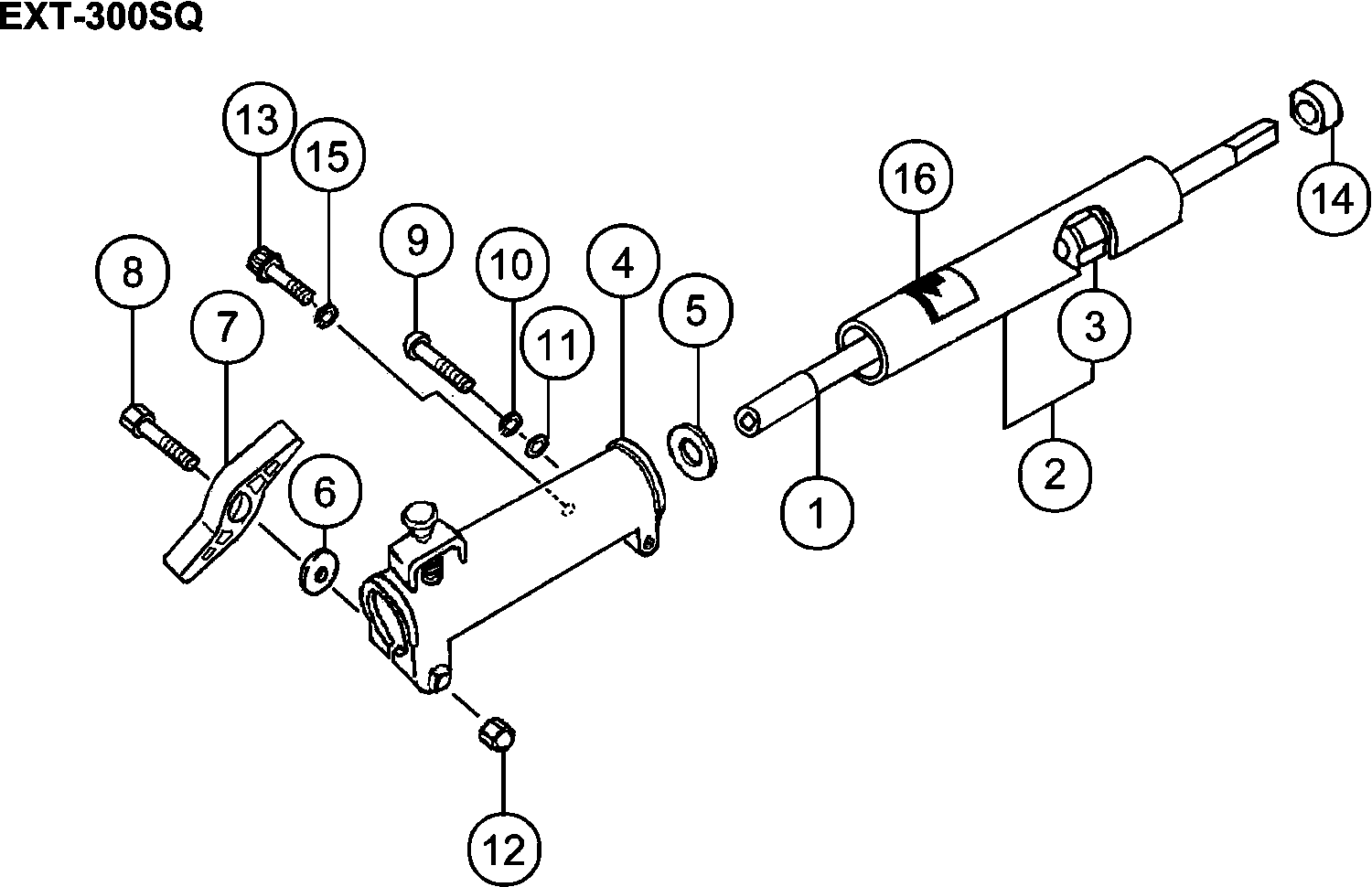

Technical drawing of model Hikoki EXT-300SQ
Spare parts list of model Hikoki EXT-300SQ
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Drive Shaft A L=935 (old 035-30045-80) | ||||
| 1 | 6685987 | 36.15 | 43.74 | |
| No information available, not orderable | ||||
| 2 | 6689301 | |||
| No information available, not orderable | ||||
| 3 | 6684831 | |||
| Joint Case | ||||
| 4 | 6684817 | 38.58 | 46.68 | |
| Spacer 1.6 | ||||
| 5 | 6689139 | 1.15 | 1.39 | |
| Ring | ||||
| 6 | 6684822 | 2.15 | 2.60 | |
| Handle Knob | ||||
| 7 | 6684823 | 4.29 | 5.19 | |
| Hex. Bolt 6x50 | ||||
| 8 | 6684824 | 2.15 | 2.60 | |
| Hex. Socket Hd. Bolt (w/button) M6 | ||||
| 9 | 6684825 | 2.15 | 2.60 | |
| Spring Washer 5 | ||||
| 10 | 6684834 | 2.15 | 2.60 | |
| Small Washer 6 Black | ||||
| 11 | 6684827 | 2.15 | 2.60 | |
| Cap Nut 6 | ||||
| 12 | 6684828 | 2.15 | 2.60 | |
| Hex. Socket Hd. Bolt M5x12 | ||||
| 13 | 6684829 | 2.15 | 2.60 | |
| Bushing For (sl) | ||||
| 14 | 6684833 | 2.15 | 2.60 | |
| Ring | ||||
| 15 | 6684826 | 2.15 | 2.60 | |
| Level Mark | ||||
| 16 | 6684851 | 2.15 | 2.60 | |
