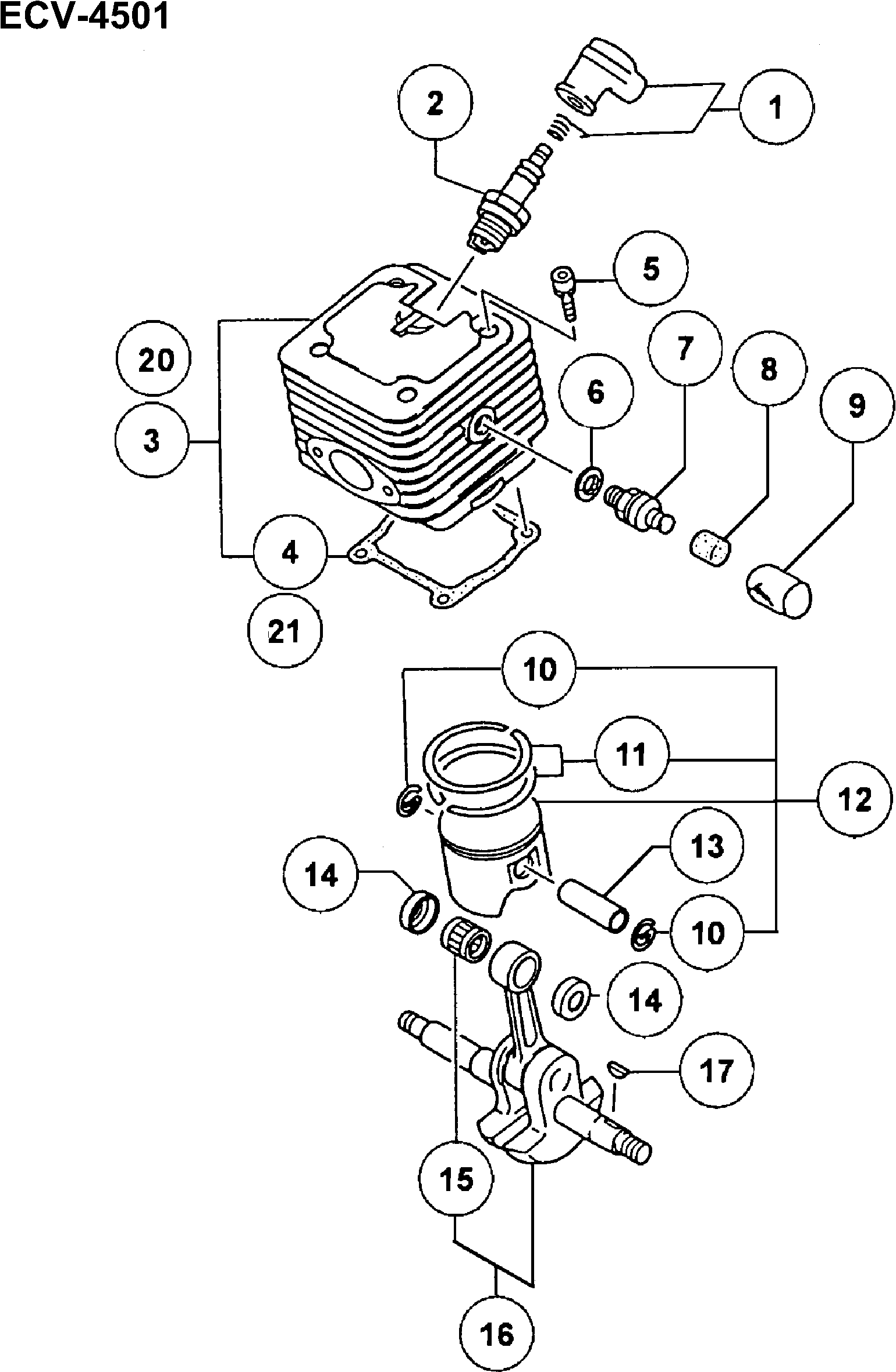

Technical drawing of model Hikoki ECV-4501
Spare parts list of model Hikoki ECV-4501
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Spark Plug Cap Ass'y Till G165840 | ||||
| 1 | 6687468 | 2.31 | 2.80 | |
| Spark Plug Ass'y Bpm7a For South America | ||||
| 2 | 6699318 | 6.76 | 8.18 | |
| No information available, not orderable | ||||
| 3 | 6685465 | |||
| Cylinder Packing | ||||
| 4 | 6685732 | 1.15 | 1.39 | |
| Hex. Hole Bolt 5x20s | ||||
| 5 | 6695491 | 1.15 | 1.39 | |
| Decomp. Valve Gasket | ||||
| 6 | 6685860 | 1.15 | 1.39 | |
| Complete Decompression (old 004-04063-80) | ||||
| 7 | 6685589 | 28.14 | 34.05 | |
| Decomp. Cover | ||||
| 8 | 6685800 | 1.15 | 1.39 | |
| Dust Cover | ||||
| 9 | 6690808 | 26.16 | 31.66 | |
| Piston Pin Circlip (old 039-01000-20) | ||||
| 10 | 6686026 | 1.15 | 1.39 | |
| Piston Ring, 42.7 Dia. | ||||
| 11 | 6686125 | 4.45 | 5.38 | |
| Piston Set, Spare | ||||
| 12 | 6685884 | 20.11 | 24.34 | |
| Piston Pin 10x30 | ||||
| 13 | 6686007 | 2.31 | 2.80 | |
| Piston Pin Collar (old 036-04090-20) | ||||
| 14 | 6685993 | 5.28 | 6.38 | |
| Needle Bearing, 2x8.8 | ||||
| 15 | 6695602 | 5.28 | 6.38 | |
| Crank Shaft Comp. | ||||
| 16 | 6686183 | 108.45 | 131.22 | |
| Woodruff Key 3x13x4.5 Till B023800 | ||||
| 17 | 6684899 | 2.15 | 2.60 | |
| Side Dumper | ||||
| 31 | 6688164 | 1.15 | 1.39 | |
| Hex Hole Screw 5x35 | ||||
| 32 | 6695076 | 1.15 | 1.39 | |
| Oil Pipe A | ||||
| 33 | 6691219 | 4.45 | 5.38 | |
| Clip 7 | ||||
| 34 | 6692312 | 1.15 | 1.39 | |
| Oil Filter Body Comp. | ||||
| 35 | 6697651 | 2.98 | 3.60 | |
| Shim 0.4 | ||||
| 36 | 6686475 | 1.15 | 1.39 | |
| Shim S T0.2 (old 071-04063-23) | ||||
| 36 | 6685098 | 1.15 | 1.39 | |
| Shim S T0.3 (old 071-04063-24) | ||||
| 36 | 6685099 | 1.15 | 1.39 | |
| Crank Case Ass'y | ||||
| 37 | 6686542 | 120.55 | 145.87 | |
| Knock Pin 4x12 (old 999-05041-203) | ||||
| 38 | 6695521 | 1.15 | 1.39 | |
| Oil Seal | ||||
| 39 | 6695633 | 3.30 | 3.99 | |
| Stop Ring inside C-32 old part no. 993-51032-00 | ||||
| 40 | 6695295 | 1.15 | 1.39 | |
| Ball Bearing 6201 A2c3 | ||||
| 41 | 6685096 | 5.28 | 6.38 | |
| Ball Bearing 6201 A2c3 | ||||
| 42 | 6685096 | 5.28 | 6.38 | |
| Stop Ring inside C-32 old part no. 993-51032-00 | ||||
| 43 | 6695295 | 1.15 | 1.39 | |
| Oil Seal | ||||
| 44 | 6695633 | 3.30 | 3.99 | |
| Crankcase Gasket | ||||
| 45 | 6686710 | 1.15 | 1.39 | |
| Air Vent Valve (b) | ||||
| 46 | 6685173 | 2.31 | 2.80 | |
| Air Vent Cover | ||||
| 47 | 6691399 | 4.45 | 5.38 | |
| Hex.hole Bolt M5x18/s | ||||
| 48 | 6684586 | 2.15 | 2.60 | |
| Hex. Socket Hd. Bolt M5x30 S | ||||
| 49 | 6684786 | 2.15 | 2.60 | |
| Air Deflector | ||||
| 50 | 6687207 | 4.45 | 5.38 | |
| Bolt Washer M8 | ||||
| 51 | 6684611 | 2.15 | 2.60 | |
| Hex. Nut M8 | ||||
| 52 | 6684612 | 2.15 | 2.60 | |
| Magneto Rotor Ass'y | ||||
| 53 | 6687395 | 38.26 | 46.30 | |
| Ring | ||||
| 54 | 6687942 | 1.15 | 1.39 | |
| Pawl Spring | ||||
| 55 | 6693348 | 1.15 | 1.39 | |
| Starter Pawl | ||||
| 56 | 6693304 | 2.31 | 2.80 | |
| Step Bolt | ||||
| 57 | 6693366 | 1.15 | 1.39 | |
| Handle Damper Since V181601 | ||||
| 58 | 6688107 | 1.15 | 1.39 | |
| Clutch Set Ass'y, M9 Till V181600 | ||||
| 72 | 6695959 | 17.70 | 21.42 | |
| Clutch Ass'y, M9 Since V181601 | ||||
| 72A | 6688489 | 15.58 | 18.85 | |
| Clutch Housing Comp.7T (OLD 310-3252L-82) | ||||
| 73 | 6689009 | 30.25 | 36.60 | |
| Needle Bearing Kt111410g | ||||
| 74 | 6695606 | 7.59 | 9.18 | |
| Oil Pump Cover (old 097-3252k-20) | ||||
| 75 | 6686755 | 2.31 | 2.80 | |
| Screw Gear Comp. | ||||
| 76 | 6686640 | 17.55 | 21.24 | |
| No longer available, no replacement | ||||
| 77 | 6687331 | |||
| Ring | ||||
| 78 | 6686452 | 1.15 | 1.39 | |
| Small Screw 4x12ws (old 994-16040-126) | ||||
| 79 | 6695403 | 1.15 | 1.39 | |
| High Tension Screw 4x18ws Since H124041 | ||||
| 80 | 6695407 | 1.15 | 1.39 | |
| Release Valve (old 086-3252k-20) | ||||
| 81 | 6686661 | 1.15 | 1.39 | |
| O-ring S-3 | ||||
| 82 | 6695659 | 1.15 | 1.39 | |
| O-ring P-5 | ||||
| 83 | 6695661 | 1.15 | 1.39 | |
| Clutch Spring (old 342-04063-21) | ||||
| 84 | 6689426 | 3.30 | 3.99 | |
| Clutch Shoe Since V181601 | ||||
| 85 | 6689493 | 7.10 | 8.59 | |
| Clutch Boss Since V181601 | ||||
| 86 | 6689497 | 1.15 | 1.39 | |
| Ring | ||||
| 87 | 6689642 | 2.31 | 2.80 | |
| Cleaner Element | ||||
| 101 | 6690335 | 4.79 | 5.79 | |
| Cleaner Element | ||||
| 102 | 6690325 | 4.79 | 5.79 | |
| Aircleaner Base Comp. (old 436-04063-80) | ||||
| 103 | 6690198 | 3.30 | 3.99 | |
| Hex. Hole Bolt 5x45 | ||||
| 104 | 6695055 | 1.15 | 1.39 | |
| S.washer 5 | ||||
| 105 | 6684662 | 2.15 | 2.60 | |
| Small Washer 5 | ||||
| 106 | 6684864 | 2.15 | 2.60 | |
| Hex. Hole Bolt 5x15 Ws | ||||
| 107 | 6695512 | 1.15 | 1.39 | |
| Idle Adjustment Screw Till H126320 | ||||
| 109 | 6687993 | 2.31 | 2.80 | |
| Idle Adjust Screw | ||||
| 109A | 6685298 | 2.31 | 2.80 | |
| Ring | ||||
| 110 | 6687943 | 1.15 | 1.39 | |
| Carb. Insulator, Rubber (old 409-04063-20) | ||||
| 111 | 6690004 | 3.30 | 3.99 | |
| Insulator Comp. | ||||
| 112 | 6689941 | 2.31 | 2.80 | |
| No longer available, no replacement | ||||
| 113 | 6689789 | |||
| Inlet Manifold Gasket | ||||
| 114 | 6689876 | 1.15 | 1.39 | |
| Hex. Socket Hd. Bolt (w/sp.washer) M4x12 | ||||
| 115 | 6684595 | 2.15 | 2.60 | |
| Idle Adjust Spring | ||||
| 116 | 6690766 | 2.31 | 2.80 | |
| Inlet Manifold Spacer Includ.98a Till 8.2012 | ||||
| 117 | 6685202 | 3.30 | 3.99 | |
| Muffler Gasket | ||||
| 118 | 6692737 | 3.30 | 3.99 | |
| Muffler Set | ||||
| 119 | 6692459 | 28.14 | 34.05 | |
| Muffler Stay | ||||
| 120 | 6692942 | 4.79 | 5.79 | |
| Hex. Hole Bolt M5x16/s | ||||
| 121 | 6684903 | 2.15 | 2.60 | |
| Hex. Hole Bolt 4x10 | ||||
| 122 | 6695036 | 1.15 | 1.39 | |
| Recoil Starter Ass'y | ||||
| 141 | 6692916 | 26.16 | 31.66 | |
| Set Screw Till 7.2014 | ||||
| 142 | 6693633 | 1.15 | 1.39 | |
| Starter Rope Reel (old 774-01700-20) | ||||
| 143 | 6693059 | 7.10 | 8.59 | |
| Recoil Spring Case | ||||
| 144 | 6693096 | 9.90 | 11.98 | |
| Fan Housing | ||||
| 145 | 6686963 | 18.00 | 21.78 | |
| Plate | ||||
| 146 | 6685189 | 1.15 | 1.39 | |
| Starter Handle | ||||
| 147 | 6693230 | 4.45 | 5.38 | |
| Starter Rope | ||||
| 148 | 6693158 | 3.30 | 3.99 | |
| Hex. Hole Bolt 5x15 Ws | ||||
| 150 | 6695512 | 1.15 | 1.39 | |
| Carburetor Ass'y Wt-497a (old 455-25095-90) | ||||
| 201 | 6690606 | 96.35 | 116.58 | |
| Inlet Screen | ||||
| 202 | 6684700 | 4.29 | 5.19 | |
| Pump Body Since B027901 | ||||
| 203 | 6691416 | 8.91 | 10.78 | |
| Screw | ||||
| 204 | 6685210 | 1.15 | 1.39 | |
| Pump Gasket | ||||
| 205 | 6685212 | 2.31 | 2.80 | |
| Pump Diaphragm | ||||
| 206 | 6685213 | 4.45 | 5.38 | |
| Needle Valve | ||||
| 207 | 6685215 | 5.28 | 6.38 | |
| No longer available, no replacement | ||||
| 208 | 6685220 | |||
| No longer available, no replacement | ||||
| 209 | 6690827 | |||
| Diaphragm Cover-metering | ||||
| 210 | 6685222 | 4.45 | 5.38 | |
| No information available, not orderable | ||||
| 211 | 6690872 | |||
| Hinge Pin Set Screw | ||||
| 212 | 6685218 | 2.31 | 2.80 | |
| Hinge Pin | ||||
| 213 | 6685219 | 1.15 | 1.39 | |
| Control Lever | ||||
| 214 | 6685217 | 3.30 | 3.99 | |
| Set Screw | ||||
| 215 | 6685223 | 1.15 | 1.39 | |
| Carburetor Ass'y Wt484 (old 455-25092-90) | ||||
| 216 | 6690605 | 88.33 | 106.87 | |
| High/low Adjust Spring (old 623-25032-20) | ||||
| 217 | 6692048 | 2.31 | 2.80 | |
| Low Adjustment Screw For Sauth America,asia | ||||
| 218 | 6690719 | 5.94 | 7.18 | |
| High Adjustment Spring | ||||
| 219 | 6690897 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 220 | 6690696 | |||
| Aircleaner Knob Comp. | ||||
| 231 | 6687793 | 3.30 | 3.99 | |
| Cleaner Cover | ||||
| 232 | 6690404 | 4.79 | 5.79 | |
| Idle Grommet | ||||
| 233 | 6687974 | 1.15 | 1.39 | |
| Adjuster Cap | ||||
| 234 | 6687954 | 1.15 | 1.39 | |
| Cylinder Cover | ||||
| 235 | 6685681 | 8.25 | 9.98 | |
| Cylindr Support Rubber | ||||
| 236 | 6691825 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 237 | 6690056 | |||
| Hex. Hole Bolt 5x15 Ws | ||||
| 238 | 6695512 | 1.15 | 1.39 | |
| Insulator Tube, 85l | ||||
| 239 | 6688315 | 1.15 | 1.39 | |
| Choke Button Comp. | ||||
| 240 | 6692507 | 2.31 | 2.80 | |
| Choke Rod Holding Rubber | ||||
| 241 | 6692587 | 1.15 | 1.39 | |
| Stop Switch Comp. | ||||
| 242 | 6687506 | 6.60 | 7.99 | |
| Control Plate | ||||
| 243 | 6691192 | 1.15 | 1.39 | |
| Shutter Plate | ||||
| 244 | 6687952 | 2.31 | 2.80 | |
| Stop Cord, B225m | ||||
| 245 | 6687929 | 2.31 | 2.80 | |
| Hex.hole Bolt M5x12/s | ||||
| 246 | 6684667 | 2.15 | 2.60 | |
| Bumper Spike | ||||
| 247 | 6690705 | 3.30 | 3.99 | |
| Chain Catcher | ||||
| 248 | 6687163 | 3.30 | 3.99 | |
| Special Bolt | ||||
| 249 | 6689734 | 3.30 | 3.99 | |
| Fuel Pipe Till G086250 | ||||
| 250 | 6685154 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 251 | 6688113 | |||
| Tapping Screw 5x35 | ||||
| 252 | 6695107 | 1.15 | 1.39 | |
| Collar 15 | ||||
| 253 | 6692248 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 254 | 6697756 | |||
| No longer available, no replacement | ||||
| 255 | 6697888 | |||
| Ignition Coil Comp. | ||||
| 256 | 6687695 | 76.38 | 92.41 | |
| Hex. Hole Bolt M4x18/ws Till H124040 | ||||
| 257 | 6684599 | 2.15 | 2.60 | |
| Nut M4 | ||||
| 271 | 6685069 | 1.15 | 1.39 | |
| Chain Bar Clamp Nut (old 121-32600-20) | ||||
| 272 | 6687105 | 1.15 | 1.39 | |
| Tap Screw 4x14 P | ||||
| 273 | 6695280 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 274 | 6693454 | |||
| Ring | ||||
| 275 | 6685068 | 1.15 | 1.39 | |
| Hand Guard Weight | ||||
| 276 | 6693481 | 3.30 | 3.99 | |
| Side Case Ass'y | ||||
| 277 | 6686095 | 60.35 | 73.02 | |
| Tapping Screw D4x10 | ||||
| 278 | 6685161 | 1.15 | 1.39 | |
| Brake Band | ||||
| 279 | 6689715 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 280 | 6686043 | |||
| Cleaner Fixing Collar | ||||
| 281 | 6690805 | 1.15 | 1.39 | |
| Brake Support Fitting Comp. | ||||
| 282 | 6689777 | 5.61 | 6.79 | |
| No information available, not orderable | ||||
| 283 | 6689781 | |||
| Brake Link Comp. | ||||
| 284 | 6685121 | 9.24 | 11.18 | |
| Brake Spring | ||||
| 285 | 6689700 | 3.30 | 3.99 | |
| Brake Band | ||||
| 286 | 6689724 | 14.85 | 17.97 | |
| Needle Roller 3x9.8 | ||||
| 287 | 6685141 | 1.15 | 1.39 | |
| Brake Link Cover | ||||
| 288 | 6689709 | 2.31 | 2.80 | |
| Tapping Screw D4x10 | ||||
| 289 | 6685161 | 1.15 | 1.39 | |
| Guide Plate B | ||||
| 290 | 6697598 | 3.30 | 3.99 | |
| Screw 4x8 Till Z063200 | ||||
| 291 | 6694861 | 1.15 | 1.39 | |
| Guide Plate A | ||||
| 292 | 6697597 | 3.30 | 3.99 | |
| Chain Bar Stud Bolt | ||||
| 293 | 6686804 | 2.31 | 2.80 | |
| Chain Tension Bolt Assy Except For Asia | ||||
| 294 | 6687067 | 4.45 | 5.38 | |
| Chain Tension Bolt Assy For Asia | ||||
| 295 | 6687073 | 3.30 | 3.99 | |
| Tapping Screw 5x18 | ||||
| 311 | 6695106 | 1.15 | 1.39 | |
| Rear Handle Grip | ||||
| 312 | 6688212 | 4.45 | 5.38 | |
| Trigger Lockout Black | ||||
| 313 | 6688352 | 1.15 | 1.39 | |
| Throttle Rod Comp. | ||||
| 314 | 6690967 | 5.61 | 6.79 | |
| Throttle Lever | ||||
| 315 | 6686381 | 2.31 | 2.80 | |
| Throttle Lever Spring | ||||
| 316 | 6686412 | 2.31 | 2.80 | |
| No longer available, no replacement | ||||
| 317 | 6685663 | |||
| Spring Pin 5x25 | ||||
| 318 | 6685282 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 319 | 6688079 | |||
| Tapping Screw 5x18 | ||||
| 320 | 6695106 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 322 | 6691391 | |||
| Front Damper | ||||
| 323 | 6688241 | 2.31 | 2.80 | |
| No longer available, no replacement | ||||
| 324 | 6688261 | |||
| Dapmper Collar | ||||
| 325 | 6688478 | 1.15 | 1.39 | |
| Hex. Hole Bolt 4x20 | ||||
| 326 | 6695039 | 1.15 | 1.39 | |
| Clip 5.2 | ||||
| 327 | 6692311 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 328 | 6688173 | |||
| Clip,6.3 Dia. | ||||
| 329 | 6684619 | 2.15 | 2.60 | |
| Pump Filter Body | ||||
| 330 | 6692285 | 7.26 | 8.79 | |
| Tank Cap Ass'y | ||||
| 331 | 6692111 | 3.30 | 3.99 | |
| Tank Cap Packing | ||||
| 332 | 6685179 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 501 | 6686886 | |||
| No information available, not orderable | ||||
| 502 | 6686832 | |||
| No information available, not orderable | ||||
| 503 | 6687270 | |||
| No information available, not orderable | ||||
| 504 | 6687333 | |||
| No information available, not orderable | ||||
| 505 | 6687335 | |||
| No information available, not orderable | ||||
| 506 | 6687284 | |||
| Chain Cover 20 | ||||
| 507 | 6694804 | 6.93 | 8.38 | |
| No information available, not orderable | ||||
| 508 | 6694810 | |||
| Chain Cover 14" | ||||
| 509 | 6685256 | 6.44 | 7.79 | |
| Combi. Box Spanner 13x19 Minus | ||||
| 510 | 6693809 | 4.45 | 5.38 | |
| Minus Driver | ||||
| 511 | 6686632 | 3.06 | 3.71 | |
| No information available, not orderable | ||||
| 601 | 6694282 | |||
| Starter Mark (old 915-3286b-20) | ||||
| 602 | 6694493 | 1.15 | 1.39 | |
