Here you will find all available parts and drawings of the 'Hikoki ECS-3500'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

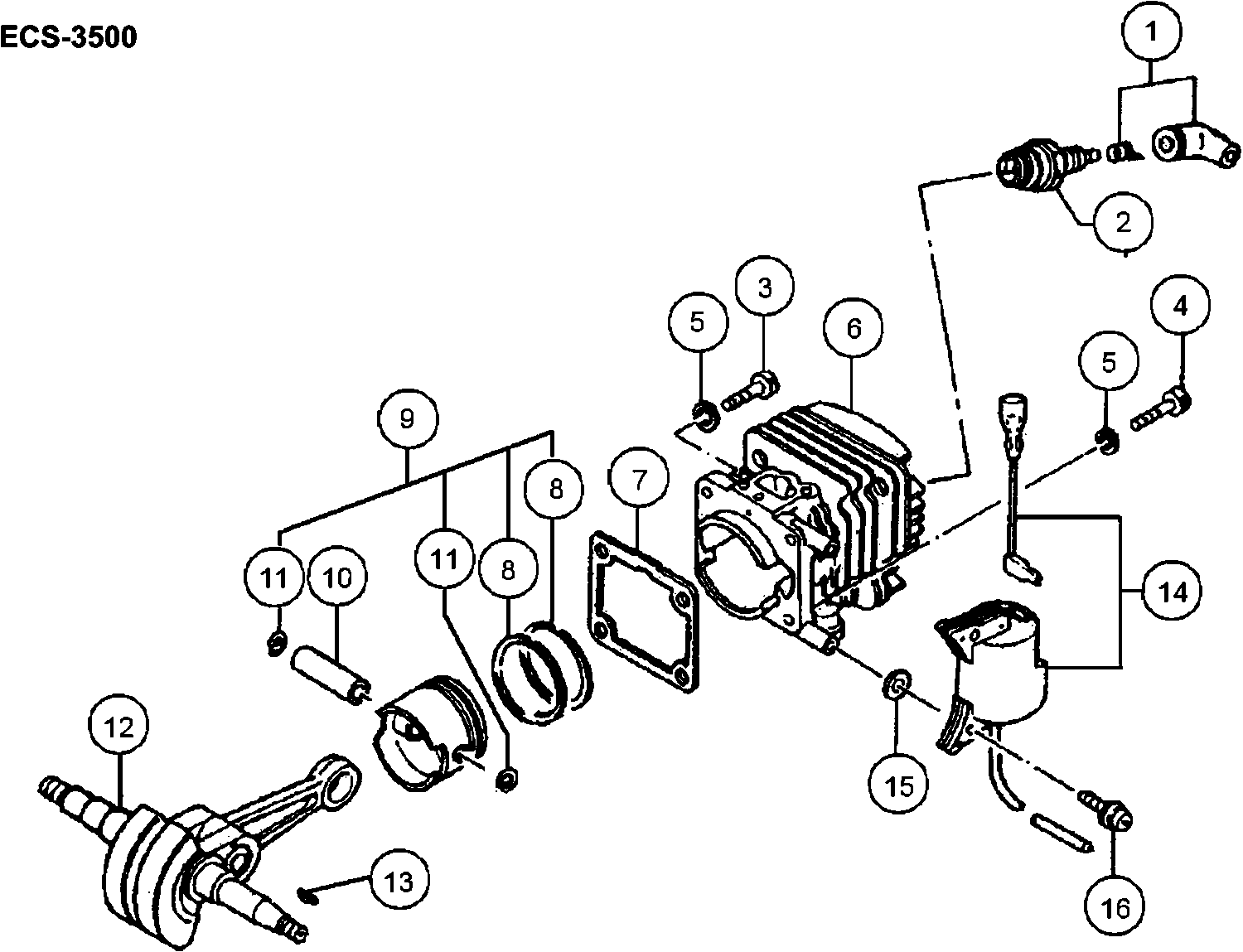

Technical drawing of model Hikoki ECS-3500
Spare parts list of model Hikoki ECS-3500
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Spark Plug Cap Ass'y Till G165840 | ||||
| 1 | 6687468 | 2.31 | 2.80 | |
| Spark Plug Ass'y Bpm6a | ||||
| 2 | 6699317 | 6.76 | 8.18 | |
| Hex. Hole Bolt 5x22s | ||||
| 3 | 6695493 | 1.15 | 1.39 | |
| Hex. Hole Bolt 5x22s | ||||
| 4 | 6695493 | 1.15 | 1.39 | |
| Ring | ||||
| 5 | 6685226 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 6 | 6695830 | |||
| Cylinder Gasket | ||||
| 7 | 6685734 | 1.15 | 1.39 | |
| Piston Ring | ||||
| 8 | 6686122 | 4.45 | 5.38 | |
| No information available, not orderable | ||||
| 9 | 6685882 | |||
| Piston Pin | ||||
| 10 | 6686008 | 2.31 | 2.80 | |
| Circlip | ||||
| 11 | 6685078 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 12 | 6686186 | |||
| Woodruff Key 3x13x4.5 Till B023800 | ||||
| 13 | 6684899 | 2.15 | 2.60 | |
| Ignition coil (old 167-21952-90) | ||||
| 14 | 6695941 | 44.31 | 53.62 | |
| Washer T1.6 | ||||
| 15 | 6684600 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 16 | 6695410 | |||
| Crank Shaft Shim 0.10 | ||||
| 31 | 6686470 | 1.15 | 1.39 | |
| Crank Shaft Shim 0.20 | ||||
| 31 | 6686472 | 1.15 | 1.39 | |
| Crank Shaft Shim 0.30 | ||||
| 31 | 6686473 | 1.15 | 1.39 | |
| Ring | ||||
| 32 | 6686463 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 33 | 6686544 | |||
| Vlave Holder Assy | ||||
| 34 | 6692168 | 3.30 | 3.99 | |
| Air Vent Valve (b) | ||||
| 35 | 6685173 | 2.31 | 2.80 | |
| Oil Seal | ||||
| 36 | 6695637 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 37 | 6695557 | |||
| Crank Case Gasket | ||||
| 38 | 6686708 | 1.15 | 1.39 | |
| Oil Seal | ||||
| 39 | 6684607 | 4.29 | 5.19 | |
| Hex. Hole Bolt 5x30 Since E092691 | ||||
| 40 | 6695052 | 1.15 | 1.39 | |
| Oil Adjust Grommet | ||||
| 41 | 6690953 | 1.05 | 1.27 | |
| Oil Pipe B (old 505-32530-22) | ||||
| 42 | 6691117 | 4.95 | 5.99 | |
| Clip 7 | ||||
| 43 | 6692312 | 1.15 | 1.39 | |
| Oil Filter Body Ass'y | ||||
| 44 | 6685249 | 2.31 | 2.80 | |
| Magneto Rotor Ass'y | ||||
| 45 | 6687408 | 30.25 | 36.60 | |
| No information available, not orderable | ||||
| 46 | 6693248 | |||
| Starter Pawl Spring | ||||
| 47 | 6693347 | 1.15 | 1.39 | |
| Starter Pawl | ||||
| 48 | 6693297 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 49 | 6693562 | |||
| Step Bolt | ||||
| 50 | 6693366 | 1.15 | 1.39 | |
| Ring | ||||
| 51 | 6685103 | 1.15 | 1.39 | |
| Ring | ||||
| 52 | 6695222 | 1.15 | 1.39 | |
| Flywheel Nut | ||||
| 53 | 6686442 | 1.15 | 1.39 | |
| Cleaner Knob Comp. | ||||
| 71 | 6687794 | 3.30 | 3.99 | |
| Cleaner Cover | ||||
| 72 | 6686296 | 5.11 | 6.19 | |
| No information available, not orderable | ||||
| 73 | 6695658 | |||
| No information available, not orderable | ||||
| 74 | 6690068 | |||
| Choke Button Comp. (old 704-32540-80) New | ||||
| 75 | 6692508 | 2.10 | 2.54 | |
| Screw 5x40/s | ||||
| 76 | 6695348 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 77 | 6690846 | |||
| No information available, not orderable | ||||
| 78 | 6692404 | |||
| Choke Shim 0.8 | ||||
| 79 | 6692596 | 1.15 | 1.39 | |
| Inlet Manifold Gasket | ||||
| 80 | 6689877 | 1.15 | 1.39 | |
| Inlet Manifold | ||||
| 81 | 6689797 | 6.28 | 7.59 | |
| Manifold Flang | ||||
| 82 | 6689790 | 4.45 | 5.38 | |
| No information available, not orderable | ||||
| 83 | 6687292 | |||
| Ring | ||||
| 84 | 6685149 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 85 | 6689813 | |||
| Secondary Cord Grommet | ||||
| 86 | 6688037 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 87 | 6690981 | |||
| Fuel Pipe | ||||
| 88 | 6692372 | 1.15 | 1.39 | |
| Clip,6.3 Dia. | ||||
| 89 | 6684619 | 2.15 | 2.60 | |
| No longer available, no replacement | ||||
| 90 | 6685684 | |||
| Primary Cord Grommet | ||||
| 91 | 6688055 | 1.15 | 1.39 | |
| Primary Cord Grommet | ||||
| 92 | 6688049 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 93 | 6688449 | |||
| Screw 5x16/s | ||||
| 94 | 6695338 | 1.15 | 1.39 | |
| Screw 5x16/ps | ||||
| 95 | 6695386 | 1.15 | 1.39 | |
| Collar | ||||
| 96 | 6685853 | 2.31 | 2.80 | |
| No longer available, no replacement | ||||
| 101 | 6692528 | |||
| Muffler Body B Comp. | ||||
| 102 | 6692629 | 5.25 | 6.35 | |
| Muffler Collar | ||||
| 103 | 6692840 | 1.15 | 1.39 | |
| Muffler Gasket | ||||
| 104 | 6692739 | 3.30 | 3.99 | |
| Ring | ||||
| 105 | 6684661 | 2.15 | 2.60 | |
| Hex.hole Bolt M5x35 | ||||
| 106 | 6684934 | 2.15 | 2.60 | |
| Small Washer 5 | ||||
| 107 | 6684864 | 2.15 | 2.60 | |
| Hex. Socket Hd. Bolt M5x35 | ||||
| 108 | 6685057 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 109 | 6692598 | |||
| Recoil Starter Assy | ||||
| 121 | 6692919 | 34.19 | 41.37 | |
| Binding Head Screw 5x12 | ||||
| 122 | 6694966 | 1.15 | 1.39 | |
| Ring | ||||
| 123 | 6693250 | 1.05 | 1.27 | |
| Starter Rope Reel Comp. | ||||
| 124 | 6693063 | 7.75 | 9.38 | |
| Recoil Spring Case Assembly (old 778-00601-90/6693 | ||||
| 125 | 6693090 | 7.59 | 9.18 | |
| Plate | ||||
| 126 | 6685189 | 1.15 | 1.39 | |
| Starter Handle | ||||
| 127 | 6693230 | 4.45 | 5.38 | |
| Starter Rope (old 783-04075-20) New | ||||
| 128 | 6693162 | 3.30 | 3.99 | |
| No longer available, no replacement | ||||
| 129 | 6686966 | |||
| Screw 5x16/ws | ||||
| 130 | 6695418 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 151 | 6690597 | |||
| No information available, not orderable | ||||
| 152 | 6691421 | |||
| Pump Gasket | ||||
| 153 | 6685212 | 2.31 | 2.80 | |
| Pump Diaphragm | ||||
| 154 | 6685213 | 4.45 | 5.38 | |
| Diaphragm Gasket Till U100576 | ||||
| 155 | 6690837 | 2.31 | 2.80 | |
| No longer available, no replacement | ||||
| 156 | 6690827 | |||
| Diaphragm Cover-metering | ||||
| 157 | 6685222 | 4.45 | 5.38 | |
| High Adjust Screw | ||||
| 158 | 6690691 | 4.79 | 5.79 | |
| High Adjustment Spring | ||||
| 159 | 6690897 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 160 | 6697669 | |||
| High/low Adjust Spring (old 623-25032-20) | ||||
| 161 | 6692048 | 2.31 | 2.80 | |
| Idle Adjust Screw | ||||
| 162 | 6685298 | 2.31 | 2.80 | |
| Idle Adjust Spring | ||||
| 163 | 6685297 | 2.31 | 2.80 | |
| Valve Spring | ||||
| 164 | 6690870 | 2.31 | 2.80 | |
| Needle Valve | ||||
| 165 | 6691943 | 5.78 | 6.99 | |
| Control Lever | ||||
| 166 | 6685217 | 3.30 | 3.99 | |
| Hinge Pin | ||||
| 167 | 6685219 | 1.15 | 1.39 | |
| Inlet Screen | ||||
| 168 | 6684700 | 4.29 | 5.19 | |
| Screw | ||||
| 169 | 6685210 | 1.15 | 1.39 | |
| Hinge Pin Set Screw | ||||
| 170 | 6685218 | 2.31 | 2.80 | |
| Set Screw | ||||
| 171 | 6685223 | 1.15 | 1.39 | |
| Fuel Tank Cap Ass'y | ||||
| 191 | 6692115 | 10.23 | 12.37 | |
| Tank Cap Gasket | ||||
| 192 | 6692153 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 193 | 6601144 | |||
| Clip 7 | ||||
| 194 | 6692312 | 1.15 | 1.39 | |
| Rubber Pipe | ||||
| 195A | 6697912 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 196 | 6684620 | |||
| Screw 3x10 | ||||
| 197 | 6684913 | 2.15 | 2.60 | |
| Button Stop | ||||
| 198 | 6688366 | 1.15 | 1.39 | |
| Stop Button Mark | ||||
| 199 | 6694585 | 1.15 | 1.39 | |
| Stop Button Comp. | ||||
| 200 | 6687741 | 8.25 | 9.98 | |
| Throttle Trigger Lockout | ||||
| 201 | 6688359 | 1.15 | 1.39 | |
| Throttle Lever | ||||
| 202 | 6686388 | 1.15 | 1.39 | |
| Throttle Lever Spring | ||||
| 203 | 6686418 | 2.31 | 2.80 | |
| Throttle Rod | ||||
| 204 | 6690973 | 2.10 | 2.54 | |
| Push Pin | ||||
| 205 | 6686430 | 1.15 | 1.39 | |
| Stopper Spring | ||||
| 206 | 6686447 | 1.15 | 1.39 | |
| Push Pin Cap | ||||
| 207 | 6692681 | 1.15 | 1.39 | |
| Rear Handle B Comp. | ||||
| 208 | 6685644 | 5.78 | 6.99 | |
| Rear Handle B | ||||
| 209 | 6685643 | 4.50 | 5.44 | |
| No information available, not orderable | ||||
| 210 | 6695412 | |||
| No information available, not orderable | ||||
| 211 | 6695410 | |||
| Nut M4 | ||||
| 212 | 6685069 | 1.15 | 1.39 | |
| Special Nut | ||||
| 213 | 6693659 | 3.30 | 3.99 | |
| Adjuster Cap | ||||
| 214 | 6687955 | 1.15 | 1.39 | |
| Grommet | ||||
| 215 | 6687976 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 216 | 6686327 | |||
| Screw 5x25ps | ||||
| 231 | 6695395 | 1.15 | 1.39 | |
| Damper Comp. (old 219-32530-80) | ||||
| 232 | 6688111 | 4.45 | 5.38 | |
| Screw 5x12/s Till E047000 | ||||
| 233 | 6695334 | 1.15 | 1.39 | |
| Damper Set Bolt A | ||||
| 234 | 6688630 | 2.31 | 2.80 | |
| Damper Cap | ||||
| 235 | 6688182 | 2.10 | 2.54 | |
| Screw 4x8/w | ||||
| 236 | 6695432 | 1.05 | 1.27 | |
| Oil Tank Cap Ass'y | ||||
| 237 | 6692157 | 5.28 | 6.38 | |
| Tank Cap Chain Assy | ||||
| 238 | 6692052 | 3.00 | 3.63 | |
| O-ring | ||||
| 239 | 6697898 | 1.04 | 1.26 | |
| Chain Catcher | ||||
| 240 | 6687164 | 1.15 | 1.39 | |
| Collar | ||||
| 241 | 6690877 | 2.10 | 2.54 | |
| Small Washer 5 | ||||
| 242 | 6684864 | 2.15 | 2.60 | |
| Hex. Hole Bolt 5x25 | ||||
| 243 | 6695051 | 1.15 | 1.39 | |
| Oil Level Cap Ass'y | ||||
| 244 | 6691249 | 2.31 | 2.80 | |
| O-ring | ||||
| 245 | 6697898 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 246 | 6685584 | |||
| No longer available, no replacement | ||||
| 247 | 6688113 | |||
| Damper B Comp. | ||||
| 248 | 6688410 | 5.61 | 6.79 | |
| Front Handle Comp. | ||||
| 249 | 6688078 | 12.38 | 14.97 | |
| No information available, not orderable | ||||
| 250 | 6695384 | |||
| Screw 5x12/s Till E047000 | ||||
| 251 | 6695334 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 252 | 6693462 | |||
| Screw 5x25ps | ||||
| 253 | 6695395 | 1.15 | 1.39 | |
| Screw 5x16/ps | ||||
| 254 | 6695386 | 1.15 | 1.39 | |
| Screw 5x25ps | ||||
| 255 | 6695395 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 256 | 6695157 | |||
| Nut Till Z063200 | ||||
| 271 | 6685166 | 2.31 | 2.80 | |
| No information available, not orderable | ||||
| 272 | 6686086 | |||
| Guide Plate B | ||||
| 273 | 6690749 | 2.31 | 2.80 | |
| Tapping Screw D4x10 | ||||
| 274 | 6685161 | 1.15 | 1.39 | |
| Screw 4x8 Till Z063200 | ||||
| 275 | 6694861 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 276 | 6690729 | |||
| No information available, not orderable | ||||
| 277 | 6690787 | |||
| Chain Bar Stud Bolt | ||||
| 278 | 6686804 | 2.31 | 2.80 | |
| Tension Adjustment Bolt Ass'y | ||||
| 279 | 6687066 | 1.15 | 1.39 | |
| Clutch Comp. | ||||
| 280 | 6688561 | 28.14 | 34.05 | |
| No longer available, no replacement | ||||
| 281 | 6685143 | |||
| Clutch Housing Comp. P-3/8 | ||||
| 282 | 6688998 | 34.19 | 41.37 | |
| Ring | ||||
| 283 | 6685145 | 2.31 | 2.80 | |
| Oil Pump Cover Comp. | ||||
| 284 | 6686757 | 5.11 | 6.19 | |
| Screw 5x22 | ||||
| 285 | 6694893 | 1.15 | 1.39 | |
| Oil Pump Case Assembly (old 088-32530-91) | ||||
| 286 | 6686672 | 52.34 | 63.33 | |
| Oil Pump Adjuster | ||||
| 287 | 6691067 | 8.25 | 9.98 | |
| Adjuster Spring | ||||
| 288 | 6691085 | 1.05 | 1.27 | |
| Ring | ||||
| 289 | 6684661 | 2.15 | 2.60 | |
| O-ring P-5 | ||||
| 290 | 6695661 | 1.15 | 1.39 | |
| Oil Pump Adjust Cap (old 503-32550-20) New | ||||
| 291 | 6691091 | 2.10 | 2.54 | |
| Oil Pump Comp (old 145-32530-80) | ||||
| 292 | 6687332 | 36.15 | 43.74 | |
| Oil Seal | ||||
| 293 | 6695634 | 3.30 | 3.99 | |
| No longer available, no replacement | ||||
| 294 | 6686639 | |||
| Oil Pipe A | ||||
| 295 | 6691220 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 296 | 6692313 | |||
| Side Case Assembly (old 040-32818-92) | ||||
| 297 | 6686089 | 74.41 | 90.04 | |
| Screw 5x16/s | ||||
| 298 | 6695338 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 299 | 6689743 | |||
| Nut M5 | ||||
| 300 | 6684965 | 1.04 | 1.26 | |
| Brake Lever Comp | ||||
| 301 | 6689670 | 7.75 | 9.38 | |
| Side Case Comp. | ||||
| 302 | 6686071 | 30.25 | 36.60 | |
| Tapping Screw D4x10 | ||||
| 303 | 6685161 | 1.15 | 1.39 | |
| Brake Spring | ||||
| 304 | 6689698 | 2.31 | 2.80 | |
| Step Bolt A | ||||
| 305 | 6689760 | 4.05 | 4.90 | |
| Spring Pin 4x12 (old 993-24040-120) | ||||
| 306 | 6695268 | 1.15 | 1.39 | |
| Brake Arm | ||||
| 307 | 6689694 | 2.31 | 2.80 | |
| No information available, not orderable | ||||
| 308 | 6689723 | |||
| Ring | ||||
| 309 | 6689680 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 310 | 6689769 | |||
| No information available, not orderable | ||||
| 311 | 6689647 | |||
| No longer available, no replacement | ||||
| 501 | 6685666 | |||
| No information available, not orderable | ||||
| 502 | 6694782 | |||
| No longer available, no replacement | ||||
| 503 | 6686844 | |||
| No information available, not orderable | ||||
| 504 | 6697890 | |||
| No information available, not orderable | ||||
| 505 | 6694810 | |||
| No information available, not orderable | ||||
| 506 | 6697889 | |||
| No information available, not orderable | ||||
| 507 | 6686854 | |||
| Name Plate | ||||
| 601 | 6694271 | 1.05 | 1.27 | |
| Starter Mark | ||||
| 602 | 6696246 | 1.05 | 1.27 | |
