Here you will find all available parts and drawings of the 'Hikoki ECS-3351D'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

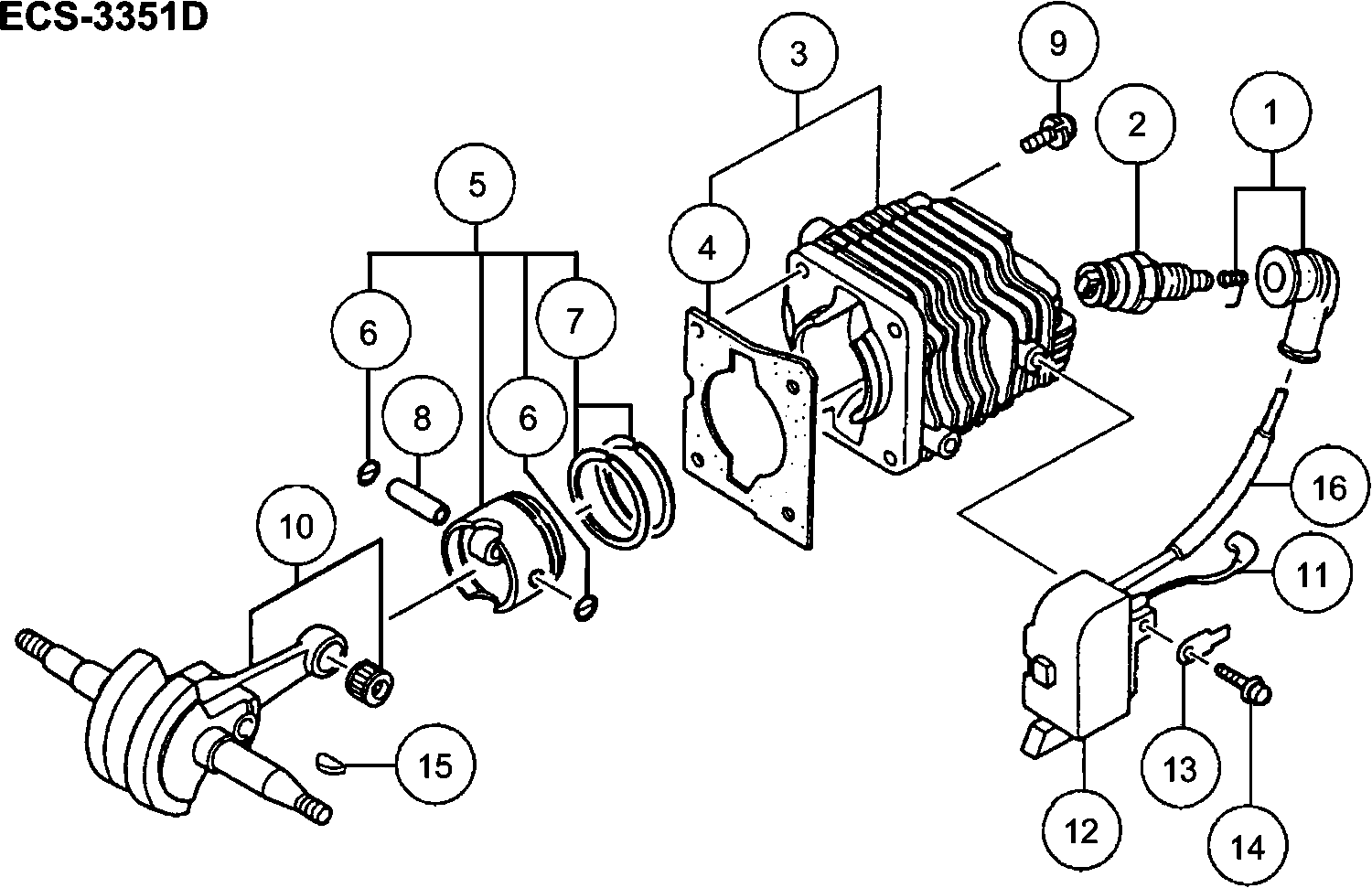

Technical drawing of model Hikoki ECS-3351D

Spare parts list of model Hikoki ECS-3351D

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Spark Plug Cap Ass'y Till G165840
1 6687468 2.31 2.80
Spark Plug BMR6A
2 6699315 13.35 16.15
Cylinder Set
3 6685457 44.31 53.62
Cylinder Gasket
4 6685724 1.15 1.39
Piston Set (old 030-01741-90)
5 6685879 22.24 26.91
Circlip
6 6685078 1.15 1.39
Piston Ring (xr1-1856)
7 6685331 4.05 4.90
Piston Pin
8 6686008 2.31 2.80
Hex. Hole Bolt M5x16/s
9 6684903 2.15 2.60
No information available, not orderable
10 6697636
Cord, B 70m
11 6687837 2.31 2.80
Ignition Coil Comp.
12 6687700 44.31 53.62
Tab
13 6688060 1.15 1.39
High Tension Screw 4x18ws Since H124041
14 6695407 1.15 1.39
Woodruff Key 3x13x4.5 Till B023800
15 6684899 2.15 2.60
Cord Insulator Tube Till G086250
16 6692900 1.15 1.39
Crank Case Ass'y
20A 6686523 36.15 43.74
Oil Seal
21 6684607 4.29 5.19
No information available, not orderable
22 6685095
Ball Bearing 6201 A2c3
23 6685096 5.28 6.38
Crank Case Gasket (old 090-01740-21)
24 6686699 1.15 1.39
Crank Case Gasket (old 090-0174g-20)
24B 6686701 1.15 1.39
No information available, not orderable
25 6684668
Magneto Rotor Ass'y Till S039107
26 6687393 19.51 23.61
Magneto Rotor Ass'y Till H019310
26A 6687394 24.20 29.28
No information available, not orderable
26B 6697953
D4e Retaining Ring (old 993-55040-001)
27 6685101 1.15 1.39
Starter Pawl Spring
28 6685105 1.15 1.39
Starter Pawl
29A 6685334 1.05 1.27
Ring
30 6685103 1.15 1.39
Flywheel Nut
31 6685104 1.15 1.39
Shim S T0.2 (old 071-04063-23)
32 6685098 1.15 1.39
Shim S T0.3 (old 071-04063-24)
32 6685099 1.15 1.39
Shim 0.1
32 6686474 1.15 1.39
Shim 0.4
32 6686475 1.15 1.39
Engine Case Assy, Vermilion Till U272561for Europ
40 6691360 38.26 46.30
No information available, not orderable
40A 6691361
Air Vent Valve (b)
41 6685173 2.31 2.80
Air Vent Valve Set
42 6697231 5.45 6.59
Hex.hole Bolt 5x20/ps
43 6684634 2.15 2.60
Earth wire
44 6688446 2.31 2.80
Stop Switch Ass'y
45A 6601374 11.71 14.17
Switch Name Plate
46 6687949 1.15 1.39
Grommet A Till U272561
47 6686329 1.15 1.39
No information available, not orderable
48 6699656
Cleaner Cover
50 6686299 3.30 3.99
Cleaner Cover
51 6689735 1.15 1.39
Cleaner Element
52 6690064 3.30 3.99
Carburetor Insulator Set,spare Till C091000
53 6689934 8.91 10.78
Insulator Set
53A 6689935 12.05 14.58
Inlet Manifold Gasket Till C091000
54 6689870 1.15 1.39
Insulator Gasket
54A 6689871 1.15 1.39
Carburetor Insulator Rubber (old 409-01700-20)
55 6690001 1.15 1.39
Reed Valve Holder Till C091000
56 6689805 1.15 1.39
Valve Holder
56A 6689806 1.15 1.39
Reed Valve
57A 6689803 3.30 3.99
No longer available, no replacement
58 6694964
Carburetor Gasket
59 6698108 1.80 2.18
Carburetor Set Wt516 Till U272561
60 6690665 68.36 82.72
Carburetor Set, Wt-517a
60A 6690666 64.28 77.77
Carburetor Set,wt-760 Since B027901
60B 6690667 84.40 102.12
Screw 5x45s
61 6695350 1.15 1.39
Choke Shim 1.0
62 6692597 1.05 1.27
Small Washer 5
63 6684864 2.15 2.60
Choke Valve
64 6692410 2.31 2.80
Tapping Screw D4.5x14
65 6685152 1.15 1.39
Cleaner Cover
66 6687344 4.45 5.38
No information available, not orderable
67 6684668
Small Washer 5
68 6684864 2.15 2.60
Idle Sponge
69 6685224 1.15 1.39
Sponge H/l 10l
70 6687978 1.15 1.39
Aircleaner Sponge Till G086250
71 6690355 1.15 1.39
Seal Cover Till G086250
72 6687182 1.15 1.39
Muffler Set (old 704-0174c-90)
81A 6692447 17.40 21.05
Muffler Gasket
82 6692734 1.15 1.39
No information available, not orderable
83A 6692627
No longer available, no replacement
84 6692677
Muffler Coupling Gasket For Aus
85 6692833 1.15 1.39
No information available, not orderable
86 6692607
Hex. Hole Bolt 5x40
87 6695054 1.15 1.39
Ring
88 6684661 2.15 2.60
Oil Pipe B (old 505-32710-20)
101 6691121 4.45 5.38
Clip 7
102 6692312 1.15 1.39
Ring
103 6684661 2.15 2.60
Oil Filter
104 6690919 1.15 1.39
Oil Filter Body Ass'y
105 6685249 2.31 2.80
Throttle Wire Comp.
106 6693873 5.78 6.99
Wire Grommet
107 6694836 1.15 1.39
Priming Pump Comp.
108 6685139 5.94 7.18
Fuel Pipe 2.5x4x42
109 6685138 1.15 1.39
Rubber Pipe
110 6692292 4.45 5.38
Pump Filter Body
111 6685199 4.45 5.38
Fuel Pipe 2.5x4x150
112 6692351 1.15 1.39
Return Grommet Till 7.2014
113 6697846 1.04 1.26
No information available, not orderable
114 6697780
Adjuster Cap
115 6687956 1.15 1.39
Adjuster Cap Since B027901
115A 6687957 3.30 3.99
Grommet
116 6692590 1.15 1.39
Choke Button Comp.
117 6692513 2.31 2.80
Grommet
118 6687976 1.15 1.39
O-ring
119 6697898 1.04 1.26
O-ring P21 Since H106411
119A 6699285 1.04 1.26
Oil Tank Cap Ass'y
120 6692159 5.11 6.19
Tank Cap Ass'y
121A 6692121 9.58 11.59
Lock Nut M6
122 6684872 2.15 2.60
No information available, not orderable
123 6699660
Recoil Starter Ass'y
131 6692906 44.31 53.62
Tapping Screw D5x14 Since C026901 Till F024130
132 6685275 1.15 1.39
Ring
133 6689681 1.15 1.39
Starter Pulley
134 6693060 3.30 3.99
Starter Rope 3 X 890
135 6693159 1.15 1.39
Recoil Spring Case Assembly (old 778-01740-90)
136 6693093 7.75 9.38
Starter Handle
137 6693228 2.31 2.80
Fan Housing
138 6686947 8.58 10.38
Tapping Screw D4.5x20 Till C026900
139 6685191 1.15 1.39
Ring
140 6684632 2.15 2.60
Inlet Screen
151 6684700 4.29 5.19
Pump Body
152 6685211 8.41 10.18
Pump Body Since B027901
152A 6691416 8.91 10.78
Screw
153 6685210 1.15 1.39
Pump Gasket
154 6685212 2.31 2.80
Pump Diaphragm
155 6685213 4.45 5.38
Low Adjust Screw
156 6690714 5.28 6.38
High/low Adjust Spring (old 623-25032-20)
157 6692048 2.31 2.80
Control Lever
158 6685217 3.30 3.99
Hinge Pin Set Screw
159 6685218 2.31 2.80
Valve Spring
160 6690870 2.31 2.80
Valve Spring
160A 6690872 2.31 2.80
Valve Spring
160B 6690873 4.45 5.38
Hinge Pin
161 6685219 1.15 1.39
Diaphragm Cover-metering
162 6685222 4.45 5.38
Metering Diaphragm Comp. Till B027700
163 6690827 11.71 14.17
No longer available, no replacement
164 6685220
Needle Valve
165 6691943 5.78 6.99
Needle Valve
165A 6685215 5.28 6.38
Needle Valve
165B 6691943 5.78 6.99
Needle Valve
165C 6685215 5.28 6.38
Idle Adjust Spring
166 6685297 2.31 2.80
Idle Adjust Screw
167 6685298 2.31 2.80
High Adjust Screw
168 6690691 4.79 5.79
High Adjustment Spring
169 6690897 3.30 3.99
Set Screw
170 6685223 1.15 1.39
Screw 5x14/ws
191 6695416 1.15 1.39
Oil Pump Cover
192 6686763 2.31 2.80
Oil Pipe A
193 6691223 3.30 3.99
Screw Gear
194 6686645 10.40 12.58
Air Vent Sponge
195 6691400 1.15 1.39
Oil Pump Ass'y (old 144-32902-90/6686678/6686652/6
196 6687324 10.56 12.78
Oil Adjust Grommet
197 6690956 1.15 1.39
Oil Pump Adjuster
198 6691070 1.15 1.39
O Ring
199 6697917 1.04 1.26
Oil Pump Case Set, Spare
200 6686681 9.74 11.78
O Ring
201 6697917 1.04 1.26
Tapping Screw D5x14 Since C026901 Till F024130
202 6685275 1.15 1.39
Fuel Pipe Till G086250
203 6685154 1.15 1.39
Chain Catcher
204 6685155 1.15 1.39
Tapping Screw D4.5x14
205 6685152 1.15 1.39
Nut Till Z063200
221 6685166 2.31 2.80
Chain Bar Clamp Nut (old 121-32600-20)
221A 6687105 1.15 1.39
Clutch Comp.
222 6685142 14.38 17.39
Needle Bearing
223 6685143 4.45 5.38
Clutch Housing Comp.
224 6685144 14.53 17.58
Ring
225 6685145 2.31 2.80
Tapping Screw D4x10
226 6685161 1.15 1.39
Plate (old 466-32710-21 & 6690789)
227 6690790 2.31 2.80
Guide Plate A
227A 6697599 2.80 3.39
Crank Shaft Collar
228 6685146 2.31 2.80
Tapping Screw D4x10
229 6685161 1.15 1.39
Side Case Ass'y Till C910000
230 6601145 41.14 49.78
Side Case Ass'y Since C091001
230A 6697628 48.55 58.75
Guide Plate B
231 6690756 2.31 2.80
Screw 2.6x5 (old 993-30026-050)
232 6695269 1.15 1.39
Chain Puller
233B 6698986 13.35 16.15
Gear (a)
234 6685168 2.31 2.80
Brake Handle
235 6689674 13.04 15.78
Brake Link Cover, Black
236 6689712 2.31 2.80
BRAKE SPRING
237 6697694 2.10 2.54
Brake Support Plate Comp.
238 6685119 4.45 5.38
Needle Roller 3x9.8
239 6685141 1.15 1.39
Brake Link
240 6685388 4.05 4.90
Brake Band
241 6689728 8.41 10.18
Cleaner Fixing Collar
242 6690805 1.15 1.39
Collar
243 6685120 1.15 1.39
Side Cover Comp
244 6697614 10.89 13.17
Brake Lever Spring
245 6685122 2.31 2.80
Tapping Screw D4x15
246 6685148 1.15 1.39
Tension Adjustment Bolt Ass'y Till C091000
247 6687071 2.31 2.80
Screw 5x25 Ps
261 6695394 1.15 1.39
U-nut 5
262 6695157 1.15 1.39
Screw 5x40/s
263 6695348 1.15 1.39
Small Washer 5
264 6684864 2.15 2.60
Damper Collar A
265 6688480 1.15 1.39
Damper A (old 219-32750-20)
266 6688117 1.15 1.39
U-nut 5
267 6695157 1.15 1.39
Rear Handle B Comp.
268 6685646 5.28 6.38
Push Pin Cap
269 6692680 1.15 1.39
Stopper Spring
270 6686447 1.15 1.39
Push Pin Till U100576
271 6686433 1.15 1.39
No information available, not orderable
272 6688361
No longer available, no replacement
273 6686390
No information available, not orderable
274 6697845
Nut M4
275 6685069 1.15 1.39
Rear Handle A Comp.
276 6685616 11.88 14.37
Screw 4x22/ws
277 6695410 1.15 1.39
Front Handle Comp.
278 6688077 7.93 9.59
Damper B
279 6688412 1.15 1.39
Damper Collar B
280 6688485 1.15 1.39
Tapping Screw 5x35
281 6695107 1.15 1.39
Tapping Screw 5x35
282 6695107 1.15 1.39
Combi Box Spanner 10/19mm
501 6685257 3.30 3.99
Combi. Box Spanner 13x19 Minus
501A 6693809 4.45 5.38
No information available, not orderable
502A 6685401
Chain Cover 14"
503 6685256 6.44 7.79
Minus Driver
505 6686632 3.06 3.71
No information available, not orderable
506 6694810
No information available, not orderable
507 6697889
No information available, not orderable
508 6686854
No information available, not orderable
510 6685159
No information available, not orderable
511 6685160
No information available, not orderable
513 6697852
No information available, not orderable
514 6697854
No information available, not orderable
601 6699570
No information available, not orderable
602 6699571
