Here you will find all available parts and drawings of the 'Hikoki ECS-3301B'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

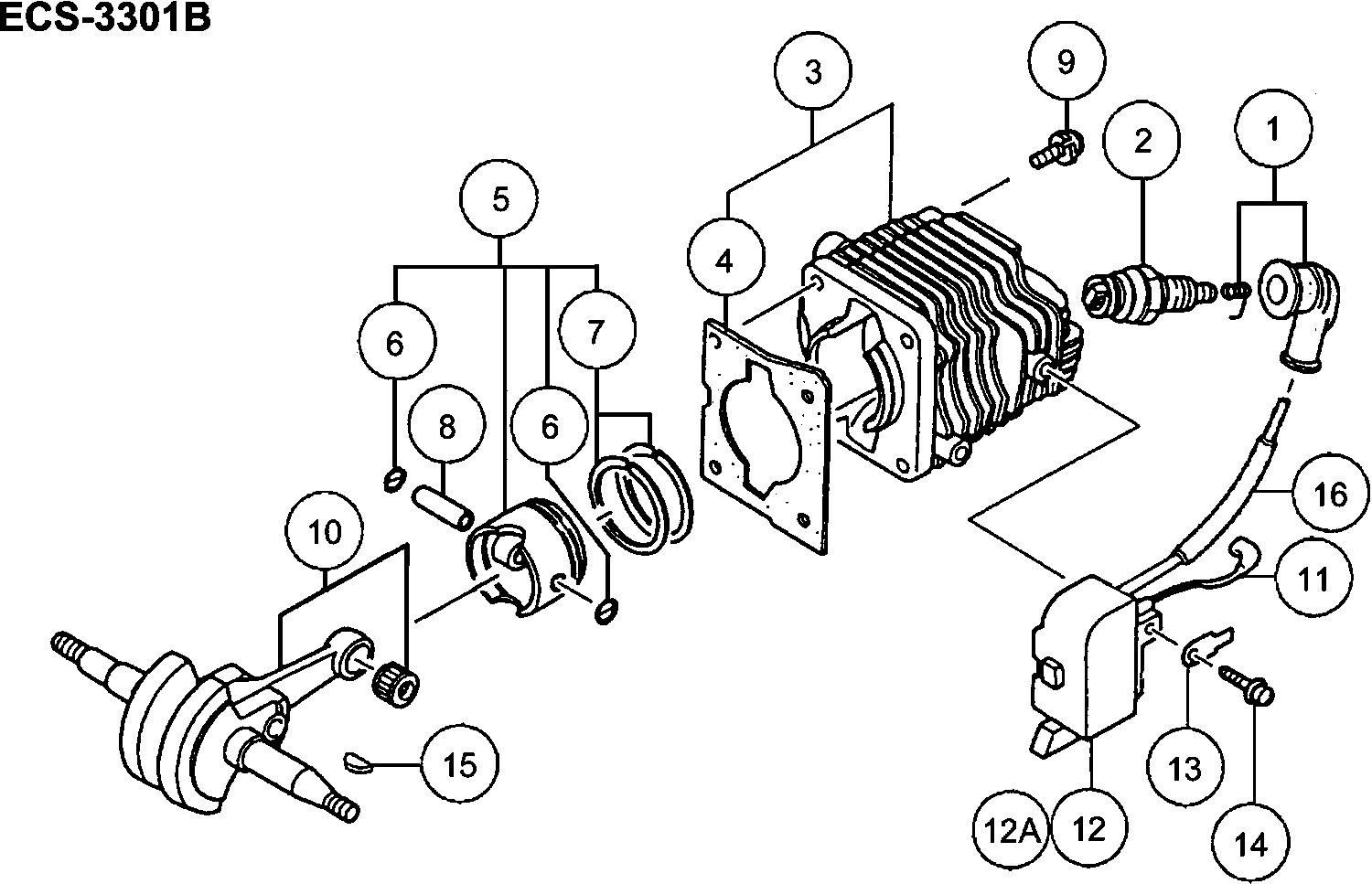

Technical drawing of model Hikoki ECS-3301B
Spare parts list of model Hikoki ECS-3301B
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Spark Plug Cap Ass'y Till G165840 | ||||
| 1 | 6687468 | 2.31 | 2.80 | |
| Spark Plug Ass'y Cj8 | ||||
| 2 | 6699324 | 3.30 | 3.99 | |
| Cylinder Set | ||||
| 3 | 6685457 | 44.31 | 53.62 | |
| Cylinder Gasket | ||||
| 4 | 6685724 | 1.15 | 1.39 | |
| Piston Set (old 030-01741-90) | ||||
| 5 | 6685879 | 22.24 | 26.91 | |
| Circlip | ||||
| 6 | 6685078 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 7 | 6685331 | |||
| Piston Pin | ||||
| 8 | 6686008 | 2.31 | 2.80 | |
| Hex. Hole Bolt M5x16/s | ||||
| 9 | 6684903 | 2.15 | 2.60 | |
| CRANK SHAFT COMP (OLD 6686171) | ||||
| 10 | 6697636 | 61.54 | 74.46 | |
| Cord, B 70m | ||||
| 11 | 6687837 | 2.31 | 2.80 | |
| Ignition Coil Comp. | ||||
| 12 | 6687697 | 36.15 | 43.74 | |
| Ignition Coil Comp. | ||||
| 12A | 6687700 | 44.31 | 53.62 | |
| Tab | ||||
| 13 | 6688060 | 1.15 | 1.39 | |
| High Tension Screw 4x18ws Since H124041 | ||||
| 14 | 6695407 | 1.15 | 1.39 | |
| Woodruff Key 3x13x4.5 Till B023800 | ||||
| 15 | 6684899 | 2.15 | 2.60 | |
| Cord Insulator Tube Till G086250 | ||||
| 16 | 6692900 | 1.15 | 1.39 | |
| Oil Seal | ||||
| 21 | 6684607 | 4.29 | 5.19 | |
| No information available, not orderable | ||||
| 22 | 6685095 | |||
| Ball Bearing 6201 A2c3 | ||||
| 23 | 6685096 | 5.28 | 6.38 | |
| Crank Case Gasket (old 090-01740-21) | ||||
| 24 | 6686699 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 25 | 6684668 | |||
| Magneto Rotor Ass'y Till S039107 | ||||
| 26 | 6687393 | 19.51 | 23.61 | |
| Magneto Rotor Ass'y Till H019310 | ||||
| 26A | 6687394 | 24.20 | 29.28 | |
| D4e Retaining Ring (old 993-55040-001) | ||||
| 27 | 6685101 | 1.15 | 1.39 | |
| Starter Pawl Spring | ||||
| 28 | 6685105 | 1.15 | 1.39 | |
| Starter Pawl | ||||
| 29A | 6685334 | 1.05 | 1.27 | |
| Ring | ||||
| 30 | 6685103 | 1.15 | 1.39 | |
| Flywheel Nut | ||||
| 31 | 6685104 | 1.15 | 1.39 | |
| Shim S T0.2 (old 071-04063-23) | ||||
| 32 | 6685098 | 1.15 | 1.39 | |
| Shim S T0.3 (old 071-04063-24) | ||||
| 32 | 6685099 | 1.15 | 1.39 | |
| Shim 0.4 | ||||
| 32 | 6686475 | 1.15 | 1.39 | |
| Ring | ||||
| 33 | 6695222 | 1.15 | 1.39 | |
| Engine Case Ass'y, Vermilion Till U239500 | ||||
| 40 | 6691363 | 34.19 | 41.37 | |
| Air Vent Valve (b) | ||||
| 41 | 6685173 | 2.31 | 2.80 | |
| Air Vent Valve Set | ||||
| 42 | 6697231 | 5.45 | 6.59 | |
| Hex.hole Bolt 5x20/ps | ||||
| 43 | 6684634 | 2.15 | 2.60 | |
| Earth Cord 90m | ||||
| 44 | 6697602 | 1.98 | 2.39 | |
| Stop Switch Ass'y | ||||
| 45A | 6601374 | 11.71 | 14.17 | |
| Switch Name Plate | ||||
| 46 | 6687949 | 1.15 | 1.39 | |
| Grommet A Till U272561 | ||||
| 47 | 6686329 | 1.15 | 1.39 | |
| Cleaner Cover | ||||
| 50 | 6686299 | 3.30 | 3.99 | |
| No longer available, no replacement | ||||
| 51 | 6689735 | |||
| Cleaner Element | ||||
| 52 | 6690064 | 3.30 | 3.99 | |
| Carburetor Insulator Rubber (old 409-01700-20) | ||||
| 55 | 6690001 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 58 | 6694964 | |||
| Carburetor Gasket | ||||
| 59 | 6698108 | 1.80 | 2.18 | |
| Carburetor Set, Spare | ||||
| 60 | 6690664 | 60.35 | 73.02 | |
| Screw 5x45s | ||||
| 61 | 6695350 | 1.15 | 1.39 | |
| Choke Shim 1.0 | ||||
| 62 | 6692597 | 1.05 | 1.27 | |
| Small Washer 5 | ||||
| 63 | 6684864 | 2.15 | 2.60 | |
| Choke Valve | ||||
| 64 | 6692410 | 2.31 | 2.80 | |
| Tapping Screw D4.5x14 | ||||
| 65 | 6685152 | 1.15 | 1.39 | |
| Cleaner Cover | ||||
| 66 | 6687344 | 4.45 | 5.38 | |
| No information available, not orderable | ||||
| 67 | 6684668 | |||
| Small Washer 5 | ||||
| 68 | 6684864 | 2.15 | 2.60 | |
| Idle Sponge | ||||
| 69 | 6685224 | 1.15 | 1.39 | |
| Aircleaner Sponge Till G086250 | ||||
| 71 | 6690355 | 1.15 | 1.39 | |
| Seal Cover Till G086250 | ||||
| 72 | 6687182 | 1.15 | 1.39 | |
| Hex. Hole Bolt 5x40 | ||||
| 81 | 6695054 | 1.15 | 1.39 | |
| Ring | ||||
| 82 | 6684661 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 83 | 6692445 | |||
| Muffler Set (old 704-01742-92) New | ||||
| 83A | 6692446 | 31.08 | 37.60 | |
| No information available, not orderable | ||||
| 84 | 6692627 | |||
| No longer available, no replacement | ||||
| 85A | 6692677 | |||
| Spark Arrestor For Aus | ||||
| 86 | 6692691 | 4.45 | 5.38 | |
| No information available, not orderable | ||||
| 87 | 6692607 | |||
| Muffler Gasket | ||||
| 88 | 6692734 | 1.15 | 1.39 | |
| Muffler Coupling Gasket For Aus | ||||
| 89 | 6692833 | 1.15 | 1.39 | |
| Oil Pipe B (old 505-32710-20) | ||||
| 101 | 6691121 | 4.45 | 5.38 | |
| Clip 7 | ||||
| 102 | 6692312 | 1.15 | 1.39 | |
| Ring | ||||
| 103 | 6684661 | 2.15 | 2.60 | |
| Oil Filter | ||||
| 104 | 6690919 | 1.15 | 1.39 | |
| Oil Filter Body Ass'y | ||||
| 105 | 6685249 | 2.31 | 2.80 | |
| Throttle Rod | ||||
| 106 | 6690974 | 4.45 | 5.38 | |
| Throttle Guide | ||||
| 107 | 6690982 | 1.15 | 1.39 | |
| Rubber Pipe | ||||
| 110 | 6692292 | 4.45 | 5.38 | |
| Pump Filter Body | ||||
| 111 | 6685199 | 4.45 | 5.38 | |
| No information available, not orderable | ||||
| 114 | 6697780 | |||
| Adjuster Cap Since B027901 | ||||
| 115 | 6687957 | 3.30 | 3.99 | |
| Grommet | ||||
| 116 | 6692590 | 1.15 | 1.39 | |
| Choke Button Comp. | ||||
| 117 | 6692513 | 2.31 | 2.80 | |
| Grommet | ||||
| 118 | 6687976 | 1.15 | 1.39 | |
| O-ring | ||||
| 119 | 6697898 | 1.04 | 1.26 | |
| Oil Tank Cap Ass'y | ||||
| 120 | 6692159 | 5.11 | 6.19 | |
| Fuel Tank Cap Ass'y | ||||
| 121 | 6692118 | 5.11 | 6.19 | |
| Recoil Starter Ass'y | ||||
| 131 | 6692906 | 44.31 | 53.62 | |
| Tapping Screw D5x14 Since C026901 Till F024130 | ||||
| 132 | 6685275 | 1.15 | 1.39 | |
| Ring | ||||
| 133 | 6689681 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 134 | 6693060 | |||
| No information available, not orderable | ||||
| 135 | 6693159 | |||
| Recoil Spring Case Assembly (old 778-01740-90) | ||||
| 136 | 6693093 | 7.75 | 9.38 | |
| Starter Handle | ||||
| 137 | 6693228 | 2.31 | 2.80 | |
| Fan Housing | ||||
| 138 | 6686947 | 8.58 | 10.38 | |
| Tapping Screw D4.5x20 Till C026900 | ||||
| 139 | 6685191 | 1.15 | 1.39 | |
| Inlet Screen | ||||
| 151 | 6684700 | 4.29 | 5.19 | |
| Pump Body Since B027901 | ||||
| 152 | 6691416 | 8.91 | 10.78 | |
| Screw | ||||
| 153 | 6685210 | 1.15 | 1.39 | |
| Pump Gasket | ||||
| 154 | 6685212 | 2.31 | 2.80 | |
| Pump Diaphragm | ||||
| 155 | 6685213 | 4.45 | 5.38 | |
| Control Lever | ||||
| 158 | 6685217 | 3.30 | 3.99 | |
| Hinge Pin Set Screw | ||||
| 159 | 6685218 | 2.31 | 2.80 | |
| Valve Spring | ||||
| 160 | 6690873 | 4.45 | 5.38 | |
| Hinge Pin | ||||
| 161 | 6685219 | 1.15 | 1.39 | |
| Diaphragm Cover-metering | ||||
| 162 | 6685222 | 4.45 | 5.38 | |
| No longer available, no replacement | ||||
| 163 | 6690827 | |||
| No longer available, no replacement | ||||
| 164 | 6685220 | |||
| Needle Valve | ||||
| 165 | 6685215 | 5.28 | 6.38 | |
| Idle Adjust Spring | ||||
| 166 | 6685297 | 2.31 | 2.80 | |
| Idle Adjust Screw | ||||
| 167 | 6685298 | 2.31 | 2.80 | |
| Set Screw | ||||
| 170 | 6685223 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 191 | 6695416 | |||
| Oil Pump Cover | ||||
| 192 | 6686763 | 2.31 | 2.80 | |
| Oil Pipe A | ||||
| 193 | 6691223 | 3.30 | 3.99 | |
| Screw Gear | ||||
| 194 | 6686645 | 10.40 | 12.58 | |
| Air Vent Sponge | ||||
| 195 | 6691400 | 1.15 | 1.39 | |
| Oil Pump Ass'y (old 144-32902-90/6686678/6686652/6 | ||||
| 196 | 6687324 | 10.56 | 12.78 | |
| Oil Adjust Grommet | ||||
| 197 | 6690956 | 1.15 | 1.39 | |
| Oil Pump Adjuster | ||||
| 198 | 6691070 | 1.15 | 1.39 | |
| O Ring | ||||
| 199 | 6697917 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 200 | 6686681 | |||
| O Ring | ||||
| 201 | 6697917 | 1.04 | 1.26 | |
| Tapping Screw D5x14 Since C026901 Till F024130 | ||||
| 202 | 6685275 | 1.15 | 1.39 | |
| Fuel Pipe Till G086250 | ||||
| 203 | 6685154 | 1.15 | 1.39 | |
| Chain Catcher | ||||
| 204 | 6685155 | 1.15 | 1.39 | |
| Tapping Screw D4.5x14 | ||||
| 205 | 6685152 | 1.15 | 1.39 | |
| Nut Till Z063200 | ||||
| 221 | 6685166 | 2.31 | 2.80 | |
| Nut Till Z063200 | ||||
| 221A | 6685166 | 2.31 | 2.80 | |
| Clutch Comp. | ||||
| 222 | 6685142 | 14.38 | 17.39 | |
| No longer available, no replacement | ||||
| 223 | 6685143 | |||
| Clutch Housing Comp. | ||||
| 224 | 6685144 | 14.53 | 17.58 | |
| Ring | ||||
| 225 | 6685145 | 2.31 | 2.80 | |
| Tapping Screw D4x10 | ||||
| 226 | 6685161 | 1.15 | 1.39 | |
| Crank Shaft Collar | ||||
| 228 | 6685146 | 2.31 | 2.80 | |
| Brake Handle Comp. | ||||
| 235 | 6697958 | 8.58 | 10.38 | |
| Brake Link Cover, Black | ||||
| 236 | 6689712 | 2.31 | 2.80 | |
| BRAKE SPRING | ||||
| 237 | 6697694 | 2.10 | 2.54 | |
| Brake Support Plate Comp. | ||||
| 238 | 6685119 | 4.45 | 5.38 | |
| Needle Roller 3x9.8 | ||||
| 239 | 6685141 | 1.15 | 1.39 | |
| Brake Link | ||||
| 240 | 6685388 | 4.05 | 4.90 | |
| Brake Band | ||||
| 241 | 6689728 | 8.41 | 10.18 | |
| Cleaner Fixing Collar | ||||
| 242 | 6690805 | 1.15 | 1.39 | |
| Collar | ||||
| 243 | 6685120 | 1.15 | 1.39 | |
| Side Cover Comp | ||||
| 244 | 6697614 | 10.89 | 13.17 | |
| Brake Lever Spring | ||||
| 245 | 6685122 | 2.31 | 2.80 | |
| Tapping Screw D4x15 | ||||
| 246 | 6685148 | 1.15 | 1.39 | |
| Nylon Lock Nut 4 | ||||
| 261 | 6695163 | 1.15 | 1.39 | |
| Tapping Screw 5x40 | ||||
| 262 | 6695108 | 1.15 | 1.39 | |
| Damper Collar A | ||||
| 263 | 6688480 | 1.15 | 1.39 | |
| Damper A (old 219-32750-20) | ||||
| 264 | 6688117 | 1.15 | 1.39 | |
| Screw 4x30ps | ||||
| 265 | 6695378 | 1.15 | 1.39 | |
| Rear Handle B Comp. | ||||
| 266 | 6685645 | 5.61 | 6.79 | |
| Push Pin Cap | ||||
| 267 | 6692680 | 1.15 | 1.39 | |
| Stopper Spring | ||||
| 268 | 6686447 | 1.15 | 1.39 | |
| Push Pin | ||||
| 269 | 6686430 | 1.15 | 1.39 | |
| Trigger Lockout Vermilion | ||||
| 270 | 6688363 | 1.15 | 1.39 | |
| Throttle Lever | ||||
| 271 | 6686392 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 272 | 6686416 | |||
| Rear Handle | ||||
| 273 | 6685620 | 7.59 | 9.18 | |
| Tapping Screw 5x35 | ||||
| 274 | 6695107 | 1.15 | 1.39 | |
| Tapping Screw D4x15 | ||||
| 275 | 6685148 | 1.15 | 1.39 | |
| Front Handle | ||||
| 276 | 6688083 | 6.28 | 7.59 | |
| Damper B | ||||
| 277 | 6688412 | 1.15 | 1.39 | |
| Damper Collar B | ||||
| 278 | 6688485 | 1.15 | 1.39 | |
| Tapping Screw 5x35 | ||||
| 279 | 6695107 | 1.15 | 1.39 | |
| Combi Box Spanner 10/19mm | ||||
| 501 | 6685257 | 3.30 | 3.99 | |
| Combi. Box Spanner 13x19 Minus | ||||
| 501A | 6693809 | 4.45 | 5.38 | |
| No information available, not orderable | ||||
| 503A | 6685401 | |||
| Minus Driver | ||||
| 505 | 6686632 | 3.06 | 3.71 | |
