Here you will find all available parts and drawings of the 'Hikoki DW297'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

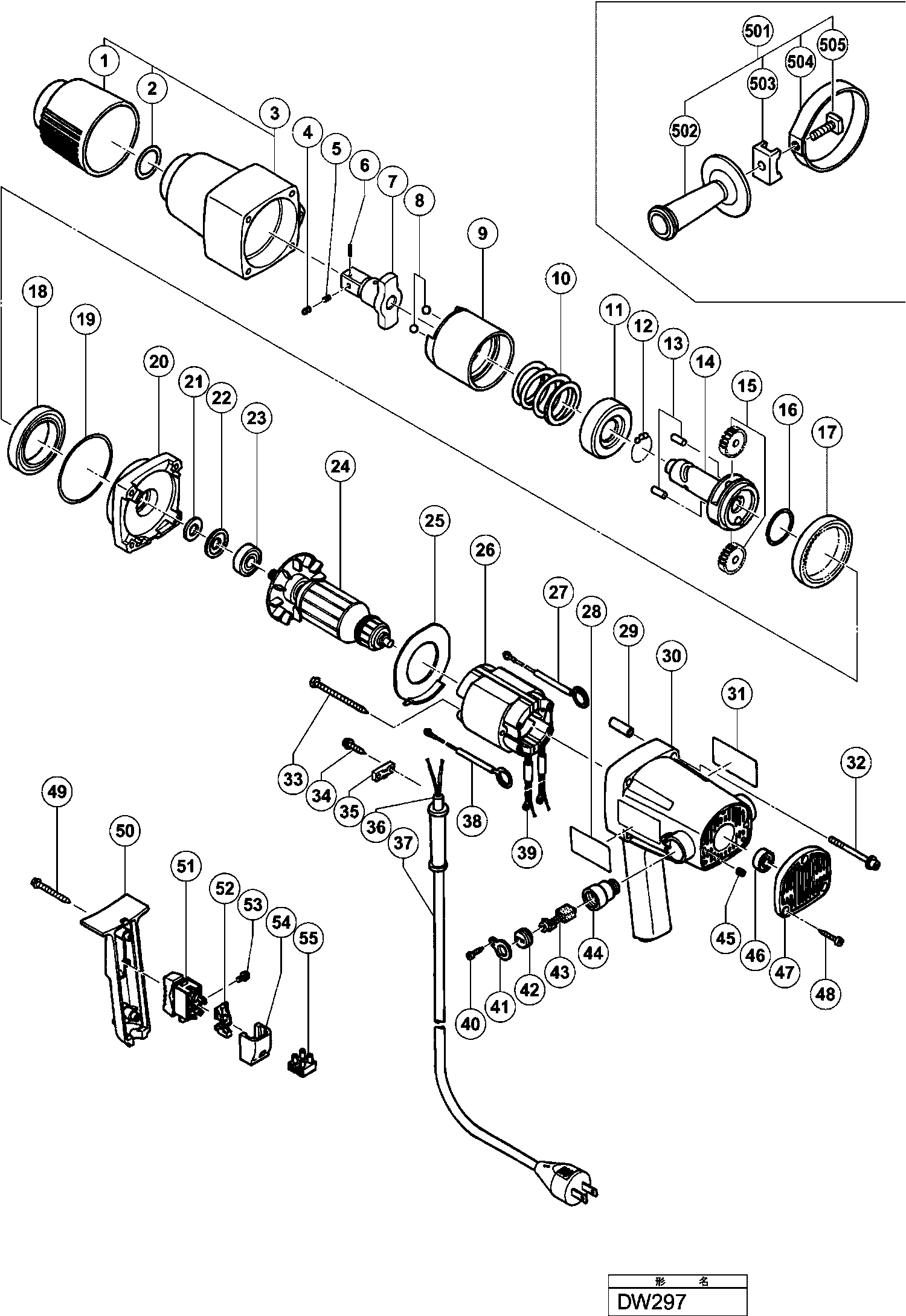

Technical drawing of model Hikoki DW297
Spare parts list of model Hikoki DW297
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Bumper | ||||
| 1 | 985295 | 25.99 | 31.44 | |
| O-ring (p-28) | ||||
| 2 | 971028 | 2.55 | 3.09 | |
| No information available, not orderable | ||||
| 3 | 320491 | |||
| Plunger | ||||
| 4 | 992572 | 19.94 | 24.12 | |
| Spring | ||||
| 5 | 992571 | 1.05 | 1.27 | |
| Roll Pin D2x14 (10 Pcs.) | ||||
| 6 | 949507 | 1.65 | 2.00 | |
| Anvil (b) Ass'y Includ.4-6 | ||||
| 7 | 992570 | 151.66 | 183.51 | |
| Steel Ball D7.14 (10 pieces) | ||||
| 8 | 959151 | 1.35 | 1.63 | |
| Hammer | ||||
| 9 | 985278 | 145.89 | 176.52 | |
| Spring | ||||
| 10 | 985277 | 27.50 | 33.28 | |
| No information available, not orderable | ||||
| 11 | 985276 | |||
| Steel Ball D3.97 (10 Pcs.) | ||||
| 12 | 959155 | 1.04 | 1.26 | |
| Gear Shaft | ||||
| 13 | 971016 | 4.05 | 4.90 | |
| Spindle (b) | ||||
| 14 | 985275 | 166.24 | 201.15 | |
| Idle Gear Set (2 Pcs.) | ||||
| 15 | 318448 | 32.18 | 38.93 | |
| No information available, not orderable | ||||
| 16 | 971027 | |||
| Ring Gear | ||||
| 17 | 985303 | 32.18 | 38.93 | |
| Ball Bearing 6910zzc2ps2s | ||||
| 18 | 6910ZZ | 32.18 | 38.93 | |
| No information available, not orderable | ||||
| 19 | 320492 | |||
| No information available, not orderable | ||||
| 20 | 320490 | |||
| Felt Packing | ||||
| 21 | 971011 | 1.05 | 1.27 | |
| Packing Washer | ||||
| 22 | 971012 | 1.05 | 1.27 | |
| Ball Bearing 6200vvcmps2l | ||||
| 23 | 6200VV | 6.15 | 7.44 | |
| No information available, not orderable | ||||
| 24 | 985307U | |||
| Fan Guide | ||||
| 25 | 985273 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 26 | 985282C | |||
| Internal wire | ||||
| 27 | 985287 | 5.85 | 7.08 | |
| No information available, not orderable | ||||
| 28 | 320525 | |||
| Spacer bushing | ||||
| 29 | 985271 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 30 | 320285 | |||
| No information available, not orderable | ||||
| 31 | 320524 | |||
| Screw | ||||
| 32 | 985300 | 1.05 | 1.27 | |
| Hex. Hd. Tapping Screw D5x70 | ||||
| 33 | 961400 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 34 | 305095 | |||
| No information available, not orderable | ||||
| 35 | 320493 | |||
| No information available, not orderable | ||||
| 36 | 320504 | |||
| No information available, not orderable | ||||
| 37 | 320502 | |||
| No information available, not orderable | ||||
| 38 | 985288 | |||
| Terminal (a) M3.5 (10 Pcs.) | ||||
| 39 | 960356 | 3.00 | 3.63 | |
| Tapping Screw D4x10 (black) | ||||
| 40 | 302090 | 1.05 | 1.27 | |
| Cap Cover | ||||
| 41 | 981959 | 2.40 | 2.90 | |
| Brush Cap | ||||
| 42 | 961781 | 2.55 | 3.09 | |
| Carbon Brush (1 Pair) | ||||
| 43 | 999043 | 4.50 | 5.44 | |
| Brush Holder | ||||
| 44 | 981586 | 6.45 | 7.80 | |
| Hex Adjustment Screw M5x8 | ||||
| 45 | 938477 | 1.05 | 1.27 | |
| Ball Bearing 608vvc2ps2l | ||||
| 46 | 608VVM | 5.70 | 6.90 | |
| Tail Piece | ||||
| 47 | 985272 | 18.15 | 21.96 | |
| Tapping Screw D5x25 (black) | ||||
| 48 | 320523 | 1.35 | 1.63 | |
| Tapping Screw (w/flange) D4x35 (black) | ||||
| 49 | 303694 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 50 | 320286 | |||
| Switch | ||||
| 51 | 985103 | 32.18 | 38.93 | |
| Switch Holder | ||||
| 52 | 985176 | 2.55 | 3.09 | |
| Machine Screw (w/washer) M3.5x5 | ||||
| 53 | 980060 | 1.05 | 1.27 | |
| Switch Holder | ||||
| 54 | 985177 | 3.60 | 4.36 | |
| Pillar Terminal (a) | ||||
| 55 | 958308Z | 5.55 | 6.72 | |
| No information available, not orderable | ||||
| 501 | 320494 | |||
| No information available, not orderable | ||||
| 502 | 980901 | |||
| No information available, not orderable | ||||
| 503 | 320495 | |||
| Ring | ||||
| 504 | 985296 | 5.25 | 6.35 | |
| Square Bolt M8 | ||||
| 505 | 980903 | 1.35 | 1.63 | |
