Here you will find all available parts and drawings of the 'Hikoki DW25EF'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

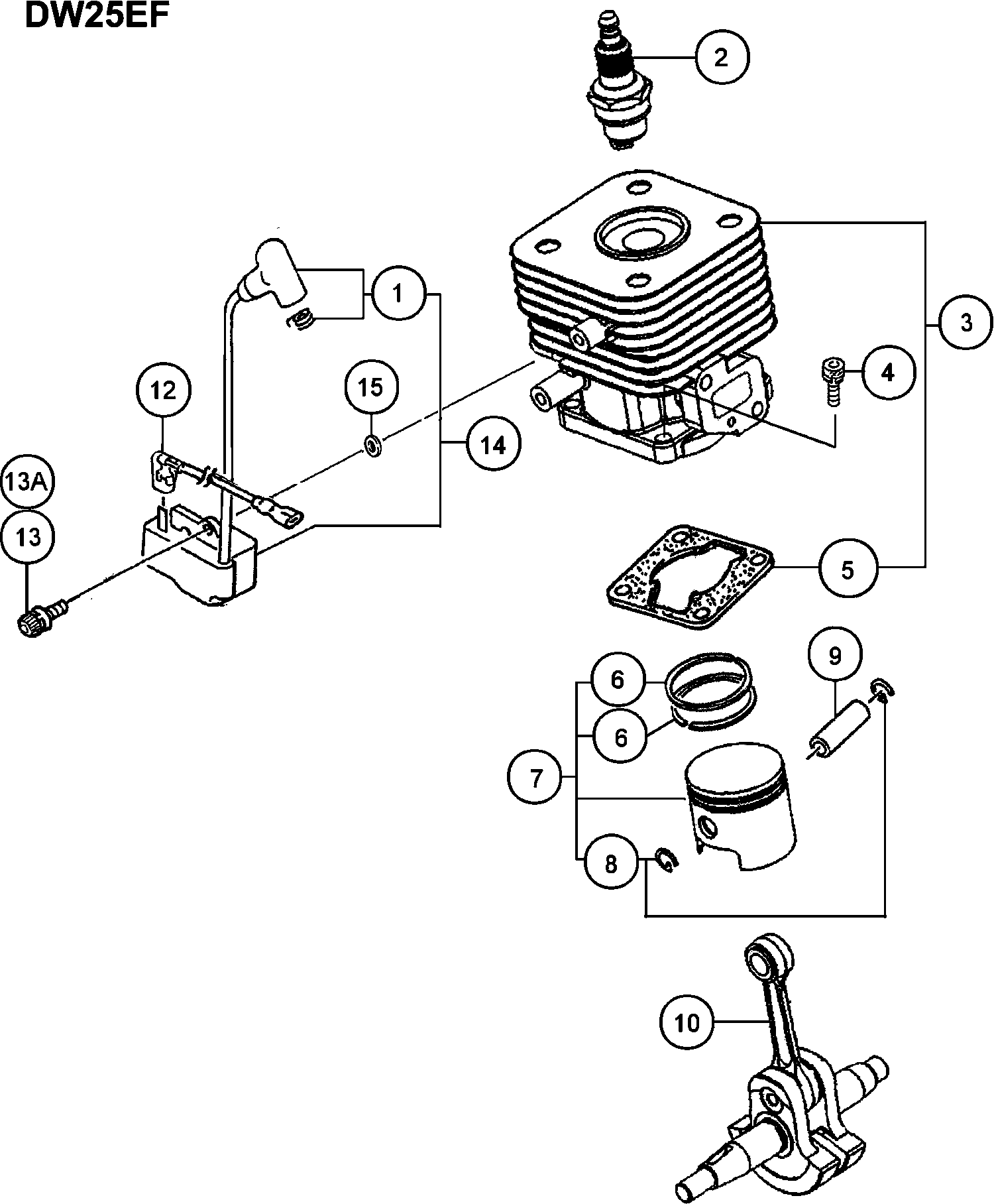

Technical drawing of model Hikoki DW25EF

Spare parts list of model Hikoki DW25EF

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Plug Cap
1 6684894 8.58 10.38
Spark Plug BMR6A
2 6699315 13.35 16.15
Spark Plug Ass'y Bpmr6a
2 6699319 8.91 10.78
Cylnder Set (old 001-07355-90)
3 6685493 54.30 65.70
Hex.hole Bolt M5x18/s
4 6684586 2.15 2.60
Cylinder Gasket T=1.0
5 6685750 2.31 2.80
Cylinder Gasket
5 6684896 2.15 2.60
Piston Ring
6 6686121 4.45 5.38
Piston Set
7 6685902 20.11 24.34
Cir Clip
8 6684590 2.15 2.60
Piston Pin
9 6684591 4.29 5.19
Crank Shaft Comp.
10 6686219 72.30 87.48
Stop Cord B 190m
12 6687836 2.31 2.80
Hex. Hole Bolt M4x18/ws Till H124040
13 6684599 2.15 2.60
High Tension Screw 4x18ws Since H124041
13A 6695407 1.15 1.39
Ignition Coil Ass'y
14 6687689 42.20 51.06
Ignition Coil Ass'y
14 6687686 24.20 29.28
Washer T1.6
15 6684600 2.15 2.60
Gear Shaft Shim 0.20
21 6684604 2.15 2.60
Gear Shaft Shim 0.30
21 6684605 2.15 2.60
Magneto Rotor Comp.
22 6687385 22.24 26.91
Magneto Rotor Comp.
22 6687384 16.19 19.59
Hex. Nut M8
23 6684612 2.15 2.60
Bolt Washer M8
24 6684611 2.15 2.60
Crank Case Ass'y Since D038601
25 6684905 54.45 65.88
Oil Seal
26 6684607 4.29 5.19
Ball Bearing 6001 C3
27 6684608 3.80 4.60
Crank Case Gasket
28 6684904 2.15 2.60
Hex. Hole Bolt M5x16/s
29 6684903 2.15 2.60
Inlet Manifold Gasket
41 6689895 1.15 1.39
Insulator Set
42 6689972 6.28 7.59
Hex. Hole Bolt 5x25/ws
43 6684617 2.15 2.60
Hex. Hole Bolt M5x25ws
43 6695515 1.15 1.39
Carburetor Packing
44 6684616 2.15 2.60
Carburetor Set Wyj-463 (old 455-0740a-90)
45 6690522 80.31 97.18
Cleaner Body Comp.
46 6690120 4.45 5.38
Cleaner Sponge
47 6690365 1.15 1.39
Cleaner Cover
48 6690421 13.86 16.77
Cleaner Cover
48 6690402 10.23 12.37
Cover Fixing Bolt Comp.
49 6698730 3.15 3.81
Screw 5x57/s
50 6695353 1.15 1.39
Screw M5x55
50 6694914 1.15 1.39
Small Washer 5
51 6684864 2.15 2.60
Choke Plate 2.0
52 6691276 1.15 1.39
Choke Lever 1.5
52 6691281 1.15 1.39
Choke Control Lever
53 6691239 1.15 1.39
Tank Wht
54 6691602 15.13 18.30
Tank
54A 6601167 8.91 10.78
Collar 5.8 Till G103930
55 6692244 1.15 1.39
Return Grommet Till 7.2014
56 6697846 1.04 1.26
Fuel Grommet Since 8.2014
56A 6600358 1.04 1.26
Fuel Pipe 3x5x65
57 6684626 2.15 2.60
No information available, not orderable
58 6684620
Clip D6
59 6685198 1.15 1.39
Shield Tube 3x5x180
60 6684618 4.29 5.19
Fuel Pipe
60A 6601181 1.04 1.26
No information available, not orderable
62 6685049
No information available, not orderable
63 6684625
Hex. Hole Bolt 5x16/ps
64 6695504 1.15 1.39
Bolt (w/flange) L17.8 Since G103931
64A 6696574 1.05 1.27
Tap Screw 4x14 P
65 6695280 1.15 1.39
Ring
66 6685070 1.15 1.39
S.washer 5
67 6684662 2.15 2.60
Carburetor Gasket (old 402-0602K-21/6689836)
68 6684615 2.15 2.60
Carburetor Set Wyj-431 Walbro (old 455-07355-90)
69 6690519 86.36 104.50
Ring
70 6689681 1.15 1.39
Hex.hole Bolt 5x20/ps
71 6684634 2.15 2.60
Bolt (w/flange) L17.8 Since G103931
71A 6696574 1.05 1.27
Hex. Hole Bolt 5x16/ps
72 6695504 1.15 1.39
Bolt (w/flange) L17.8 Since G103931
72A 6696574 1.05 1.27
Cylinder Cover
91 6685690 5.28 6.38
Cylinder Cover (blk)
91 6685693 4.79 5.79
Hex. Hole Bolt 5x16/ps
92 6695504 1.15 1.39
Hex. Hole Bolt M6x55
93 6684638 2.15 2.60
Hex.hole Bolt 6x65 (old 990-51060-653)
93 6695067 1.15 1.39
Ring
94 6684639 2.15 2.60
No information available, not orderable
95A 6699602
Muffler Protector
96 6692817 20.11 24.34
Muffler Protector Or
96 6692815 5.78 6.99
Screw 4x18/ps Since H124041
97A 6695375 1.15 1.39
Deflector
98 6687214 3.30 3.99
Air Deflector
98 6687216 3.30 3.99
Ring
99 6684642 2.15 2.60
No information available, not orderable
99A 6697619
Clutch Shoe Comp.
100 6684643 11.55 13.98
No information available, not orderable
100A 6697656
Clutch Spring
101 6684644 2.15 2.60
Clutch Spring Since J038101
101A 6697657 1.04 1.26
Clutch Plate A 0.5
102 6684645 2.15 2.60
Clutch Plate (a)
102A 6689528 1.15 1.39
Step Bolt
103 6684646 2.15 2.60
Step Bolt Till F113050
103A 6689627 1.15 1.39
Hex. Hole Bolt M5x18/ws
104 6684647 2.15 2.60
Ring
105 6684648 2.15 2.60
Clutch Set Since J038101
109 6697655 6.76 8.18
Hex. Hole Bolt 4x15/ps
110 6684682 2.15 2.60
Heat Shield
111 6687265 4.45 5.38
Tapping Screw 4x14
112 6684751 2.15 2.60
Fan Housing
113 6687038 16.34 19.77
Primary Cord Grommet
114 6688057 1.15 1.39
Muffler Special Gasket
115 6692886 1.15 1.39
Tail Pipe Set
116 6692716 4.79 5.79
Screw M4x8/ws
117 6684651 2.15 2.60
Spark Arrester
118 6692702 2.31 2.80
Muffler Set
119 6692501 14.85 17.97
Heat Shield
120 6687264 3.30 3.99
Muffler Gasket
121 6692732 1.15 1.39
No information available, not orderable
131A 6699995
Recoil Starter Body Comp. For (s) Type Since 7.20
132 6684673 19.06 23.07
Starter Rope 3.5x860 For (s) Type Since 7.2012 Fo
133 6684674 4.29 5.19
Recoil Spring Till 7.2014
134 6684675 11.55 13.98
Starter Rope Reel For (s) Type Since 9.2013 For A
135A 6699997 8.41 10.18
Damper Spring For (s) Type Since 7.2012 For Aus
136 6684677 8.58 10.38
Cam Plate For (s) Type Since 9.2013 For Aus
137A 6699996 2.55 3.09
Set Screw (old 839-03045-20)
138 6684679 2.15 2.60
Starter Handle
139 6684680 2.15 2.60
Starter Pulley Ass'y For (s) Type Since 7.2012 Fo
140 6684681 13.20 15.97
D4e Retaining Ring (old 993-55040-001)
141 6685101 1.15 1.39
Starter Pawl Spring
142 6684684 4.29 5.19
Starter Pawl
143 6684685 4.29 5.19
Screw 4x18/ps Since H124041
144A 6695375 1.15 1.39
Till 8.2013 For Aus
145 6699691 6.10 7.38
Pump Body Comp.
161 6684879 62.16 75.22
Priming Pump Comp.
162 6684687 16.34 19.77
Diaphragm Cover
163 6684688 8.58 10.38
Priming Body
164 6684689 6.44 7.79
Metering Diaphragm
165 6684690 18.00 21.78
Metering Diaphragm Comp.
165 6690830 11.88 14.37
Diaphragm Gasket
166 6684691 8.58 10.38
Pump Diaphragm
167 6684693 8.58 10.38
Pump Gasket
168 6684692 29.19 35.32
Main Jet #38.5 (old 599-200bw-38/6691874)
169 6696130 5.78 6.99
Main Jet #43
169 6691848 4.45 5.38
O-RING (old 550-25100-20)
170 6684695 4.29 5.19
Stop Ring
171 6684696 2.15 2.60
Swivel
172 6684697 6.44 7.79
Throttle Set Screw
173 6684870 2.15 2.60
Cable Adjuster Stay
174 6684873 6.44 7.79
Lock Nut M6
175 6684872 2.15 2.60
Cable Adjuster
176 6684871 4.29 5.19
Cleaner Packing
177 6684875 4.29 5.19
Set Screw
178 6684699 2.15 2.60
Thrust Washer
179 6684874 2.15 2.60
Inlet Screen
180 6684700 4.29 5.19
Complete Gear Case A (old 002-32182-80)
201 6685578 28.14 34.05
No longer available, no replacement
202 6685593
Clutch Housing Comp.
203 6688210 19.51 23.61
Gear 2
204 6685656 28.44 34.41
No information available, not orderable
205 6685702
Wood-ruff Key 3x10x3.7
206 6686454 1.15 1.39
Ball Bearing #6001z
207 6695532 6.60 7.99
No information available, not orderable
208 6695534
Stop Ring C 11,outer
209 6695282 1.15 1.39
Gear 4
210 6685788 50.21 60.76
Ball Bearing #7202b
211 6695587 14.21 17.20
Washaer C 5.0
212 6686065 3.30 3.99
Ball Bearing #6202z
213 6695559 6.44 7.79
Ring
214 6695206 1.15 1.39
Stop Ring C-35, Inner
215 6695296 1.15 1.39
Wood-ruff Key 3x13x5
216 6686455 1.15 1.39
Drive Shaft
217 6685824 104.51 126.46
Screw 5x18/s
218 6695339 1.15 1.39
Stop Ring C-13, Outer
219 6695283 1.15 1.39
Lock Lever Comp.
220 6689992 8.41 10.18
Lock Lever Spring
221 6689998 4.45 5.38
Ring
222 6687942 1.15 1.39
Ring
223 6685103 1.15 1.39
Step Bolt
224 6693366 1.15 1.39
Plus Bolt 6x30
225 6695022 1.15 1.39
Ring
226 6695219 1.15 1.39
COMPLETE GREASE NIPPLE (OLD 300-32250-80)
227 6688643 1.15 1.39
No information available, not orderable
251 6685576
No longer available, no replacement
252 6685593
No longer available, no replacement
253 6686684
Shift Guide Spring (old 106-32141-20)
254 6686837 1.15 1.39
Shift Lever (old 108-32141-20)
255 6686862 3.30 3.99
COMPLETE GREASE NIPPLE (OLD 300-32250-80)
256 6688643 1.15 1.39
Steel Ball
257 6692271 1.15 1.39
Hex. Hole Bolt 4x8
258 6695034 1.15 1.39
Ring
259 6685070 1.15 1.39
No information available, not orderable
261 6695591
Gear 4
262 6685788 50.21 60.76
Ball Bearing #7202b
263 6695587 14.21 17.20
Washaer C 5.0
264 6686065 3.30 3.99
Ball Bearing #6202z
265 6695559 6.44 7.79
Ring
266 6695206 1.15 1.39
Stop Ring C-35, Inner
267 6695296 1.15 1.39
Wood-ruff Key 3x13x5
268 6686455 1.15 1.39
Drive Shaft
269 6685824 104.51 126.46
Screw 5x18/s
270 6695339 1.15 1.39
No information available, not orderable
271 6686378
No information available, not orderable
272 6687314
Stop Ring 20, Inner
273 6695316 1.15 1.39
No information available, not orderable
274 6695522
Washer Spring
275A 942827 1.04 1.26
Ring
276 6687320 1.15 1.39
Idle Gear (old 059-32141-20)
277 6686373 64.28 77.77
No information available, not orderable
278 6695591
Idle Shaft
279 6686365 44.31 53.62
No information available, not orderable
280 6686423
Stop Ring C-24,inner
281 6684732 2.15 2.60
Ball Bearing 609z St
282 6684735 8.58 10.38
Ring
283 6687320 1.15 1.39
No information available, not orderable
284 6686411
No information available, not orderable
285 6695591
Counter Shaft
286 6686427 52.34 63.33
Stop Ring C-13, Outer
287 6695283 1.15 1.39
Clutch Case Comp.
288 6687336 40.24 48.69
Clutch Housing Comp.
289 6688199 12.38 14.97
Throttle Wire 370+45.5
301 6693987 4.79 5.79
No information available, not orderable
302 6687532
Handle Comp.a
303 6688369 36.15 43.74
Handle Grip A (old 165-33130-20/6691224)
304 6687624 5.78 6.99
Throttle Lever
305 6686799 2.31 2.80
Screw 5x25 (old 990-11050-251/6694895)
306 6694896 1.15 1.39
Nut M5
307 6684965 1.04 1.26
Cord Clamp
308 6688015 1.15 1.39
Plus Bolt 6x16
309 6695019 1.15 1.39
Ring
310 6695219 1.15 1.39
Handle Comp. B
311 6688372 13.20 15.97
Handle Grip
312 6686350 5.28 6.38
Ring
313 6695225 1.15 1.39
Stop Switch Comp.
314 6687431 8.41 10.18
Stop Button Mark
315 6694589 2.31 2.80
Button Stop
316 6688366 1.15 1.39
Screw 3x10
317 6684913 2.15 2.60
Chuck Handle Holder
318 6687420 4.45 5.38
Handle Support Comp.
319 6688404 15.88 19.21
Ring
320 6695219 1.15 1.39
No information available, not orderable
321 6684792
Plus Bolt 6x30
322 6695022 1.15 1.39
Ring
323 6695219 1.15 1.39
Handle A Comp
324 6688370 30.25 36.60
Throttle Lever
325 6686401 1.15 1.39
Tap Screw 4x14 P
326 6695280 1.15 1.39
Screw 4x6
327 6694860 1.15 1.39
Throttle Body B (Old 884-71020-20)
328 6693818 3.30 3.99
Throttle Body A
329 6693795 3.30 3.99
Stop Switch Comp. (old 170-71020-80)
330 6687776 8.58 10.38
Stop Button Mark
331 6694588 1.15 1.39
Throttle Lever Spring
332 6686421 1.15 1.39
Throttle Wire 400+30
333 6693988 6.28 7.59
Protection Tube 345l
334 6687535 1.15 1.39
Plus Bolt 6x30
351 6695022 1.15 1.39
Ring
352 6695219 1.15 1.39
Handle Comp.a
353 6688369 36.15 43.74
Handle Grip A (old 165-33130-20/6691224)
354 6687624 5.78 6.99
Throttle Lever
355 6686799 2.31 2.80
Screw 5x25 (old 990-11050-251/6694895)
356 6694896 1.15 1.39
Nut M5
357 6684965 1.04 1.26
Cord Clamp
358 6688015 1.15 1.39
Plus Bolt 6x16
359 6695019 1.15 1.39
Ring
360 6695219 1.15 1.39
Handle Comp. B
361 6688372 13.20 15.97
Handle Grip
362 6686350 5.28 6.38
Ring
363 6695225 1.15 1.39
Stop Switch Comp.
364 6687431 8.41 10.18
Stop Button Mark
365 6694589 2.31 2.80
Button Stop
366 6688366 1.15 1.39
Screw 3x10
367 6684913 2.15 2.60
Throttle Wire 370+45.5
368 6693987 4.79 5.79
No information available, not orderable
369 6687532
Chuck Handle Holder
370 6687420 4.45 5.38
Handle Support Comp.
371 6688404 15.88 19.21
Ring
372 6695219 1.15 1.39
No information available, not orderable
373 6684792
Screw 5x18/s
374 6695339 1.15 1.39
Handle A Comp
375 6688370 30.25 36.60
Throttle Lever
376 6686401 1.15 1.39
Tap Screw 4x14 P
377 6695280 1.15 1.39
Screw 4x6
378 6694860 1.15 1.39
Throttle Body B (Old 884-71020-20)
379 6693818 3.30 3.99
Throttle Body A
380 6693795 3.30 3.99
Stop Switch Comp. (old 170-71020-80)
381 6687776 8.58 10.38
Stop Button Mark
382 6694588 1.15 1.39
Throttle Lever Spring
383 6686421 1.15 1.39
Throttle Wire 400+30
384 6693988 6.28 7.59
Protection Tube 345l
385 6687535 1.15 1.39
Combi Box Spanner 10x19
501 6685999 5.11 6.19
No information available, not orderable
502 6686379
No longer available, no replacement
503 6686780
Handle Adaptor
504 6686620 13.53 16.37
No information available, not orderable
505 6693647
Chuck Handle Set (old 059-32120-91)
506 6686372 44.31 53.62
Drill Chuck Ass'y
507 6686377 80.31 97.18
Chuck Handle Comp.
508 6686410 4.45 5.38
Symbol Dw25ef(sk) For (sk)
601 6694670 1.15 1.39
Symbol Mark Dw25ef(sr) (old 929-0736j-20) New
602 6694673 1.05 1.27
Symbol Mark Dw25ef(skp) For (skp)
603 6694684 1.05 1.27
Symbol Mark Dw25ef(srp) For (srp)
604 6694685 1.05 1.27

There are 0 items in your shopping basket.
