Here you will find all available parts and drawings of the 'Hikoki DW15Y'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

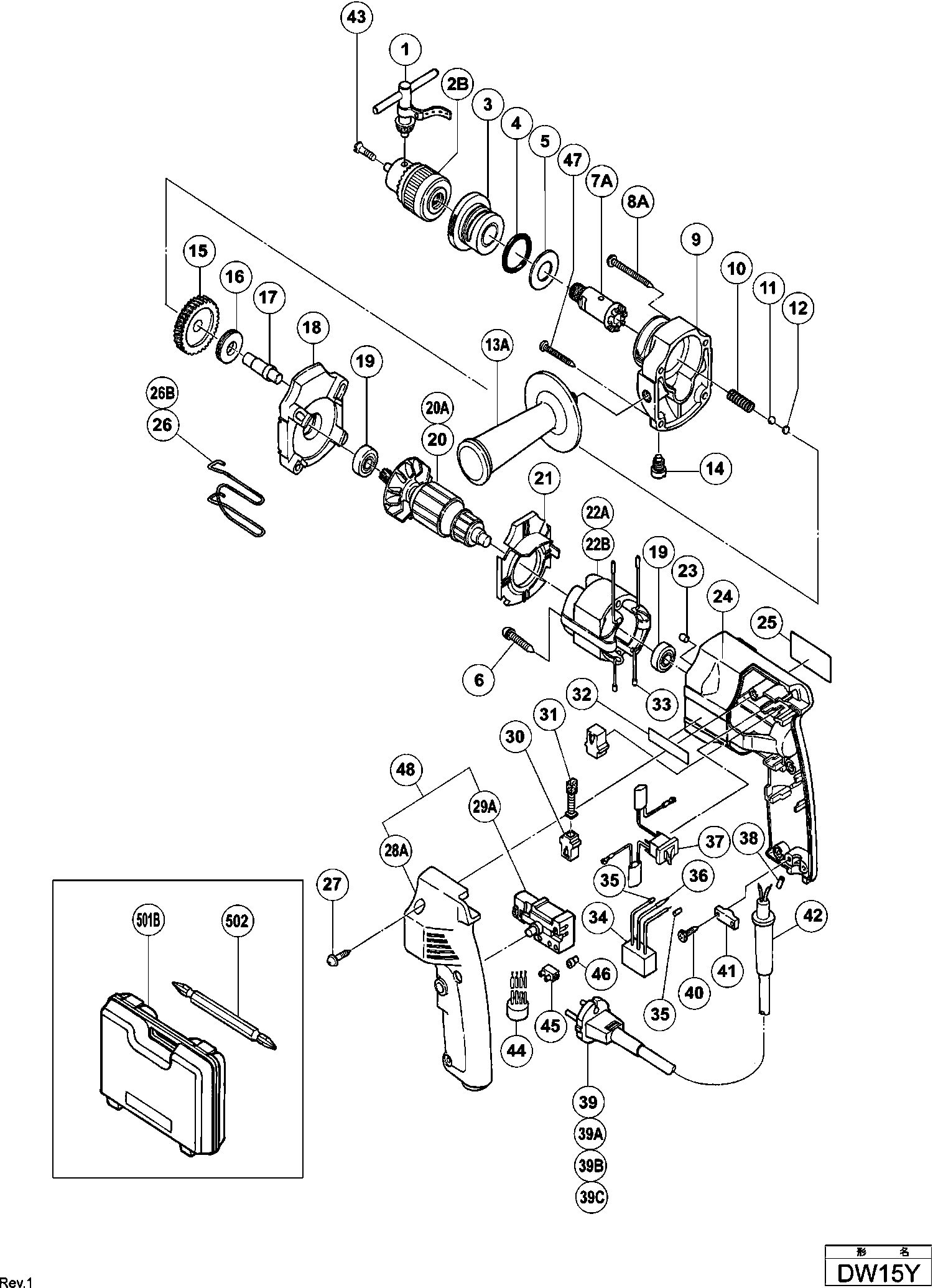

Technical drawing of model Hikoki DW15Y
Spare parts list of model Hikoki DW15Y
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| *22A | 992639L | |||
| No information available, not orderable | ||||
| *22B | 340218L | |||
| Switch | ||||
| *29A | 307893 | 35.06 | 42.43 | |
| Switch 220v-240v (2p Pillar Type) W/lock Since 8. | ||||
| *29A | 316257 | 32.18 | 38.93 | |
| No information available, not orderable | ||||
| *39 | 950543Z | |||
| Cord Armor D10.2 Till 11.1982 For Aus | ||||
| *42 | 930026 | 3.00 | 3.63 | |
| Cord Armor D10.2 | ||||
| *42 | 980193 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| *48 | 318331 | |||
| No information available, not orderable | ||||
| 1 | 930119 | |||
| No information available, not orderable | ||||
| 2B | 321812 | |||
| Clutch Ring Ass'y Includ.4 | ||||
| 3 | 950521 | 26.40 | 31.94 | |
| O-ring (s-28) | ||||
| 4 | 873731 | 1.05 | 1.27 | |
| Washer | ||||
| 5 | 950513 | 1.05 | 1.27 | |
| TAPSCHROEF D4X40 | ||||
| 6 | 992630 | 1.00 | 1.21 | |
| Spindle Ass'y | ||||
| 7A | 950512 | 18.43 | 22.29 | |
| SCHROEF D4X50 (OUD 992631) | ||||
| 8A | 950515 | 1.00 | 1.21 | |
| Gear Cover | ||||
| 9 | 950516 | 12.75 | 15.43 | |
| VEER | ||||
| 10 | 943614 | 1.00 | 1.21 | |
| Steel Ball D5.556 (10 Pcs.) | ||||
| 11 | 959154 | 1.35 | 1.63 | |
| Plate | ||||
| 12 | 950539 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 13A | 994322 | |||
| STOPSCHROEF | ||||
| 14 | 950519 | 6.18 | 7.48 | |
| Gear | ||||
| 15 | 950510 | 27.78 | 33.61 | |
| Bearing | ||||
| 16 | 950508 | 11.55 | 13.98 | |
| TANDWIELTANG | ||||
| 17 | 950509 | 8.40 | 10.16 | |
| TANDWIELHUISDEKSEL | ||||
| 18 | 950507 | 14.68 | 17.76 | |
| Ball Bearing 608vvc2ps2l | ||||
| 19 | 608VVM | 5.70 | 6.90 | |
| ANKER 100-115 VOLT (OUD 992640J) | ||||
| 20 | 992640 | 54.23 | 65.62 | |
| Fan Guide | ||||
| 21 | 950504 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 22A | 992639N | |||
| RUBBER PEN | ||||
| 23 | 931701 | 1.05 | 1.27 | |
| Housing | ||||
| 24 | 991880 | 14.30 | 17.30 | |
| RIEMKLEM (NIEUW 950551) | ||||
| 26 | 950511 | 2.94 | 3.56 | |
| No information available, not orderable | ||||
| 26B | 950551 | |||
| Tapping Screw (w/washer) D4x20 | ||||
| 27 | 982095 | 1.04 | 1.26 | |
| Handle Cover | ||||
| 28A | 318329 | 6.75 | 8.17 | |
| Switch | ||||
| 29A | 307893 | 35.06 | 42.43 | |
| Switch 220v-240v (2p Pillar Type) W/lock Since 8. | ||||
| 29A | 316257 | 32.18 | 38.93 | |
| Carbon Brush Holder | ||||
| 30 | 930483 | 1.65 | 2.00 | |
| Carbon Brush (1 Pair) | ||||
| 31 | 999041 | 4.50 | 5.44 | |
| No information available, not orderable | ||||
| 32 | 950565 | |||
| Threaded cable sleeve | ||||
| 33 | 981373 | 1.05 | 1.27 | |
| Noise Suppressor | ||||
| 34 | 994273 | 4.29 | 5.19 | |
| Threaded cable sleeve | ||||
| 35 | 981373 | 1.05 | 1.27 | |
| Earth Terminal | ||||
| 36 | 992635 | 1.05 | 1.27 | |
| Switch (r+l) | ||||
| 37 | 992636 | 17.60 | 21.30 | |
| Threaded cable sleeve | ||||
| 38 | 981373 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 39 | 950543Z | |||
| No longer available, no replacement | ||||
| 39A | 500423Z | |||
| No longer available, no replacement | ||||
| 39C | 500435Z | |||
| No information available, not orderable | ||||
| 40 | 984750 | |||
| Cord Clip | ||||
| 41 | 937631 | 1.04 | 1.26 | |
| Cord Armor D10.2 Till 11.1982 For Aus | ||||
| 42 | 930026 | 3.00 | 3.63 | |
| Cord Armor D8.2 | ||||
| 42 | 930487 | 2.25 | 2.72 | |
| Cord Armor D10.2 | ||||
| 42 | 980193 | 1.65 | 2.00 | |
| Special Screw M6x22 | ||||
| 43 | 981122 | 1.35 | 1.63 | |
| Choke Coil For Nzl | ||||
| 44 | 955908 | 32.18 | 38.93 | |
| No information available, not orderable | ||||
| 45 | 982805Z | |||
| Connector 50091 (10 Pcs.) | ||||
| 46 | 959140 | 3.30 | 3.99 | |
| Tapping Screw D4x40 | ||||
| 47 | 950514 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 48 | 318331 | |||
| No information available, not orderable | ||||
| 501B | 310904 | |||
| No information available, not orderable | ||||
| 502 | 983006 | |||
| No information available, not orderable | ||||
| 601 | 983004 | |||
| No information available, not orderable | ||||
| 602 | 983011 | |||
| No information available, not orderable | ||||
| 603 | 955656 | |||
| No information available, not orderable | ||||
| 604 | 955658 | |||
| No information available, not orderable | ||||
| 605 | 955673 | |||
| No information available, not orderable | ||||
| 606 | 955675 | |||
| No information available, not orderable | ||||
| 607 | 955676 | |||
| No information available, not orderable | ||||
| 608 | 955677 | |||
| No information available, not orderable | ||||
| 609 | 955678 | |||
| No information available, not orderable | ||||
| 616 | 954321 | |||
| AS | ||||
| 617 | 954322 | 3.84 | 4.65 | |
| No information available, not orderable | ||||
| 618 | 954324 | |||
| No information available, not orderable | ||||
| 619 | 954323 | |||
| Flat Hd. Screw M6x20 (10 Pcs.) | ||||
| 620 | 949794 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 629 | 939520 | |||
