Here you will find all available parts and drawings of the 'Hikoki DV36DC'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

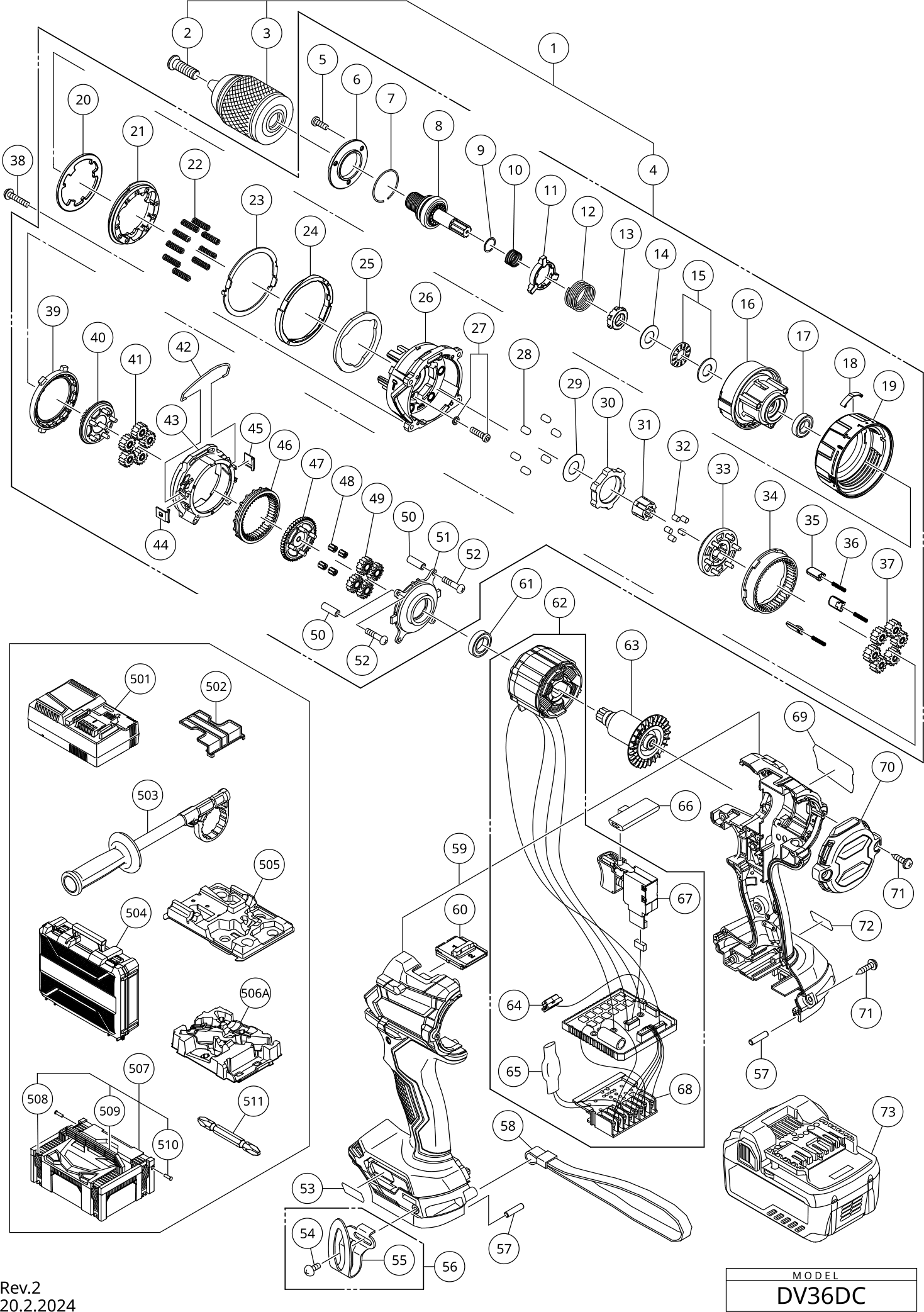

Technical drawing of model Hikoki DV36DC
Spare parts list of model Hikoki DV36DC
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| *3 | 379240 | |||
| Battery Cover | ||||
| *502 | 329897 | 1.80 | 2.18 | |
| SIDE HANDLE NEW | ||||
| *503 | 379271 | 16.83 | 20.36 | |
| No information available, not orderable | ||||
| *601 | 303709 | |||
| No information available, not orderable | ||||
| *69 | 379348M | |||
| No information available, not orderable | ||||
| *73 | 376072 | |||
| GEAR BOX ASS'Y NEW | ||||
| 1 | 379287 | 70.95 | 85.85 | |
| HEXALOBULA SCREW (LEFT HAND) M8 NEW | ||||
| 2 | 379345 | 1.00 | 1.21 | |
| GEAR BOX ASS'Y NEW | ||||
| 4 | 379289 | 46.20 | 55.90 | |
| SCREW SET M3X10 (3 PCS) NEW | ||||
| 5 | 379294 | 1.00 | 1.21 | |
| BEARING COVER NEW | ||||
| 6 | 379295 | 1.00 | 1.21 | |
| RETAINING RING NEW | ||||
| 7 | 379296 | 1.00 | 1.21 | |
| SPINDLE (SV) SET (V) NEW | ||||
| 8 | 379351 | 5.04 | 6.10 | |
| RATCHET WASHER NEW | ||||
| 9 | 379297 | 1.00 | 1.21 | |
| SPRING (B) NEW | ||||
| 10 | 379298 | 1.00 | 1.21 | |
| CLUTCH HUB NEW | ||||
| 11 | 379302 | 1.00 | 1.21 | |
| SPRING (A) NEW | ||||
| 12 | 379303 | 1.00 | 1.21 | |
| RATCHET (A) NEW | ||||
| 13 | 379299 | 1.00 | 1.21 | |
| BEARING WASHER NEW | ||||
| 14 | 379277 | 1.00 | 1.21 | |
| THRUST BEARING NEW | ||||
| 15 | 379278 | 1.08 | 1.31 | |
| FRONT CASE NEW | ||||
| 16 | 379305 | 6.42 | 7.77 | |
| BALL BEARING (6800ZZ) NEW | ||||
| 17 | 379308 | 1.00 | 1.21 | |
| LEAF SPRING NEW | ||||
| 18 | 379311 | 1.00 | 1.21 | |
| CLUTCH DIAL (A) NEW | ||||
| 19 | 379309 | 3.00 | 3.63 | |
| RATCHET CAM RING NEW | ||||
| 20 | 379312 | 1.00 | 1.21 | |
| NUT NEW | ||||
| 21 | 379313 | 1.00 | 1.21 | |
| CLUTCH SPRING SET (6 PCS) NEW | ||||
| 22 | 379314 | 1.00 | 1.21 | |
| STOPPER CAM RING (B) NEW | ||||
| 23 | 379315 | 1.00 | 1.21 | |
| STOPPER CAM RING (A) NEW | ||||
| 24 | 379316 | 1.00 | 1.21 | |
| THRUST PLATE NEW | ||||
| 25 | 379317 | 1.00 | 1.21 | |
| GEAR CASE (V) NEW | ||||
| 26 | 379354 | 9.78 | 11.83 | |
| SCREW SET M4X14 (3 PCS) NEW | ||||
| 27 | 379318 | 1.00 | 1.21 | |
| CLUTCH PIN SET (6 PCS) NEW | ||||
| 28 | 379319 | 1.00 | 1.21 | |
| HUB WASHER NEW | ||||
| 29 | 379322 | 1.00 | 1.21 | |
| LOCK RING NEW | ||||
| 30 | 379323 | 1.68 | 2.03 | |
| SPLINE HUB NEW | ||||
| 31 | 379325 | 2.52 | 3.05 | |
| ROLLER SET (5 PCS) NEW | ||||
| 32 | 379324 | 1.00 | 1.21 | |
| FINAL CARRIER NEW | ||||
| 33 | 379326 | 1.38 | 1.67 | |
| FINAL RING GEAR NEW | ||||
| 34 | 379327 | 1.68 | 2.03 | |
| STOPPER BLOCK NEW | ||||
| 35 | 379320 | 1.00 | 1.21 | |
| STOPPER SPRING SET (3 PCS) NEW | ||||
| 36 | 379321 | 1.00 | 1.21 | |
| FINAL PLANET GEAR SET (6 PCS) NEW | ||||
| 37 | 379328 | 1.68 | 2.03 | |
| Tapping Screw (w/sp. Washer)d3x20(black) | ||||
| 38 | 334473 | 1.20 | 1.45 | |
| SHIFT DOG NEW | ||||
| 39 | 379331 | 1.00 | 1.21 | |
| SECOND CARRIER NEW | ||||
| 40 | 379329 | 1.38 | 1.67 | |
| SECOND PLANET GEAR SET (5 PCS) NEW | ||||
| 41 | 379330 | 1.38 | 1.67 | |
| SHIFT ARM NEW | ||||
| 42 | 379340 | 1.00 | 1.21 | |
| REAR CASE NEW | ||||
| 43 | 379332 | 1.00 | 1.21 | |
| GREASE COVER (L) NEW | ||||
| 44 | 379341 | 1.00 | 1.21 | |
| GREASE COVER (R) NEW | ||||
| 45 | 379342 | 1.00 | 1.21 | |
| SLIDE RING GEAR NEW | ||||
| 46 | 379333 | 1.08 | 1.31 | |
| FIRST CARRIER NEW | ||||
| 47 | 379334 | 1.38 | 1.67 | |
| NEEDLE BEARING SET (4 PCS) NEW | ||||
| 48 | 379335 | 2.28 | 2.76 | |
| FIRST PLANET GEAR SET (4 PCS) NEW | ||||
| 49 | 379336 | 1.08 | 1.31 | |
| SCREW COLLAR NEW | ||||
| 50 | 379337 | 1.00 | 1.21 | |
| FIRST RING GEAR NEW | ||||
| 51 | 379338 | 4.14 | 5.01 | |
| SCREW SET M3X25 (4 PCS) NEW | ||||
| 52 | 379339 | 1.00 | 1.21 | |
| MV LABEL (A) (2) NEW | ||||
| 53 | 379349 | 1.00 | 1.21 | |
| Truss Hd. Screw M4 (black) Except For Europe | ||||
| 54 | 337357 | 1.04 | 1.26 | |
| HOOK | ||||
| 55 | 372229 | 2.85 | 3.45 | |
| HOOK ASS'Y NEW | ||||
| 56 | 379397 | 2.04 | 2.47 | |
| REAR BUMPER | ||||
| 57 | 373041 | 1.04 | 1.26 | |
| Strap (black) | ||||
| 58 | 306952 | 4.05 | 4.90 | |
| HOUSING (A).(B) SET NEW | ||||
| 59 | 379279 | 9.54 | 11.54 | |
| SHIFT KNOB NEW | ||||
| 60 | 379276 | 1.08 | 1.31 | |
| BALL BEARING (6801ZZ) NEW | ||||
| 61 | 379285 | 1.92 | 2.32 | |
| WIRING ASS'Y NEW | ||||
| 62 | 379273 | 100.32 | 121.39 | |
| ROTOR PINION SET NEW | ||||
| 63 | 361195 | 23.87 | 28.88 | |
| LED HOLDER NEW | ||||
| 64 | 379281 | 4.62 | 5.59 | |
| FUSE NEW | ||||
| 65 | 379283 | 7.38 | 8.93 | |
| Pushing Button | ||||
| 66 | 339768 | 1.04 | 1.26 | |
| DC-SPEED CONTROL SWITCH NEW | ||||
| 67 | 379109 | 8.46 | 10.24 | |
| BATTERY TERMINAL NEW | ||||
| 68 | 379931 | 5.28 | 6.39 | |
| TAIL COVER NEW | ||||
| 70 | 379280 | 1.26 | 1.52 | |
| Tapping Screw (w/flange) D3x16 (black) | ||||
| 71 | 313687 | 1.04 | 1.26 | |
| MV LABEL (B) (2) NEW | ||||
| 72 | 379350 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 505 | 379126 | |||
| No information available, not orderable | ||||
| 506A | 381415 | |||
| No information available, not orderable | ||||
| 507 | 336471 | |||
| No information available, not orderable | ||||
| 508 | 336472 | |||
| No information available, not orderable | ||||
| 509 | 336473 | |||
| No information available, not orderable | ||||
| 510 | 336474 | |||
| No information available, not orderable | ||||
| 511 | 983006 | |||
| KNOB BOLT M5 NEW | ||||
| 602 | 379343 | 1.26 | 1.52 | |
