Here you will find all available parts and drawings of the 'Hikoki DV18DGAL'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

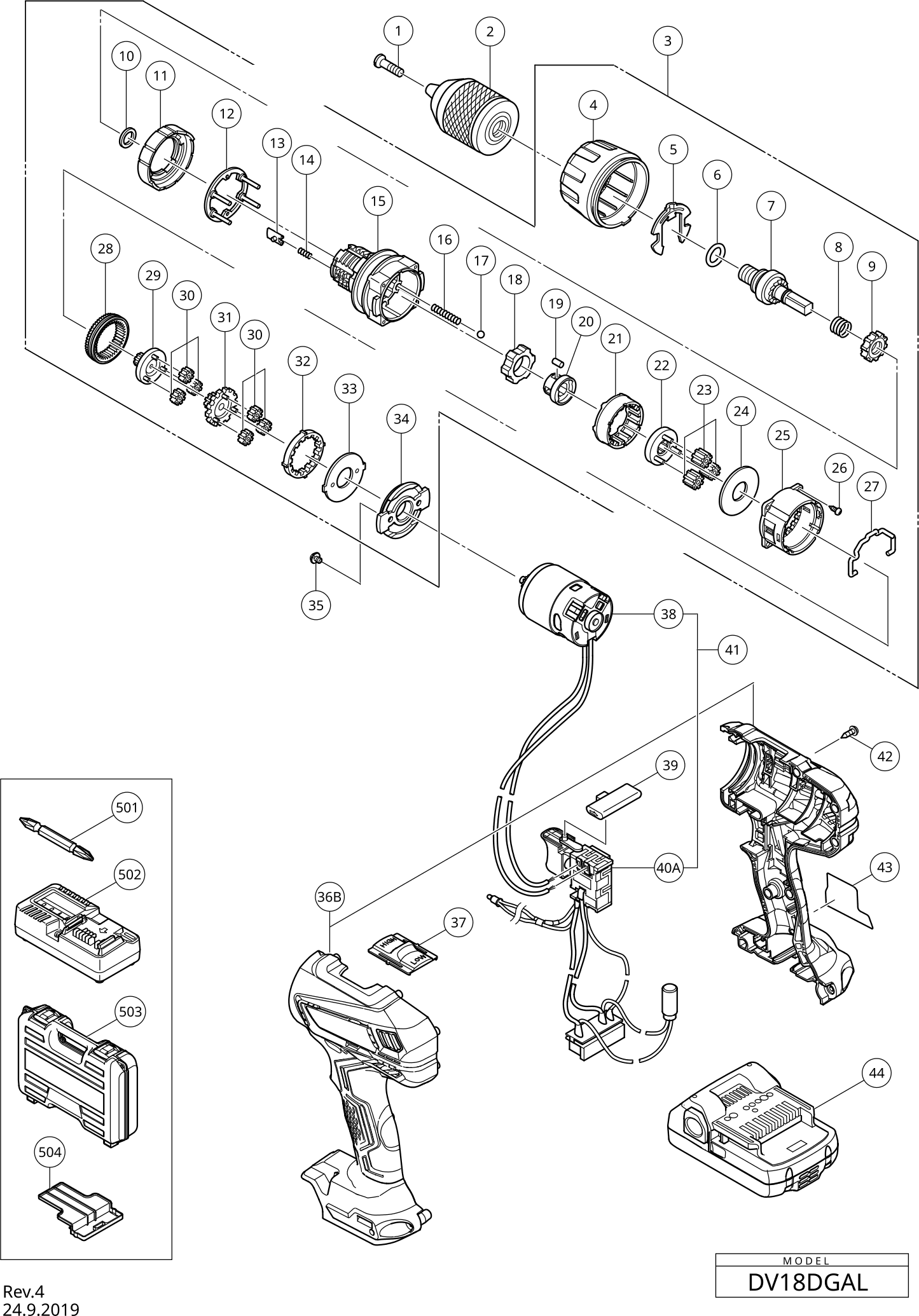

Technical drawing of model Hikoki DV18DGAL
Spare parts list of model Hikoki DV18DGAL
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Seal Lock Left-hand Screw M6 | ||||
| 1 | 371343 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 2 | 371323 | |||
| Gear Box Ass'y Includ.4-34 | ||||
| 3 | 371333 | 37.81 | 45.75 | |
| Clutch Dial | ||||
| 4 | 371334 | 3.30 | 3.99 | |
| Click Spring | ||||
| 5 | 327146 | 1.65 | 2.00 | |
| O-Ring | ||||
| 6 | 327142 | 1.65 | 2.00 | |
| Spindle Ass'y | ||||
| 7 | 336351 | 9.90 | 11.98 | |
| Spring (c) | ||||
| 8 | 327136 | 1.65 | 2.00 | |
| Ratchet (b) | ||||
| 9 | 327134 | 3.30 | 3.99 | |
| Washer (a) | ||||
| 10 | 327147 | 1.65 | 2.00 | |
| Nut (1) | ||||
| 11 | 371335 | 1.20 | 1.45 | |
| Ring | ||||
| 12 | 336877 | 6.75 | 8.17 | |
| Slip Block | ||||
| 13 | 327135 | 1.65 | 2.00 | |
| Spring | ||||
| 14 | 327133 | 1.65 | 2.00 | |
| Front Case | ||||
| 15 | 336876 | 5.10 | 6.17 | |
| Spring (a) | ||||
| 16 | 327143 | 1.65 | 2.00 | |
| Steel Ball D5 | ||||
| 17 | 306936 | 1.05 | 1.27 | |
| Lock Ring | ||||
| 18 | 336879 | 4.20 | 5.08 | |
| Needle Roller Set (4 Pcs.) | ||||
| 19 | 335946 | 1.35 | 1.63 | |
| Sleeve | ||||
| 20 | 335944 | 1.05 | 1.27 | |
| Ring Gear | ||||
| 21 | 328055 | 3.30 | 3.99 | |
| Carrier | ||||
| 22 | 327139 | 3.30 | 3.99 | |
| Planet Gear (c) Set (3 Pcs.) | ||||
| 23 | 312705 | 2.40 | 2.90 | |
| Washer (a) | ||||
| 24 | 312704 | 1.95 | 2.36 | |
| Rear Case | ||||
| 25 | 335959 | 1.50 | 1.82 | |
| Screw Set D3x12 (4 Pcs.) | ||||
| 26 | 371338 | 1.04 | 1.26 | |
| Shift Arm | ||||
| 27 | 332017 | 1.73 | 2.09 | |
| Slide Ring Gear | ||||
| 28 | 371337 | 1.04 | 1.26 | |
| Pinion (c) | ||||
| 29 | 371336 | 2.10 | 2.54 | |
| Planet Gear (a) Set (6 Pcs.) | ||||
| 30 | 332019 | 13.95 | 16.88 | |
| Pinion (b) | ||||
| 31 | 332014 | 5.03 | 6.08 | |
| First Ring Gear | ||||
| 32 | 332023 | 6.68 | 8.08 | |
| Washer (b) | ||||
| 33 | 312716 | 1.95 | 2.36 | |
| Motor Spacer | ||||
| 34 | 371344 | 1.04 | 1.26 | |
| Machine Screw (w/sp. Washer) M4x6 | ||||
| 35 | 317333 | 1.50 | 1.82 | |
| Housing (a).(b) Set | ||||
| 36B | 371389 | 11.40 | 13.79 | |
| Shift Knob | ||||
| 37 | 336855 | 1.05 | 1.27 | |
| Motor Dc 18v | ||||
| 38 | 371341 | 25.58 | 30.95 | |
| Pushing Button | ||||
| 39 | 339768 | 1.04 | 1.26 | |
| SWITCH TERMINAL SET (OLD 371342) | ||||
| 40A | 373660 | 31.76 | 38.43 | |
| Wiring Ass'y Includ.38,40 | ||||
| 41 | 371340 | 49.09 | 59.40 | |
| Tapping Screw (w/flange) D3x16 (black) | ||||
| 42 | 313687 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 44 | 333352 | |||
| No information available, not orderable | ||||
| 501 | 983006 | |||
| No information available, not orderable | ||||
| 503 | 336642 | |||
| Battery Cover | ||||
| 504 | 329897 | 1.80 | 2.18 | |
| Hook Set | ||||
| 601 | 371345 | 7.80 | 9.44 | |
