Here you will find all available parts and drawings of the 'Hikoki DUT-10'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

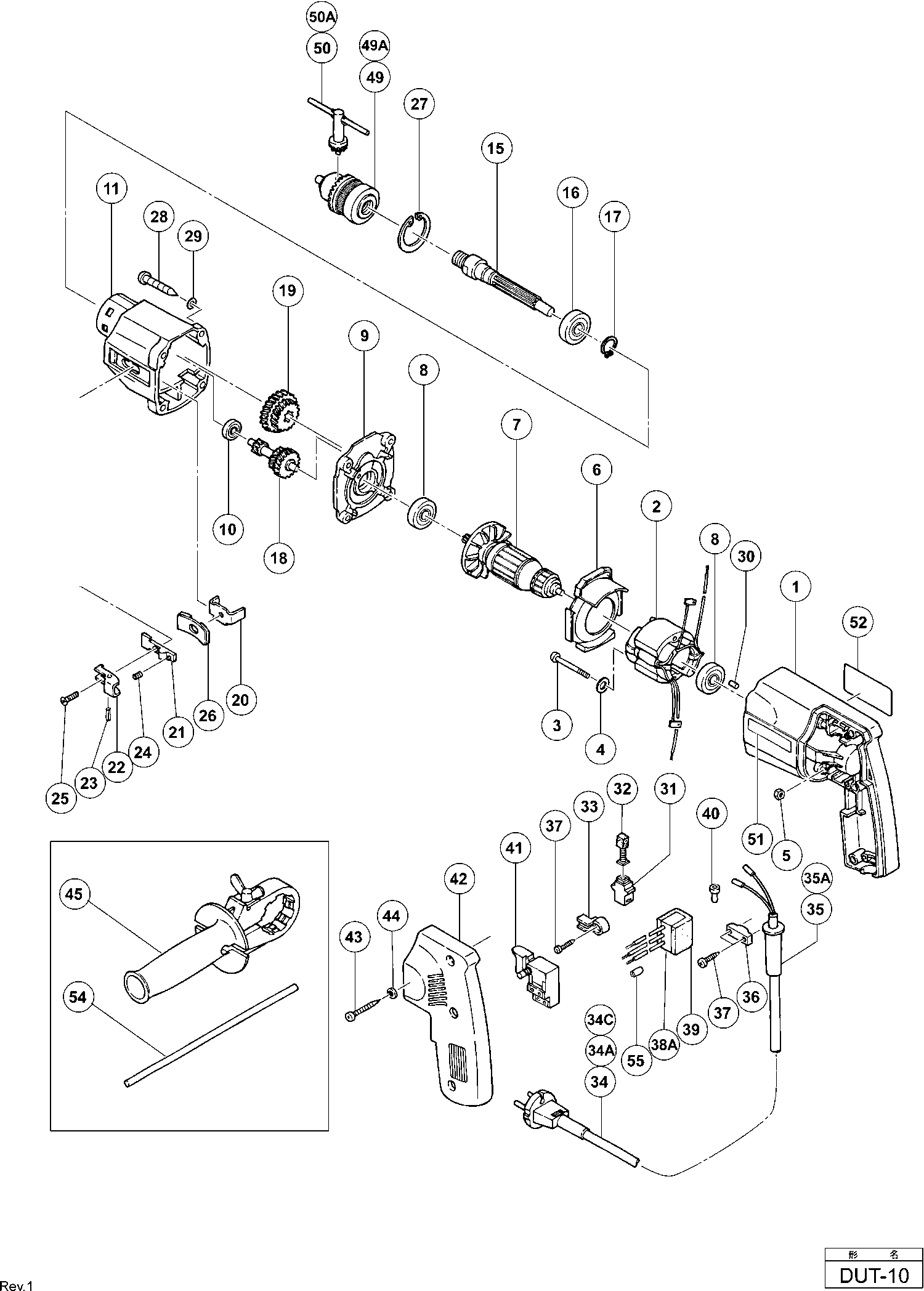

Technical drawing of model Hikoki DUT-10
Spare parts list of model Hikoki DUT-10
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 1 | 971640 | |||
| No longer available, no replacement | ||||
| 2 | 971665Z | |||
| No longer available, no replacement | ||||
| 3 | 949278 | |||
| Spring Washer M4 (10 pieces) | ||||
| 4 | 949453 | 1.05 | 1.27 | |
| Nut M4 (10 Pieces) | ||||
| 5 | 949554 | 1.05 | 1.27 | |
| Fan Guide | ||||
| 6 | 971642 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 7 | 971666F | |||
| Ball Bearing 608vvc2ps2l | ||||
| 8 | 608VVM | 5.70 | 6.90 | |
| Inner Cover | ||||
| 9 | 971664 | 18.70 | 22.63 | |
| Ball Bearing 608vvc2ps2l | ||||
| 10 | 608VVM | 5.70 | 6.90 | |
| Gear Cover | ||||
| 11 | 980972 | 24.89 | 30.11 | |
| AS | ||||
| 15 | 980973 | 14.24 | 17.23 | |
| Ball Bearing 6202vvcmps2l | ||||
| 16 | 6202VV | 7.05 | 8.53 | |
| Retaining Ring For D15 Shaft (10 Pcs.) | ||||
| 17 | 939544 | 2.13 | 2.57 | |
| TWEEDE TANDWIEL | ||||
| 18 | 971700 | 18.10 | 21.90 | |
| TANDWIEL | ||||
| 19 | 980192 | 10.50 | 12.70 | |
| Shift Arm | ||||
| 20 | 971651 | 1.05 | 1.27 | |
| Shift Plate | ||||
| 21 | 971652 | 1.95 | 2.36 | |
| Shift Lock | ||||
| 22 | 971653 | 1.35 | 1.63 | |
| Roll Pin D3x12 (10 Pcs.) | ||||
| 23 | 949535 | 2.10 | 2.54 | |
| Spring | ||||
| 24 | 943053 | 1.35 | 1.63 | |
| Flat Hd. Screw M4x12 (10 Pcs.) | ||||
| 25 | 949323 | 1.05 | 1.27 | |
| Seal Plate | ||||
| 26 | 971672 | 1.95 | 2.36 | |
| Retaining Ring For D35 Hole (10 Pcs.) | ||||
| 27 | 939556 | 10.20 | 12.34 | |
| Tapping Screw D5x35 | ||||
| 28 | 931875 | 1.05 | 1.27 | |
| Spring Washer M5 (10 pieces) | ||||
| 29 | 949454 | 1.04 | 1.26 | |
| RUBBER PIN (OLD 976441) | ||||
| 30 | 946362 | 1.05 | 1.27 | |
| Brush Holder | ||||
| 31 | 955203 | 2.40 | 2.90 | |
| Carbon Brush (1 Pair) | ||||
| 32 | 999041 | 4.50 | 5.44 | |
| HOUDERSTUK | ||||
| 33 | 971655 | 1.00 | 1.21 | |
| Cord (cord Armor D8.8) For Pan | ||||
| 34 | 500447Z | 6.60 | 7.99 | |
| No longer available, no replacement | ||||
| 34A | 500423Z | |||
| No longer available, no replacement | ||||
| 34C | 500435Z | |||
| Cord Armor D8.2 | ||||
| 35 | 930487 | 2.25 | 2.72 | |
| Cord Armor D10.2 | ||||
| 35 | 980193 | 1.65 | 2.00 | |
| CABLE BUSHING D8.8 | ||||
| 35A | 303662 | 1.04 | 1.26 | |
| Cord Clip | ||||
| 36 | 937631 | 1.04 | 1.26 | |
| Tapping Screw D4X16 | ||||
| 37 | 954004 | 1.04 | 1.26 | |
| Noise Suppressor | ||||
| 38A | 994273 | 4.29 | 5.19 | |
| Rubber | ||||
| 39 | 930153 | 1.04 | 1.26 | |
| Connector 50091 (10 Pcs.) | ||||
| 40 | 959140 | 3.30 | 3.99 | |
| Switch | ||||
| 41 | 957747 | 14.03 | 16.97 | |
| Handle Cover | ||||
| 42 | 971660 | 9.90 | 11.98 | |
| Tapping Screw D4x20 | ||||
| 43 | 956384 | 1.05 | 1.27 | |
| Washer M4 (10 Pcs.) | ||||
| 44 | 949423 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 45 | 971662 | |||
| No information available, not orderable | ||||
| 49 | 321811 | |||
| No information available, not orderable | ||||
| 50 | 930119 | |||
| No information available, not orderable | ||||
| 50A | 987575 | |||
| No information available, not orderable | ||||
| 51 | 957561 | |||
| No information available, not orderable | ||||
| 54 | 971677 | |||
| Threaded cable sleeve | ||||
| 55 | 981373 | 1.05 | 1.27 | |
