Here you will find all available parts and drawings of the 'Hikoki DS9DVF3'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

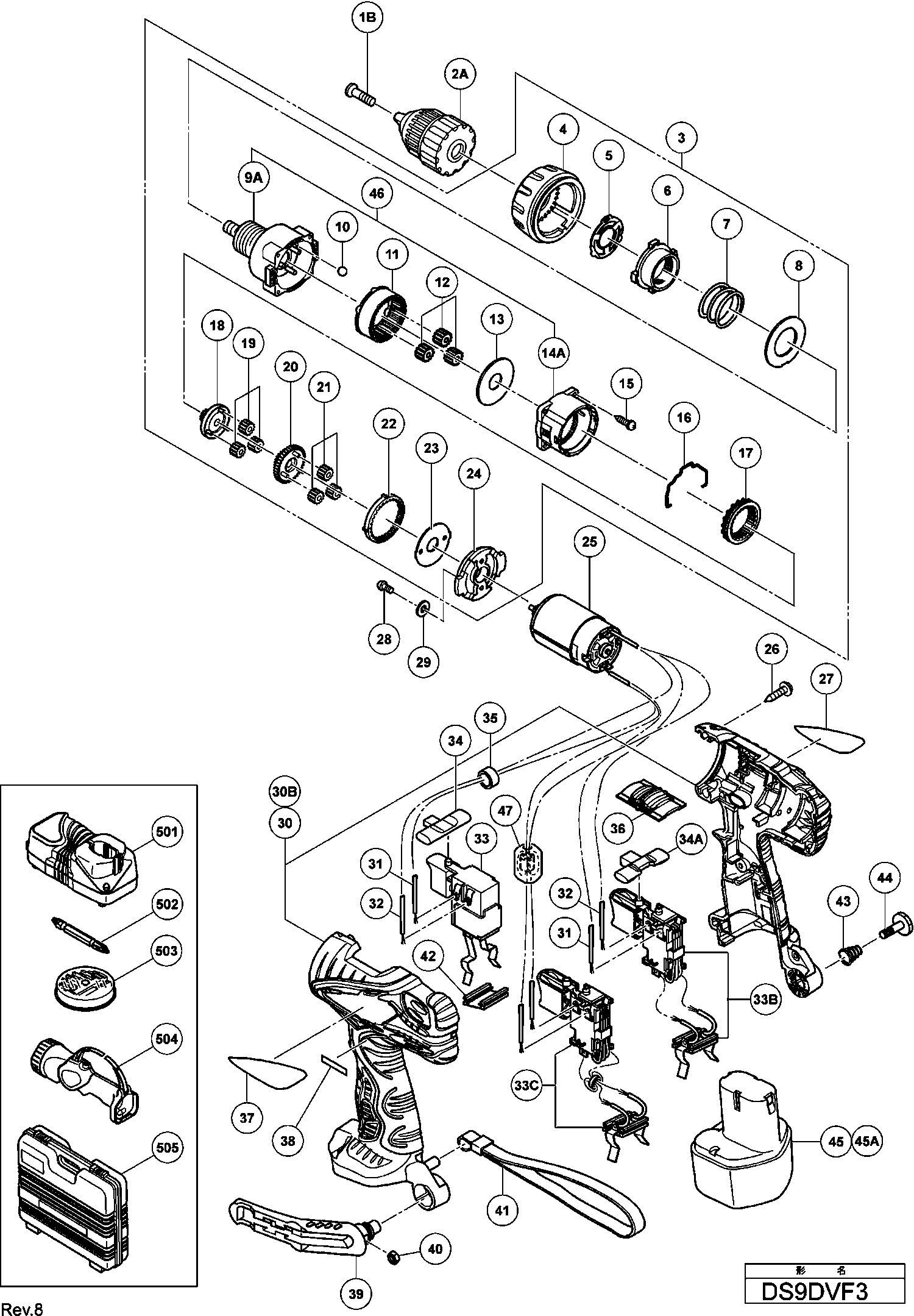

Technical drawing of model Hikoki DS9DVF3
Spare parts list of model Hikoki DS9DVF3
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Left-hand Hexalobular M5 | ||||
| 1B | 337426 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 2A | 323250 | |||
| Gear Box Ass'y Include.4-24 | ||||
| 3 | 324719 | 44.41 | 53.74 | |
| Clutch Dial | ||||
| 4 | 324114 | 6.45 | 7.80 | |
| Spring Plate | ||||
| 5 | 324108 | 4.80 | 5.81 | |
| Nut | ||||
| 6 | 324109 | 3.30 | 3.99 | |
| Spring | ||||
| 7 | 324110 | 3.30 | 3.99 | |
| Washer (d) | ||||
| 8 | 324347 | 3.30 | 3.99 | |
| Front Case | ||||
| 9A | 324720 | 23.38 | 28.28 | |
| Steel Ball D5 | ||||
| 10 | 306936 | 1.05 | 1.27 | |
| Ring Gear | ||||
| 11 | 324111 | 4.80 | 5.81 | |
| Planet Gear (c) Set (3 Pcs.) | ||||
| 12 | 324348 | 3.30 | 3.99 | |
| Washer (a) | ||||
| 13 | 324349 | 3.30 | 3.99 | |
| Gear Housing | ||||
| 14A | 324501 | 4.80 | 5.81 | |
| Phillips head screws D3X12 (4 pieces) | ||||
| 15 | 324357 | 1.65 | 2.00 | |
| Shift Arm | ||||
| 16 | 324115 | 3.30 | 3.99 | |
| Slide Ring Gear | ||||
| 17 | 324351 | 4.80 | 5.81 | |
| Pinion (c) | ||||
| 18 | 324112 | 4.80 | 5.81 | |
| Planet Gear (b) Set (3 Pcs.) | ||||
| 19 | 324352 | 3.30 | 3.99 | |
| Pinion (b) | ||||
| 20 | 324113 | 4.80 | 5.81 | |
| Planet Gear (a) Set (3 Pcs.) | ||||
| 21 | 324354 | 3.30 | 3.99 | |
| First Ring Gear | ||||
| 22 | 324353 | 3.30 | 3.99 | |
| Washer (b) | ||||
| 23 | 324355 | 3.30 | 3.99 | |
| Motor Spacer | ||||
| 24 | 324356 | 3.30 | 3.99 | |
| Motor | ||||
| 25 | 318244 | 19.39 | 23.46 | |
| Tapping Screw (w/flange) D3x16 (black) | ||||
| 26 | 313687 | 1.04 | 1.26 | |
| Machine Screw M3x8 (10 Pcs.) Since 9.2012 For Eur | ||||
| 28 | 949203 | 1.05 | 1.27 | |
| Spring Washer M3 (10 pieces) | ||||
| 29 | 949451 | 1.05 | 1.27 | |
| Housing (a).(b) Set | ||||
| 30 | 329179 | 22.83 | 27.62 | |
| Housing (a).(b) Set | ||||
| 30B | 329179 | 22.83 | 27.62 | |
| Internal Wire (b) 90l (black) Except For Europe(t | ||||
| 31 | 324121 | 1.05 | 1.27 | |
| Internal Wire (b) 140l (red) Except For Europe(ti | ||||
| 32 | 324120 | 1.05 | 1.27 | |
| Dc-speed Control Switch Till 12.2007 | ||||
| 33 | 324119 | 32.04 | 38.77 | |
| Control Switch for DS9DVF3/12DVF3 | ||||
| 33B | 332806 | 24.75 | 29.95 | |
| Sw Terminal Set Since 3.2012 For Europe | ||||
| 33C | 334886 | 32.31 | 39.10 | |
| Pushing Button Till 12.2007 | ||||
| 34 | 324117 | 1.05 | 1.27 | |
| Pushing Button Since 01.2008 | ||||
| 34A | 329181 | 1.05 | 1.27 | |
| Ferrite Core | ||||
| 35 | 323229 | 1.35 | 1.63 | |
| Shift Knob | ||||
| 36 | 324116 | 1.05 | 1.27 | |
| Hook | ||||
| 39 | 320287 | 4.80 | 5.81 | |
| Nut M5 | ||||
| 40 | 320288 | 1.65 | 2.00 | |
| Strap (black) | ||||
| 41 | 306952 | 4.05 | 4.90 | |
| Holder | ||||
| 42 | 315141 | 1.20 | 1.45 | |
| Hook Spring | ||||
| 43 | 319926 | 1.65 | 2.00 | |
| Screw M5 | ||||
| 44 | 319927 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 45 | 324079 | |||
| No information available, not orderable | ||||
| 45A | 333434 | |||
| Front Case Set Includ.9a,14a Till 6.2005 For Rus, | ||||
| 46 | 325245 | 27.78 | 33.61 | |
| Internal Wire Ferrite Set Since 3.2012 For Europe | ||||
| 47 | 334863 | 4.20 | 5.08 | |
| No information available, not orderable | ||||
| 502 | 983006 | |||
| No information available, not orderable | ||||
| 505 | 324083 | |||
