Here you will find all available parts and drawings of the 'Hikoki DS36DAWRZ'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

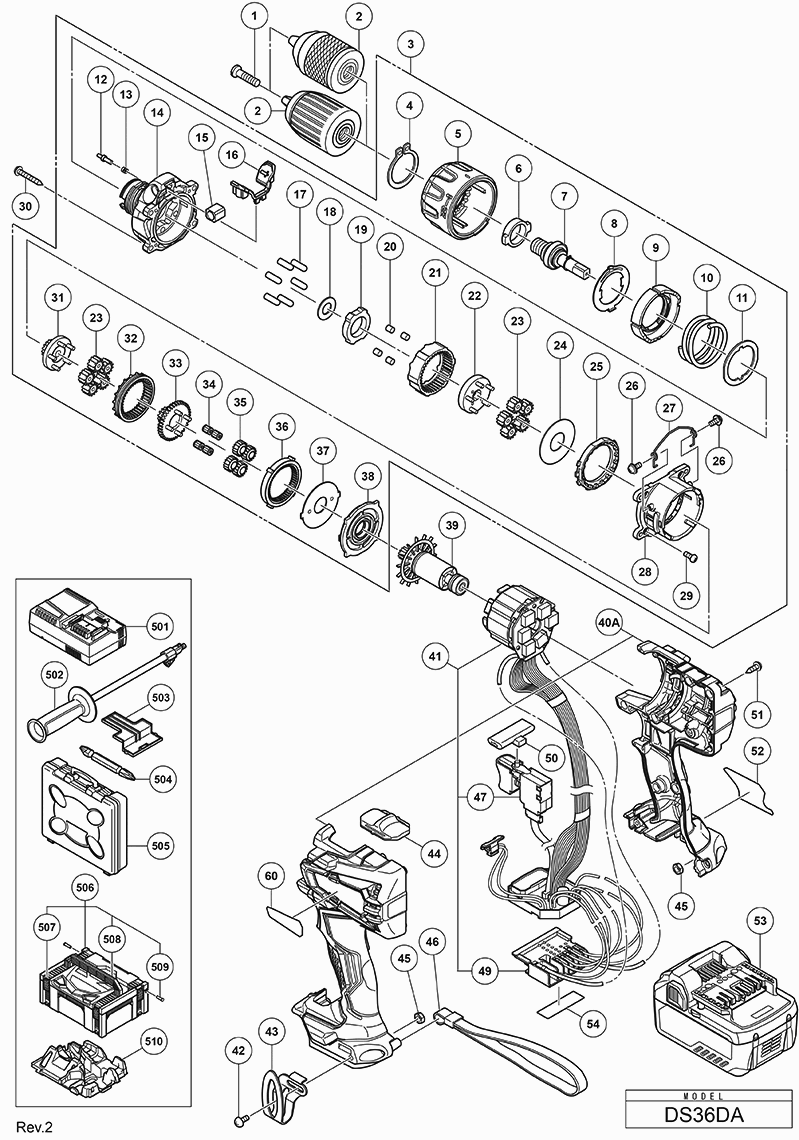

Technical drawing of model Hikoki DS36DAWRZ
Spare parts list of model Hikoki DS36DAWRZ
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 1 | 370909 | |||
| No information available, not orderable | ||||
| 2 | 339724 | |||
| No information available, not orderable | ||||
| 3 | 372222 | |||
| Retaining Ring For D30 Shaft | ||||
| 4 | 339736 | 1.04 | 1.26 | |
| Clutch Dial | ||||
| 5 | 339740 | 12.00 | 14.52 | |
| Metal | ||||
| 6 | 339741 | 2.25 | 2.72 | |
| Spindle Ass'y | ||||
| 7 | 339743 | 19.25 | 23.29 | |
| Spring Plate | ||||
| 8 | 339744 | 1.50 | 1.82 | |
| Nut (1) | ||||
| 9 | 339745 | 1.95 | 2.36 | |
| Spring | ||||
| 10 | 339746 | 1.95 | 2.36 | |
| Thrust Plate | ||||
| 11 | 339747 | 1.65 | 2.00 | |
| Stopper | ||||
| 12 | 339748 | 1.50 | 1.82 | |
| Spring | ||||
| 13 | 331886 | 1.73 | 2.09 | |
| Front Case Since 10.2016 | ||||
| 14 | 372224 | 44.69 | 54.07 | |
| Sleeve Nut M8 Since October 2016 | ||||
| 15 | 371796 | 2.70 | 3.27 | |
| Sleeve Cap Since 10.2016 | ||||
| 16 | 371795 | 1.80 | 2.18 | |
| Pin Set (6 Pcs.) | ||||
| 17 | 333539 | 8.10 | 9.80 | |
| Washer (b) | ||||
| 18 | 328717 | 1.80 | 2.18 | |
| Lock Ring | ||||
| 19 | 339752 | 6.90 | 8.35 | |
| Roller | ||||
| 20 | 319744 | 1.65 | 2.00 | |
| Ring Gear | ||||
| 21 | 339753 | 5.25 | 6.35 | |
| Carrier | ||||
| 22 | 339754 | 6.45 | 7.80 | |
| Planet Gear (b) Set (5 Pcs.) | ||||
| 23 | 339774 | 3.45 | 4.17 | |
| Washer (a) | ||||
| 24 | 331892 | 1.73 | 2.09 | |
| SHIFT DOG | ||||
| 25 | 372226 | 8.85 | 10.71 | |
| Screw Set D2 (2 Pcs.) | ||||
| 26 | 331895 | 1.73 | 2.09 | |
| Shift Arm | ||||
| 27 | 339755 | 1.35 | 1.63 | |
| Rear Case | ||||
| 28 | 372225 | 2.25 | 2.72 | |
| Screw Set M3x12 (4 Pieces) | ||||
| 29 | 320087 | 5.10 | 6.17 | |
| Tapping Screw (w/flange) D4x30 (black) | ||||
| 30 | 305490 | 1.04 | 1.26 | |
| Pinion (c) | ||||
| 31 | 339757 | 4.80 | 5.81 | |
| Slide Ring Gear | ||||
| 32 | 339758 | 5.40 | 6.53 | |
| Pinion (b) | ||||
| 33 | 339759 | 4.80 | 5.81 | |
| Needle Bearing Set (4 Pcs.) | ||||
| 34 | 331926 | 8.03 | 9.71 | |
| Planet Gear (a) Set (4 Pcs.) | ||||
| 35 | 334441 | 6.75 | 8.17 | |
| First Ring Gear | ||||
| 36 | 339760 | 4.05 | 4.90 | |
| Washer (b) | ||||
| 37 | 339761 | 1.04 | 1.26 | |
| Motor Spacer | ||||
| 38 | 339762 | 1.50 | 1.82 | |
| Rotor Pinion Set | ||||
| 39 | 361070 | 60.78 | 73.54 | |
| No information available, not orderable | ||||
| 40A | 373160 | |||
| No information available, not orderable | ||||
| 41 | 373161 | |||
| Truss Hd. Screw M4 (black) | ||||
| 42 | 327001 | 1.80 | 2.18 | |
| HOOK | ||||
| 43 | 372229 | 2.85 | 3.45 | |
| Switch Slide High/Low | ||||
| 44 | 334267 | 7.35 | 8.89 | |
| Lock Nut M4 (black) | ||||
| 45 | 327002 | 1.80 | 2.18 | |
| Strap (black) | ||||
| 46 | 306952 | 4.05 | 4.90 | |
| Switch | ||||
| 47 | 370151 | 18.98 | 22.96 | |
| BATTERY TERMINAL | ||||
| 49 | 372228 | 8.25 | 9.98 | |
| Pushing Button | ||||
| 50 | 339768 | 1.04 | 1.26 | |
| Tapping Screw (w/flange) D3x16 (black) | ||||
| 51 | 313687 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 53 | 372121M | |||
| No information available, not orderable | ||||
| 54 | 373221 | |||
| Side Handle Since October 2016 | ||||
| 502 | 371797 | 15.13 | 18.30 | |
| Battery Cover | ||||
| 503 | 329897 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 504 | 983006 | |||
| No information available, not orderable | ||||
| 505 | 339778 | |||
| No information available, not orderable | ||||
| 506 | 336471 | |||
| No information available, not orderable | ||||
| 507 | 336472 | |||
| No information available, not orderable | ||||
| 508 | 336473 | |||
| No information available, not orderable | ||||
| 509 | 336474 | |||
| No information available, not orderable | ||||
| 510 | 339776 | |||
| No information available, not orderable | ||||
| 601 | 310331 | |||
| SCREW SET M4 | ||||
| 602 | 370651 | 4.05 | 4.90 | |
