Here you will find all available parts and drawings of the 'Hikoki DS18DSFL'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

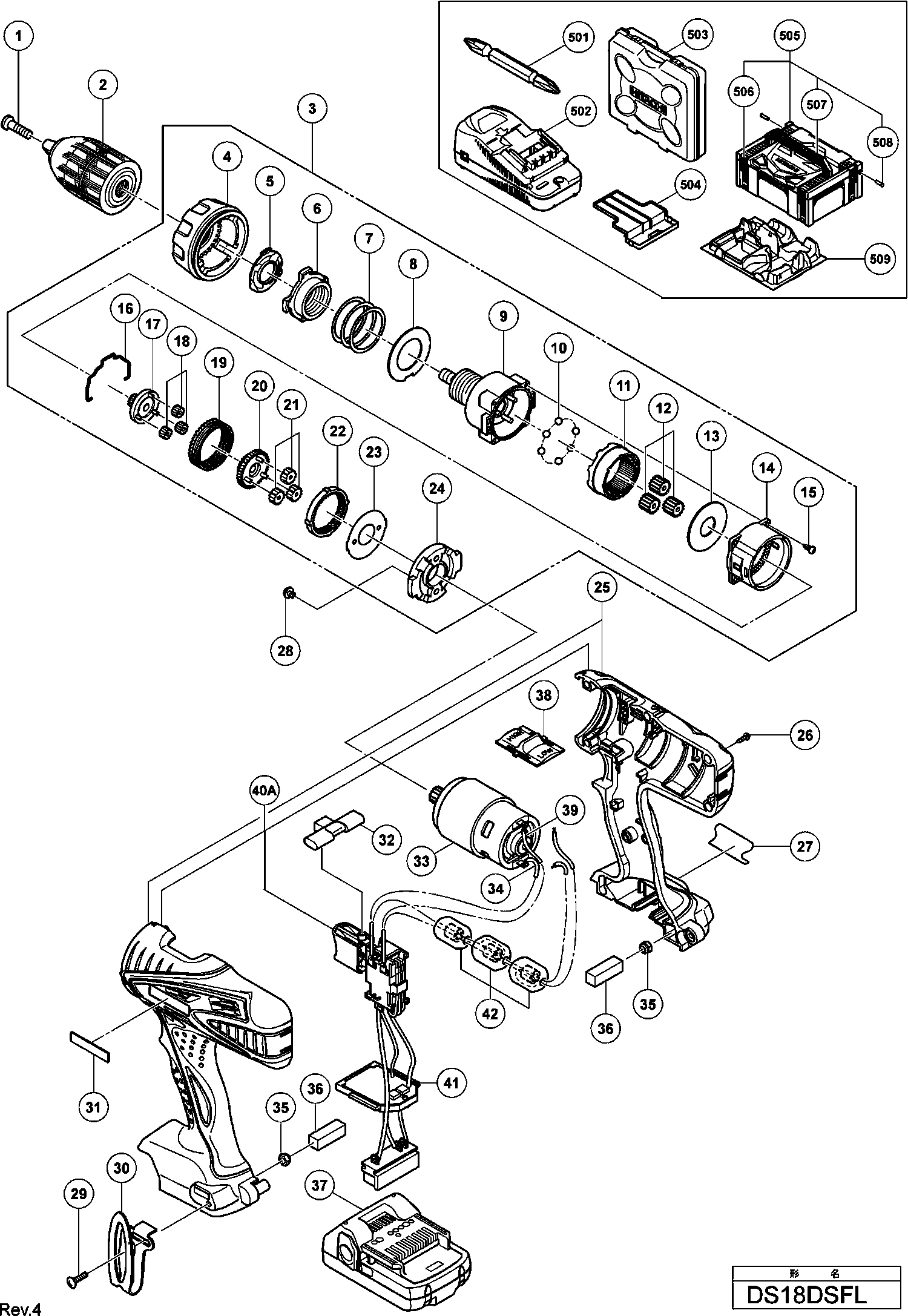

Technical drawing of model Hikoki DS18DSFL
Spare parts list of model Hikoki DS18DSFL
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Special Screw (left Hand) M6x23 | ||||
| 1 | 311959 | 1.50 | 1.82 | |
| No information available, not orderable | ||||
| 2 | 332049 | |||
| Gear Box Ass'y Includ.4-24 | ||||
| 3 | 333315 | 74.11 | 89.68 | |
| Clutch Dial | ||||
| 4 | 332025 | 5.03 | 6.08 | |
| Click Spring | ||||
| 5 | 332741 | 8.33 | 10.07 | |
| Nut | ||||
| 6 | 324109 | 3.30 | 3.99 | |
| Spring | ||||
| 7 | 324110 | 3.30 | 3.99 | |
| Washer (d) | ||||
| 8 | 324347 | 3.30 | 3.99 | |
| Front Case | ||||
| 9 | 333314 | 16.78 | 20.30 | |
| Steel Ball D5 | ||||
| 10 | 306936 | 1.05 | 1.27 | |
| Ring Gear | ||||
| 11 | 332027 | 5.03 | 6.08 | |
| Planet Gear (c) Set (3 Pcs.) | ||||
| 12 | 332028 | 3.38 | 4.08 | |
| Washer (a) | ||||
| 13 | 324349 | 3.30 | 3.99 | |
| Gear Housing | ||||
| 14 | 324501 | 4.80 | 5.81 | |
| Phillips head screws D3X12 (4 pieces) | ||||
| 15 | 324357 | 1.65 | 2.00 | |
| Shift Arm | ||||
| 16 | 324115 | 3.30 | 3.99 | |
| Pinion (c) | ||||
| 17 | 332029 | 3.38 | 4.08 | |
| Planet Gear (b) Set (3 Pcs.) | ||||
| 18 | 332031 | 1.73 | 2.09 | |
| Slide Ring Gear | ||||
| 19 | 332030 | 6.68 | 8.08 | |
| Pinion (b) | ||||
| 20 | 332032 | 3.38 | 4.08 | |
| Planet Gear (a) Set (3 Pcs.) | ||||
| 21 | 332034 | 3.38 | 4.08 | |
| First Ring Gear | ||||
| 22 | 332033 | 3.38 | 4.08 | |
| Washer (b) | ||||
| 23 | 324355 | 3.30 | 3.99 | |
| Motor Spacer | ||||
| 24 | 332035 | 1.73 | 2.09 | |
| No information available, not orderable | ||||
| 25 | 332821 | |||
| Tapping Screw (w/flange) D3x16 (black) | ||||
| 26 | 313687 | 1.04 | 1.26 | |
| Machine Screw (w/sp. Washer) M4x6 | ||||
| 28 | 317333 | 1.50 | 1.82 | |
| Truss Hd. Screw M4 (black) | ||||
| 29 | 327001 | 1.80 | 2.18 | |
| Hook | ||||
| 30 | 332824 | 4.58 | 5.54 | |
| Name Plate | ||||
| 31 | 330719 | 2.10 | 2.54 | |
| Pushing Button | ||||
| 32 | 332836 | 1.13 | 1.36 | |
| No information available, not orderable | ||||
| 33 | 332558 | |||
| Internal Wire (black) | ||||
| 34 | 332843 | 1.05 | 1.27 | |
| Lock Nut M4 (black) | ||||
| 35 | 327002 | 1.80 | 2.18 | |
| Gasket | ||||
| 36 | 327004 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 37 | 333353 | |||
| Shift Knob | ||||
| 38 | 332036 | 1.05 | 1.27 | |
| Internal wiring red 140L | ||||
| 39 | 324499 | 1.05 | 1.27 | |
| Housing Switch Set (old 333313) | ||||
| 40A | 336805 | 26.26 | 31.78 | |
| Controller Terminal Set | ||||
| 41 | 332823 | 30.45 | 36.84 | |
| Internal Wire Ferrite Set Since 3.2012 For Europe | ||||
| 42 | 334858 | 7.35 | 8.89 | |
| No information available, not orderable | ||||
| 501 | 983006 | |||
| No information available, not orderable | ||||
| 503 | 332022 | |||
| Battery Cover | ||||
| 504 | 329897 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 505 | 336471 | |||
| No information available, not orderable | ||||
| 506 | 336472 | |||
| No information available, not orderable | ||||
| 507 | 336473 | |||
| No information available, not orderable | ||||
| 508 | 336474 | |||
| No information available, not orderable | ||||
| 509 | 336475 | |||
| No information available, not orderable | ||||
| 601 | 955657 | |||
| No information available, not orderable | ||||
| 602 | 955659 | |||
| No information available, not orderable | ||||
| 603 | 955674 | |||
| No information available, not orderable | ||||
| 604 | 983004 | |||
| No information available, not orderable | ||||
| 605 | 983011 | |||
