Here you will find all available parts and drawings of the 'Hikoki DS18DSAL'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

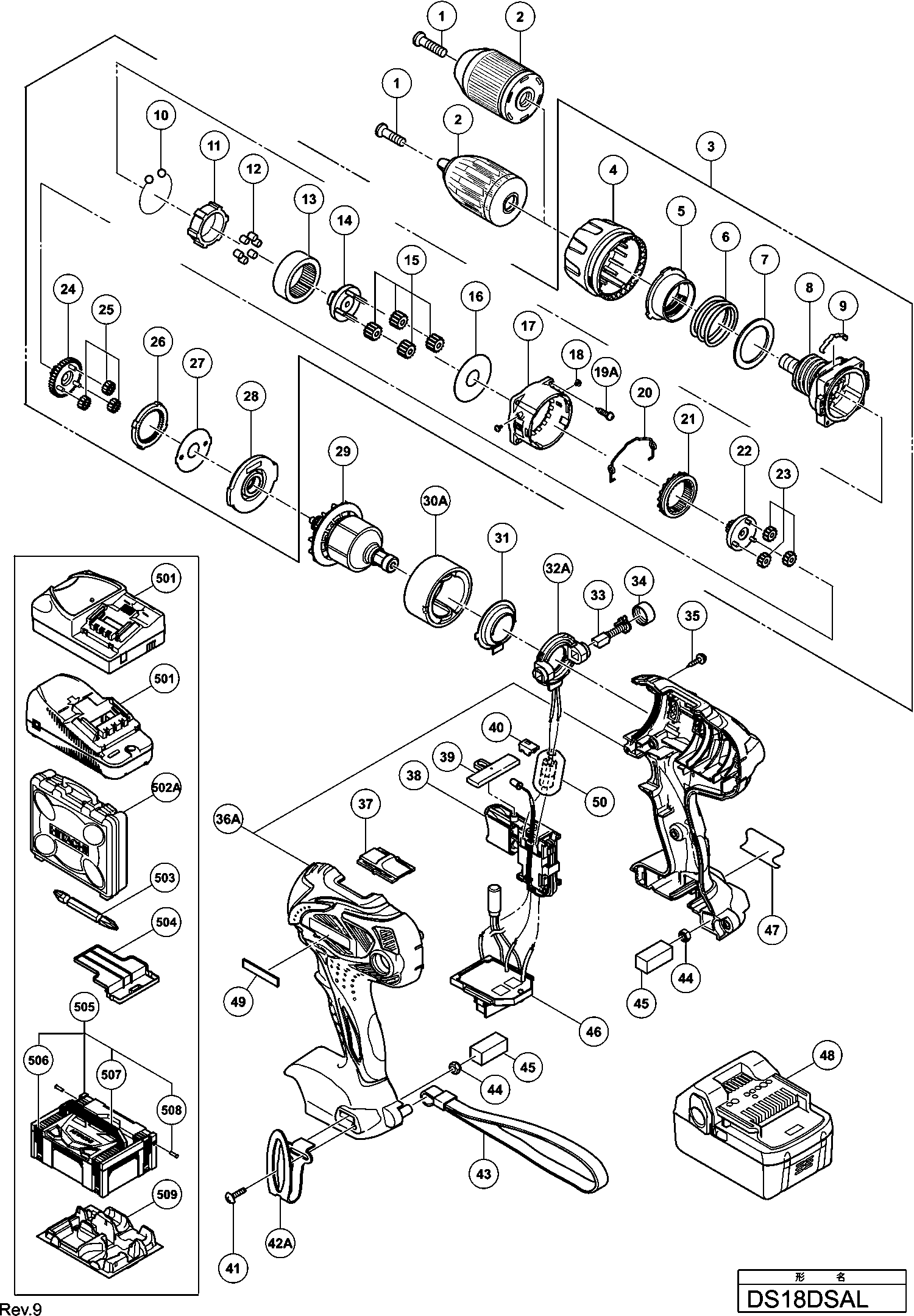

Technical drawing of model Hikoki DS18DSAL
Spare parts list of model Hikoki DS18DSAL
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Special Screw (left Hand) M6x23 | ||||
| *1 | 311959 | 1.50 | 1.82 | |
| No information available, not orderable | ||||
| *48 | 334905 | |||
| No information available, not orderable | ||||
| *502 | 337852 | |||
| Special Screw (left Hand) M6x23 | ||||
| 1 | 311959 | 1.50 | 1.82 | |
| No information available, not orderable | ||||
| 2 | 330587 | |||
| No information available, not orderable | ||||
| 2A | 330586 | |||
| Gear Box Ass'y Includ.4-28 | ||||
| 3 | 331087 | 55.14 | 66.72 | |
| Clutch Dial | ||||
| 4 | 330582 | 3.75 | 4.54 | |
| Nut | ||||
| 5 | 330563 | 1.88 | 2.27 | |
| Spring | ||||
| 6 | 330562 | 1.88 | 2.27 | |
| Spring retaining ring | ||||
| 7 | 330561 | 1.88 | 2.27 | |
| Front Case | ||||
| 8 | 331090 | 12.98 | 15.70 | |
| Click Spring | ||||
| 9 | 331089 | 1.88 | 2.27 | |
| Steel Ball D5 | ||||
| 10 | 306936 | 1.05 | 1.27 | |
| Lock Ring | ||||
| 11 | 331088 | 10.73 | 12.98 | |
| Needle Roller Set (6 Pcs.) | ||||
| 12 | 330565 | 1.88 | 2.27 | |
| Ring Gear | ||||
| 13 | 330567 | 5.55 | 6.72 | |
| Carrier | ||||
| 14 | 330566 | 4.65 | 5.63 | |
| Planet Gear (c) Set (4 Pcs.) | ||||
| 15 | 330568 | 1.88 | 2.27 | |
| No information available, not orderable | ||||
| 16 | 330569 | |||
| Gear Cover | ||||
| 17 | 330570 | 1.88 | 2.27 | |
| Screw Set D2x3.5 (2 Pcs.) | ||||
| 18 | 330579 | 1.88 | 2.27 | |
| Phillips head screws D3X12 (4 pieces) | ||||
| 19A | 324357 | 1.65 | 2.00 | |
| Shift Arm | ||||
| 20 | 330580 | 1.88 | 2.27 | |
| Slide Ring Gear | ||||
| 21 | 330572 | 3.75 | 4.54 | |
| Pinion (c) | ||||
| 22 | 330571 | 3.75 | 4.54 | |
| Planet Gear (b) Set (3 Pcs.) | ||||
| 23 | 330573 | 1.88 | 2.27 | |
| Pinion (b) | ||||
| 24 | 330574 | 3.75 | 4.54 | |
| Planet Gear (a) Set (3 Pcs.) | ||||
| 25 | 330576 | 1.88 | 2.27 | |
| First Ring Gear | ||||
| 26 | 330575 | 3.75 | 4.54 | |
| No information available, not orderable | ||||
| 27 | 330577 | |||
| Motor Spacer | ||||
| 28 | 330578 | 1.88 | 2.27 | |
| Armature And Pinion Set | ||||
| 29 | 360866 | 34.24 | 41.43 | |
| Magnet (h) | ||||
| 30A | 334902 | 83.60 | 101.16 | |
| Shield | ||||
| 31 | 322521 | 1.35 | 1.63 | |
| No information available, not orderable | ||||
| 32 | 322993 | |||
| Brush Block Except For Europe,kor | ||||
| 32A | 338733 | 11.70 | 14.16 | |
| Carbon Brush 5x6x11.5 (1 Pair) | ||||
| 33 | 999054 | 6.45 | 7.80 | |
| Brush Cap | ||||
| 34 | 319918 | 3.30 | 3.99 | |
| Tapping Screw (w/flange) D3x16 (black) | ||||
| 35 | 313687 | 1.04 | 1.26 | |
| Housing (a).(b) Set | ||||
| 36A | 330594 | 16.36 | 19.80 | |
| Shift Knob | ||||
| 37 | 330583 | 1.20 | 1.45 | |
| Switch | ||||
| 38 | 330596 | 16.64 | 20.13 | |
| Pushing Button (a) | ||||
| 39 | 329454 | 1.05 | 1.27 | |
| Led Holder | ||||
| 40 | 330584 | 1.20 | 1.45 | |
| Truss Hd. Screw M4 (black) | ||||
| 41 | 327001 | 1.80 | 2.18 | |
| HOOK (OLD 329686) | ||||
| 42A | 331277 | 5.03 | 6.08 | |
| Strap (black) | ||||
| 43 | 306952 | 4.05 | 4.90 | |
| Lock Nut M4 (black) | ||||
| 44 | 327002 | 1.80 | 2.18 | |
| Gasket | ||||
| 45 | 327004 | 1.80 | 2.18 | |
| Controller Terminal Set | ||||
| 46 | 330591 | 24.75 | 29.95 | |
| No information available, not orderable | ||||
| 48 | 334905 | |||
| Hitachi Plate | ||||
| 49 | 329648 | 1.88 | 2.27 | |
| Hitachi Plate | ||||
| 49A | 329648 | 1.88 | 2.27 | |
| Ferrite Support Set Since 3.2012 For Europe | ||||
| 50 | 334868 | 4.65 | 5.63 | |
| No information available, not orderable | ||||
| 502 | 337852 | |||
| No information available, not orderable | ||||
| 503 | 983006 | |||
| Battery Cover | ||||
| 504 | 329897 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 505 | 336471 | |||
| No information available, not orderable | ||||
| 506 | 336472 | |||
| No information available, not orderable | ||||
| 507 | 336473 | |||
| No information available, not orderable | ||||
| 508 | 336474 | |||
| No information available, not orderable | ||||
| 509 | 336475 | |||
| No information available, not orderable | ||||
| 601 | 955657 | |||
| No information available, not orderable | ||||
| 602 | 955659 | |||
| No information available, not orderable | ||||
| 603 | 955674 | |||
| No information available, not orderable | ||||
| 604 | 983004 | |||
| No information available, not orderable | ||||
| 605 | 983011 | |||
