Here you will find all available parts and drawings of the 'Hikoki DS18DL'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

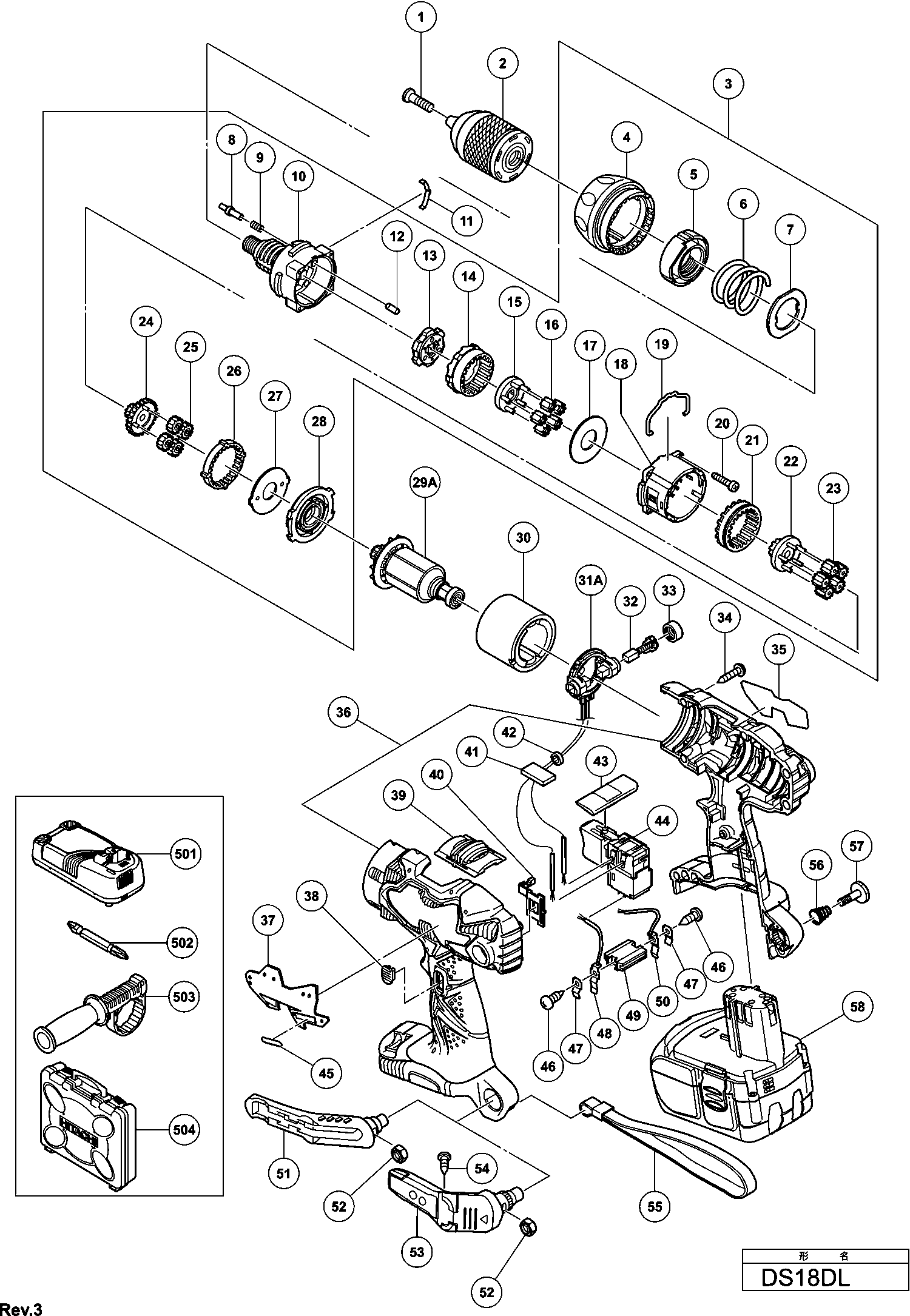

Technical drawing of model Hikoki DS18DL
Spare parts list of model Hikoki DS18DL
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Special Screw (left Hand) M6x23 | ||||
| 1 | 311959 | 1.50 | 1.82 | |
| Boorkop | ||||
| 2 | 752065 | 52.50 | 63.52 | |
| Complete Slip Coupling | ||||
| 3 | 322969 | 42.08 | 50.91 | |
| Front Cap | ||||
| 4 | 322991 | 15.81 | 19.13 | |
| Spring Holder | ||||
| 5 | 322974 | 3.00 | 3.63 | |
| Spring | ||||
| 6 | 323228 | 3.30 | 3.99 | |
| Spring retaining ring | ||||
| 7 | 322973 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 8 | 322972 | |||
| Spring | ||||
| 9 | 322971 | 1.65 | 2.00 | |
| Front housing + axis | ||||
| 10 | 322970 | 40.84 | 49.41 | |
| Spring Plate | ||||
| 11 | 323231 | 1.65 | 2.00 | |
| Pin Set (6 Pieces) | ||||
| 12 | 322975 | 19.94 | 24.12 | |
| No information available, not orderable | ||||
| 13 | 322976 | |||
| Gear Ring | ||||
| 14 | 322977 | 7.05 | 8.53 | |
| Carrier | ||||
| 15 | 322978 | 3.30 | 3.99 | |
| Gear Set (C) (5 Pieces) | ||||
| 16 | 322979 | 4.35 | 5.26 | |
| Ring | ||||
| 17 | 322980 | 1.65 | 2.00 | |
| Gear Cover | ||||
| 18 | 322981 | 4.80 | 5.81 | |
| Shift Arm | ||||
| 19 | 322990 | 1.65 | 2.00 | |
| Screw Set D3x12 (6 Pcs.) | ||||
| 20 | 315817 | 6.45 | 7.80 | |
| Slide Ring Gear | ||||
| 21 | 322983 | 6.45 | 7.80 | |
| Pinion (c) | ||||
| 22 | 322982 | 6.45 | 7.80 | |
| Gear Set (B) (5 Pieces) | ||||
| 23 | 322984 | 4.80 | 5.81 | |
| Pinion (b) | ||||
| 24 | 322985 | 4.80 | 5.81 | |
| Gear Set (A) (4 Pieces) | ||||
| 25 | 322987 | 3.30 | 3.99 | |
| First Ring Gear | ||||
| 26 | 322986 | 4.80 | 5.81 | |
| Washer (b) | ||||
| 27 | 322988 | 1.50 | 1.82 | |
| Motor Spacer | ||||
| 28 | 322989 | 3.30 | 3.99 | |
| Armature And Pinion Set 18v | ||||
| 29A | 360975 | 23.51 | 28.45 | |
| Magnet | ||||
| 30 | 322996 | 10.80 | 13.07 | |
| No information available, not orderable | ||||
| 31 | 322993 | |||
| Brush Block Except For Europe,kor | ||||
| 31A | 338733 | 11.70 | 14.16 | |
| Carbon Brush 5x6x11.5 (1 Pair) | ||||
| 32 | 999054 | 6.45 | 7.80 | |
| Brush Cap | ||||
| 33 | 319918 | 3.30 | 3.99 | |
| Tapping Screw (w/flange) D3x16 (black) | ||||
| 34 | 313687 | 1.04 | 1.26 | |
| Housing (a).(b) Set | ||||
| 36 | 326278 | 20.90 | 25.29 | |
| Plate | ||||
| 37 | 326279 | 19.11 | 23.13 | |
| Tappet | ||||
| 38 | 326276 | 1.05 | 1.27 | |
| Shift Knob | ||||
| 39 | 324137 | 2.10 | 2.54 | |
| Tappet | ||||
| 40 | 326277 | 1.05 | 1.27 | |
| Holder | ||||
| 41 | 326493 | 1.05 | 1.27 | |
| Ferrite Core | ||||
| 42 | 323229 | 1.35 | 1.63 | |
| No information available, not orderable | ||||
| 43 | 322997 | |||
| DC-Speed Control Switch | ||||
| 44 | 333640 | 16.65 | 20.15 | |
| Screw | ||||
| 46 | 958715 | 1.04 | 1.26 | |
| Spring | ||||
| 47 | 996118 | 2.55 | 3.09 | |
| Terminal | ||||
| 48 | 323003 | 1.05 | 1.27 | |
| Terminal Piece | ||||
| 49 | 320997 | 1.20 | 1.45 | |
| Terminal | ||||
| 50 | 322995 | 1.05 | 1.27 | |
| Hook | ||||
| 51 | 320287 | 4.80 | 5.81 | |
| Nut M5 | ||||
| 52 | 320288 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 53 | 321918 | |||
| Tapping Screw D2x6 | ||||
| 54 | 321672 | 1.65 | 2.00 | |
| Strap (black) | ||||
| 55 | 306952 | 4.05 | 4.90 | |
| Hook Spring | ||||
| 56 | 319926 | 1.65 | 2.00 | |
| Special Screw (a) M5 | ||||
| 57 | 320881 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 58 | 326241 | |||
| No information available, not orderable | ||||
| 502 | 983006 | |||
| No information available, not orderable | ||||
| 503 | 323001 | |||
| No information available, not orderable | ||||
| 504 | 323230 | |||
