Here you will find all available parts and drawings of the 'Hikoki DS18DJL'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

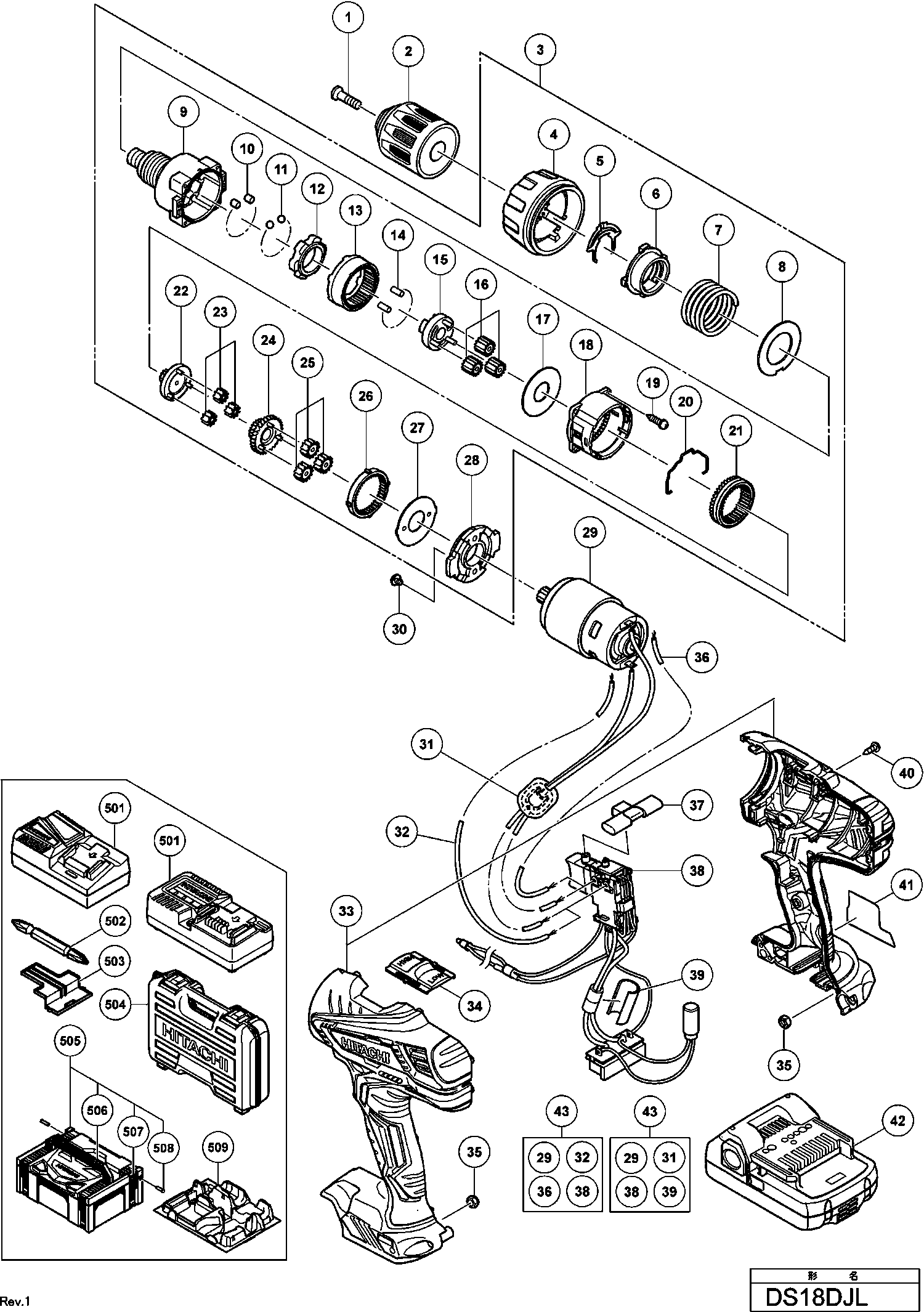

Technical drawing of model Hikoki DS18DJL
Spare parts list of model Hikoki DS18DJL
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Internal Wire Ferrite Set Since 3.2012 For Europe | ||||
| *31 | 337136 | 7.80 | 9.44 | |
| Internal Wire (black) 110l Den,fin | ||||
| *32 | 337117 | 1.20 | 1.45 | |
| Internal wiring red 140L | ||||
| *36 | 324499 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| *42 | 335788 | |||
| WIRING ASS'Y (OLD 337135) | ||||
| *43A | 371193 | 67.24 | 81.36 | |
| No information available, not orderable | ||||
| *43B | 371192 | |||
| Special Screw (left Hand) M6x23 | ||||
| 1 | 311959 | 1.50 | 1.82 | |
| No information available, not orderable | ||||
| 2 | 336852 | |||
| Gear Box Ass'y Includ.4-28 | ||||
| 3 | 337120 | 52.11 | 63.06 | |
| Clutch Dial | ||||
| 4 | 337130 | 5.55 | 6.72 | |
| Click Spring | ||||
| 5 | 337129 | 1.95 | 2.36 | |
| Nut (1) | ||||
| 6 | 337222 | 1.04 | 1.26 | |
| Spring | ||||
| 7 | 337124 | 1.95 | 2.36 | |
| Washer (d) | ||||
| 8 | 312714 | 1.95 | 2.36 | |
| Front Case | ||||
| 9 | 337121 | 19.94 | 24.12 | |
| Roller Set (6 Pcs.) | ||||
| 10 | 337123 | 1.95 | 2.36 | |
| Steel Ball D5 | ||||
| 11 | 306936 | 1.05 | 1.27 | |
| Lock Ring | ||||
| 12 | 337125 | 4.05 | 4.90 | |
| Ring Gear | ||||
| 13 | 312715 | 3.60 | 4.36 | |
| Needle Roller (a) Set (6 Pcs.) | ||||
| 14 | 330806 | 6.75 | 8.17 | |
| Carrier | ||||
| 15 | 337126 | 4.20 | 5.08 | |
| Planet Gear (c) Set (3 Pcs.) | ||||
| 16 | 312705 | 2.40 | 2.90 | |
| Washer (a) | ||||
| 17 | 312704 | 1.95 | 2.36 | |
| Rear Case | ||||
| 18 | 335959 | 1.50 | 1.82 | |
| Phillips head screws D3X12 (4 pieces) | ||||
| 19 | 324357 | 1.65 | 2.00 | |
| Shift Arm | ||||
| 20 | 332017 | 1.73 | 2.09 | |
| Slide Ring Gear | ||||
| 21 | 332013 | 3.38 | 4.08 | |
| Pinion (c) | ||||
| 22 | 337127 | 3.45 | 4.17 | |
| Planet Gear (b) Set (3 Pcs.) | ||||
| 23 | 315816 | 4.80 | 5.81 | |
| Pinion (b) | ||||
| 24 | 337128 | 3.45 | 4.17 | |
| Planet Gear (a) Set (3 Pcs.) | ||||
| 25 | 337122 | 2.10 | 2.54 | |
| First Ring Gear | ||||
| 26 | 332023 | 6.68 | 8.08 | |
| Washer (b) | ||||
| 27 | 312716 | 1.95 | 2.36 | |
| Intermediate Plate | ||||
| 28 | 312698 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 29 | 337115 | |||
| MOTOR DC 18V (OLD 324497) | ||||
| 29A | 371191 | 23.79 | 28.78 | |
| Machine Screw (w/sp. Washer) M4x6 | ||||
| 30 | 317333 | 1.50 | 1.82 | |
| Internal Wire (black) 110l Den,fin | ||||
| 32 | 337117 | 1.20 | 1.45 | |
| Housing (a).(b) Set | ||||
| 33 | 336851 | 10.20 | 12.34 | |
| Housing (a).(b) Set | ||||
| 33B | 336851 | 10.20 | 12.34 | |
| Shift Knob | ||||
| 34 | 336855 | 1.05 | 1.27 | |
| Lock Nut M4 (black) | ||||
| 35 | 327002 | 1.80 | 2.18 | |
| Pushing Button | ||||
| 37 | 336856 | 1.05 | 1.27 | |
| Switch Terminal Set For Fra,ita,isr,kor | ||||
| 38 | 336632 | 23.38 | 28.28 | |
| Holder | ||||
| 39 | 337137 | 1.04 | 1.26 | |
| Tapping Screw (w/flange) D3x16 (black) | ||||
| 40 | 313687 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 42 | 335788 | |||
| No information available, not orderable | ||||
| 43 | 337135 | |||
| No information available, not orderable | ||||
| 502 | 983006 | |||
| Battery Cover | ||||
| 503 | 329897 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 504 | 336642 | |||
| No information available, not orderable | ||||
| 505 | 336471 | |||
| No information available, not orderable | ||||
| 506 | 336473 | |||
| No information available, not orderable | ||||
| 507 | 336472 | |||
| No information available, not orderable | ||||
| 508 | 336474 | |||
| No information available, not orderable | ||||
| 509 | 336475 | |||
| No information available, not orderable | ||||
| 510 | 339778 | |||
| No information available, not orderable | ||||
| 601 | 955657 | |||
| No information available, not orderable | ||||
| 602 | 955659 | |||
| No information available, not orderable | ||||
| 603 | 955674 | |||
| No information available, not orderable | ||||
| 604 | 983004 | |||
| No information available, not orderable | ||||
| 605 | 983011 | |||
