Here you will find all available parts and drawings of the 'Hikoki DS18DGL'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

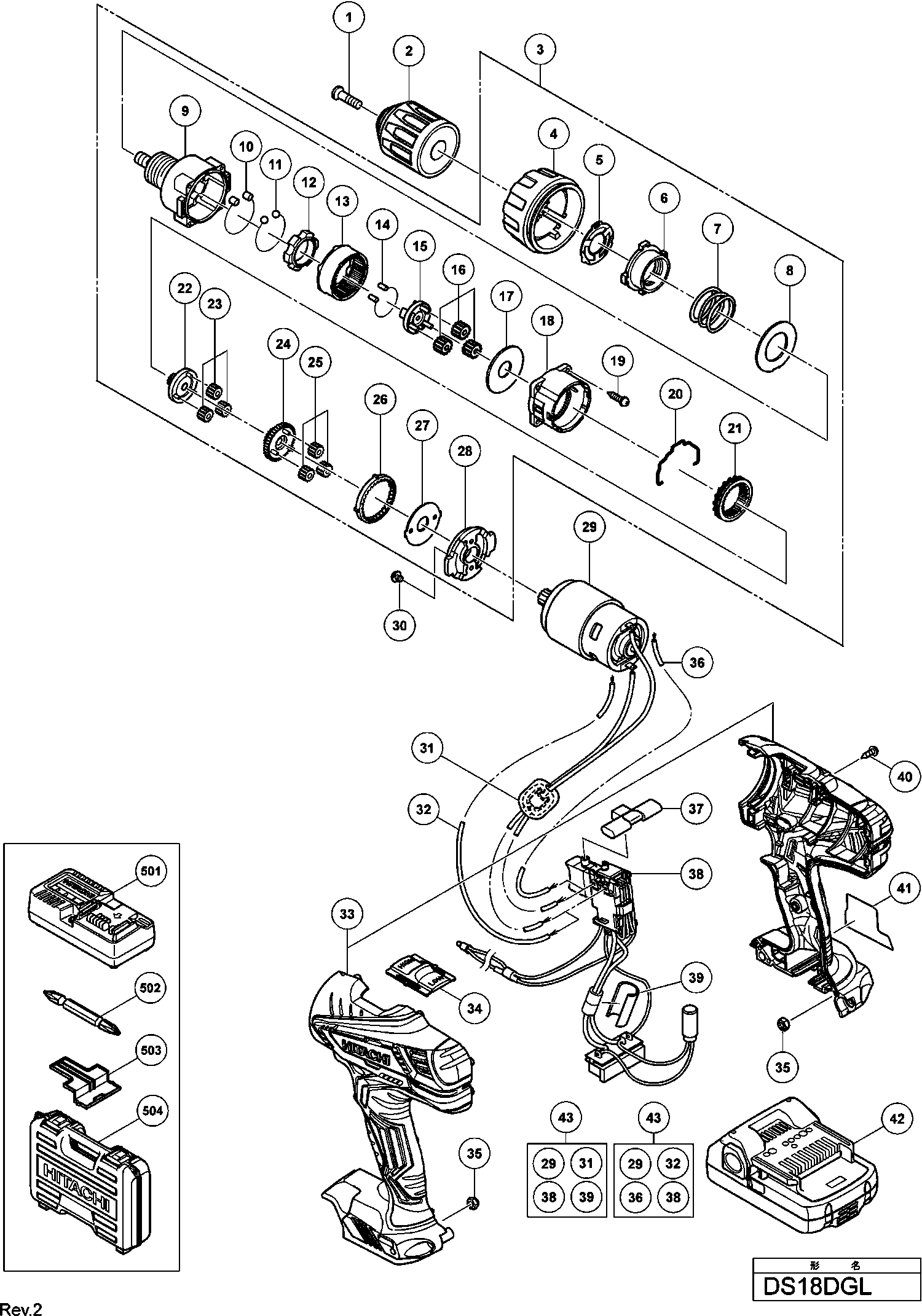

Technical drawing of model Hikoki DS18DGL
Spare parts list of model Hikoki DS18DGL
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Lock Ring | ||||
| *12 | 330805 | 14.03 | 16.97 | |
| Ring Gear | ||||
| *13 | 332027 | 5.03 | 6.08 | |
| Carrier | ||||
| *15 | 330807 | 9.75 | 11.80 | |
| Planet Gear (c) Set (3 Pcs.) | ||||
| *16 | 332028 | 3.38 | 4.08 | |
| Washer (a) | ||||
| *17 | 324349 | 3.30 | 3.99 | |
| Gear Housing | ||||
| *18 | 324501 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| *2 | 336859 | |||
| Shift Arm | ||||
| *20 | 324115 | 3.30 | 3.99 | |
| Slide Ring Gear | ||||
| *21 | 332030 | 6.68 | 8.08 | |
| Pinion (c) | ||||
| *22 | 332029 | 3.38 | 4.08 | |
| Planet Gear (b) Set (3 Pcs.) | ||||
| *23 | 332031 | 1.73 | 2.09 | |
| Pinion (b) | ||||
| *24 | 332032 | 3.38 | 4.08 | |
| Planet Gear (a) Set (3 Pcs.) | ||||
| *25 | 332034 | 3.38 | 4.08 | |
| First Ring Gear | ||||
| *26 | 332033 | 3.38 | 4.08 | |
| Washer (b) | ||||
| *27 | 324355 | 3.30 | 3.99 | |
| Motor Spacer | ||||
| *28 | 332035 | 1.73 | 2.09 | |
| No information available, not orderable | ||||
| *3 | 336853 | |||
| Housing (a).(b) Set | ||||
| *33B | 336851 | 10.20 | 12.34 | |
| No information available, not orderable | ||||
| *4 | 336854 | |||
| No information available, not orderable | ||||
| *42 | 333353M | |||
| Click Spring | ||||
| *5 | 332741 | 8.33 | 10.07 | |
| Nut | ||||
| *6 | 324109 | 3.30 | 3.99 | |
| Spring | ||||
| *7 | 324110 | 3.30 | 3.99 | |
| Washer (d) | ||||
| *8 | 324347 | 3.30 | 3.99 | |
| Front Case | ||||
| *9 | 330802 | 42.76 | 51.74 | |
| Special Screw (left Hand) M6x23 | ||||
| 1 | 311959 | 1.50 | 1.82 | |
| No information available, not orderable | ||||
| 2 | 336859 | |||
| No information available, not orderable | ||||
| 3 | 336853 | |||
| No information available, not orderable | ||||
| 4 | 336854 | |||
| Click Spring | ||||
| 5 | 332741 | 8.33 | 10.07 | |
| Nut | ||||
| 6 | 324109 | 3.30 | 3.99 | |
| Spring | ||||
| 7 | 324110 | 3.30 | 3.99 | |
| Washer (d) | ||||
| 8 | 324347 | 3.30 | 3.99 | |
| Front Case | ||||
| 9 | 330802 | 42.76 | 51.74 | |
| Roller Set | ||||
| 10 | 330803 | 6.75 | 8.17 | |
| Steel Ball D5 | ||||
| 11 | 306936 | 1.05 | 1.27 | |
| Lock Ring | ||||
| 12 | 330805 | 14.03 | 16.97 | |
| Ring Gear | ||||
| 13 | 332027 | 5.03 | 6.08 | |
| Needle Roller (a) Set (6 Pcs.) | ||||
| 14 | 330806 | 6.75 | 8.17 | |
| Carrier | ||||
| 15 | 330807 | 9.75 | 11.80 | |
| Planet Gear (c) Set (3 Pcs.) | ||||
| 16 | 332028 | 3.38 | 4.08 | |
| Washer (a) | ||||
| 17 | 324349 | 3.30 | 3.99 | |
| Gear Housing | ||||
| 18 | 324501 | 4.80 | 5.81 | |
| Phillips head screws D3X12 (4 pieces) | ||||
| 19 | 324357 | 1.65 | 2.00 | |
| Shift Arm | ||||
| 20 | 324115 | 3.30 | 3.99 | |
| Slide Ring Gear | ||||
| 21 | 332030 | 6.68 | 8.08 | |
| Pinion (c) | ||||
| 22 | 332029 | 3.38 | 4.08 | |
| Planet Gear (b) Set (3 Pcs.) | ||||
| 23 | 332031 | 1.73 | 2.09 | |
| Pinion (b) | ||||
| 24 | 332032 | 3.38 | 4.08 | |
| Planet Gear (a) Set (3 Pcs.) | ||||
| 25 | 332034 | 3.38 | 4.08 | |
| First Ring Gear | ||||
| 26 | 332033 | 3.38 | 4.08 | |
| Washer (b) | ||||
| 27 | 324355 | 3.30 | 3.99 | |
| Motor Spacer | ||||
| 28 | 332035 | 1.73 | 2.09 | |
| MOTOR DC 18V (OLD 324497) | ||||
| 29A | 371191 | 23.79 | 28.78 | |
| Machine Screw (w/sp. Washer) M4x6 | ||||
| 30 | 317333 | 1.50 | 1.82 | |
| Housing (a).(b) Set | ||||
| 33 | 336851 | 10.20 | 12.34 | |
| Shift Knob | ||||
| 34 | 336855 | 1.05 | 1.27 | |
| Lock Nut M4 (black) | ||||
| 35 | 327002 | 1.80 | 2.18 | |
| Pushing Button | ||||
| 37 | 336856 | 1.05 | 1.27 | |
| Switch Terminal Set For Fra,ita,isr,kor | ||||
| 38 | 336632 | 23.38 | 28.28 | |
| Holder | ||||
| 39 | 337137 | 1.04 | 1.26 | |
| Tapping Screw (w/flange) D3x16 (black) | ||||
| 40 | 313687 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 42 | 333353 | |||
| No information available, not orderable | ||||
| 43A | 371192 | |||
| No information available, not orderable | ||||
| 43B | 371192 | |||
| No information available, not orderable | ||||
| 502 | 983006 | |||
| Battery Cover | ||||
| 503 | 329897 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 504 | 336642 | |||
| No information available, not orderable | ||||
| 601 | 955657 | |||
| No information available, not orderable | ||||
| 602 | 955659 | |||
| No information available, not orderable | ||||
| 603 | 955674 | |||
| No information available, not orderable | ||||
| 604 | 983004 | |||
| No information available, not orderable | ||||
| 605 | 983011 | |||
| Hook Set | ||||
| 606 | 337131 | 3.75 | 4.54 | |
| Strap (black) | ||||
| 607 | 306952 | 4.05 | 4.90 | |
