Here you will find all available parts and drawings of the 'Hikoki DS18DFL'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

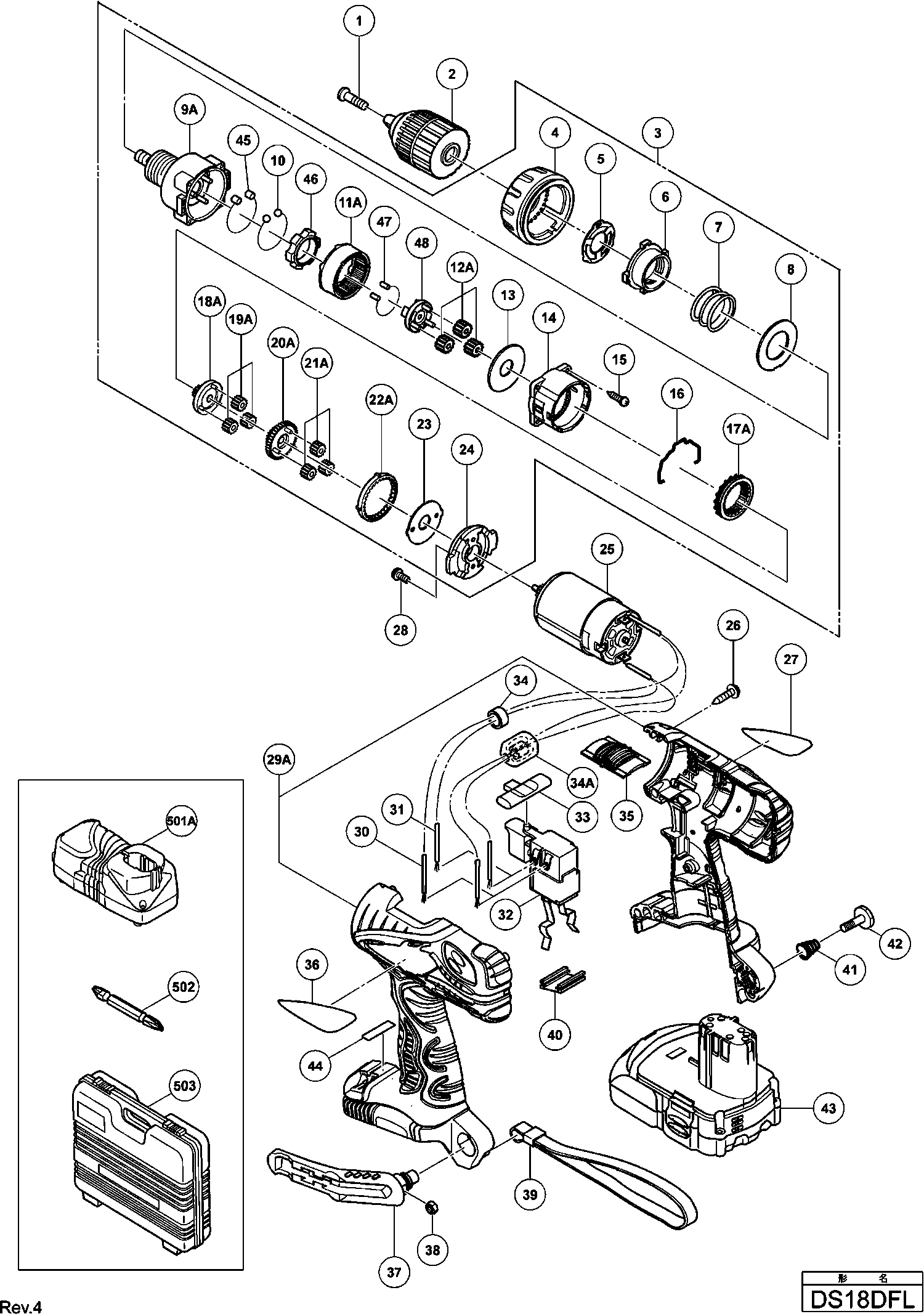

Technical drawing of model Hikoki DS18DFL
Spare parts list of model Hikoki DS18DFL
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| *2 | 330733 | |||
| Housing (a).(b) Set | ||||
| *29A | 324496 | 20.90 | 25.29 | |
| Gear Box Ass'y Chuck Model | ||||
| *3 | 330801 | 76.04 | 92.01 | |
| Clutch Dial | ||||
| *4 | 330804 | 14.70 | 17.79 | |
| Front Case | ||||
| *9 | 330802 | 42.76 | 51.74 | |
| Special Screw (left Hand) M6x23 | ||||
| 1 | 311959 | 1.50 | 1.82 | |
| No information available, not orderable | ||||
| 2 | 330733 | |||
| Gear Box Ass'y Chuck Model | ||||
| 3 | 330801 | 76.04 | 92.01 | |
| GEAR BOX ASSEMBLY (OLD 324490) | ||||
| 3A | 375873 | 22.41 | 27.12 | |
| Clutch Dial | ||||
| 4 | 330804 | 14.70 | 17.79 | |
| Clutch Dial | ||||
| 4 | 324114 | 6.45 | 7.80 | |
| Spring Plate | ||||
| 5 | 324108 | 4.80 | 5.81 | |
| Nut | ||||
| 6 | 324109 | 3.30 | 3.99 | |
| Spring | ||||
| 7 | 324110 | 3.30 | 3.99 | |
| Washer (d) | ||||
| 8 | 324347 | 3.30 | 3.99 | |
| Front Case | ||||
| 9 | 330802 | 42.76 | 51.74 | |
| Front Case | ||||
| 9A | 333314 | 16.78 | 20.30 | |
| Steel Ball D5 | ||||
| 10 | 306936 | 1.05 | 1.27 | |
| Ring Gear | ||||
| 11A | 332027 | 5.03 | 6.08 | |
| Planet Gear (c) Set (3 Pcs.) | ||||
| 12A | 332028 | 3.38 | 4.08 | |
| Washer (a) | ||||
| 13 | 324349 | 3.30 | 3.99 | |
| Gear Housing | ||||
| 14 | 324501 | 4.80 | 5.81 | |
| Phillips head screws D3X12 (4 pieces) | ||||
| 15 | 324357 | 1.65 | 2.00 | |
| Shift Arm | ||||
| 16 | 324115 | 3.30 | 3.99 | |
| Slide Ring Gear | ||||
| 17A | 332030 | 6.68 | 8.08 | |
| Pinion (c) | ||||
| 18A | 332029 | 3.38 | 4.08 | |
| Planet Gear (b) Set (3 Pcs.) | ||||
| 19A | 332031 | 1.73 | 2.09 | |
| Pinion (b) | ||||
| 20A | 332032 | 3.38 | 4.08 | |
| Planet Gear (a) Set (3 Pcs.) | ||||
| 21A | 332034 | 3.38 | 4.08 | |
| First Ring Gear | ||||
| 22A | 332033 | 3.38 | 4.08 | |
| Washer (b) | ||||
| 23 | 324355 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 24 | 324495 | |||
| Motor Spacer | ||||
| 24A | 332035 | 1.73 | 2.09 | |
| No information available, not orderable | ||||
| 25 | 324497 | |||
| MOTOR DC 18V (OLD 324497) | ||||
| 25A | 371191 | 23.79 | 28.78 | |
| Tapping Screw (w/flange) D3x16 (black) | ||||
| 26 | 313687 | 1.04 | 1.26 | |
| Machine Screw (w/sp. Washer) M4x6 | ||||
| 28 | 317333 | 1.50 | 1.82 | |
| Housing (a).(b) Set | ||||
| 29A | 324496 | 20.90 | 25.29 | |
| Internal Wire (black) 100l Except For Europe(till | ||||
| 30 | 319759 | 1.05 | 1.27 | |
| Internal wiring red 140L | ||||
| 31 | 324499 | 1.05 | 1.27 | |
| Dc-speed Control Switch Till 12.2007 | ||||
| 32 | 324498 | 25.30 | 30.61 | |
| Pushing Button Till 12.2007 | ||||
| 33 | 324117 | 1.05 | 1.27 | |
| Ferrite Core | ||||
| 34 | 323229 | 1.35 | 1.63 | |
| INTERNAL WIRE FERRITE SET | ||||
| 34A | 334856 | 3.15 | 3.81 | |
| Shift Knob | ||||
| 35 | 324116 | 1.05 | 1.27 | |
| Hook | ||||
| 37 | 320287 | 4.80 | 5.81 | |
| Nut M5 | ||||
| 38 | 320288 | 1.65 | 2.00 | |
| Strap (black) | ||||
| 39 | 306952 | 4.05 | 4.90 | |
| Holder | ||||
| 40 | 315141 | 1.20 | 1.45 | |
| Hook Spring | ||||
| 41 | 319926 | 1.65 | 2.00 | |
| Special Screw (a) M5 | ||||
| 42 | 320881 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 43 | 327731 | |||
| Roller Set | ||||
| 45 | 330803 | 6.75 | 8.17 | |
| Lock Ring | ||||
| 46 | 330805 | 14.03 | 16.97 | |
| Needle Roller (a) Set (6 Pcs.) | ||||
| 47 | 330806 | 6.75 | 8.17 | |
| Carrier | ||||
| 48 | 330807 | 9.75 | 11.80 | |
| No information available, not orderable | ||||
| 502 | 983006 | |||
| No information available, not orderable | ||||
| 503 | 327727 | |||
