Here you will find all available parts and drawings of the 'Hikoki DS18DBSL'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

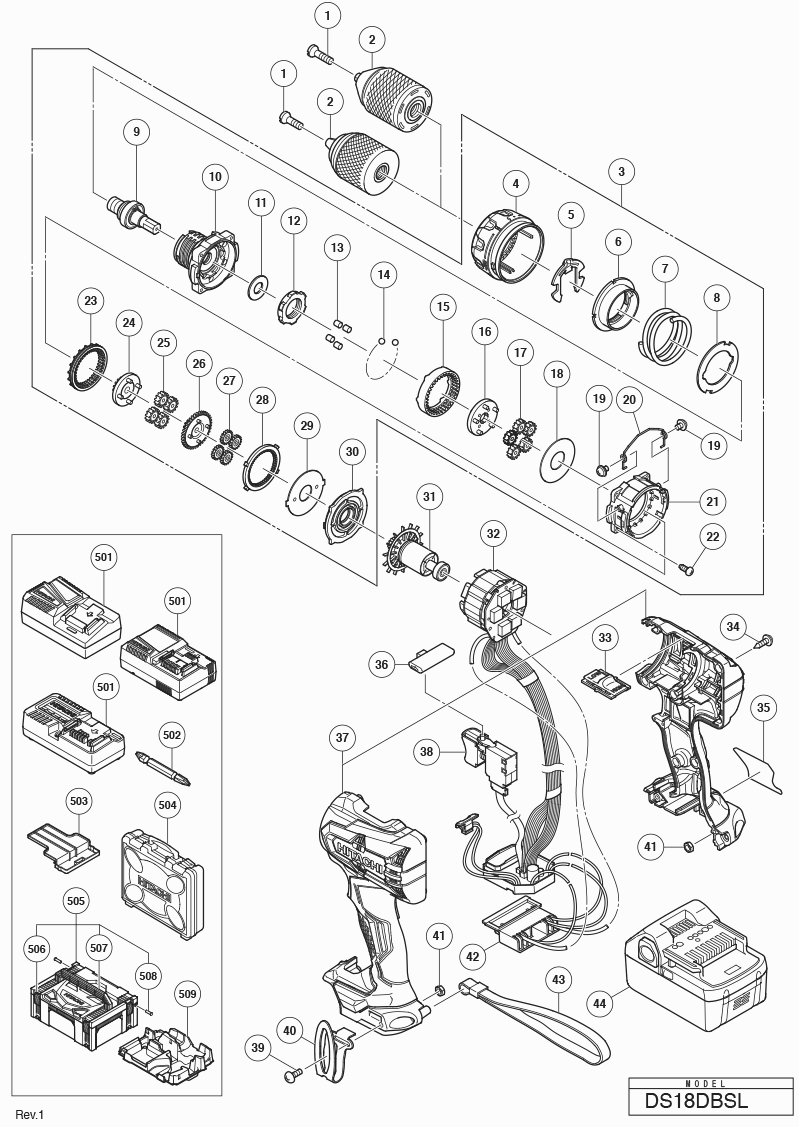

Technical drawing of model Hikoki DS18DBSL
Spare parts list of model Hikoki DS18DBSL
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| *44 | 371308 | |||
| No information available, not orderable | ||||
| *504 | 337852 | |||
| SEAL LOCK FLAT HD. SCREW M6X20.5 (LEFT HAND) | ||||
| 1 | 370908 | 1.04 | 1.26 | |
| Chuck | ||||
| 2 | 370897 | 36.00 | 43.56 | |
| Gear Box Ass'y Includ.4-30 | ||||
| 3 | 370592 | 63.11 | 76.37 | |
| Clutch Dial (a) | ||||
| 4 | 370610 | 11.25 | 13.61 | |
| Click Spring | ||||
| 5 | 327146 | 1.65 | 2.00 | |
| Nut (1) | ||||
| 6 | 370602 | 1.20 | 1.45 | |
| Spring | ||||
| 7 | 370607 | 3.60 | 4.36 | |
| Thrust Plate | ||||
| 8 | 370603 | 2.25 | 2.72 | |
| Spindle (1) | ||||
| 9 | 370596 | 14.30 | 17.30 | |
| Front Case | ||||
| 10 | 370594 | 2.85 | 3.45 | |
| Washer (b) | ||||
| 11 | 328717 | 1.80 | 2.18 | |
| Lock Ring | ||||
| 12 | 370609 | 5.40 | 6.53 | |
| Roller | ||||
| 13 | 319744 | 1.65 | 2.00 | |
| Steel Ball D5 | ||||
| 14 | 306936 | 1.05 | 1.27 | |
| Ring Gear | ||||
| 15 | 370606 | 2.10 | 2.54 | |
| Carrier | ||||
| 16 | 370600 | 3.90 | 4.72 | |
| Planet Gear (c) Set (5 Pcs.) | ||||
| 17 | 370616 | 3.00 | 3.63 | |
| Washer (a) | ||||
| 18 | 331892 | 1.73 | 2.09 | |
| Screw Set D2 (2 Pcs.) | ||||
| 19 | 331895 | 1.73 | 2.09 | |
| Shift Arm | ||||
| 20 | 370608 | 1.20 | 1.45 | |
| Shift Arm | ||||
| 20A | 370608 | 1.20 | 1.45 | |
| Rear Case | ||||
| 21 | 370601 | 1.80 | 2.18 | |
| Phillips head screws D3X12 (4 pieces) | ||||
| 22 | 324357 | 1.65 | 2.00 | |
| Slide Ring Gear | ||||
| 23 | 370605 | 3.75 | 4.54 | |
| Pinion (c) | ||||
| 24 | 370599 | 3.75 | 4.54 | |
| Planet Gear (b) Set (4 Pcs.) | ||||
| 25 | 370615 | 1.95 | 2.36 | |
| Pinion (b) | ||||
| 26 | 370598 | 3.00 | 3.63 | |
| Planet Gear (a) Set (4 Pcs.) | ||||
| 27 | 370614 | 1.95 | 2.36 | |
| First Ring Gear | ||||
| 28 | 370604 | 1.80 | 2.18 | |
| Washer (b) | ||||
| 29 | 339761 | 1.04 | 1.26 | |
| Motor Spacer | ||||
| 30 | 339762 | 1.50 | 1.82 | |
| Rotor Pinion Set Includ.50 | ||||
| 31 | 361048 | 46.20 | 55.90 | |
| Rotor Pinion Set Includ.50 | ||||
| 31A | 361048 | 46.20 | 55.90 | |
| Wiring Ass'y Includ.43,47 | ||||
| 32 | 370619 | 131.45 | 159.05 | |
| Shift Knob | ||||
| 33 | 330583 | 1.20 | 1.45 | |
| Tapping Screw (w/flange) D3x16 (black) | ||||
| 34 | 313687 | 1.04 | 1.26 | |
| Pushing Button | ||||
| 36 | 339768 | 1.04 | 1.26 | |
| Housing (a).(b) Set | ||||
| 37 | 370618 | 14.58 | 17.64 | |
| Housing (a).(b) Set | ||||
| 37B | 370618 | 14.58 | 17.64 | |
| Switch | ||||
| 38 | 370151 | 18.98 | 22.96 | |
| Truss Hd. Screw M4 (black) | ||||
| 39 | 327001 | 1.80 | 2.18 | |
| Hook | ||||
| 40 | 332824 | 4.58 | 5.54 | |
| HOOK | ||||
| 40A | 372229 | 2.85 | 3.45 | |
| Lock Nut M4 (black) | ||||
| 41 | 327002 | 1.80 | 2.18 | |
| Battery Terminal | ||||
| 42 | 339769 | 3.00 | 3.63 | |
| Strap (black) | ||||
| 43 | 306952 | 4.05 | 4.90 | |
| No information available, not orderable | ||||
| 44 | 371308 | |||
| No information available, not orderable | ||||
| 50 | 373529 | |||
| Motor Pinion (Old 373529) | ||||
| 50A | 376019 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 502 | 983006 | |||
| Battery Cover | ||||
| 503 | 329897 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 504 | 337852 | |||
| No information available, not orderable | ||||
| 505 | 336471 | |||
| No information available, not orderable | ||||
| 506 | 336472 | |||
| No information available, not orderable | ||||
| 507 | 336473 | |||
| No information available, not orderable | ||||
| 508 | 336474 | |||
| No information available, not orderable | ||||
| 509 | 336475 | |||
| No information available, not orderable | ||||
| 601 | 955657 | |||
| No information available, not orderable | ||||
| 602 | 955659 | |||
| No information available, not orderable | ||||
| 603 | 955674 | |||
| No information available, not orderable | ||||
| 604 | 983004 | |||
| No information available, not orderable | ||||
| 605 | 983011 | |||
