Here you will find all available parts and drawings of the 'Hikoki DS18DBL'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

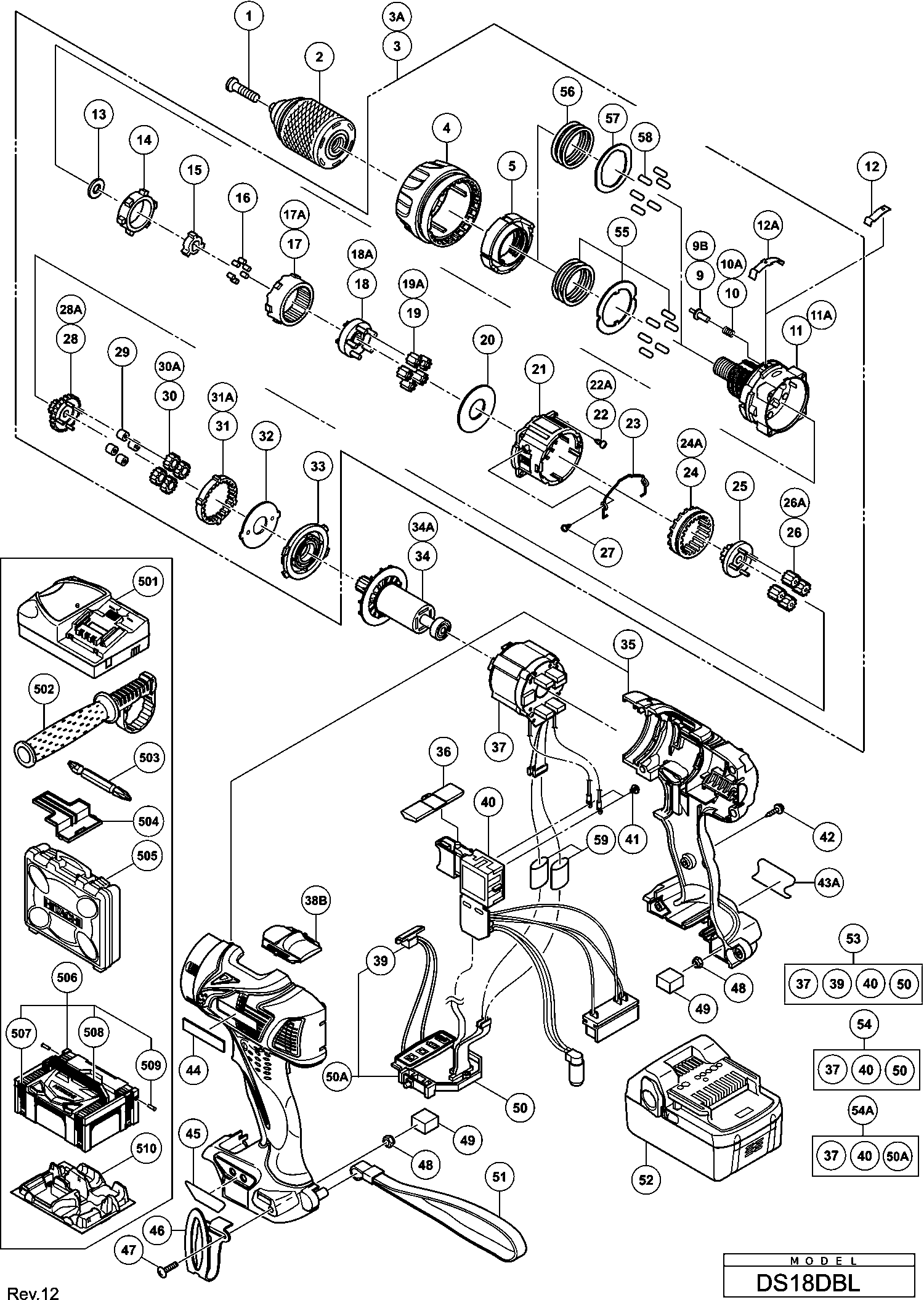

Technical drawing of model Hikoki DS18DBL
Spare parts list of model Hikoki DS18DBL
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Special Screw (left Hand) M6x23 | ||||
| 1 | 311959 | 1.50 | 1.82 | |
| No information available, not orderable | ||||
| 2 | 331914 | |||
| Gear Box Ass'y Includ.4-11,13-33,55 Till 6.2012 | ||||
| 3 | 331709 | 117.78 | 142.51 | |
| Gear Box Ass'y Includ.4-33,56-58 Since 7.2012 | ||||
| 3A | 334974 | 103.81 | 125.61 | |
| Front Cap | ||||
| 4 | 331880 | 17.40 | 21.05 | |
| Nut | ||||
| 5 | 331881 | 1.73 | 2.09 | |
| Locking Ring | ||||
| 9 | 331885 | 5.03 | 6.08 | |
| Stopper (a) | ||||
| 9B | 335296 | 1.80 | 2.18 | |
| Spring | ||||
| 10 | 331886 | 1.73 | 2.09 | |
| Spring | ||||
| 10A | 333523 | 1.80 | 2.18 | |
| Front Case | ||||
| 11 | 331887 | 22.90 | 27.71 | |
| Front Case | ||||
| 11A | 334434 | 73.29 | 88.68 | |
| Click Spring | ||||
| 12 | 331905 | 1.73 | 2.09 | |
| Click Spring | ||||
| 12A | 333516 | 1.80 | 2.18 | |
| Washer (a) | ||||
| 13 | 331909 | 1.73 | 2.09 | |
| Lock Ring | ||||
| 14 | 331903 | 7.35 | 8.89 | |
| Lock Cam | ||||
| 15 | 331904 | 1.73 | 2.09 | |
| Needle Roller Set (6pcs.) | ||||
| 16 | 331888 | 1.73 | 2.09 | |
| Ring Gear | ||||
| 17 | 331889 | 6.68 | 8.08 | |
| Ring Gear | ||||
| 17A | 333519 | 8.10 | 9.80 | |
| Carrier | ||||
| 18 | 331890 | 6.75 | 8.17 | |
| Carrier | ||||
| 18A | 333517 | 5.10 | 6.17 | |
| Gear Set (C) (5 Pieces) | ||||
| 19 | 331891 | 3.45 | 4.17 | |
| Planet Gear (c) Set (5 Pcs.) | ||||
| 19A | 333518 | 3.45 | 4.17 | |
| Washer (a) | ||||
| 20 | 331892 | 1.73 | 2.09 | |
| Gear Cover | ||||
| 21 | 331893 | 3.45 | 4.17 | |
| Screw Set D3x12 (6 Pcs.) | ||||
| 22 | 315817 | 6.45 | 7.80 | |
| Screw Set M3x12 (4 Pieces) | ||||
| 22A | 320087 | 5.10 | 6.17 | |
| Shift Arm | ||||
| 23 | 331894 | 1.73 | 2.09 | |
| Slide Ring Gear | ||||
| 24 | 331896 | 5.03 | 6.08 | |
| Slide Ring Gear | ||||
| 24A | 333521 | 5.10 | 6.17 | |
| Pinion (c) | ||||
| 25 | 331897 | 6.68 | 8.08 | |
| Gear Set (B) (4 Pieces) | ||||
| 26 | 331898 | 3.45 | 4.17 | |
| Planet Gear (b) Set (4 Pcs.) | ||||
| 26A | 333520 | 3.45 | 4.17 | |
| Screw Set D2x3.5 (2 Pcs.) | ||||
| 27 | 330579 | 1.88 | 2.27 | |
| Pinion (b) | ||||
| 28 | 331899 | 5.03 | 6.08 | |
| Pinion (b) | ||||
| 28A | 333524 | 3.45 | 4.17 | |
| Needle Bearing Set (4 Pcs.) | ||||
| 29 | 331926 | 8.03 | 9.71 | |
| Gear Set (A) (4 Pieces) | ||||
| 30 | 331900 | 13.95 | 16.88 | |
| Planet Gear (a) Set (4 Pcs.) | ||||
| 30A | 334441 | 6.75 | 8.17 | |
| First Ring Gear | ||||
| 31 | 331901 | 3.45 | 4.17 | |
| First Ring Gear | ||||
| 31A | 334435 | 5.10 | 6.17 | |
| Washer (b) | ||||
| 32 | 322988 | 1.50 | 1.82 | |
| Motor Spacer | ||||
| 33 | 331902 | 1.73 | 2.09 | |
| Bevel gear | ||||
| 34 | 331710 | 39.88 | 48.25 | |
| Bevel gear set | ||||
| 34A | 334975 | 104.23 | 126.11 | |
| Housing (a).(b) Set | ||||
| 35 | 331711 | 18.84 | 22.79 | |
| Pushing Button | ||||
| 36 | 331907 | 1.13 | 1.36 | |
| Field | ||||
| 37 | 340765 | 59.05 | 71.45 | |
| Switch Slide High/Low | ||||
| 38B | 334267 | 7.35 | 8.89 | |
| Led Holder | ||||
| 39 | 339280 | 4.65 | 5.63 | |
| Led Holder | ||||
| 39 | 331956 | 1.80 | 2.18 | |
| Switch | ||||
| 40 | 331715 | 14.93 | 18.06 | |
| Machine Screw (w/sp. Washer) M3x5 | ||||
| 41 | 994532 | 1.04 | 1.26 | |
| Tapping Screw (w/flange) D3x16 (black) | ||||
| 42 | 313687 | 1.04 | 1.26 | |
| Hitachi Plate | ||||
| 44 | 329648 | 1.88 | 2.27 | |
| Panel Sheet (b) | ||||
| 45 | 330662 | 3.45 | 4.17 | |
| Hook | ||||
| 46 | 332824 | 4.58 | 5.54 | |
| Truss Hd. Screw M4 (black) | ||||
| 47 | 327001 | 1.80 | 2.18 | |
| Lock Nut M4 (black) | ||||
| 48 | 327002 | 1.80 | 2.18 | |
| Gasket | ||||
| 48 | 330854 | 1.80 | 2.18 | |
| Gasket | ||||
| 49 | 330854 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 50 | 331717 | |||
| Controller | ||||
| 50A | 333689 | 39.19 | 47.42 | |
| Strap (black) | ||||
| 51 | 306952 | 4.05 | 4.90 | |
| No information available, not orderable | ||||
| 52 | 330068 | |||
| No information available, not orderable | ||||
| 53 | 331714 | |||
| Wiring Ass'y Includ.37,40,50 Till 6.2012 Except F | ||||
| 54 | 331713 | 116.19 | 140.59 | |
| Wiring Ass'y Includ.35,42,46,48 | ||||
| 54A | 333436 | 116.19 | 140.59 | |
| Clutch Parts Set (old 331882/83/84) | ||||
| 55 | 332546 | 11.10 | 13.43 | |
| Spring (a) | ||||
| 56 | 334432 | 3.45 | 4.17 | |
| Spring retaining ring | ||||
| 57 | 334433 | 3.45 | 4.17 | |
| Pin Set (6 Pcs.) | ||||
| 58 | 333539 | 8.10 | 9.80 | |
| Heat shrink tubing | ||||
| 59 | 336090 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 502 | 331906 | |||
| No information available, not orderable | ||||
| 503 | 983006 | |||
| Battery Cover | ||||
| 504 | 329897 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 505 | 323230 | |||
| No information available, not orderable | ||||
| 506 | 336471 | |||
| No information available, not orderable | ||||
| 507 | 336472 | |||
| No information available, not orderable | ||||
| 508 | 336473 | |||
| No information available, not orderable | ||||
| 509 | 336474 | |||
| No information available, not orderable | ||||
| 510 | 336475 | |||
| No information available, not orderable | ||||
| 601 | 310331 | |||
| No information available, not orderable | ||||
| 602 | 306927 | |||
