Here you will find all available parts and drawings of the 'Hikoki DS14DVF3'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

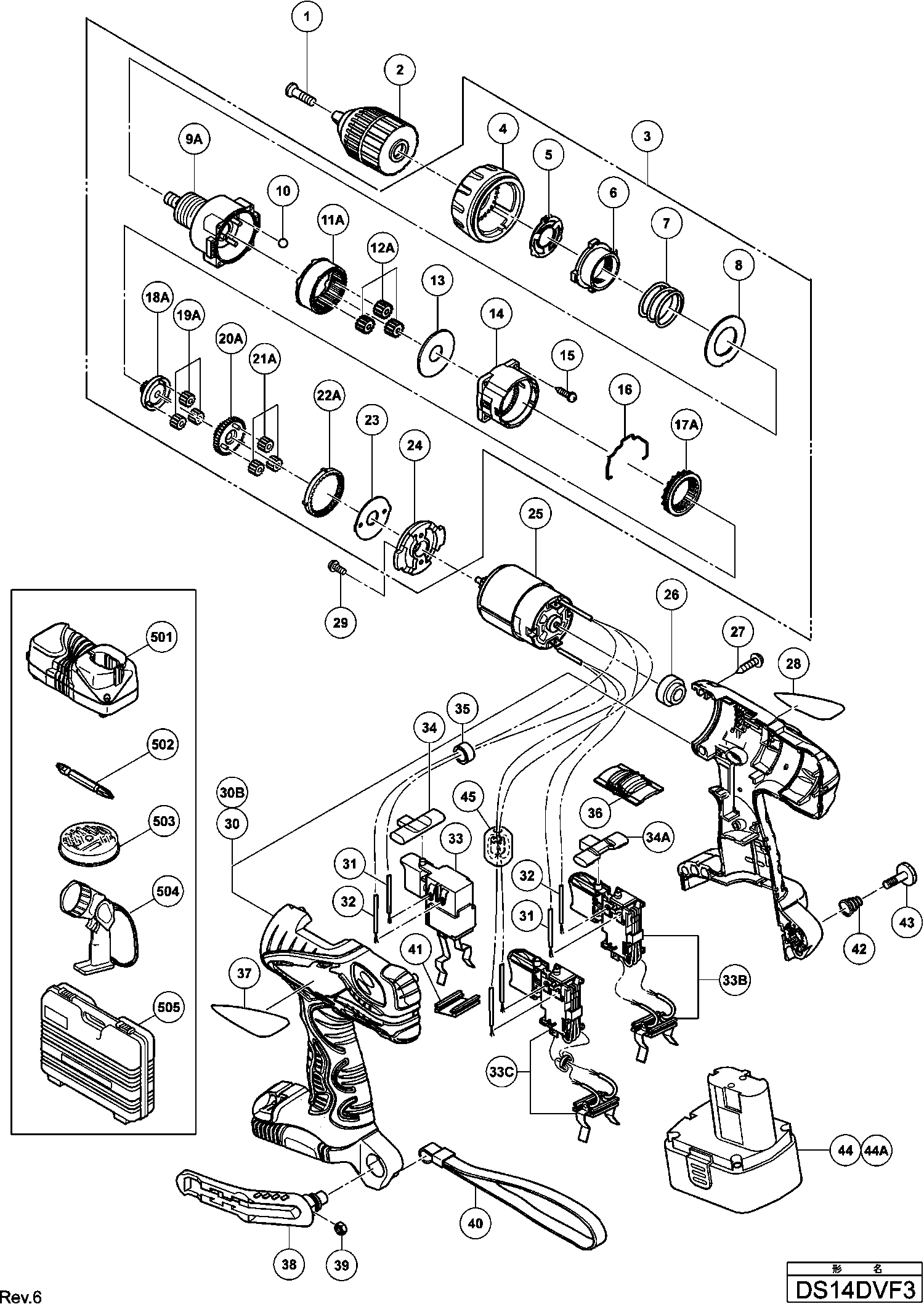

Technical drawing of model Hikoki DS14DVF3
Spare parts list of model Hikoki DS14DVF3
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| *44 | 322633 | |||
| Special Screw (left Hand) (b) M6x23 | ||||
| 1 | 324503 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 2 | 322167 | |||
| No information available, not orderable | ||||
| 3 | 324490 | |||
| Clutch Dial | ||||
| 4 | 324114 | 6.45 | 7.80 | |
| Spring Plate | ||||
| 5 | 324108 | 4.80 | 5.81 | |
| Nut | ||||
| 6 | 324109 | 3.30 | 3.99 | |
| Spring | ||||
| 7 | 324110 | 3.30 | 3.99 | |
| Washer (d) | ||||
| 8 | 324347 | 3.30 | 3.99 | |
| Front Case | ||||
| 9A | 333314 | 16.78 | 20.30 | |
| Steel Ball D5 | ||||
| 10 | 306936 | 1.05 | 1.27 | |
| Ring Gear | ||||
| 11A | 332027 | 5.03 | 6.08 | |
| Planet Gear (c) Set (3 Pcs.) | ||||
| 12A | 332028 | 3.38 | 4.08 | |
| Washer (a) | ||||
| 13 | 324349 | 3.30 | 3.99 | |
| Gear Housing | ||||
| 14 | 324501 | 4.80 | 5.81 | |
| Phillips head screws D3X12 (4 pieces) | ||||
| 15 | 324357 | 1.65 | 2.00 | |
| Shift Arm | ||||
| 16 | 324115 | 3.30 | 3.99 | |
| Slide Ring Gear | ||||
| 17A | 332030 | 6.68 | 8.08 | |
| Pinion (c) | ||||
| 18A | 332029 | 3.38 | 4.08 | |
| Planet Gear (b) Set (3 Pcs.) | ||||
| 19A | 332031 | 1.73 | 2.09 | |
| Pinion (b) | ||||
| 20A | 332032 | 3.38 | 4.08 | |
| Planet Gear (a) Set (3 Pcs.) | ||||
| 21A | 332034 | 3.38 | 4.08 | |
| First Ring Gear | ||||
| 22A | 332033 | 3.38 | 4.08 | |
| Washer (b) | ||||
| 23 | 324355 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 24 | 324495 | |||
| Motor | ||||
| 25 | 324483 | 24.75 | 29.95 | |
| Spacer (1) | ||||
| 26 | 324485 | 1.05 | 1.27 | |
| Tapping Screw (w/flange) D3x16 (black) | ||||
| 27 | 313687 | 1.04 | 1.26 | |
| Machine Screw (w/sp. Washer) M4x6 | ||||
| 29 | 317333 | 1.50 | 1.82 | |
| Housing (a).(b) Set | ||||
| 30 | 324482 | 20.90 | 25.29 | |
| No longer available, no replacement | ||||
| 30B | 329178 | |||
| Internal wire | ||||
| 31 | 324484 | 1.05 | 1.27 | |
| Internal wiring red 140L | ||||
| 32 | 324499 | 1.05 | 1.27 | |
| Dc-speed Control Switch Till 12.2007 | ||||
| 33 | 324498 | 25.30 | 30.61 | |
| No information available, not orderable | ||||
| 33B | 332807 | |||
| SW TERMINAL SET NEW | ||||
| 33C | 334887 | 32.31 | 39.10 | |
| Pushing Button Till 12.2007 | ||||
| 34 | 324117 | 1.05 | 1.27 | |
| Pushing Button Since 01.2008 | ||||
| 34A | 329181 | 1.05 | 1.27 | |
| Ferrite Core | ||||
| 35 | 323229 | 1.35 | 1.63 | |
| Shift Knob | ||||
| 36 | 324116 | 1.05 | 1.27 | |
| Hook | ||||
| 38 | 320287 | 4.80 | 5.81 | |
| Nut M5 | ||||
| 39 | 320288 | 1.65 | 2.00 | |
| Strap (black) | ||||
| 40 | 306952 | 4.05 | 4.90 | |
| Holder | ||||
| 41 | 315141 | 1.20 | 1.45 | |
| Hook Spring | ||||
| 42 | 319926 | 1.65 | 2.00 | |
| Special Screw (a) M5 | ||||
| 43 | 320881 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 44 | 322633 | |||
| No information available, not orderable | ||||
| 44A | 333159 | |||
| INTERNAL WIRE FERRITE SET | ||||
| 45 | 334864 | 7.35 | 8.89 | |
| No information available, not orderable | ||||
| 502 | 983006 | |||
| No information available, not orderable | ||||
| 505 | 324502 | |||
