Here you will find all available parts and drawings of the 'Hikoki DS14DSL'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

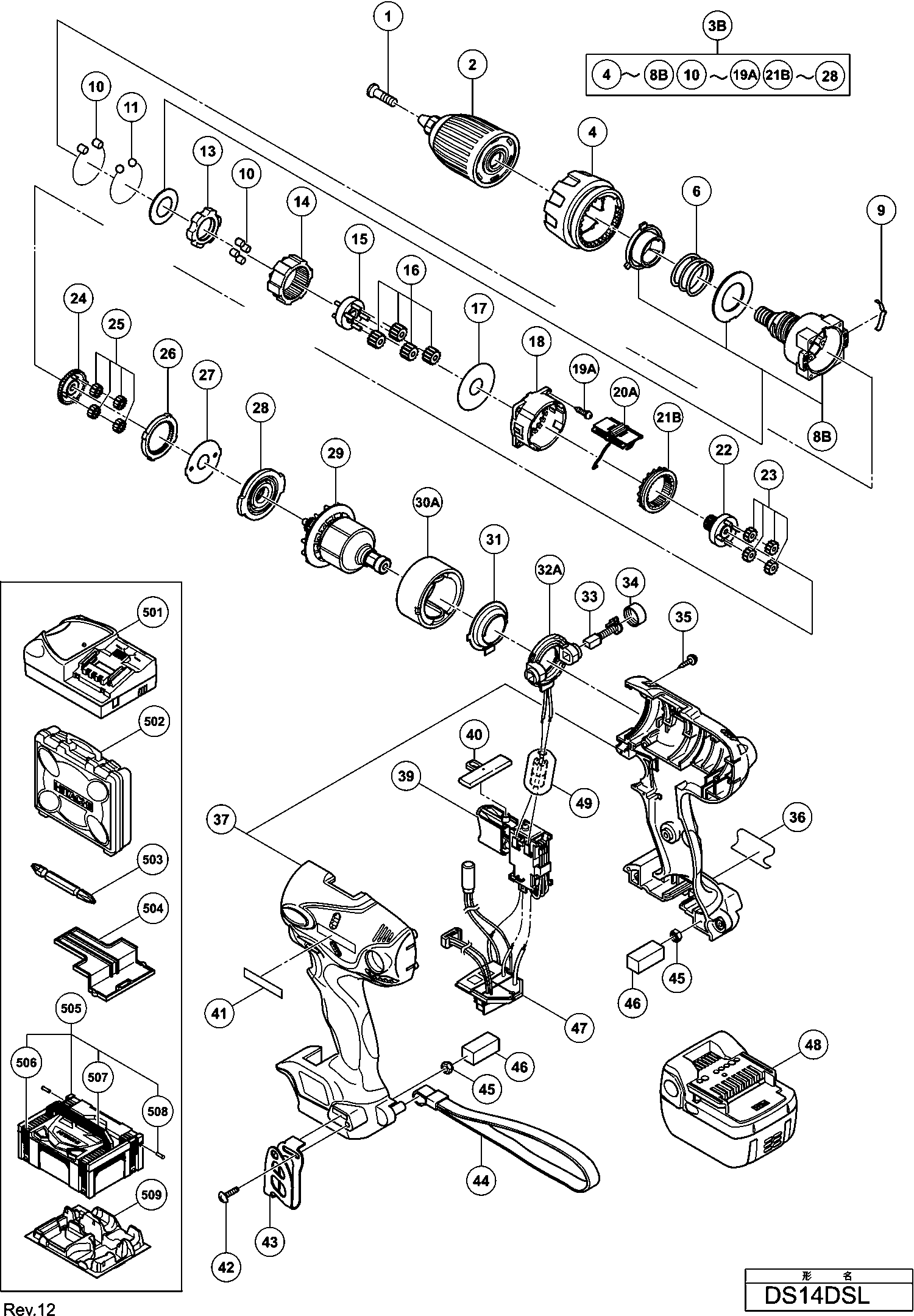

Technical drawing of model Hikoki DS14DSL
Spare parts list of model Hikoki DS14DSL
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Special Screw (left Hand) M6x23 | ||||
| 1 | 311959 | 1.50 | 1.82 | |
| No information available, not orderable | ||||
| 2 | 320684 | |||
| Drill chuck | ||||
| 2A | 752065 | 52.50 | 63.52 | |
| Complete Clutch Assembly (old 329086/330129) | ||||
| 3B | 331367 | 68.06 | 82.36 | |
| Clutch Dial | ||||
| 4 | 329089 | 8.10 | 9.80 | |
| Spring | ||||
| 6 | 320757 | 3.30 | 3.99 | |
| Front Case | ||||
| 8B | 331366 | 37.26 | 45.09 | |
| Spring Plate | ||||
| 9 | 320773 | 1.65 | 2.00 | |
| Roller | ||||
| 10 | 319744 | 1.65 | 2.00 | |
| Steel Ball D5 | ||||
| 11 | 306936 | 1.05 | 1.27 | |
| Lock Ring | ||||
| 13 | 328718 | 6.75 | 8.17 | |
| Ring Gear | ||||
| 14 | 328721 | 6.75 | 8.17 | |
| Drive Dog | ||||
| 15 | 328720 | 6.75 | 8.17 | |
| GEAR SET (C) (4 PIECES) | ||||
| 16 | 328722 | 3.45 | 4.17 | |
| No information available, not orderable | ||||
| 17 | 320762 | |||
| Gear Cover | ||||
| 18 | 320763 | 4.80 | 5.81 | |
| Phillips head screws D3X12 (4 pieces) | ||||
| 19A | 324357 | 1.65 | 2.00 | |
| Shift Knob | ||||
| 20A | 330747 | 4.20 | 5.08 | |
| Slide Ring Gear | ||||
| 21B | 331070 | 7.50 | 9.08 | |
| Pinion (c) | ||||
| 22 | 328724 | 5.10 | 6.17 | |
| Gear Set (B) (4 Pieces) | ||||
| 23 | 320781 | 3.30 | 3.99 | |
| Pinion (b) | ||||
| 24 | 328725 | 5.10 | 6.17 | |
| Gear Set (A) (4 Pieces) | ||||
| 25 | 328727 | 3.45 | 4.17 | |
| First Ring Gear | ||||
| 26 | 328726 | 3.45 | 4.17 | |
| Plate (a) | ||||
| 27 | 320768 | 1.65 | 2.00 | |
| Motor Spacer | ||||
| 28 | 320769 | 3.00 | 3.63 | |
| Armature | ||||
| 29 | 360820 | 32.31 | 39.10 | |
| Magnet (h) | ||||
| 30A | 334902 | 83.60 | 101.16 | |
| Shield | ||||
| 31 | 322521 | 1.35 | 1.63 | |
| No information available, not orderable | ||||
| 32 | 322993 | |||
| Brush Block Except For Europe,kor | ||||
| 32A | 338733 | 11.70 | 14.16 | |
| Carbon Brush 5x6x11.5 (1 Pair) | ||||
| 33 | 999054 | 6.45 | 7.80 | |
| Brush Cap | ||||
| 34 | 319918 | 3.30 | 3.99 | |
| Tapping Screw (w/flange) D3x16 (black) | ||||
| 35 | 313687 | 1.04 | 1.26 | |
| Housing (a).(b) Set | ||||
| 37 | 329084 | 24.06 | 29.12 | |
| Switch | ||||
| 39 | 329173 | 20.90 | 25.29 | |
| Pushing Button (a) | ||||
| 40 | 329454 | 1.05 | 1.27 | |
| Truss Hd. Screw M4 (black) | ||||
| 42 | 327001 | 1.80 | 2.18 | |
| No longer available, no replacement | ||||
| 43 | 326790 | |||
| Strap (black) | ||||
| 44 | 306952 | 4.05 | 4.90 | |
| Lock Nut M4 (black) | ||||
| 45 | 327002 | 1.80 | 2.18 | |
| Gasket | ||||
| 46 | 327004 | 1.80 | 2.18 | |
| Controller Terminal Set | ||||
| 47 | 328733 | 67.79 | 82.02 | |
| No information available, not orderable | ||||
| 48 | 329083 | |||
| Ferrite Support Set Since 3.2012 For Europe | ||||
| 49 | 334868 | 4.65 | 5.63 | |
| No information available, not orderable | ||||
| 502 | 328467 | |||
| No information available, not orderable | ||||
| 503 | 983006 | |||
| Battery Cover | ||||
| 504 | 329897 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 505 | 336471 | |||
| No information available, not orderable | ||||
| 506 | 336472 | |||
| No information available, not orderable | ||||
| 507 | 336473 | |||
| No information available, not orderable | ||||
| 508 | 336474 | |||
| No information available, not orderable | ||||
| 509 | 336475 | |||
| No information available, not orderable | ||||
| 601 | 955657 | |||
| No information available, not orderable | ||||
| 602 | 955659 | |||
| No information available, not orderable | ||||
| 603 | 955674 | |||
| No information available, not orderable | ||||
| 604 | 983004 | |||
| No information available, not orderable | ||||
| 605 | 983011 | |||
