Here you will find all available parts and drawings of the 'Hikoki DS14DSDL'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

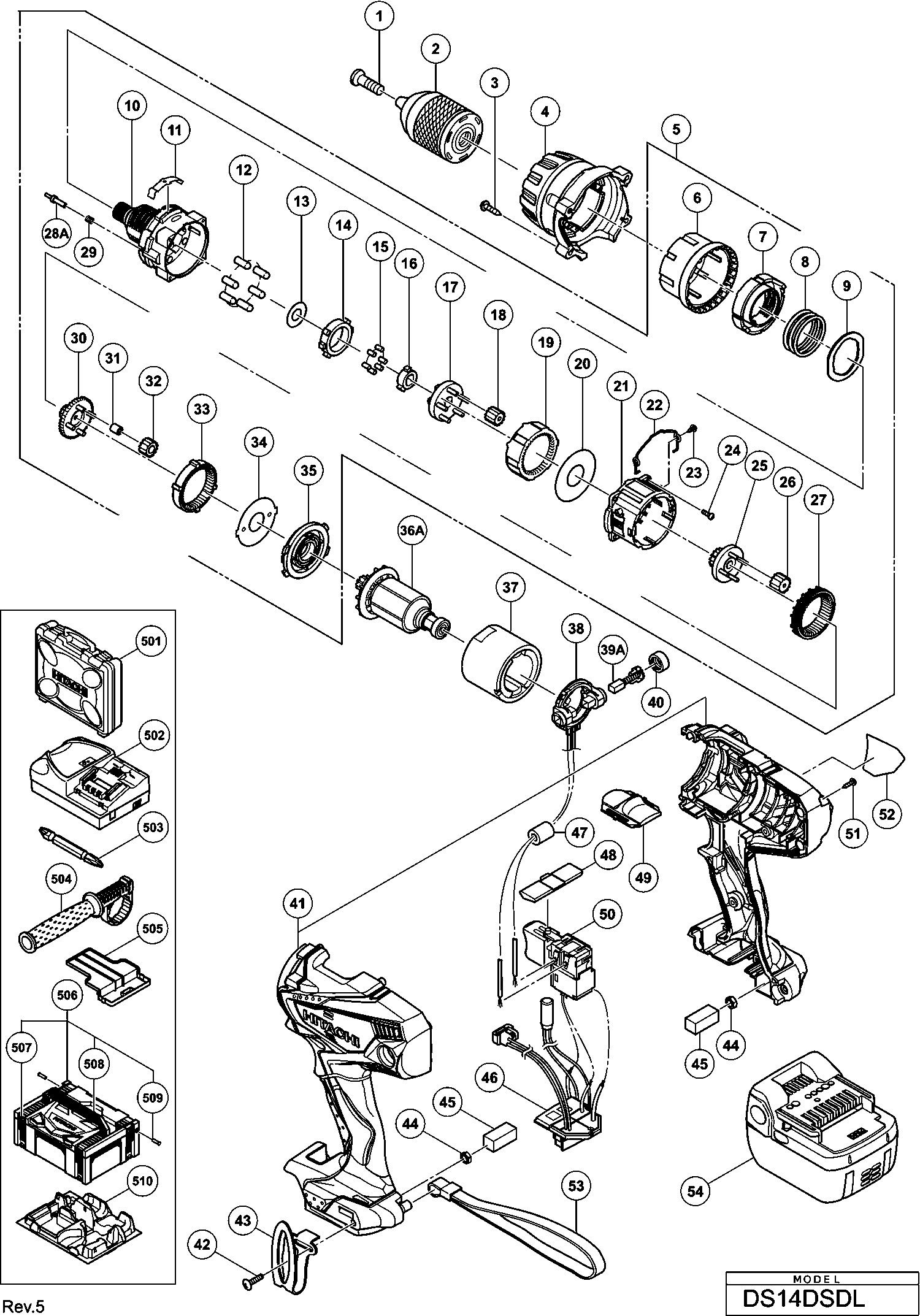

Technical drawing of model Hikoki DS14DSDL
Spare parts list of model Hikoki DS14DSDL
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| *54 | 334419 | |||
| No information available, not orderable | ||||
| 1 | 330588 | |||
| SPECIAL SCREW M6 (LEFT THREAD) | ||||
| 1A | 330094 | 1.05 | 1.27 | |
| Boorkop | ||||
| 2 | 752065 | 52.50 | 63.52 | |
| No information available, not orderable | ||||
| 2A | 370890 | |||
| No information available, not orderable | ||||
| 2B | 375222 | |||
| Tapping Screw (w/sp. Washer)d3x20(black) | ||||
| 3 | 334473 | 1.20 | 1.45 | |
| Cover (a) | ||||
| 4 | 334429 | 19.11 | 23.13 | |
| Gear Box Ass'y Includ.6-35 | ||||
| 5 | 334430 | 115.91 | 140.25 | |
| Dial Holder (a) | ||||
| 6 | 334431 | 9.00 | 10.89 | |
| Nut | ||||
| 7 | 331881 | 1.73 | 2.09 | |
| Spring (a) | ||||
| 8 | 334432 | 3.45 | 4.17 | |
| Spring retaining ring | ||||
| 9 | 334433 | 3.45 | 4.17 | |
| Front Case | ||||
| 10 | 334434 | 73.29 | 88.68 | |
| Click Spring | ||||
| 11 | 333516 | 1.80 | 2.18 | |
| Pin Set (6 Pcs.) | ||||
| 12 | 333539 | 8.10 | 9.80 | |
| Washer (a) | ||||
| 13 | 331909 | 1.73 | 2.09 | |
| Lock Ring | ||||
| 14 | 331903 | 7.35 | 8.89 | |
| Needle Roller Set (6pcs.) | ||||
| 15 | 331888 | 1.73 | 2.09 | |
| Lock Cam | ||||
| 16 | 331904 | 1.73 | 2.09 | |
| Carrier | ||||
| 17 | 333517 | 5.10 | 6.17 | |
| Planet Gear (c) Set (5 Pcs.) | ||||
| 18 | 333518 | 3.45 | 4.17 | |
| Ring Gear | ||||
| 19 | 333519 | 8.10 | 9.80 | |
| Washer (a) | ||||
| 20 | 331892 | 1.73 | 2.09 | |
| Gear Cover | ||||
| 21 | 331893 | 3.45 | 4.17 | |
| Shift Arm | ||||
| 22 | 331894 | 1.73 | 2.09 | |
| Screw Set D2x3.5 (2 Pcs.) | ||||
| 23 | 330579 | 1.88 | 2.27 | |
| Screw Set M3x12 (4 Pieces) | ||||
| 24 | 320087 | 5.10 | 6.17 | |
| Pinion (c) | ||||
| 25 | 331897 | 6.68 | 8.08 | |
| Planet Gear (b) Set (4 Pcs.) | ||||
| 26 | 333520 | 3.45 | 4.17 | |
| Slide Ring Gear | ||||
| 27 | 333521 | 5.10 | 6.17 | |
| Stopper (a) | ||||
| 28 | 335296 | 1.80 | 2.18 | |
| Spring | ||||
| 29 | 333523 | 1.80 | 2.18 | |
| Pinion (b) | ||||
| 30 | 333524 | 3.45 | 4.17 | |
| Needle Bearing Set (4 Pcs.) | ||||
| 31 | 331926 | 8.03 | 9.71 | |
| Planet Gear (a) Set (4 Pcs.) | ||||
| 32 | 334441 | 6.75 | 8.17 | |
| First Ring Gear | ||||
| 33 | 334435 | 5.10 | 6.17 | |
| Washer (b) | ||||
| 34 | 322988 | 1.50 | 1.82 | |
| Motor Spacer | ||||
| 35 | 331902 | 1.73 | 2.09 | |
| Armature And Pinion Set 14.4v | ||||
| 36A | 360976 | 23.51 | 28.45 | |
| Magnet | ||||
| 37 | 334442 | 20.90 | 25.29 | |
| Brush Block | ||||
| 38 | 334436 | 11.55 | 13.98 | |
| Carbon Brush 5x6x11.5 (1 Pair) | ||||
| 39 | 999054 | 6.45 | 7.80 | |
| Carbon Brush 5x6x11.5 (1 Pair) | ||||
| 39A | 999101 | 2.70 | 3.27 | |
| Brush Cap | ||||
| 40 | 319918 | 3.30 | 3.99 | |
| Housing | ||||
| 41 | 334439 | 17.19 | 20.80 | |
| Housing | ||||
| 41B | 334439 | 17.19 | 20.80 | |
| Truss Hd. Screw M4 (black) | ||||
| 42 | 327001 | 1.80 | 2.18 | |
| Hook | ||||
| 43 | 332824 | 4.58 | 5.54 | |
| Lock Nut M4 (black) | ||||
| 44 | 327002 | 1.80 | 2.18 | |
| Gasket | ||||
| 45 | 328644 | 1.80 | 2.18 | |
| Controller Terminal Set | ||||
| 46 | 334437 | 58.99 | 71.37 | |
| Ferrite Core For Europe,aut,nor,sew,den,fin,rus | ||||
| 47 | 334443 | 2.10 | 2.54 | |
| Pushing Button | ||||
| 48 | 331907 | 1.13 | 1.36 | |
| Switch Slide High/Low | ||||
| 49 | 334267 | 7.35 | 8.89 | |
| DC-Speed Control Switch | ||||
| 50 | 333640 | 16.65 | 20.15 | |
| Tapping Screw (w/flange) D3x16 (black) | ||||
| 51 | 313687 | 1.04 | 1.26 | |
| Strap (black) | ||||
| 53 | 306952 | 4.05 | 4.90 | |
| No information available, not orderable | ||||
| 54 | 334419 | |||
| No information available, not orderable | ||||
| 501 | 337140 | |||
| No information available, not orderable | ||||
| 503 | 983006 | |||
| No information available, not orderable | ||||
| 504 | 331906 | |||
| Battery Cover | ||||
| 505 | 329897 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 506 | 336471 | |||
| No information available, not orderable | ||||
| 507 | 336472 | |||
| No information available, not orderable | ||||
| 508 | 336473 | |||
| No information available, not orderable | ||||
| 509 | 336474 | |||
| No information available, not orderable | ||||
| 510 | 336475 | |||
| No information available, not orderable | ||||
| 601 | 303709 | |||
